Overview

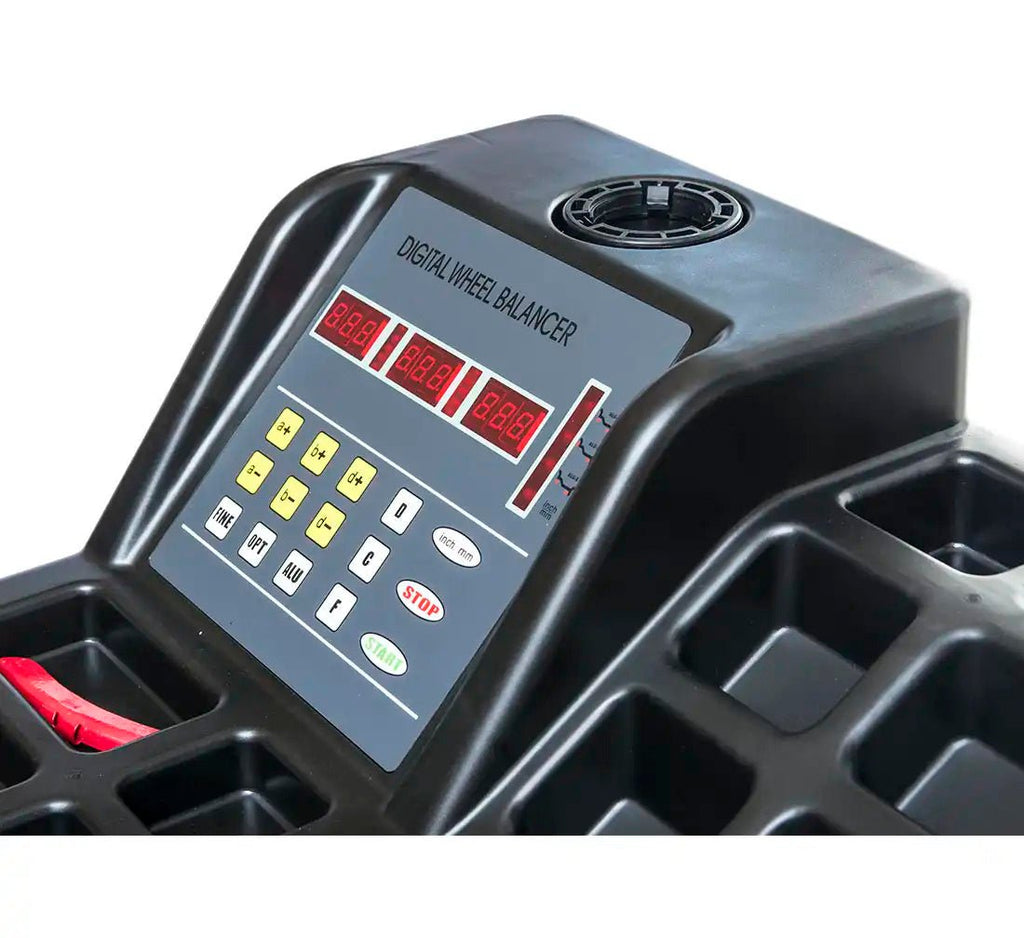

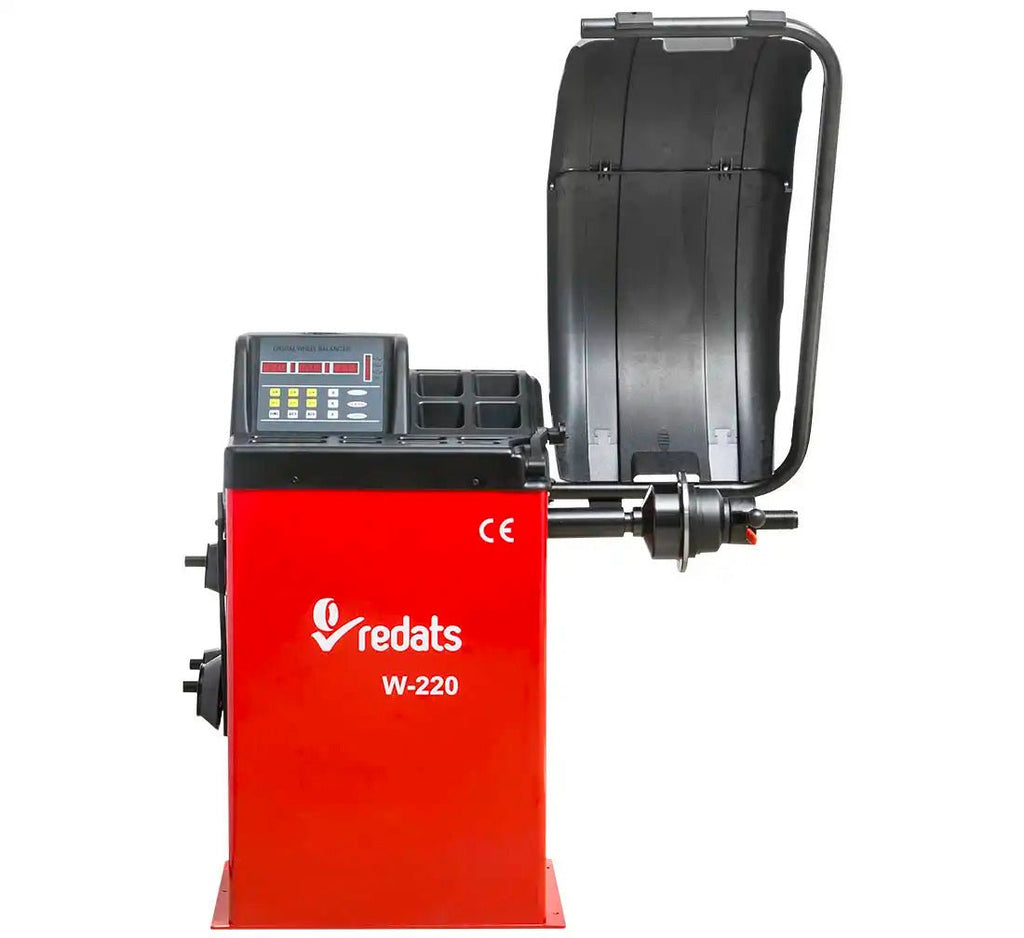

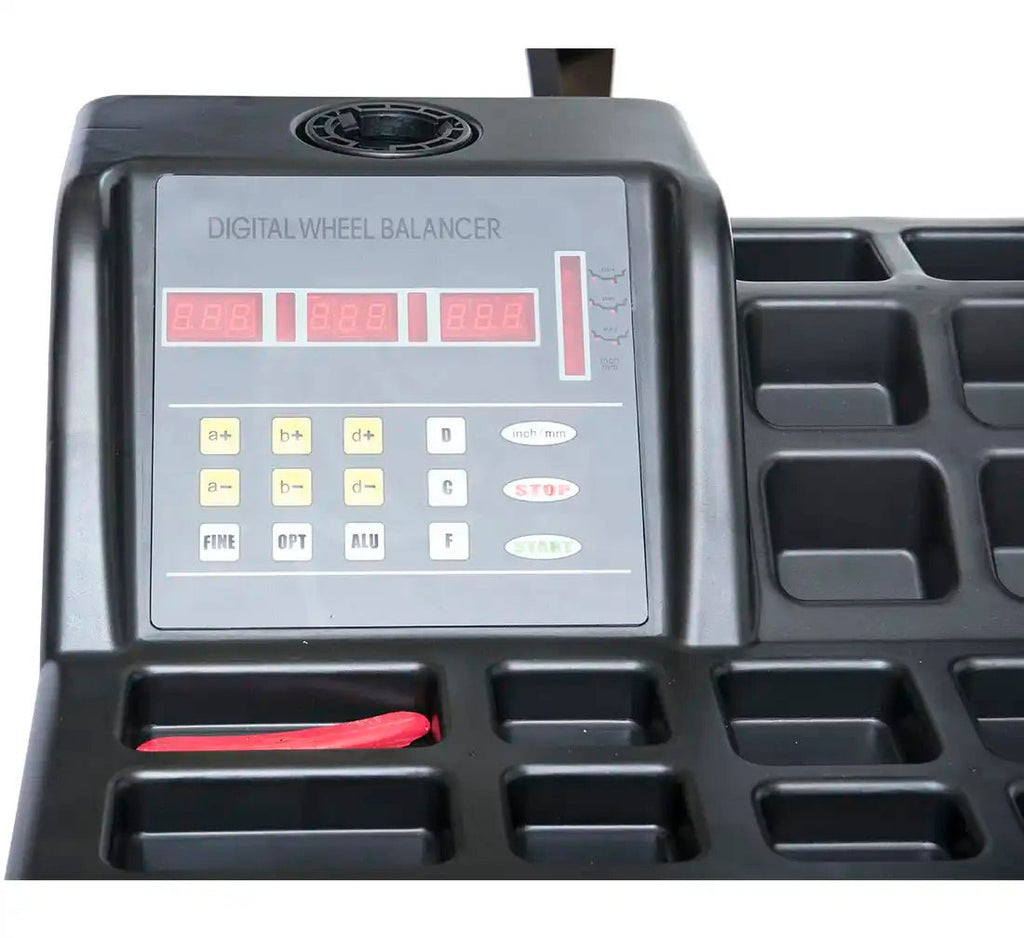

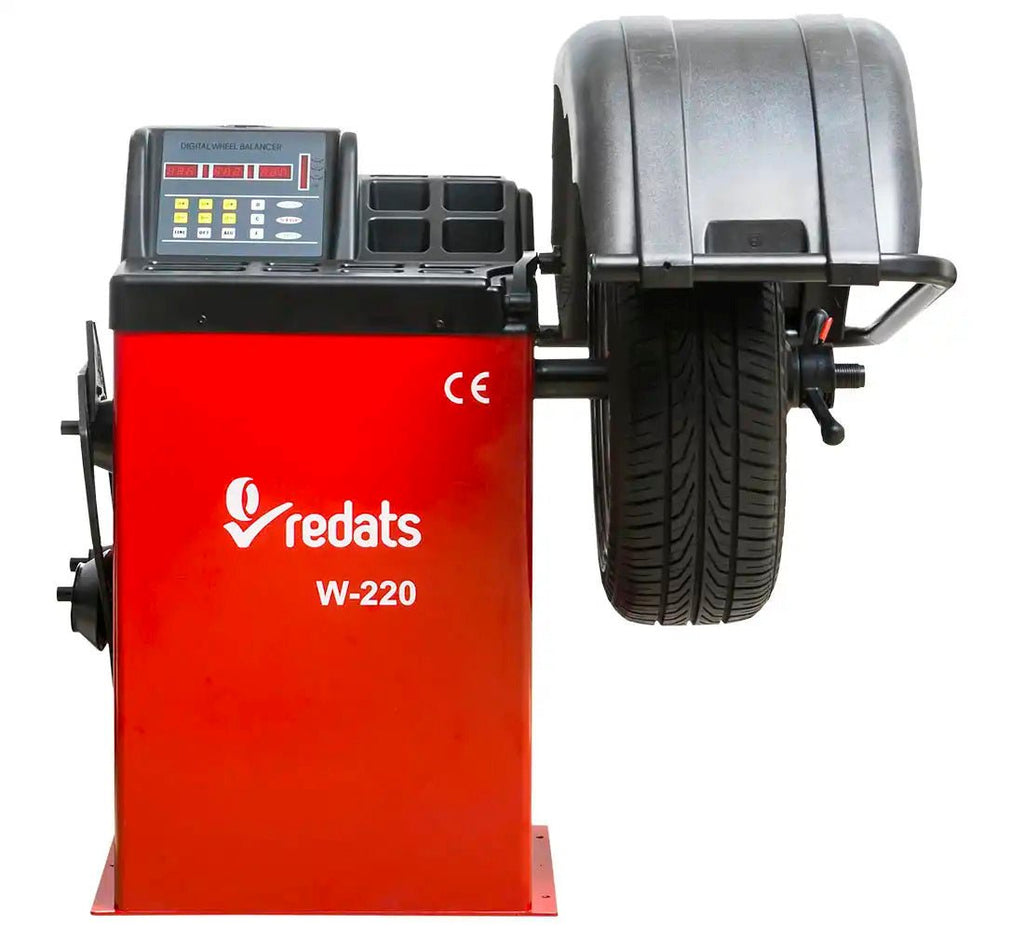

The REDATS W-220 is a fully automatic wheel balancer designed for car and van wheels with diameters from 10 to 24 inches and widths from 1.5 to 20 inches. It features automatic reading of wheel parameters, LED display, piezo sensors, and a minimum residual imbalance detection of 1 gram. The device includes an electromechanical brake, sound signal, and LED indicators for precise weight positioning and operates efficiently with a measurement cycle of approximately 8 seconds.

Specifications

• Wheel diameter range: 10–24 inches
• Wheel width range: 1.5–20 inches
• Maximum wheel weight: 65 kg
• Power supply: 230 V, 50 Hz
• Rotation speed: 200 rpm
• Noise level: less than 70 dB
• Minimum imbalance detection: 1 gram
• Display type: LED
• Power consumption: 0.2 kW
• Shaft diameter: 36 mm
• Shaft thread: 36×3 mm pitch
• Dimensions (H×W×D): 1097 × 737 × 1500 mm
• Weight: 76 kg
• 3 ALU programs plus ALU-S
• Electromechanical brake with LED and sound for shaft positioning

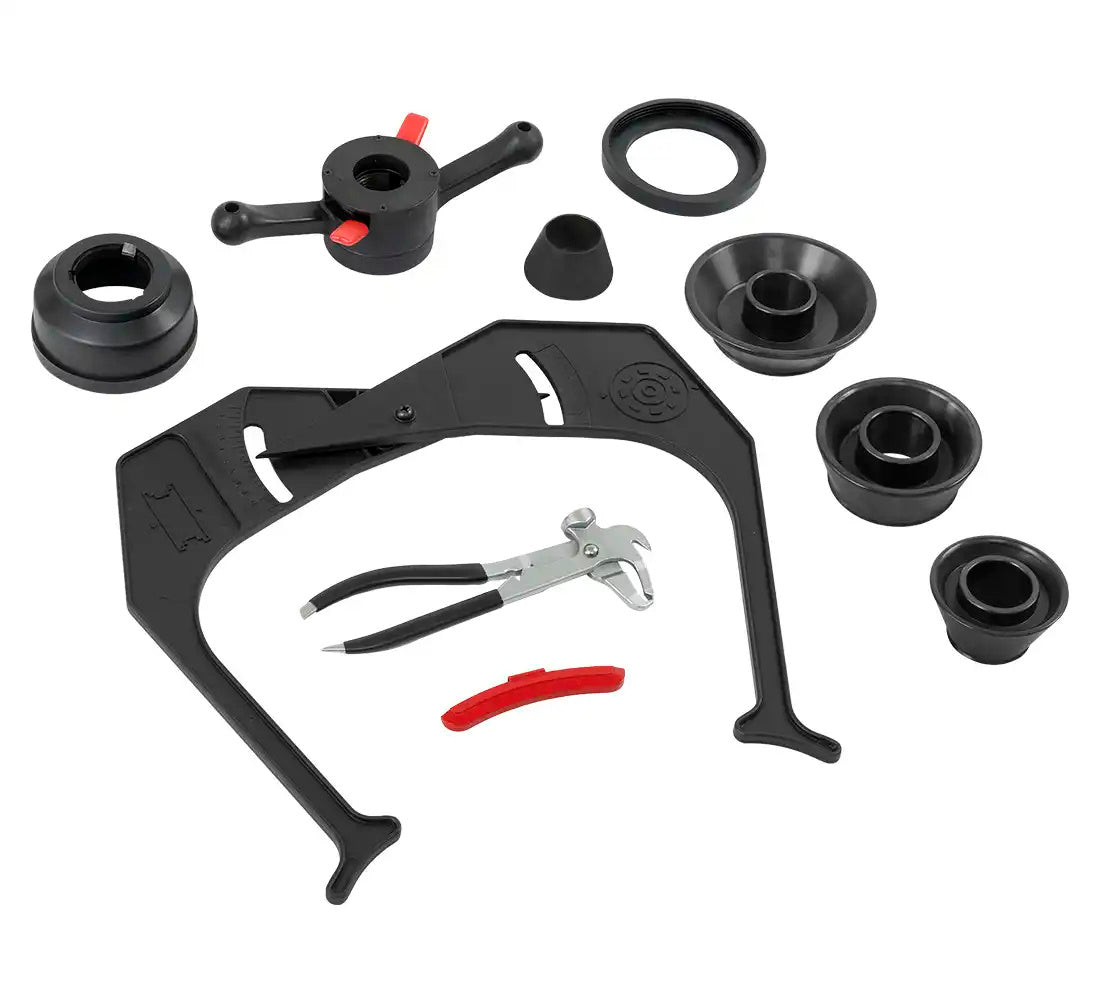

What's included

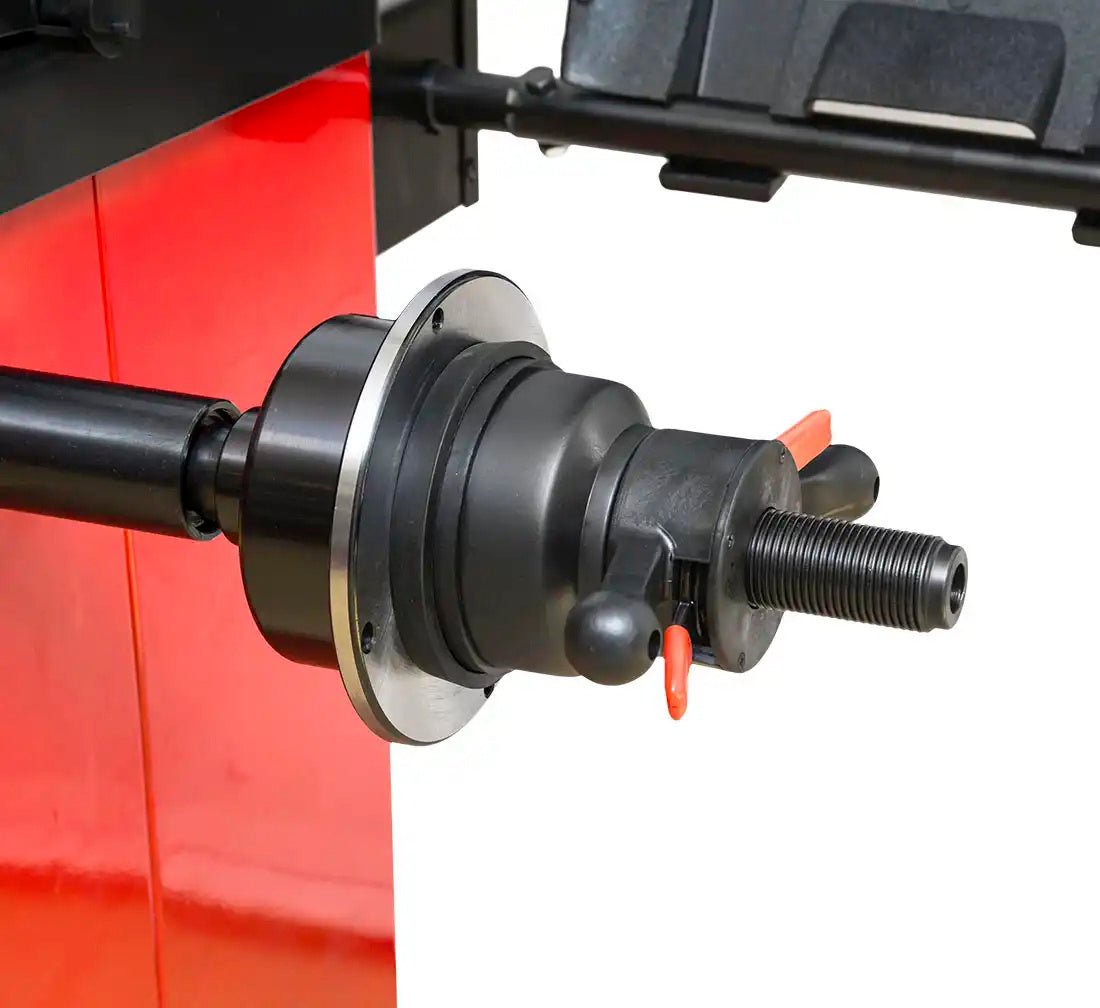

• Quick-nut (quick fastening nut)
• 4 centering cones: 43–66 mm, 65–85 mm, 84–102 mm, 94–135 mm
• Weight pliers
• Calibration weight 100 g

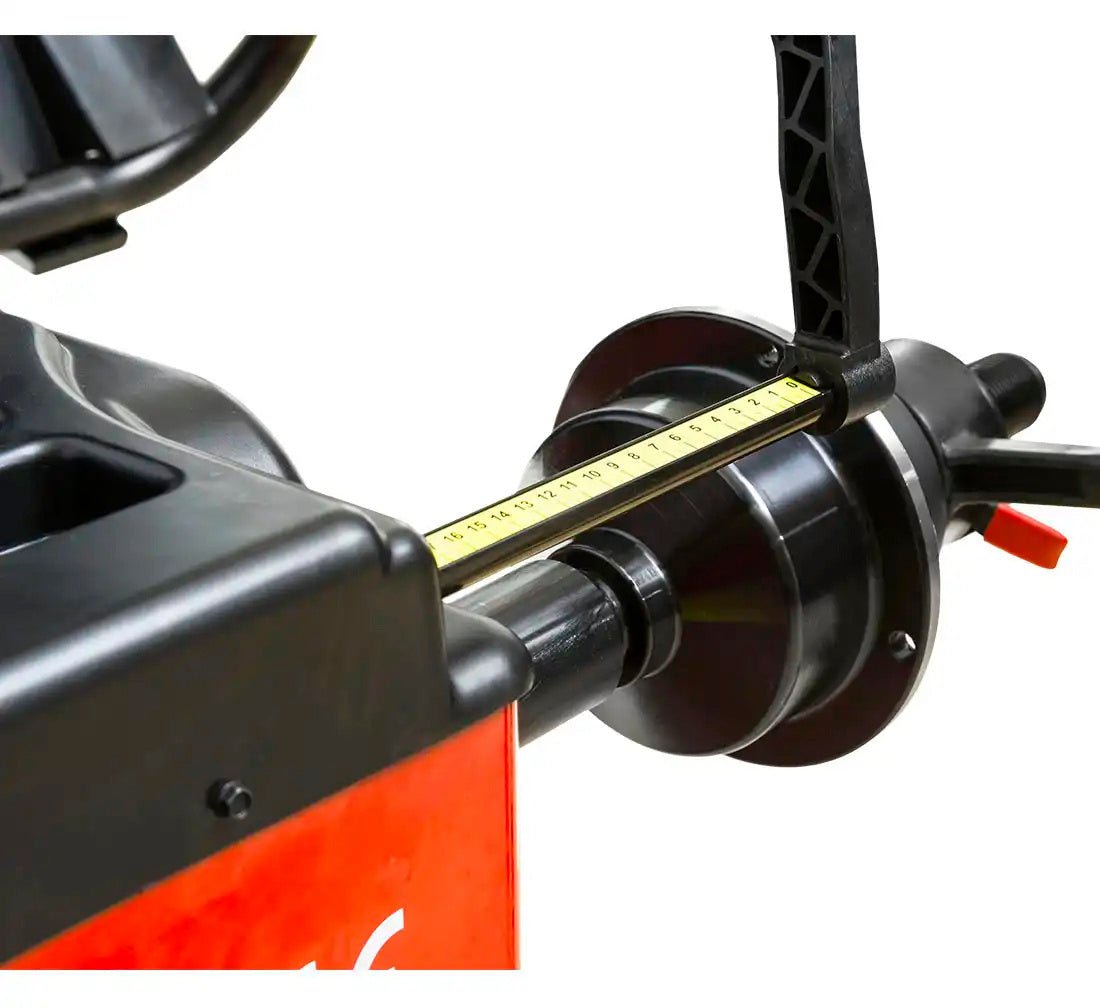

• Plastic gauge for measuring rim width
• Large rubber-mounted bushing and small bushing
• Threaded shaft 36×3
• 3 tapered spacers
• Protective wheel cover
• Paper manual
