Overview

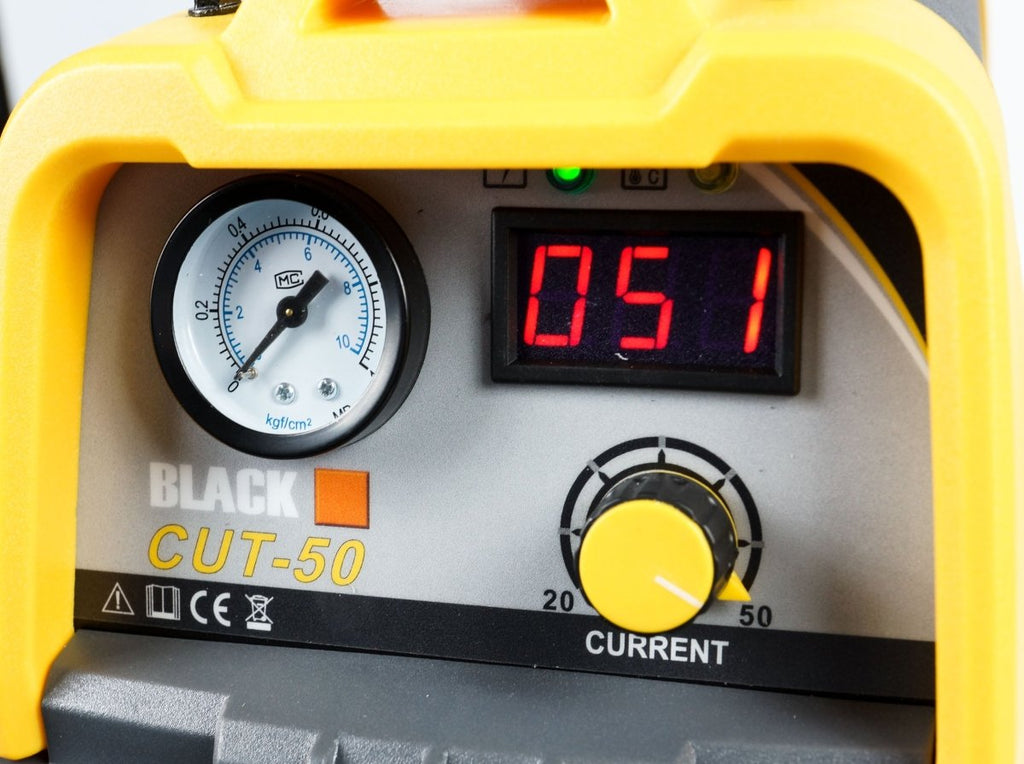

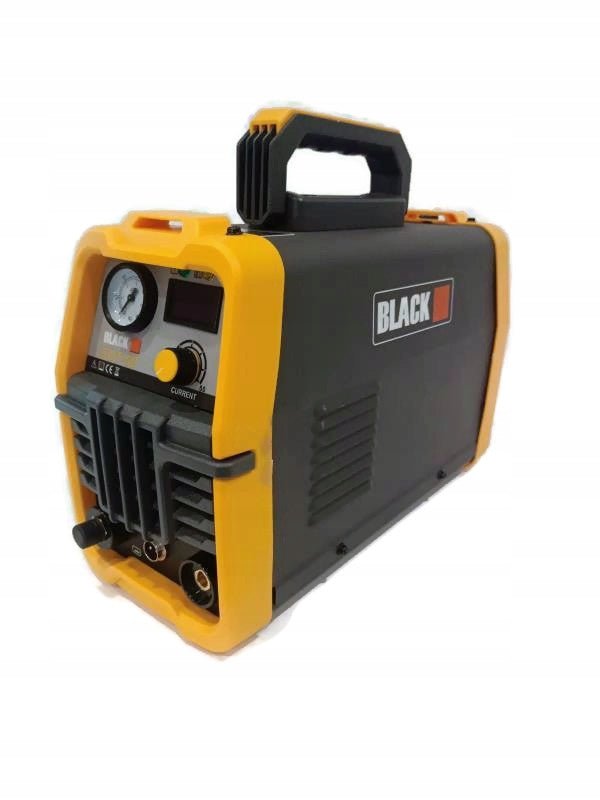

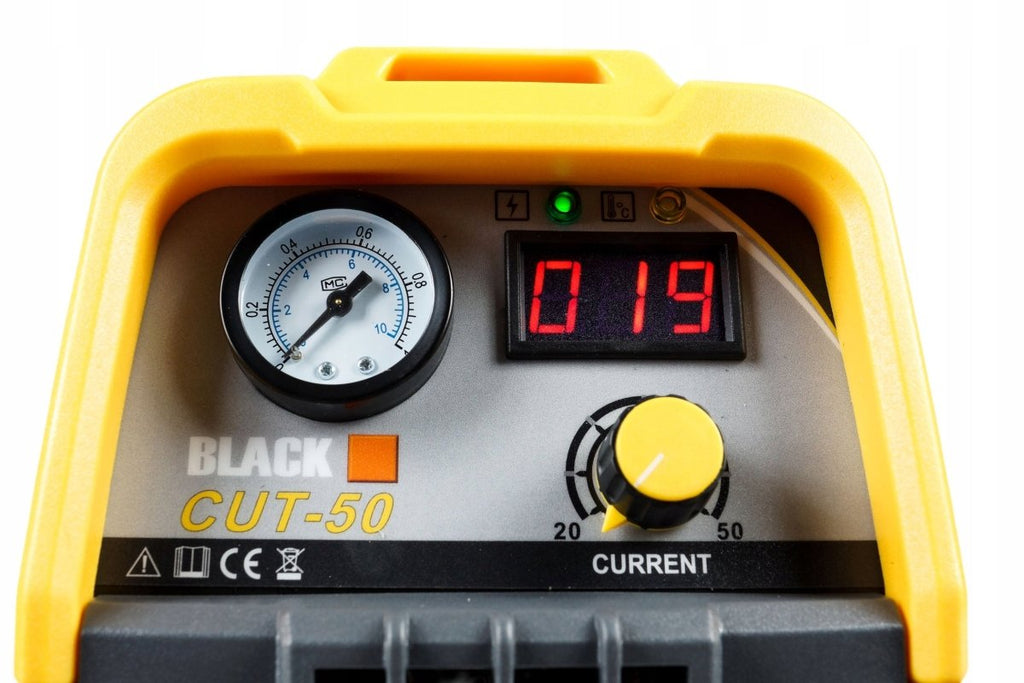

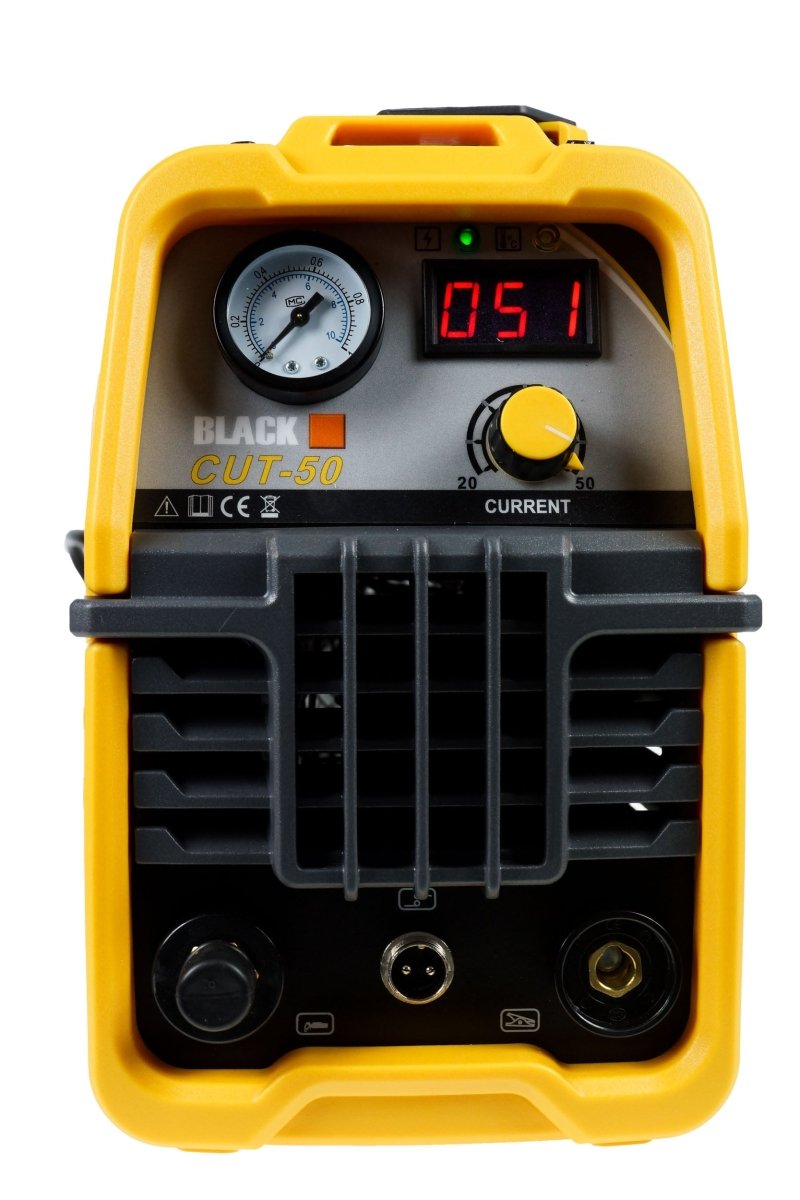

The CUT50 plasma cutter is designed for manual air plasma cutting of electrically conductive materials such as carbon and alloy steel, aluminum and its alloys, brass, copper, and cast iron. It is suitable for garage work, repairs, and scrap metal cutting. The device features overload protection, grounding cable, air preparation system, and power cable. It is compact and lightweight, with smooth current adjustment and uses advanced IGBT transistor technology to reduce electromagnetic interference and energy loss.

Specifications

• Power supply: 230V 50Hz
• Power consumption: 5.5 kW
• Required protection: 20A
• Maximum cutting current: 50A
• No-load voltage: 270V
• Maximum cutting thickness of structural steel: 12mm
• Quality cutting thickness: 8mm
• Required air pressure: 5 BAR
• Air consumption: approximately 120 L/min
• Efficiency: 60%
• Protection class: IP2

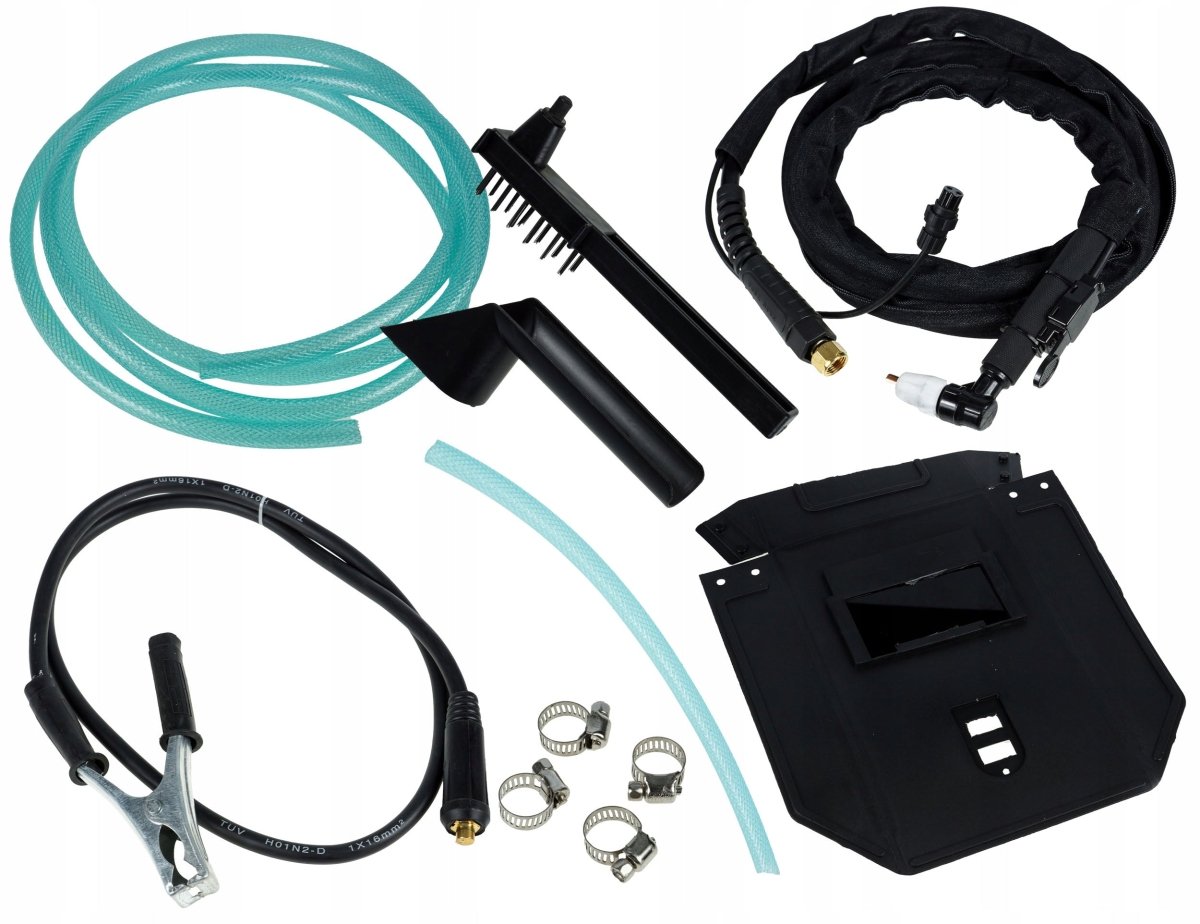

What's included

• Overload protection
• Grounding cable
• Air preparation system
• Power cable
