Overview

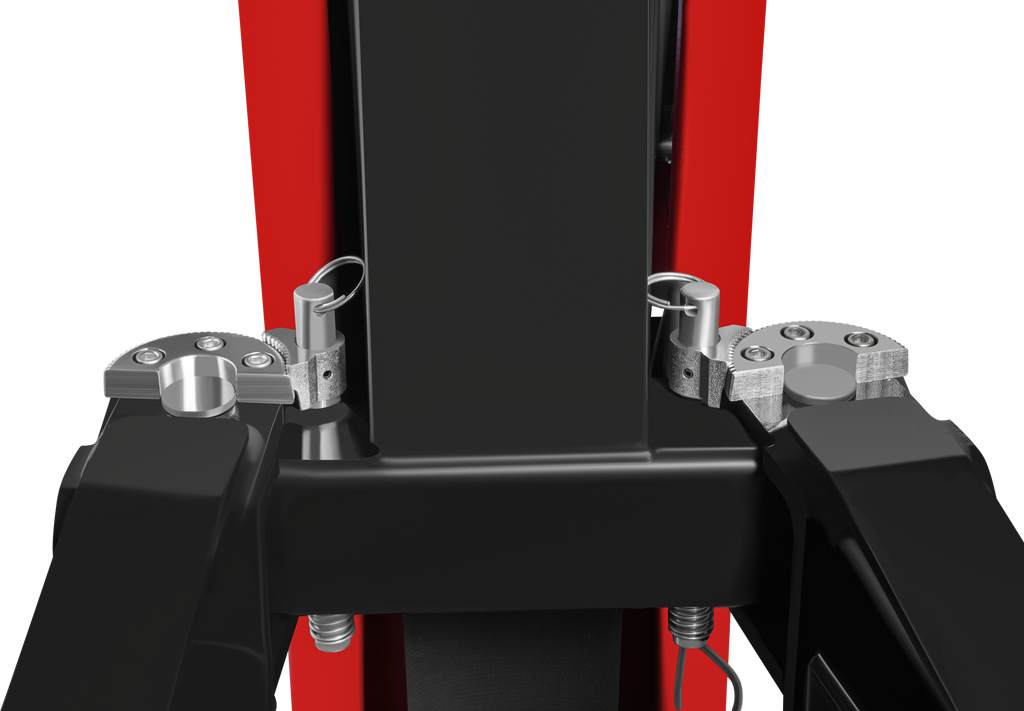

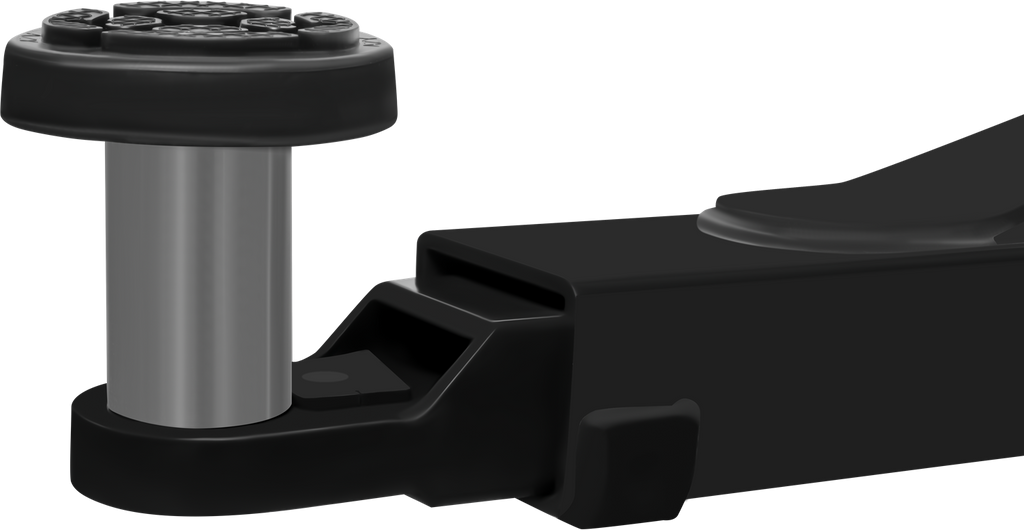

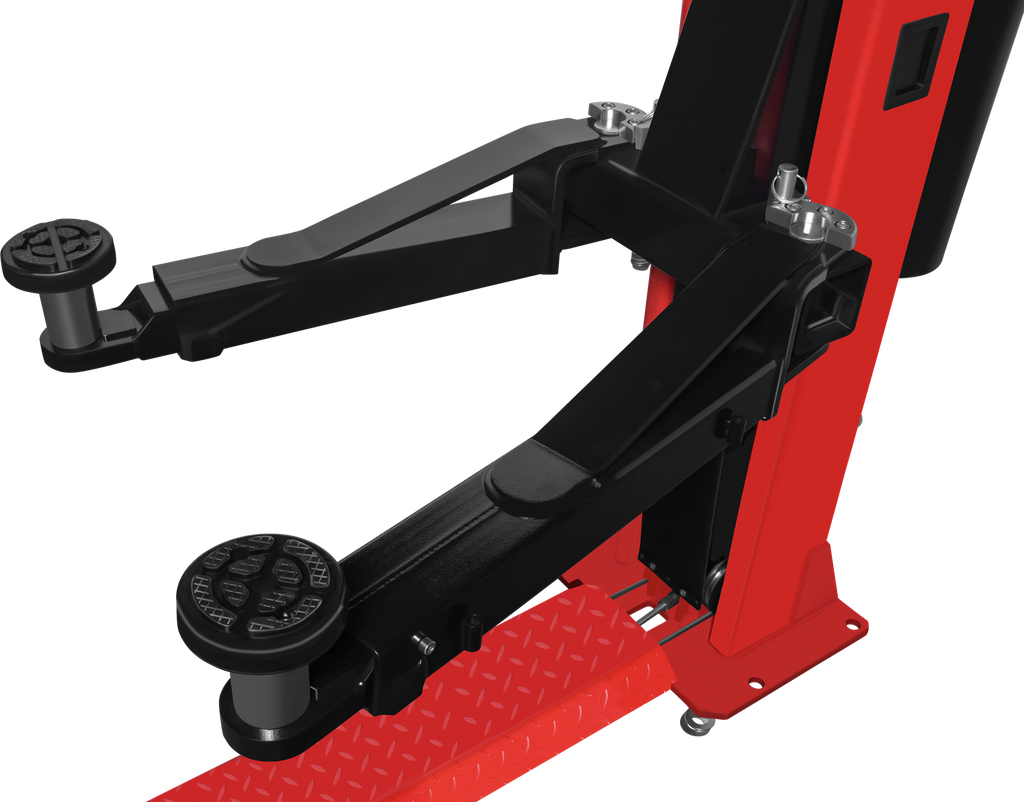

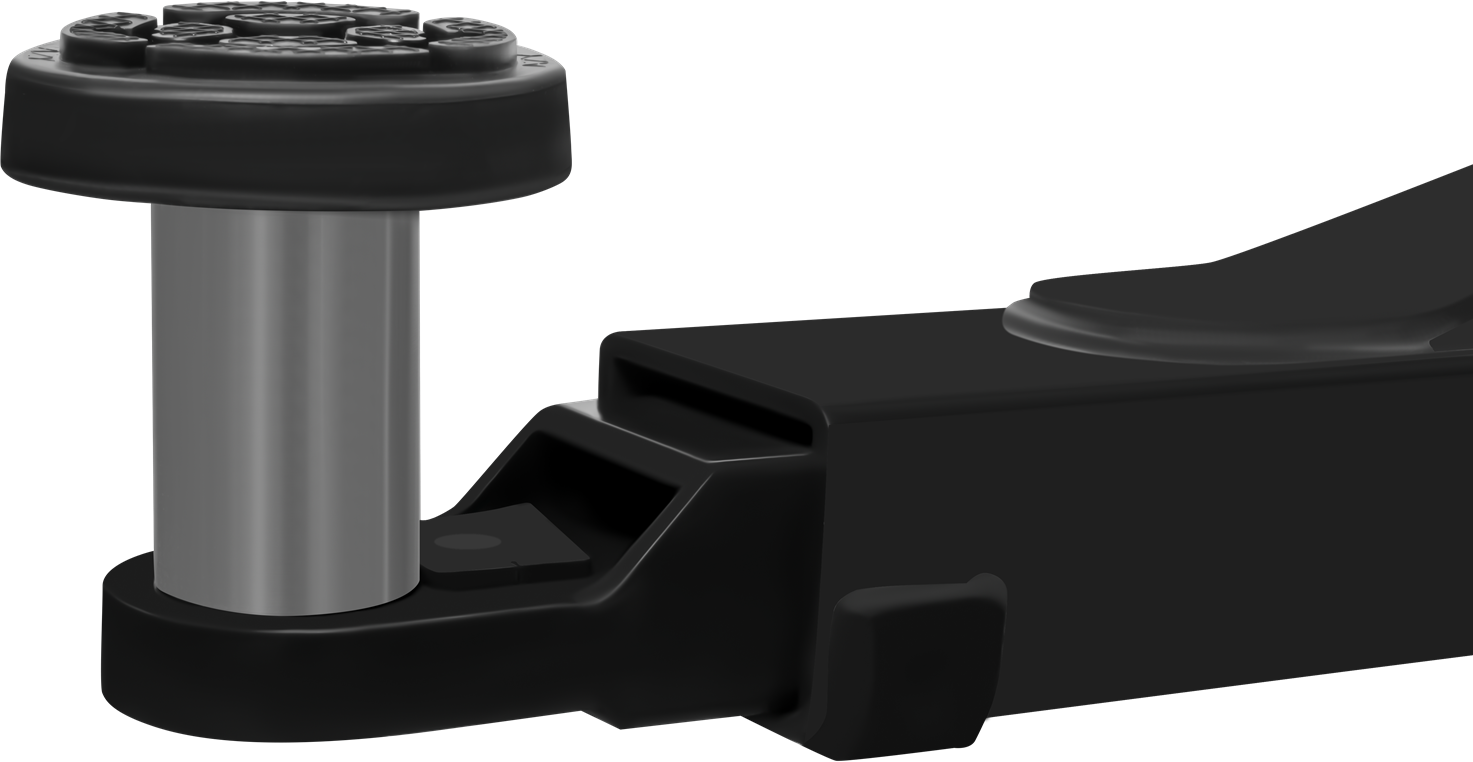

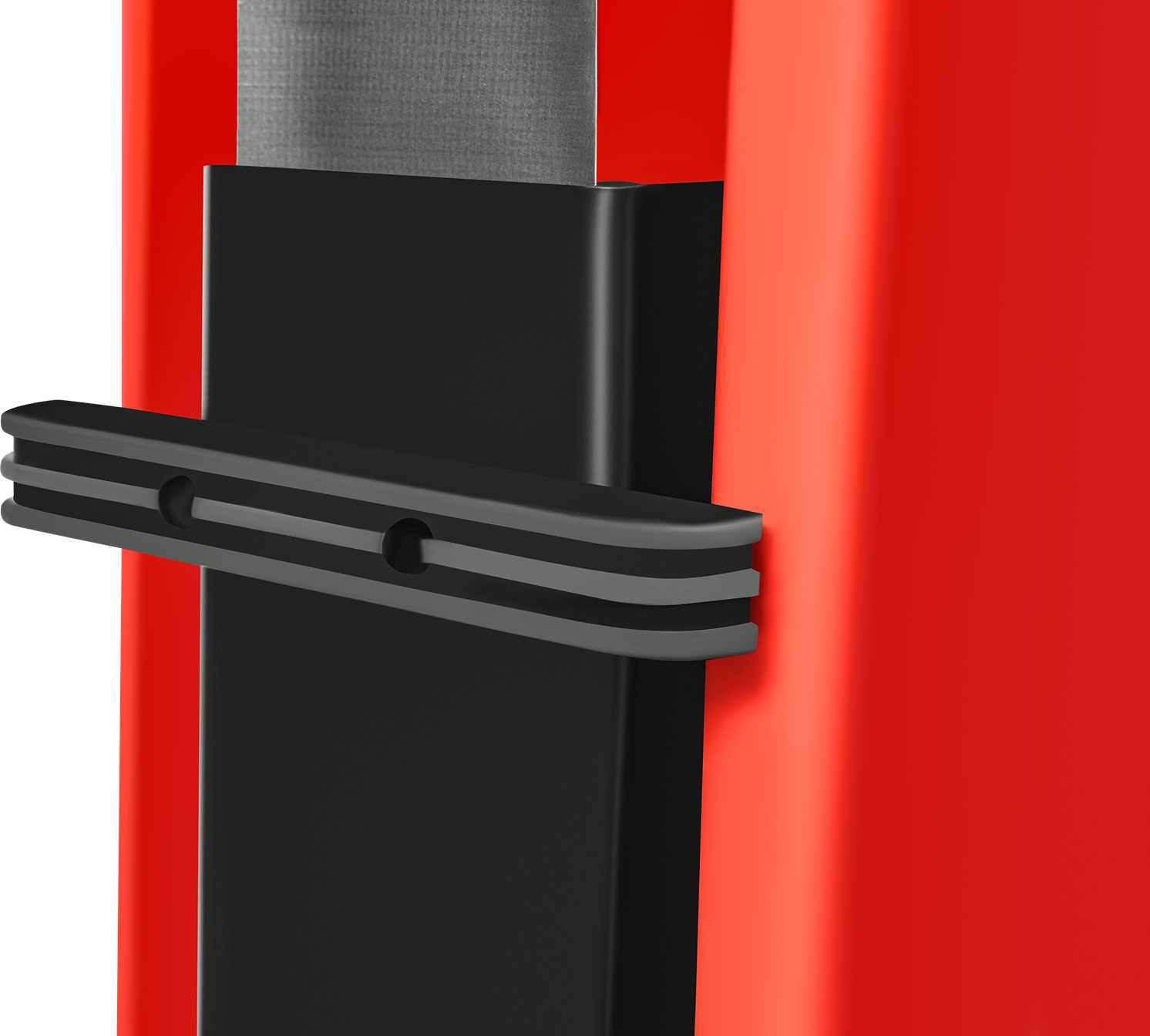

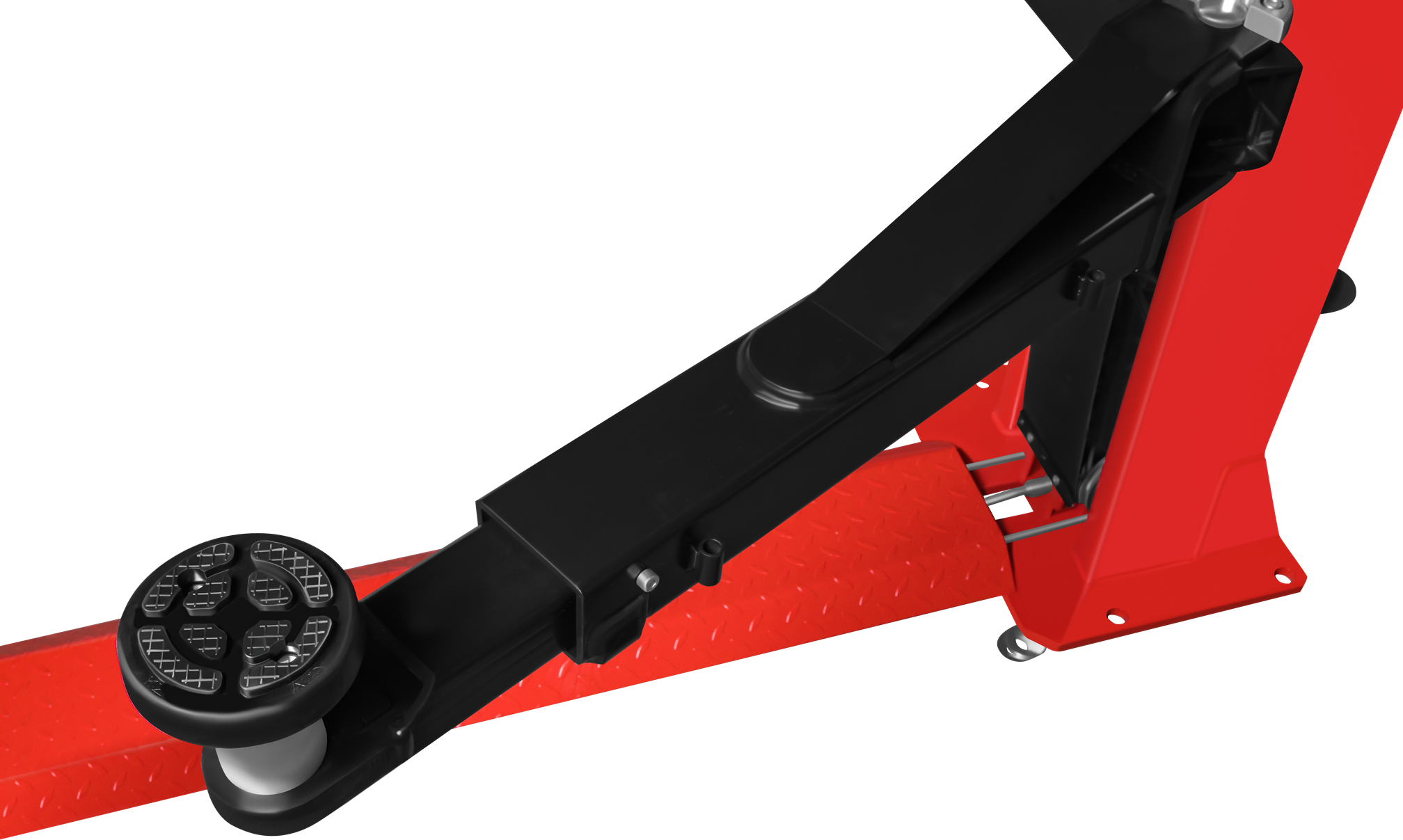

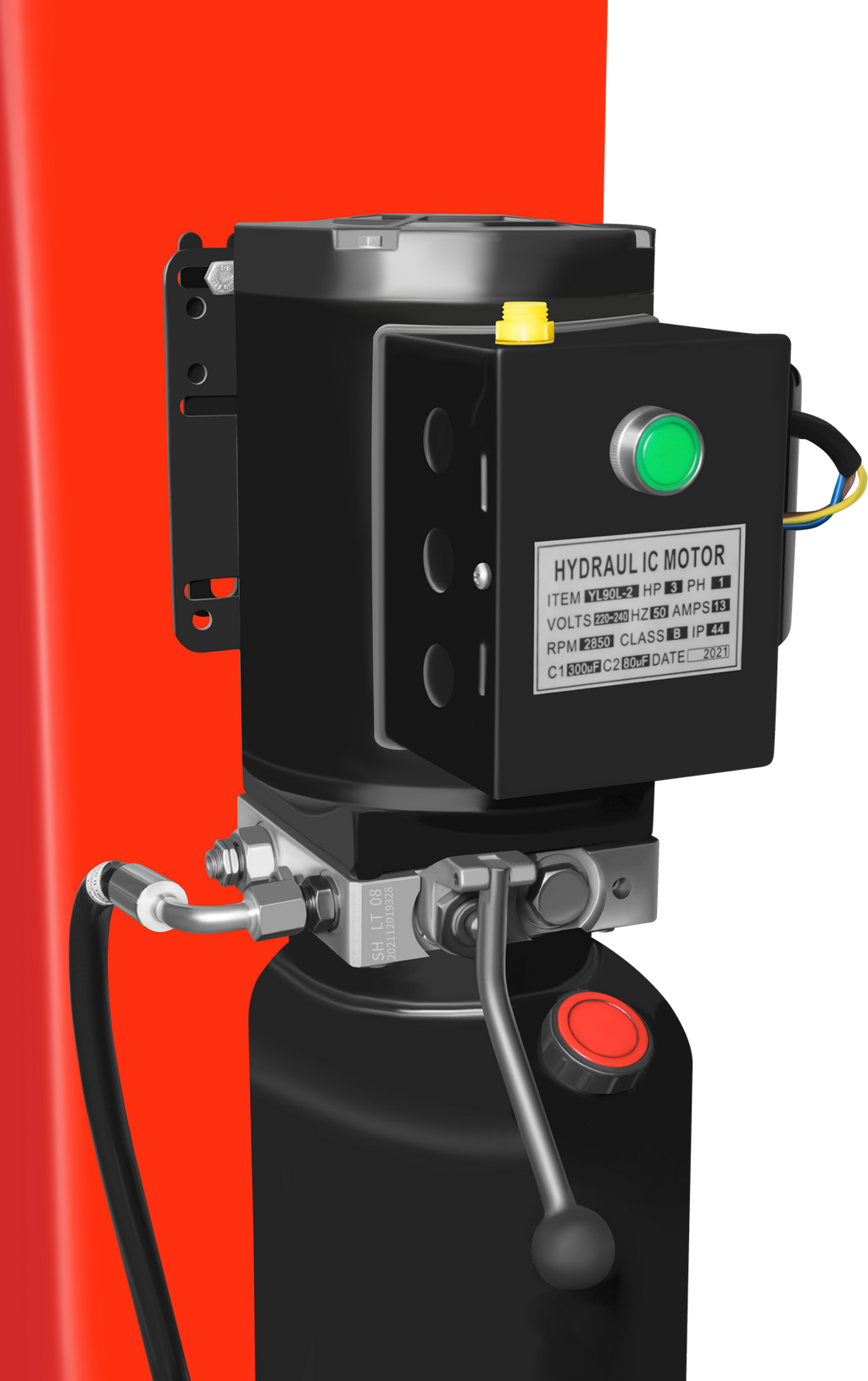

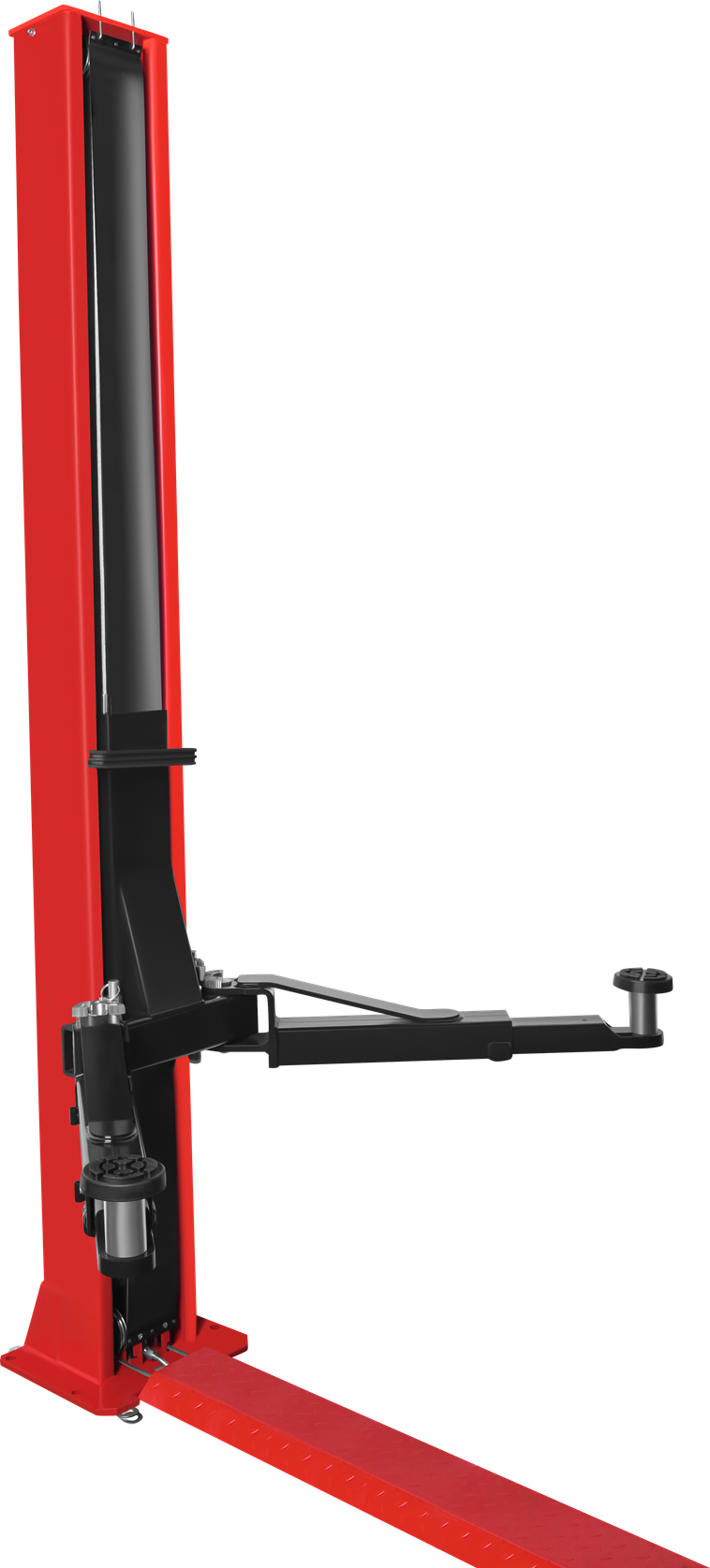

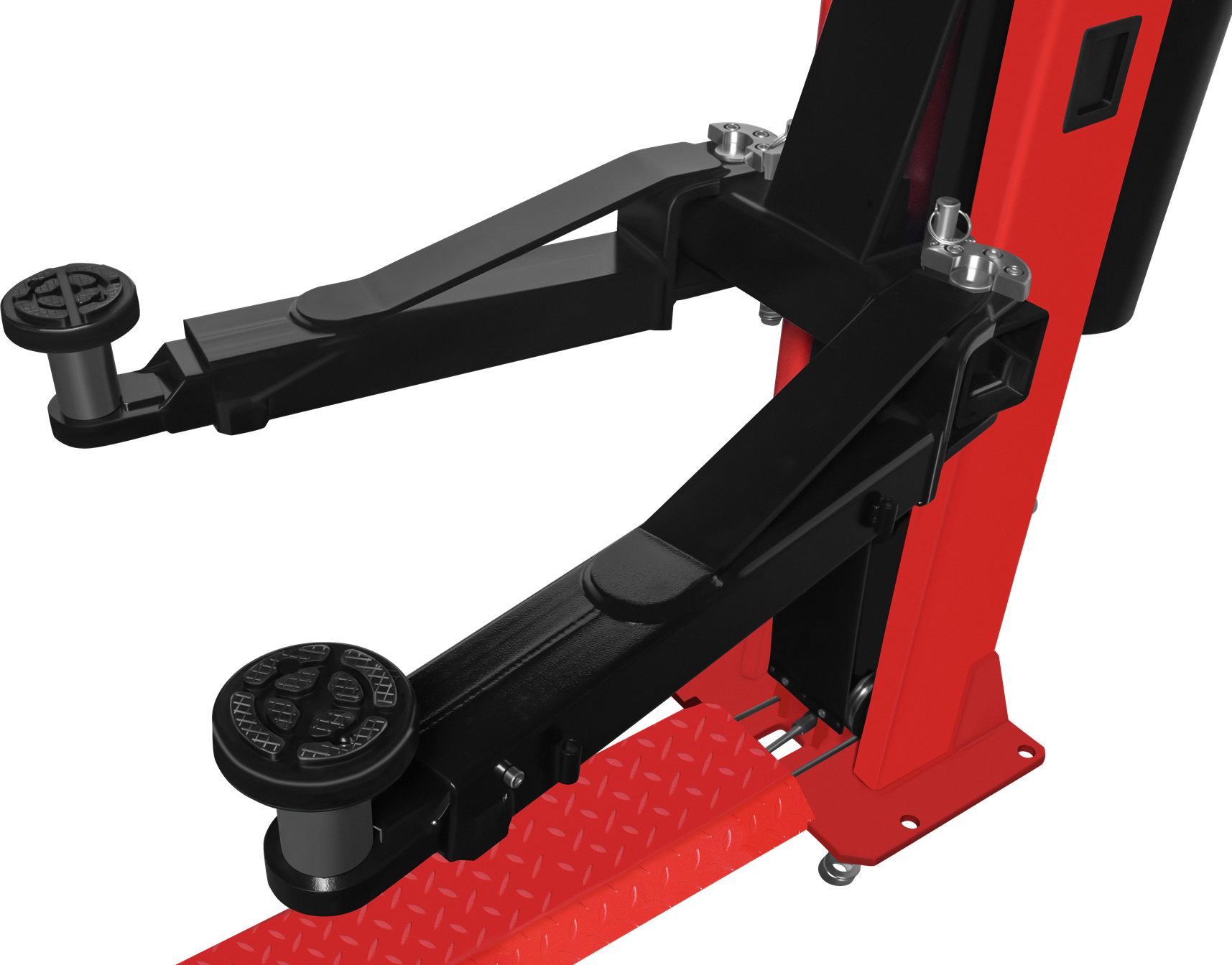

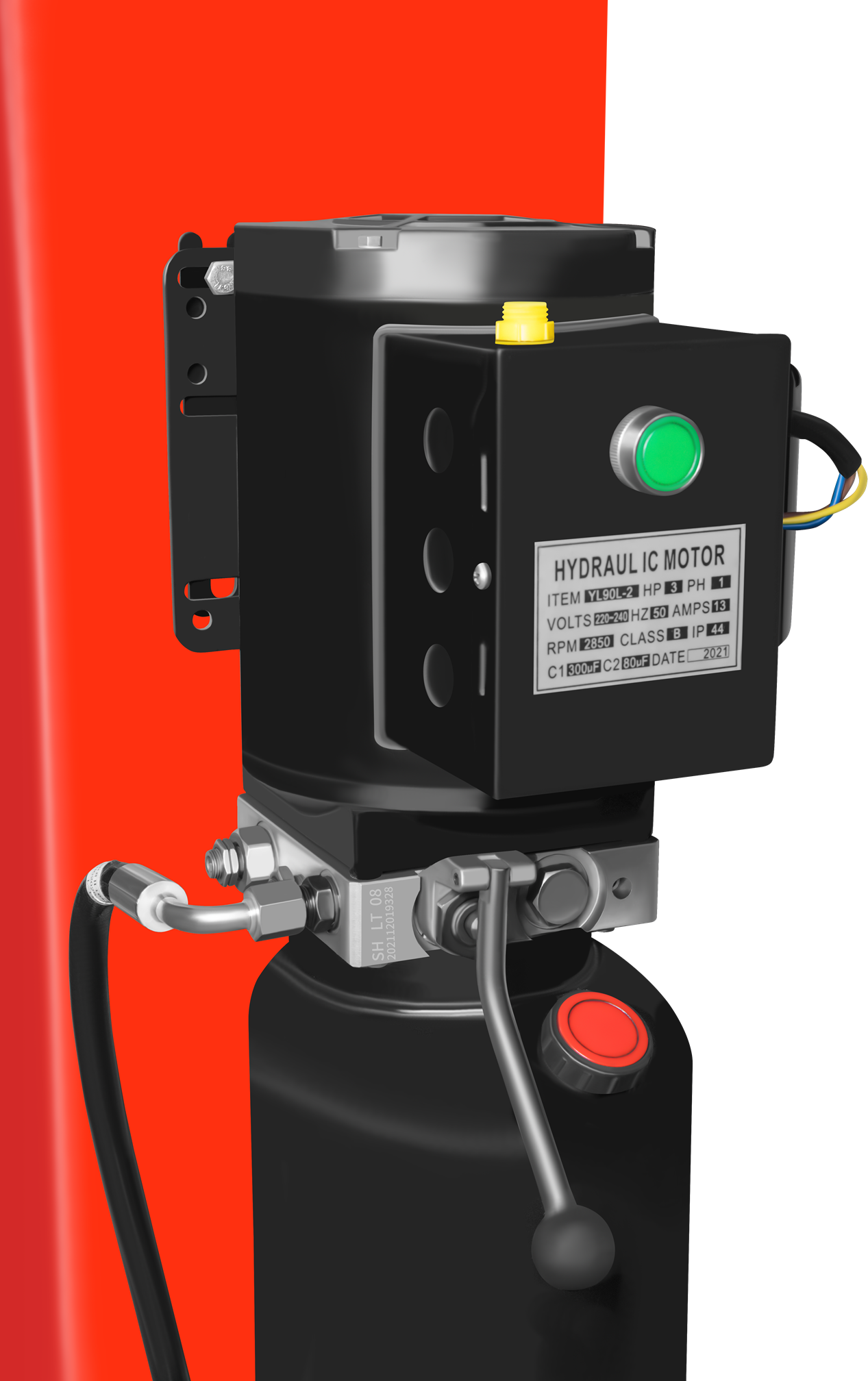

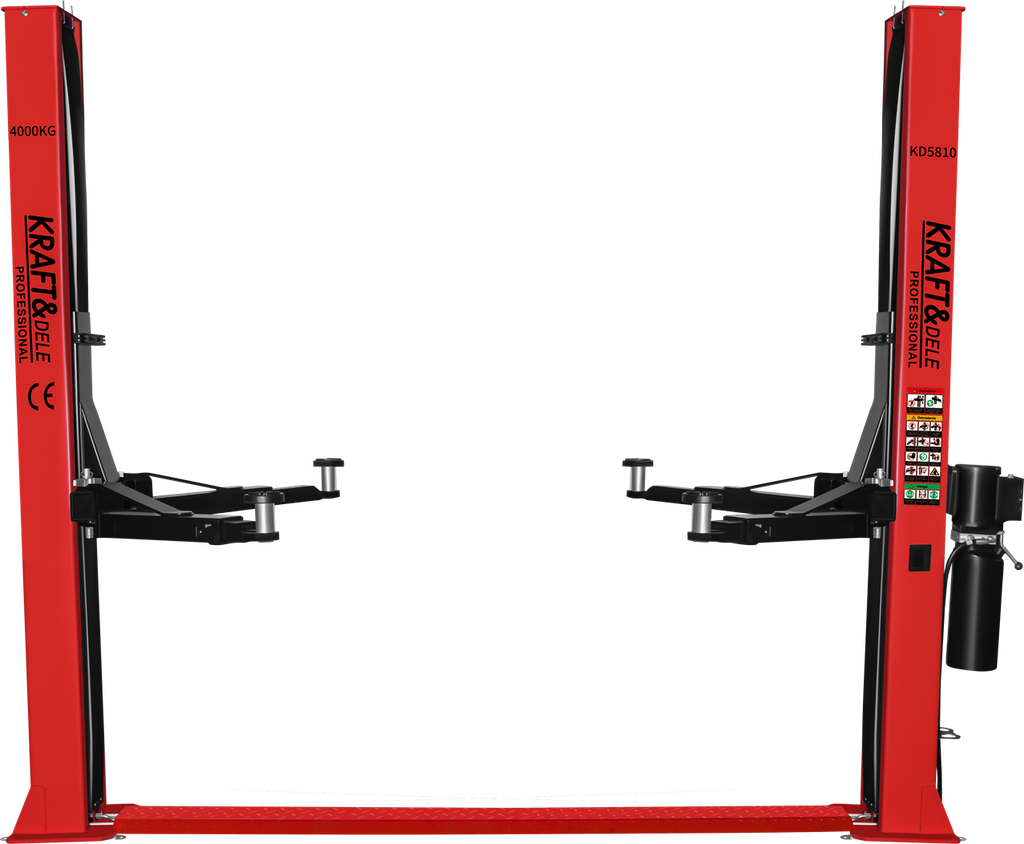

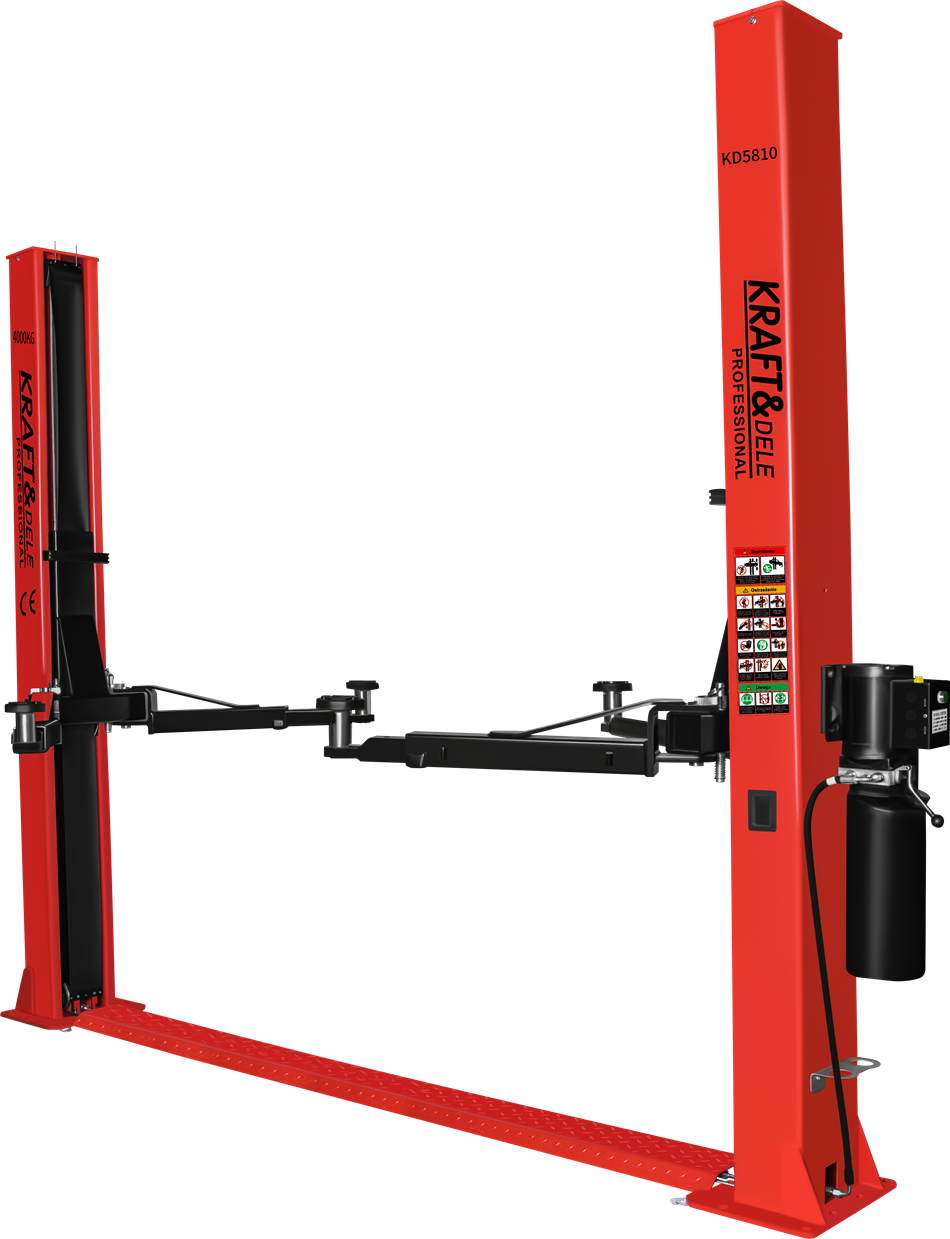

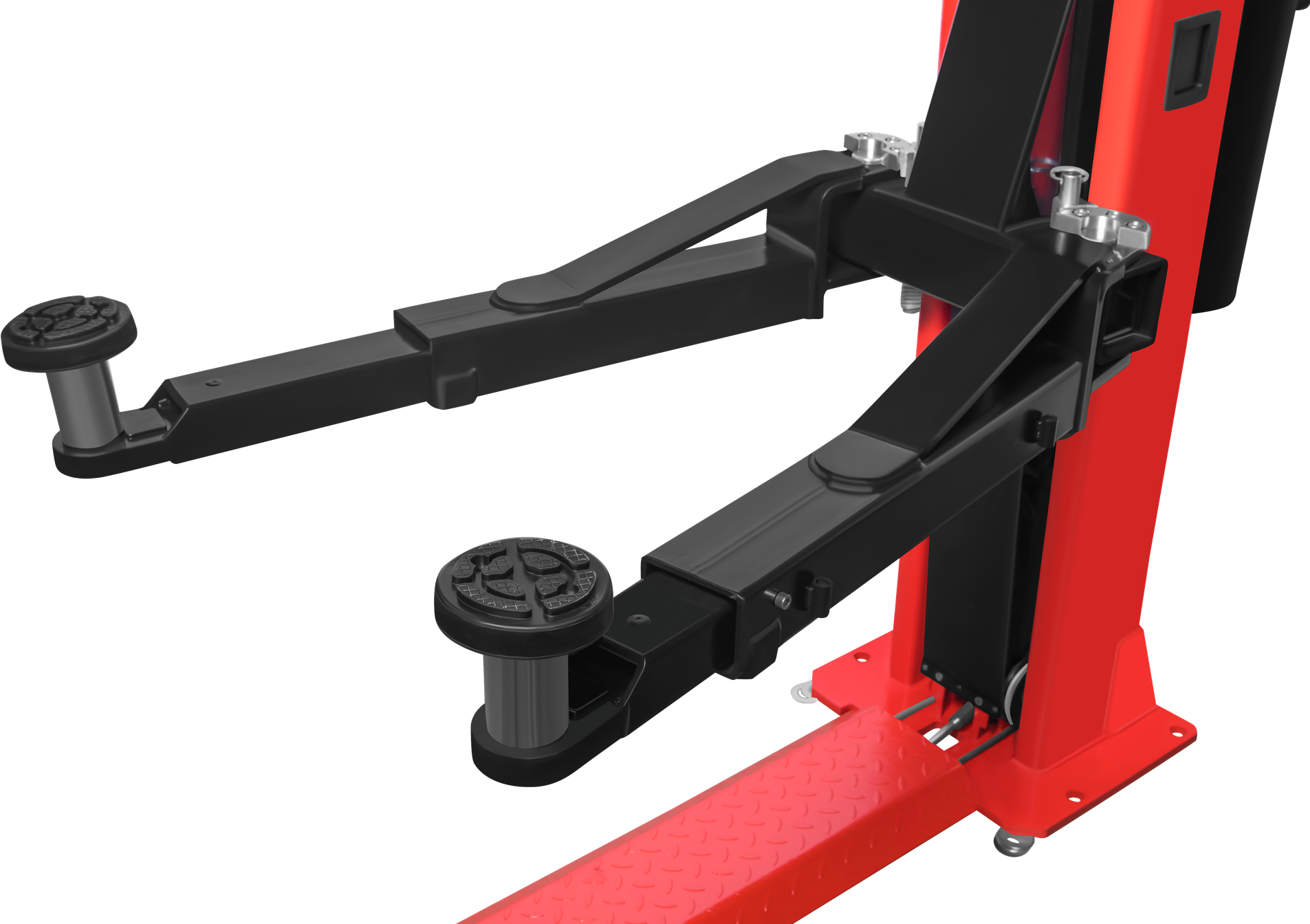

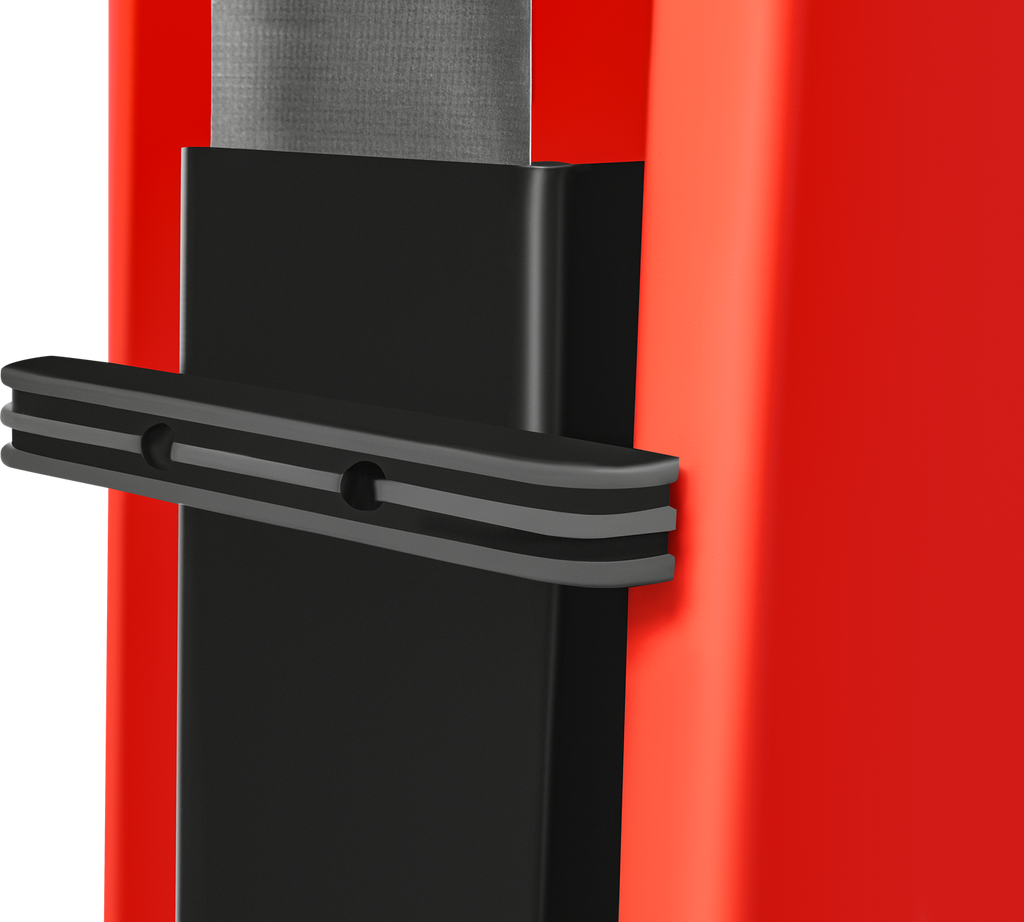

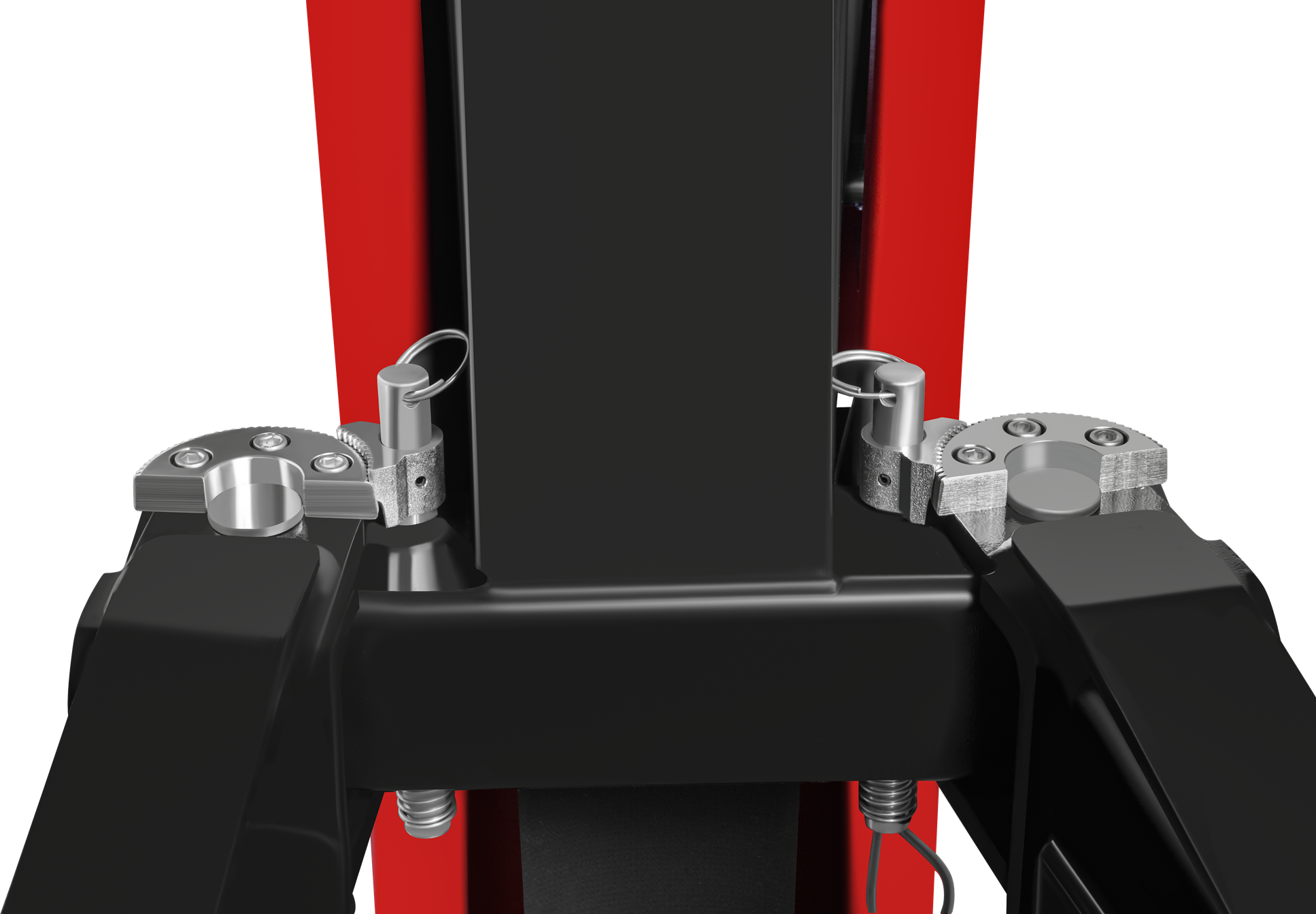

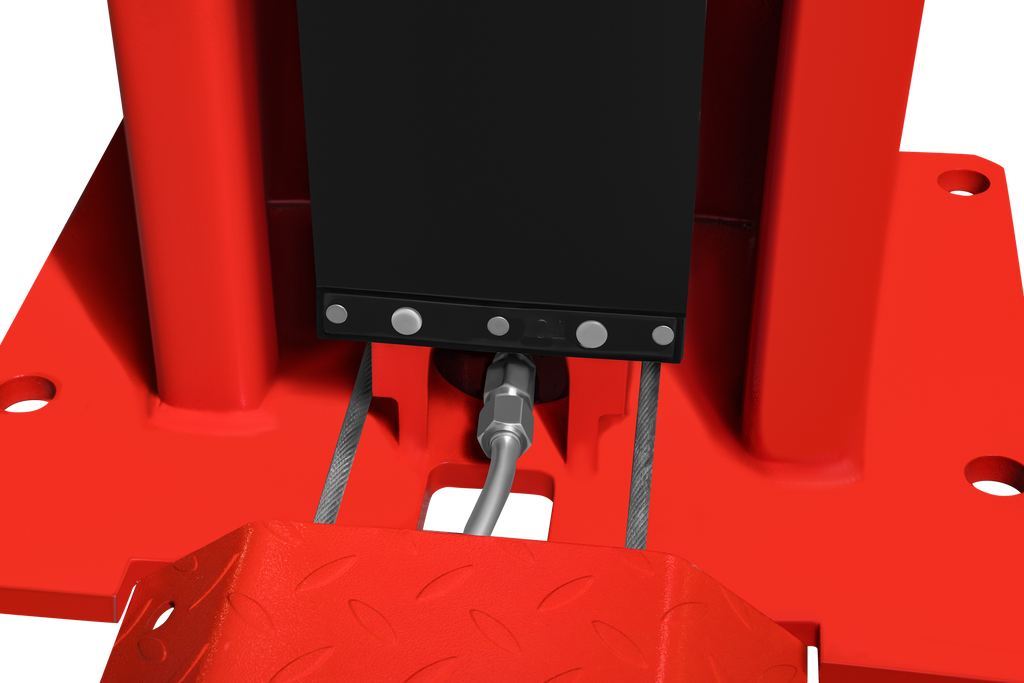

Hydraulic Semi-Automatic Column Lift KD5810 KD5810 is a professional hydraulic semi-automatic column lift by KRAFT&DELE, designed for intensive work in car workshops and mechanical service centers. Its solid construction and high load capacity make the device ideal for servicing passenger cars and light delivery vehicles. Asymmetric, 2-stage arms allow precise vehicle positioning and convenient access to the chassis. Fast lifting and lowering times and low noise levels make the lift an efficient and comfortable tool for daily workshop work. PRODUCT FEATURES: suitable for a wide range of vehicles ✅ Semi-automatic lifting and lowering system ✅ Asymmetric, 2-stage arms facilitating vehicle positioning ✅ Fast lifting and lowering times ✅ Low noise level comfortable workshop operation ✅ Protective curtain securing cables and mechanisms ✅ Door bumpers protecting the vehicle body ✅ Solid construction designed for intensive use TECHNICAL DATA: ⚙️ Model KD5810 ⚙️ Motor power 2.2 kW ⚙️ Asymmetric, 2-stage arms ⚙️ Lifting time 60 s ⚙️ Lowering time 60 s ⚙️ Oil pressure 20 MPa ⚙️ Oil tank capacity 10 l ⚙️ Curtains on columns YES ⚙️ Chain 8 links ⚙️ Door bumpers YES PRODUCT CONTENT: ✅ Hydraulic semi-automatic column lift KD5810 ✅ Receipt or VAT invoice hydraulic lift; semi-automatic lift; car lift; workshop lift; two-column lift; 4000kg lift;

Specifications

• The KD5810 model offers a lifting capacity of up to 4000 kg and three-phase 400 V power supply with a 2.2 kW motor.
• ✅ Load capacity up to 4000 kg
• ⚙️ Power supply 400 V
• ⚙️ Load capacity 4000 kg
• ⚙️ Max. lifting height 1900 mm
• ⚙️ Min. lifting height 110 mm
• ⚙️ Total width 3470 mm
• ⚙️ Total height 2800 mm
• ⚙️ Distance between columns 2800 mm
• ⚙️ Max. vehicle width 2500 mm
• ⚙️ Arm length 890–1390 mm / 700–1100 mm
• ⚙️ Noise level < 70 dB
• ⚙️ Gross weight 570 kg
• Keywords: column lift

What's included

• ✅ User manual in Polish
• ✅ Original packaging
• ✅ Warranty

Notes

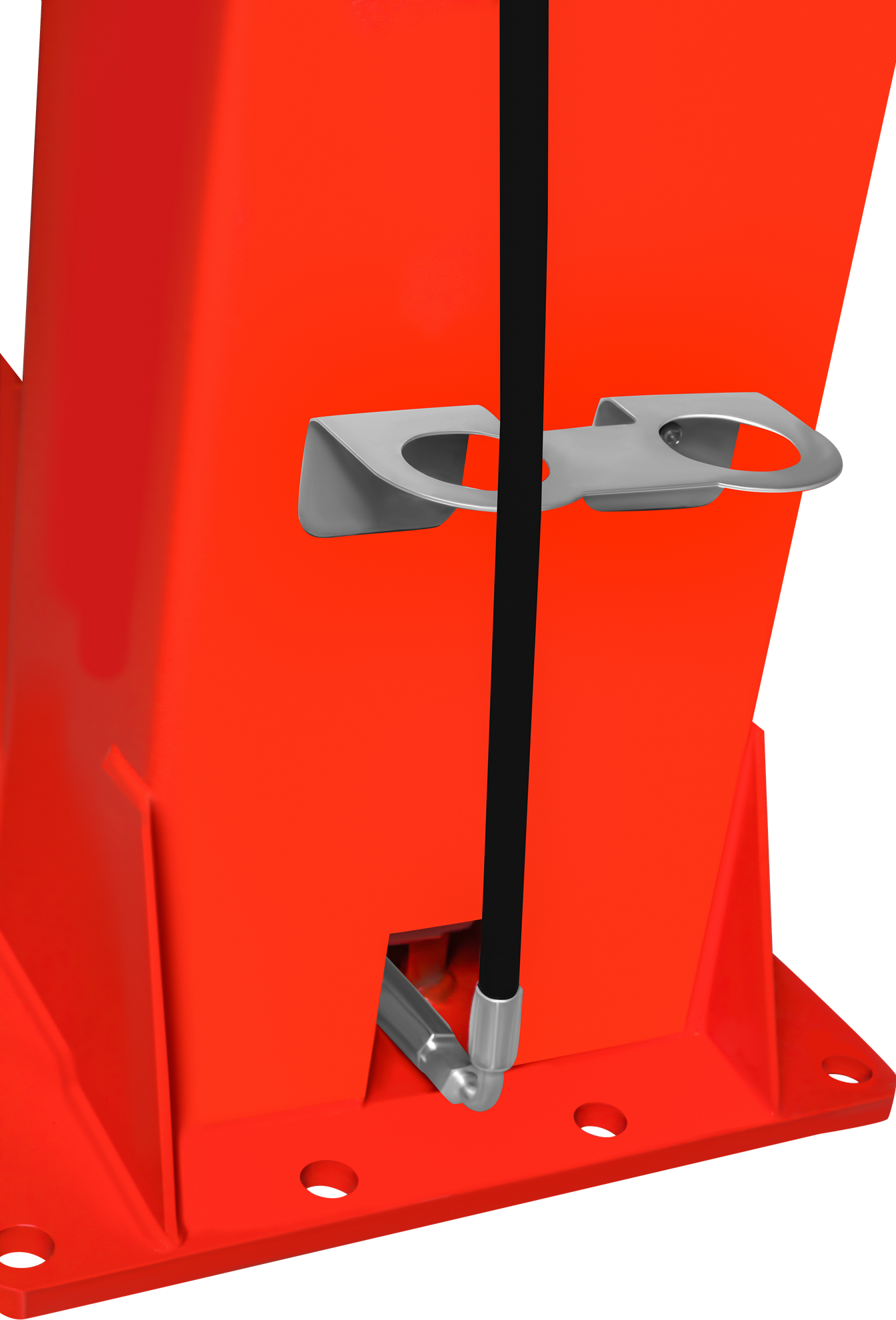

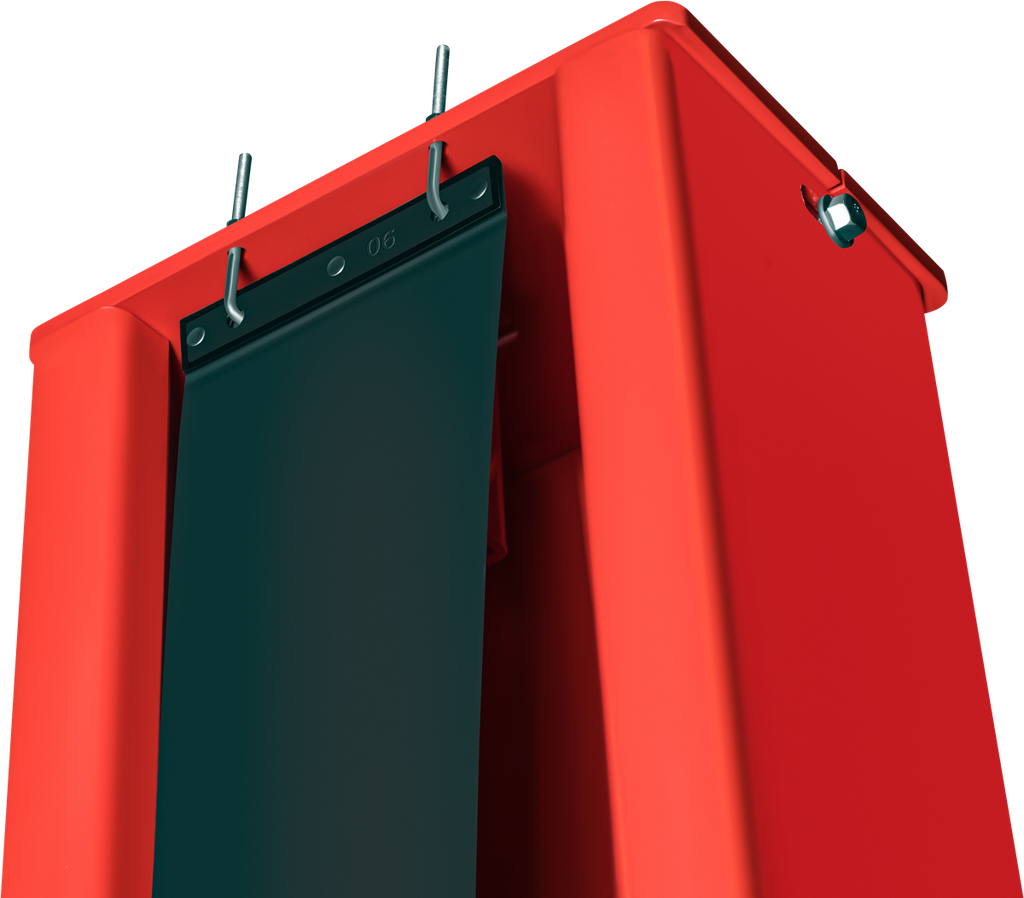

The use of protective curtains on the columns, door bumpers, and a sturdy chain increases operational safety.
