Overview

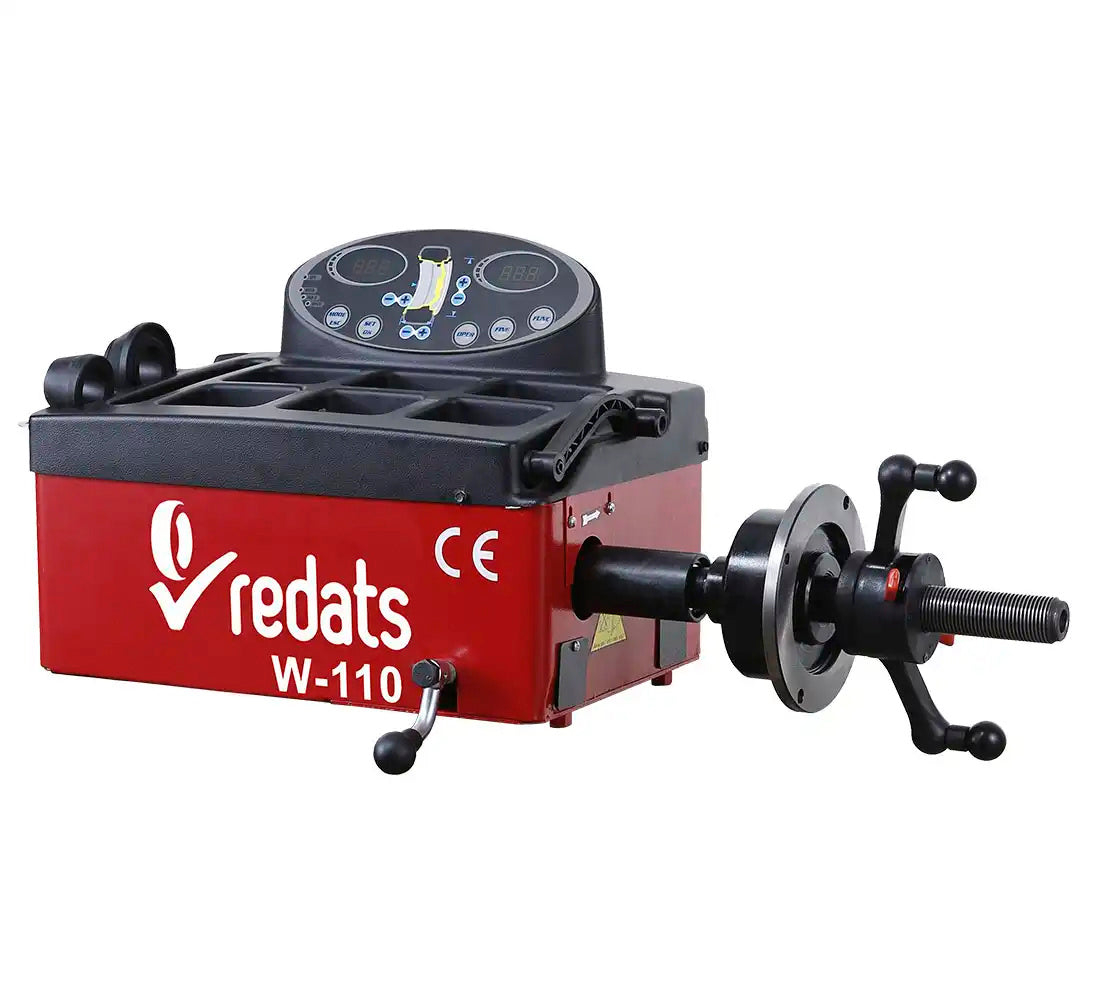

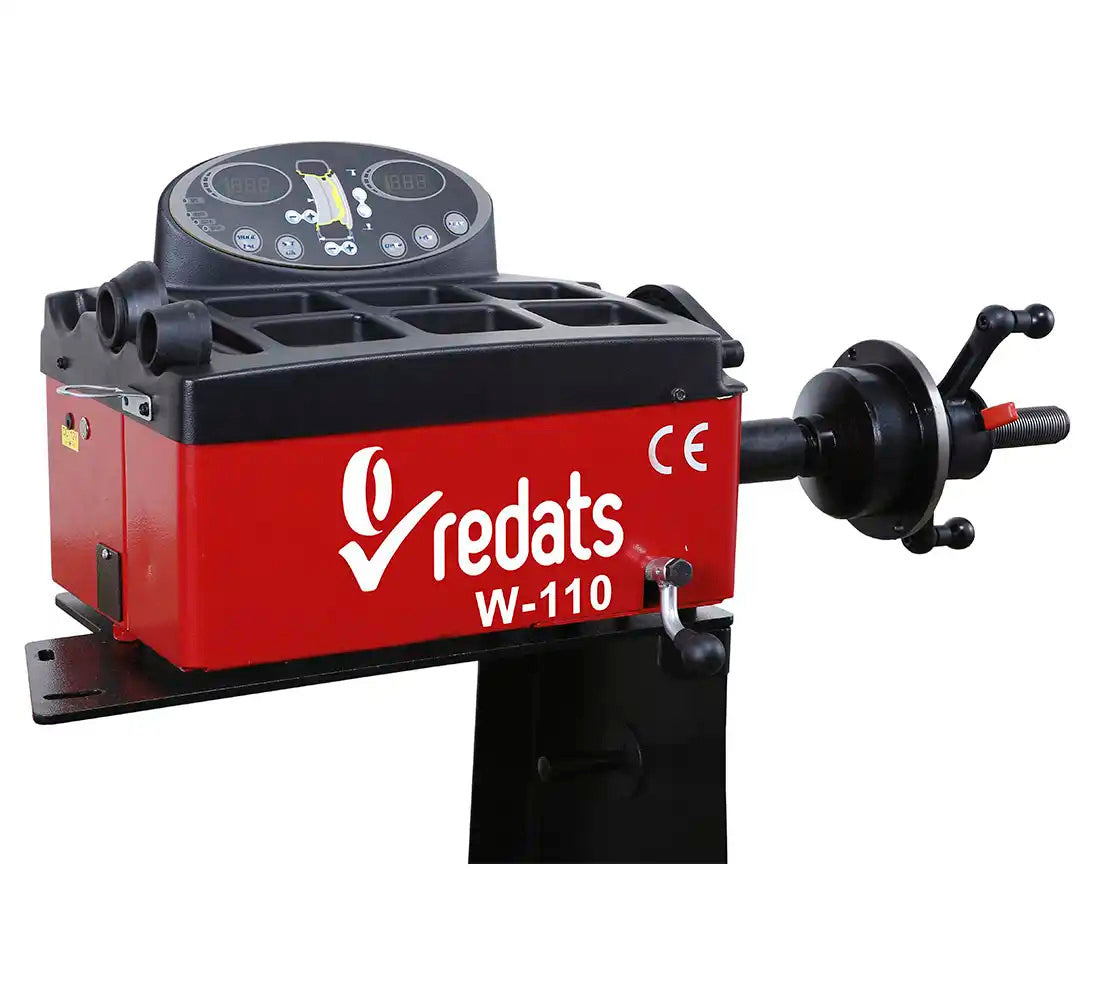

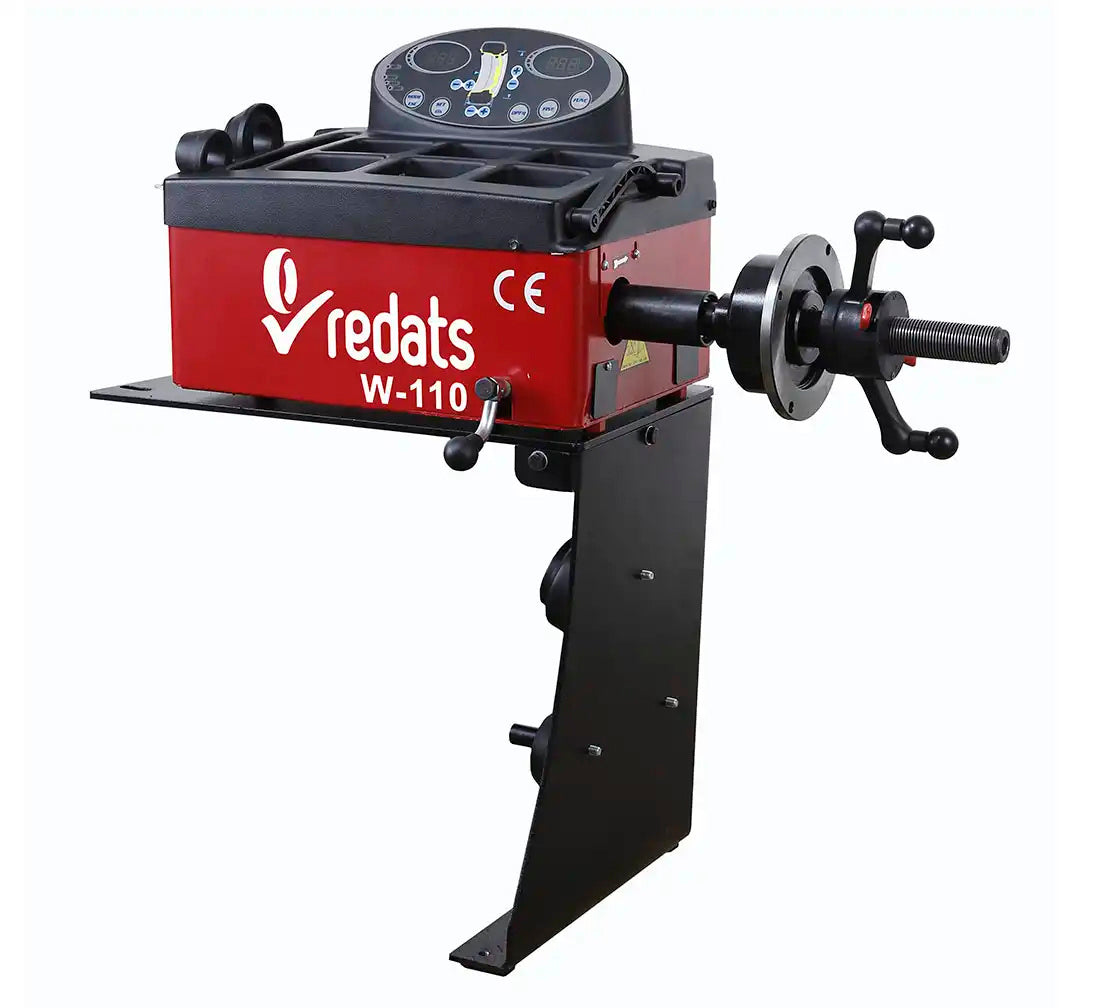

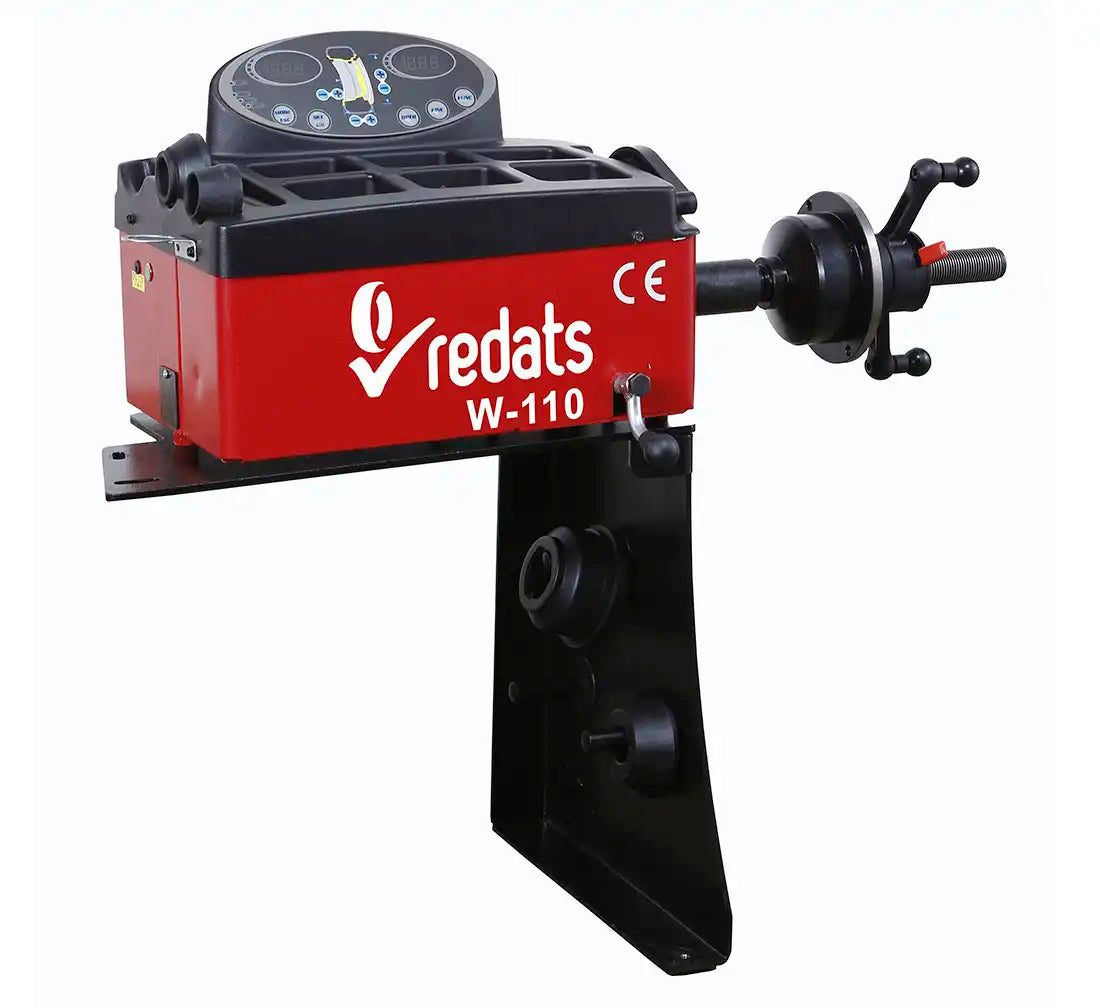

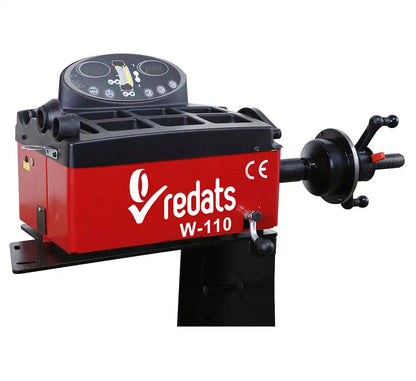

The REDATS W-110 is a semi-automatic manual wheel balancer designed for passenger cars and motorcycles with wheel diameters from 10 to 24 inches. It operates on either 230 V or 12 V power, allowing flexible installation options. The compact design fits on a workbench with a removable metal support or can be rigidly mounted on the floor for stable and accurate balancing results. It is compatible with several REDATS tire changers and suited for both professional garages and home use.

Specifications

• Model: REDATS W-110
• Type: Semi-automatic manual wheel balancer
• Power supply: 230 V or 12 V
• Wheel diameter range: 10–24 inches (256–610 mm)
• Wheel width range: 1.5–20 inches
• Maximum wheel weight: 65 kg
• Shaft dimension: 36 mm diameter × 3 mm thread pitch
• Measurement cycle time: 8 seconds
• Rotation speed: approx. 120 rpm
• Noise level: below 70 dB
• Display type: LED
• Minimum unbalance detection: 1 g

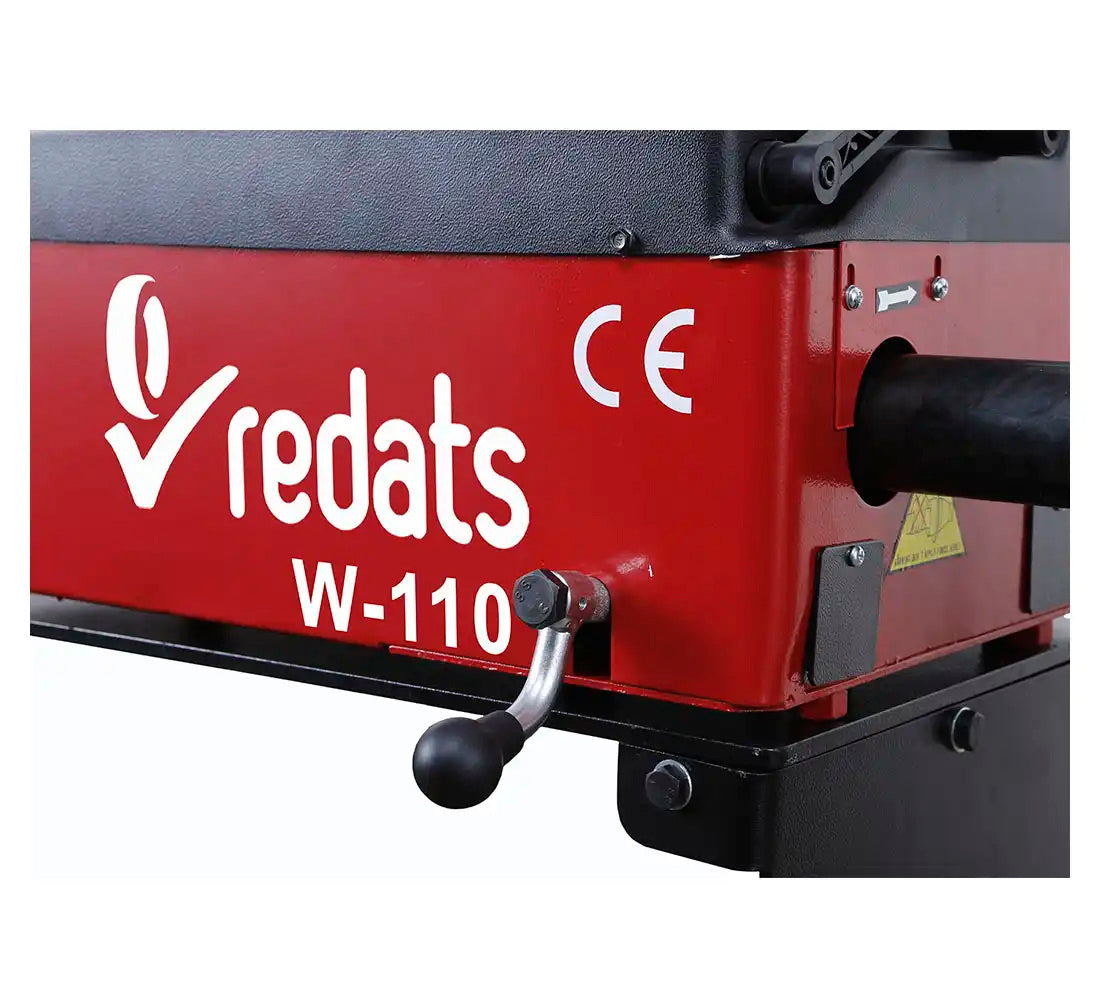

• Shaft locking: handbrake
• Additional features: auto-calibration, optimization
• Footprint: compact for bench or floor mounting
• Dimensions: 974 × 430 × 903 mm
• Weight: 50 kg

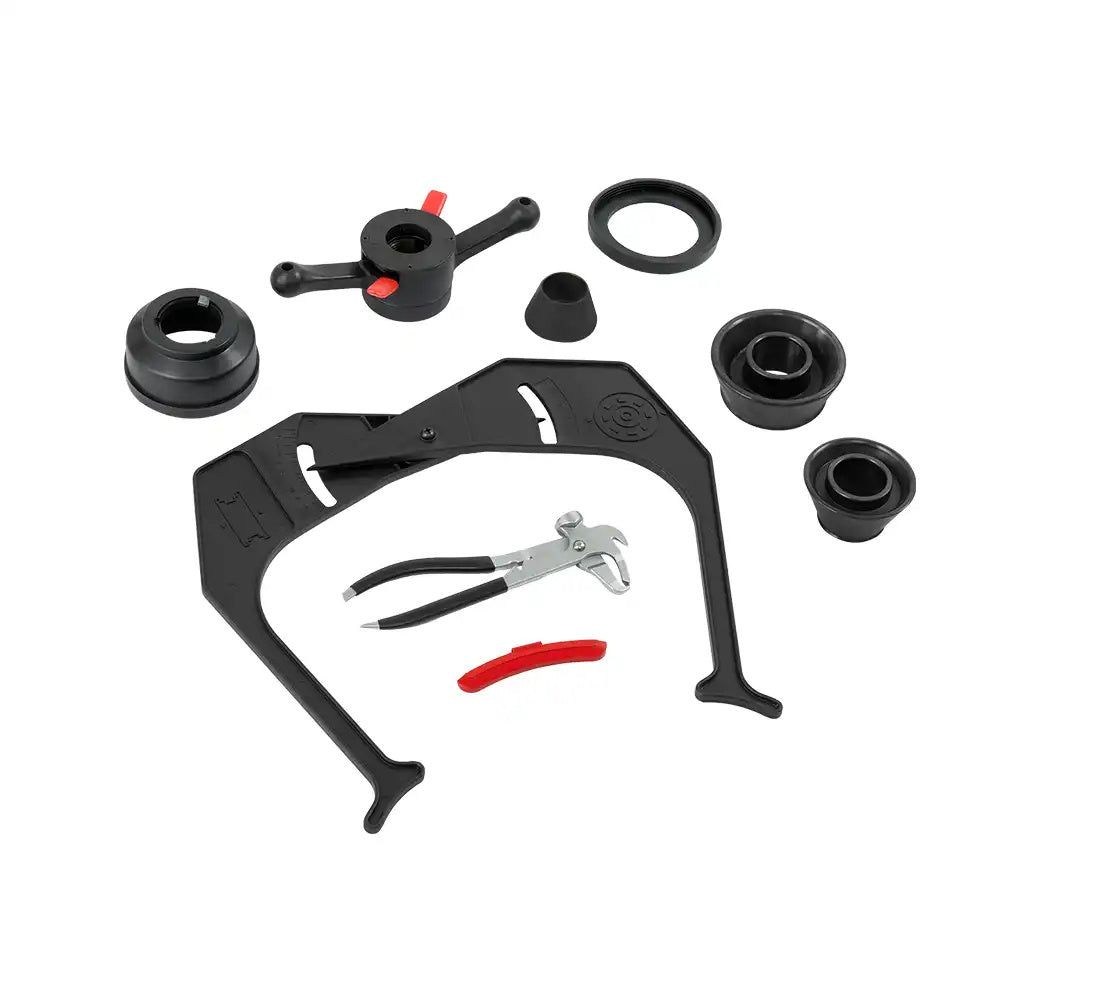

What's included

• REDATS W-110 wheel balancer
• Removable metal support for workbench installation
• Calibrating weight
• Caliper
• Pliers
• Quick-lock wing nut
• Metal support for mounting on machine body
• Large rubber bushing
• Small bushing
• Three centering cones (43–135 mm)
• Shaft 36×195 mm with threaded fastener
• Three hangers with plastic cushions
• Hex key with handle
• Cigarette lighter cable
