Overview

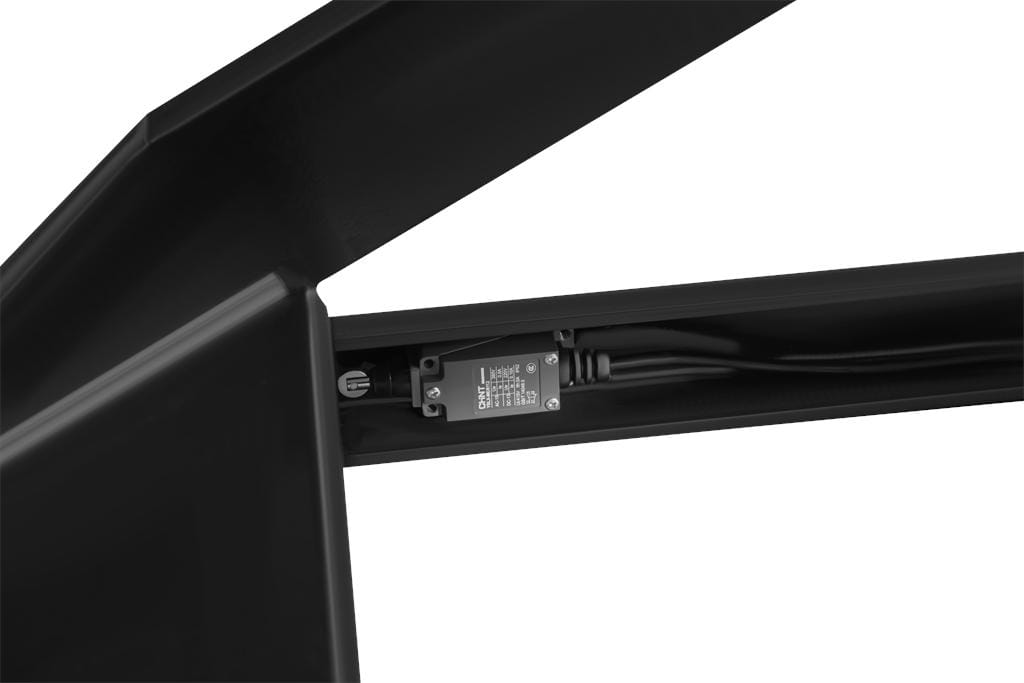

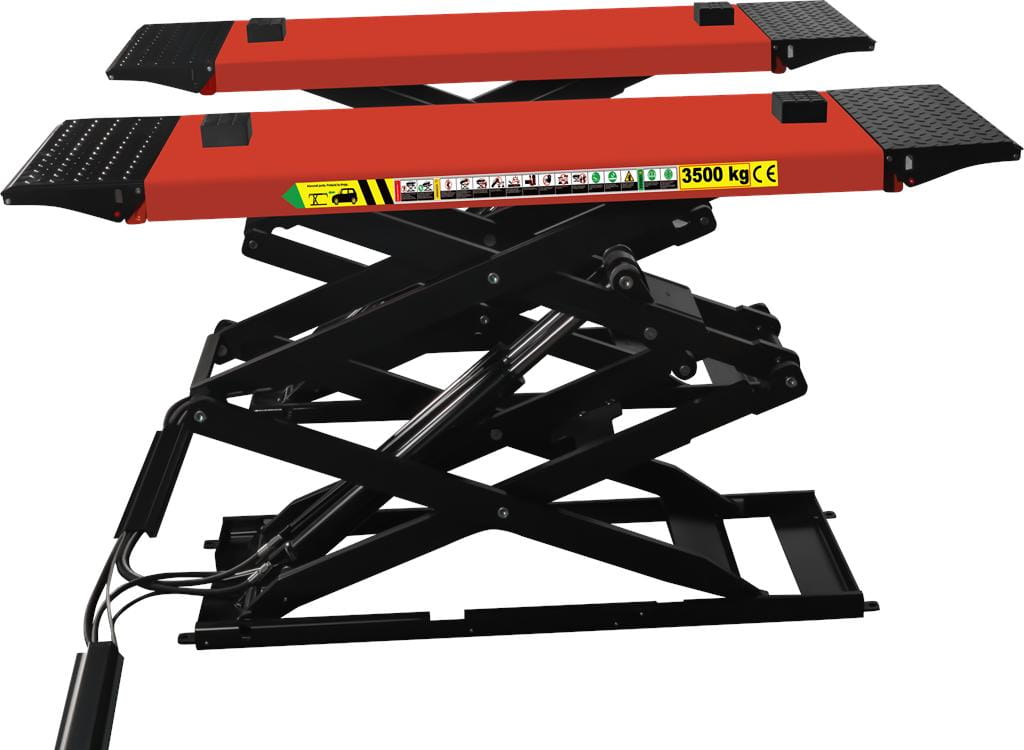

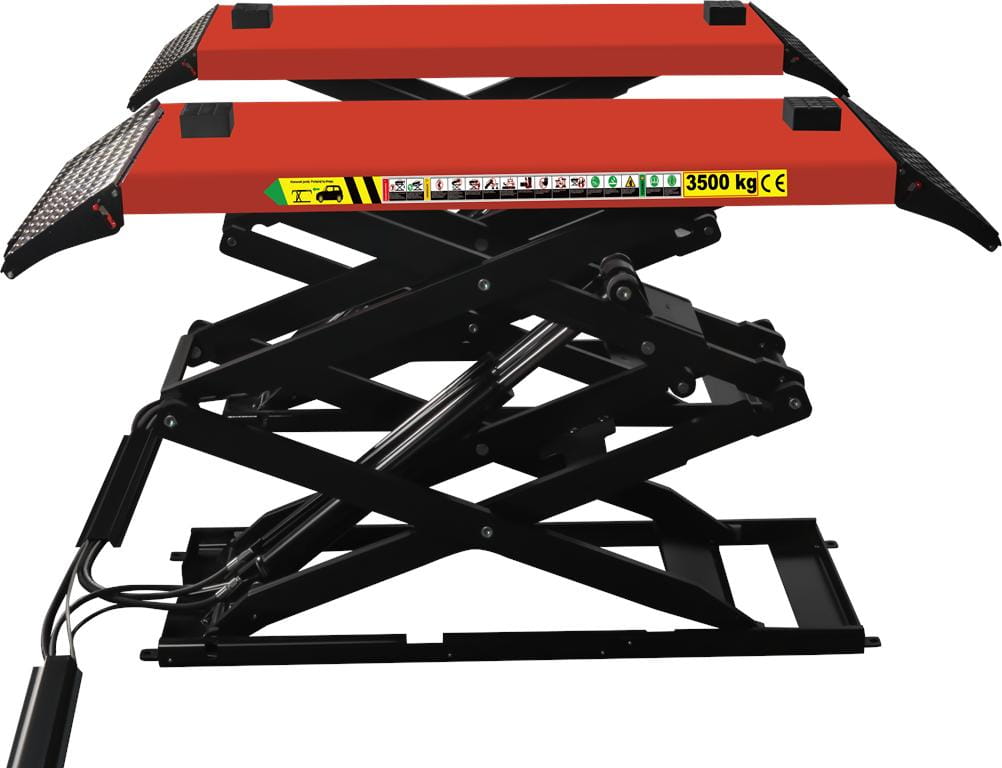

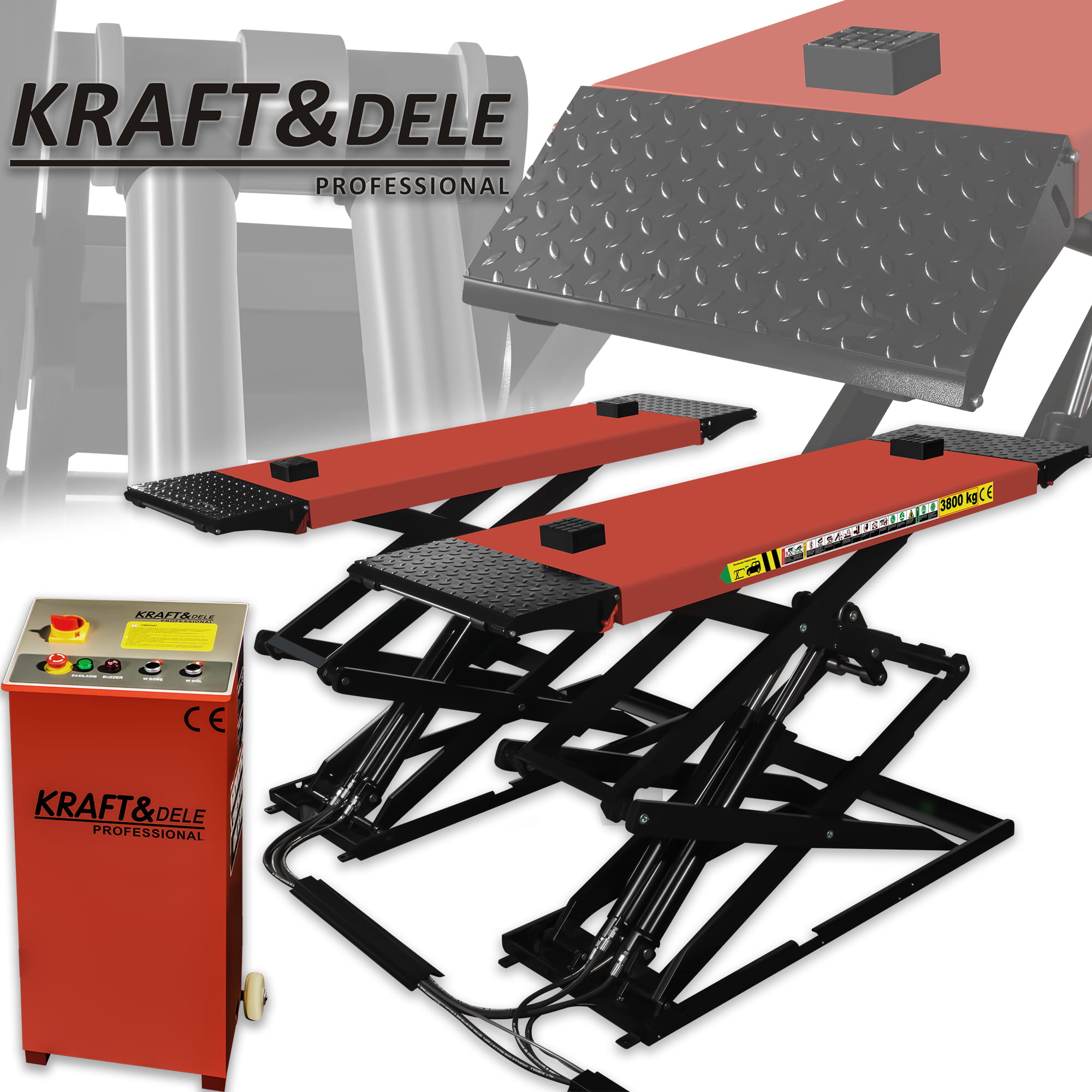

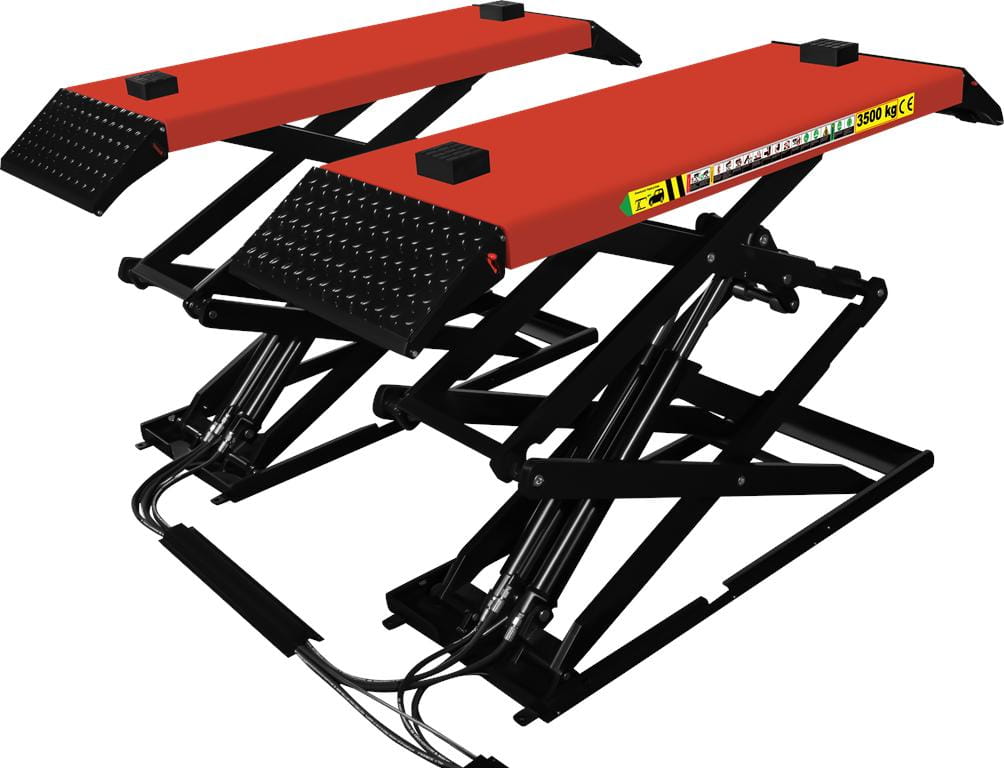

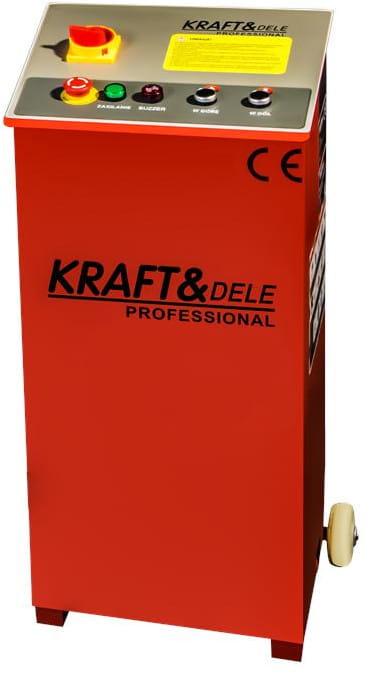

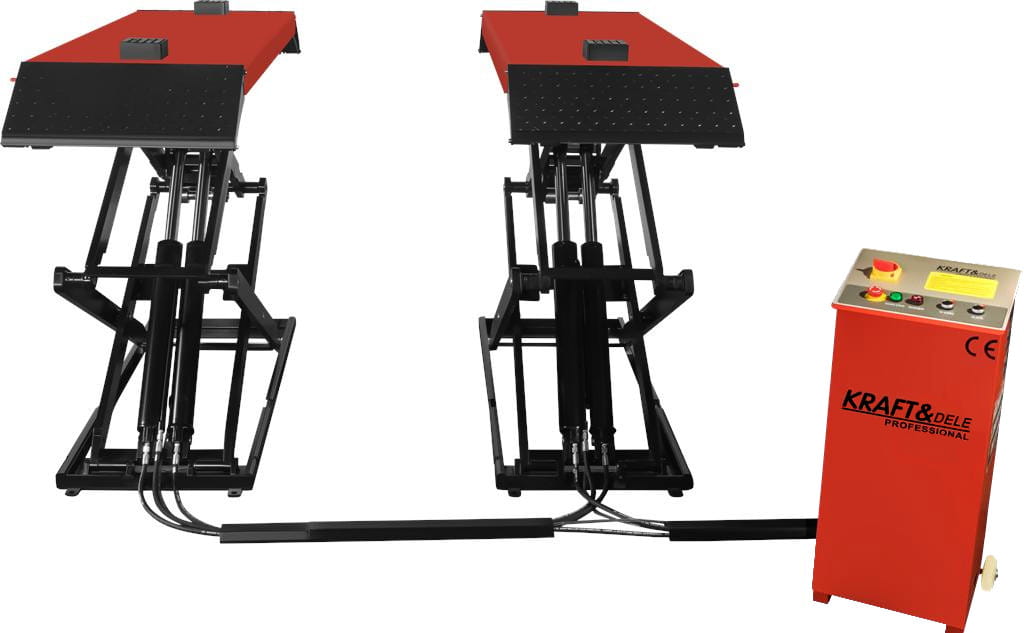

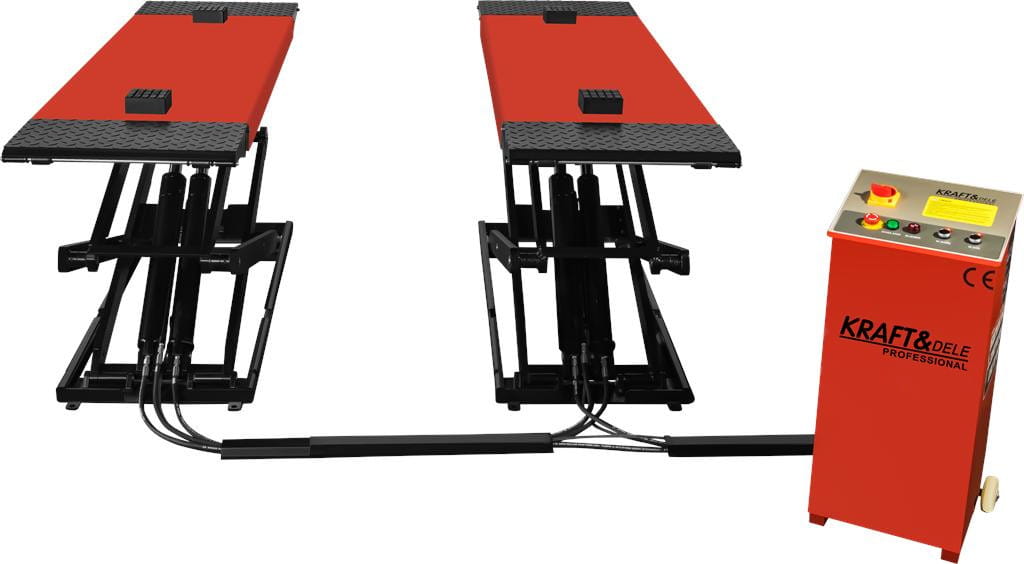

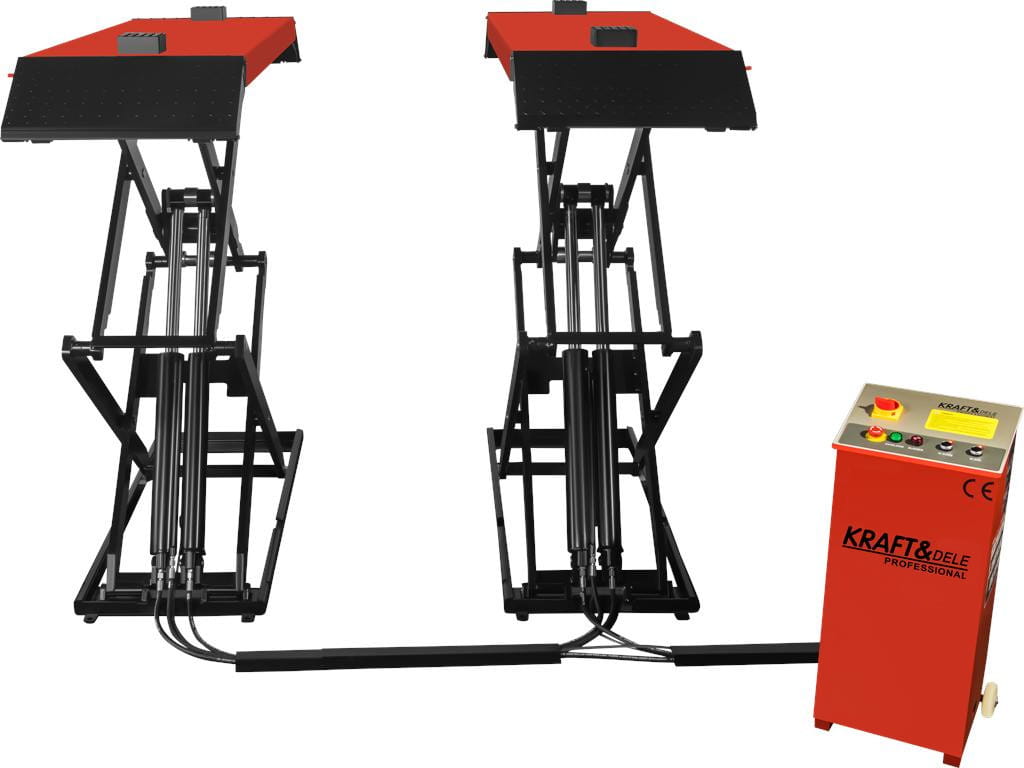

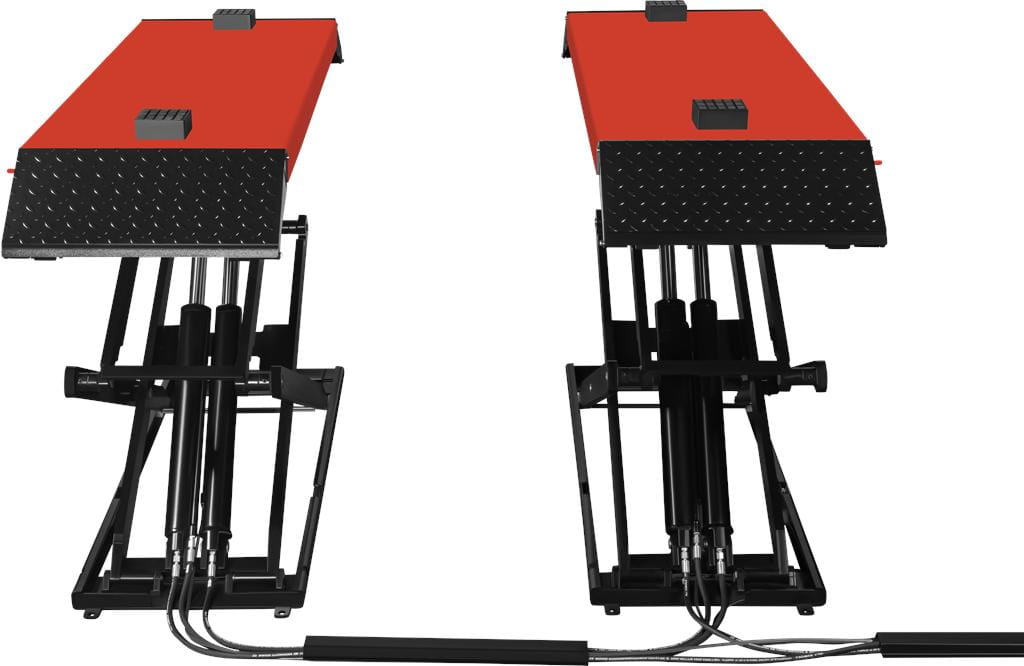

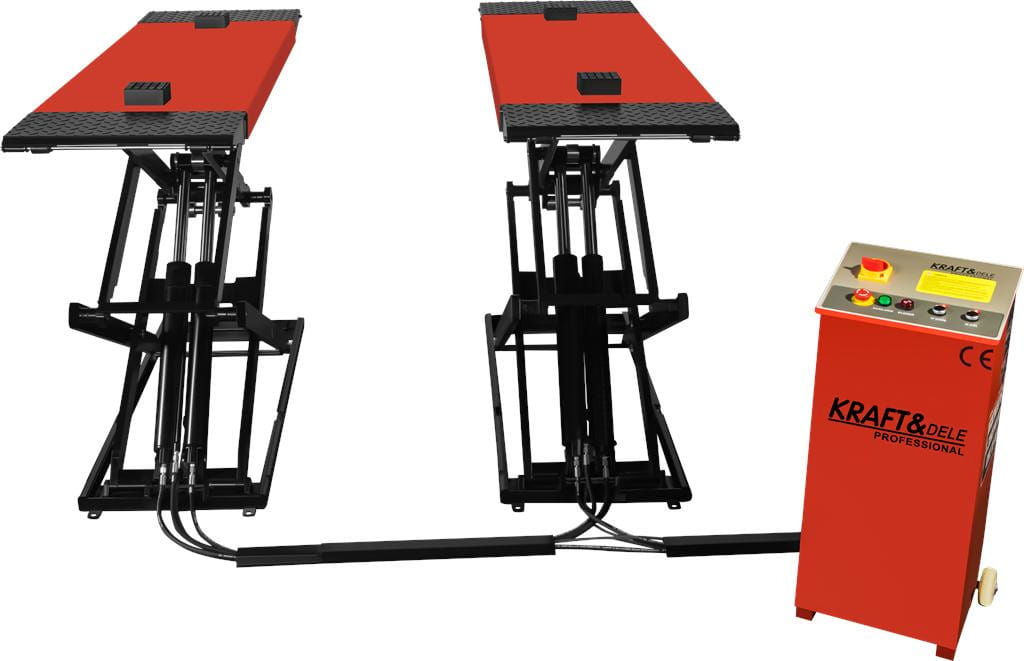

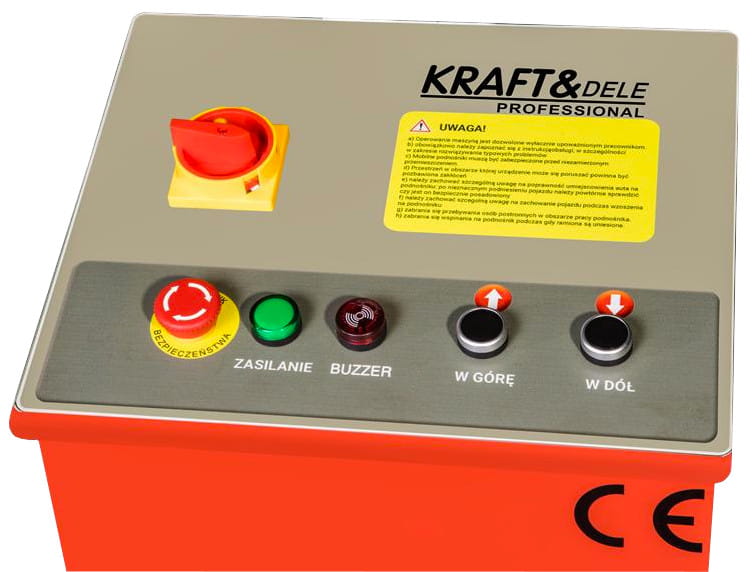

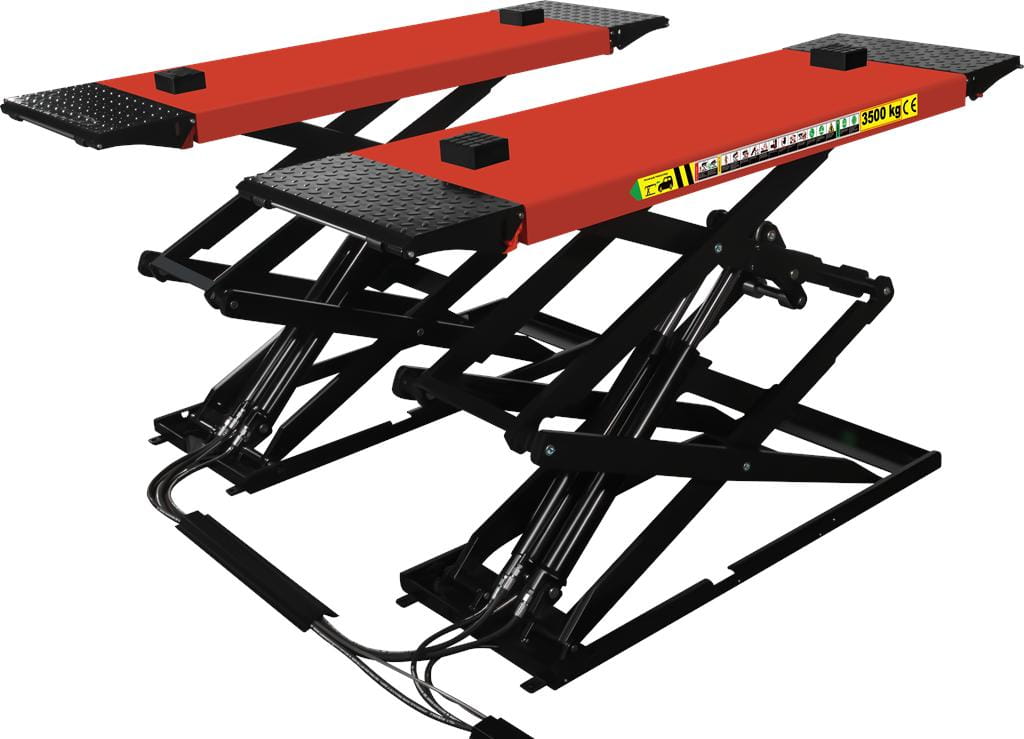

SCISSOR AUTOMATIC CAR LIFT KD5823 ✅ AUTOMATIC SCISSOR LIFT KD5823 PROFESSIONAL SOLUTION FOR YOUR WORKSHOP The modern scissor lift KD5823 is a device designed for professional use in automotive workshops. The integrated lifting system ensures fast operation the full lifting time is only 50 seconds, and lowering takes a maximum of 60 seconds. The device is equipped with a limit switch that prevents exceeding the allowable lifting height. ✅ COMPACT SIZE AND QUIET OPERATION The KD5823 is powered by a 400V three-phase network, enabling stable and efficient operation even under heavy loads. The 2.2 kW motor provides high performance and reliable operation under all workshop conditions. PRODUCT TECHNICAL PARAMETERS SET CONTENT ✅ Automatic scissor lift KD5823 ✅ Control unit with motor ✅ Mounting elements

Specifications

• LIFTING CAPACITY: 3.8T
• LIFTING TIME: 50s
• MAXIMUM HEIGHT: 1000mm
• POWER SUPPLY: 400V (3 phases)

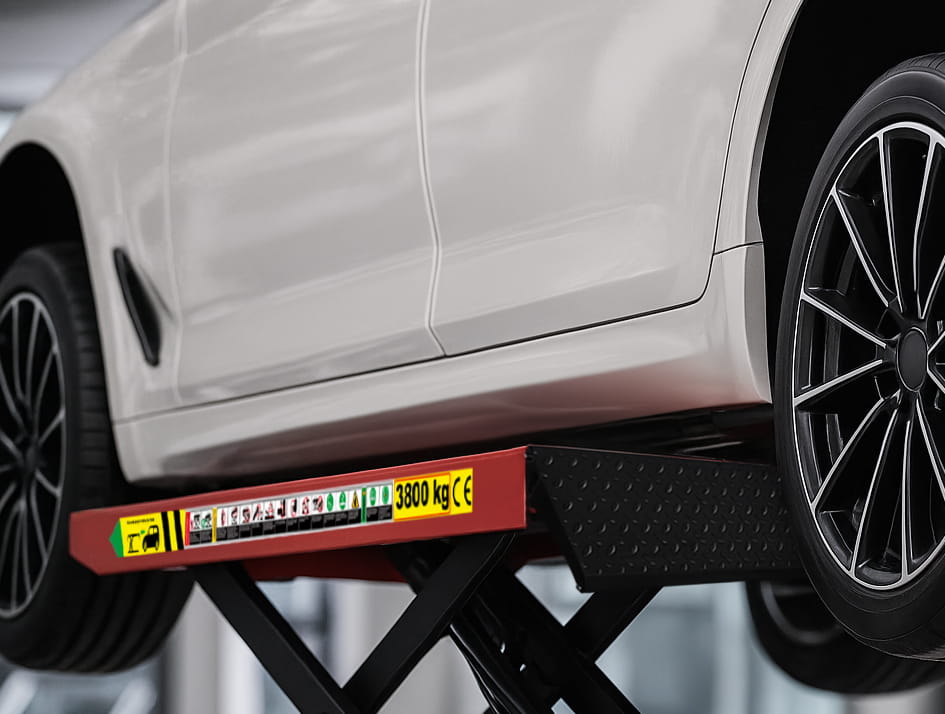

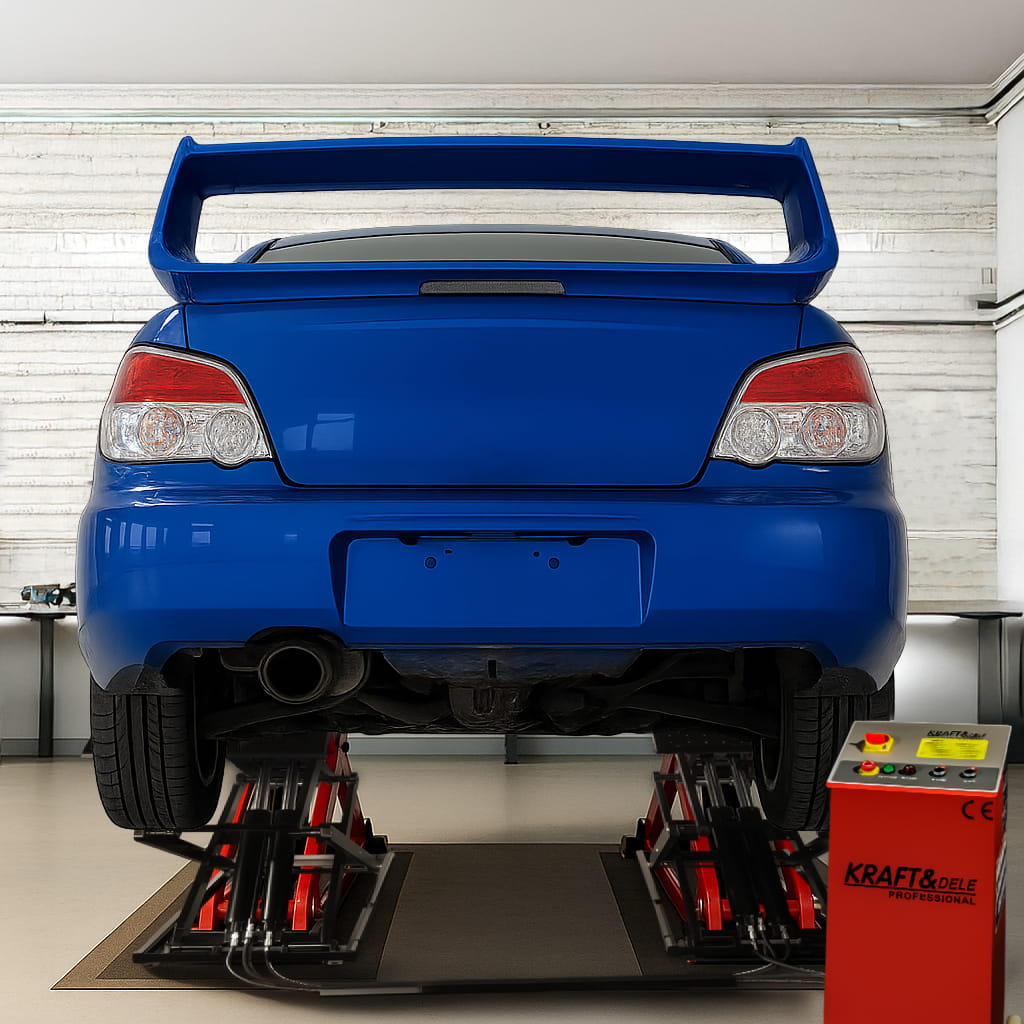

• With a maximum load capacity of 3800 kg and automatic operation, it is ideal for servicing passenger cars and delivery vehicles.
• The solid construction weighing 900 kg and a stable platform measuring 2080 mm in length and 1550 mm in width guarantee safe and comfortable work.
• Thanks to the low initial platform height (110 mm), the lift is also suitable for vehicles with low suspension.

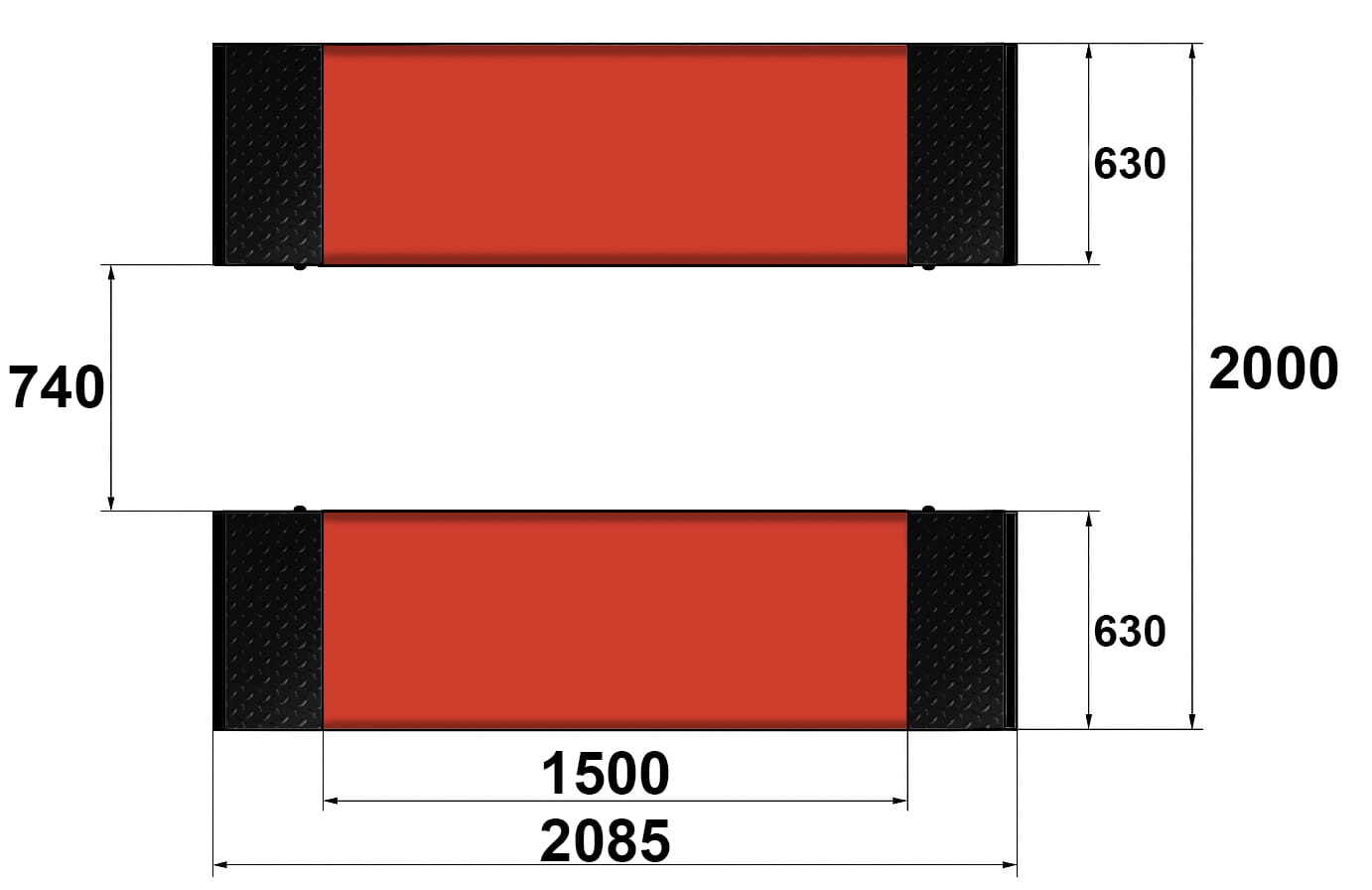

• Despite its high technical capabilities, the entire lift fits within an area of 2085 × 2000 mm, making it an excellent choice for indoor spaces.
• The device operates with noise levels ≤70 dB, allowing for acoustic comfort in the workplace.
• ⚙️ Type: Scissor lift
• ⚙️ Maximum load capacity: 3800 kg
• ⚙️ Maximum lifting height: 1000 mm

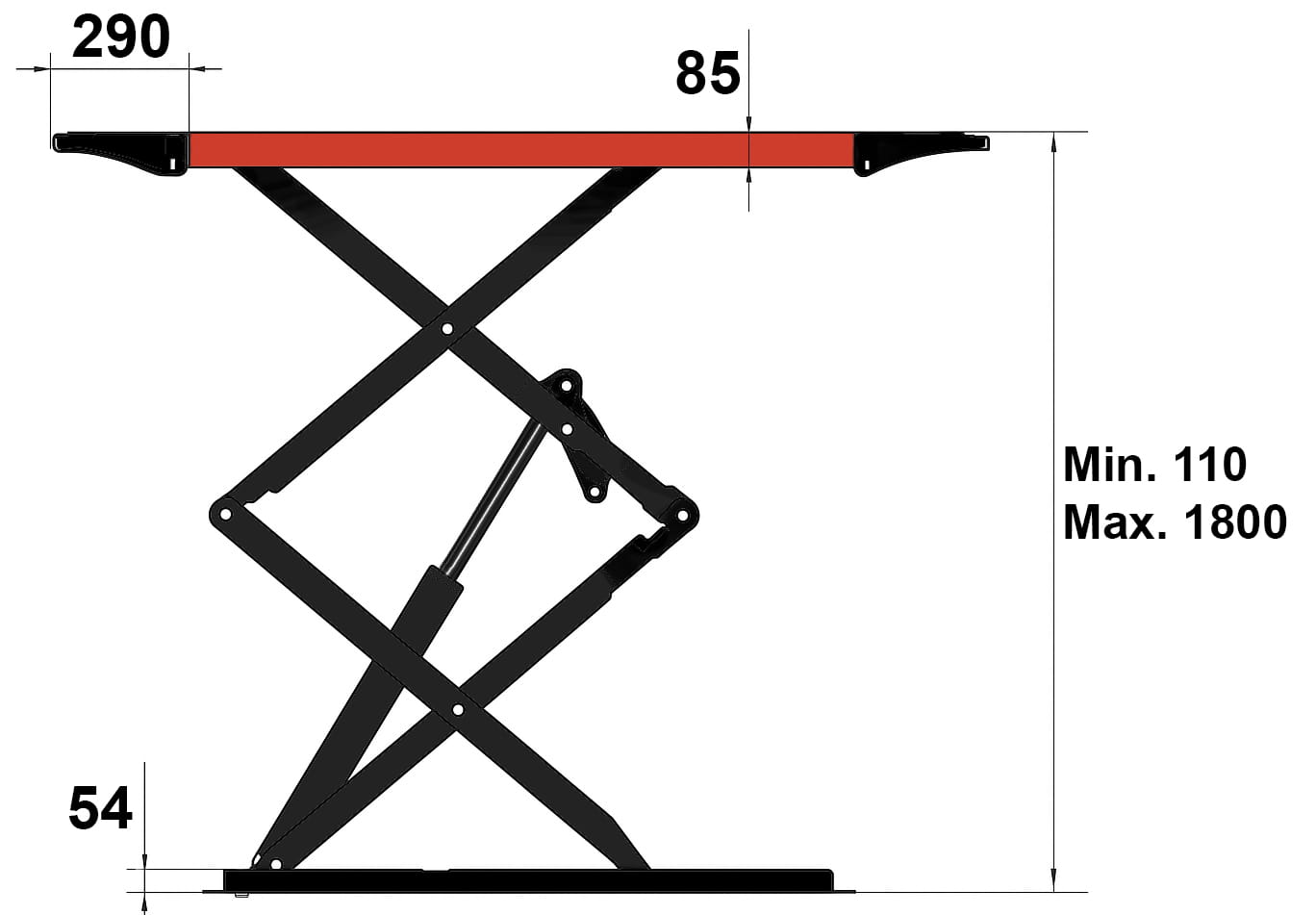

• ⚙️ Initial platform height: 110 mm

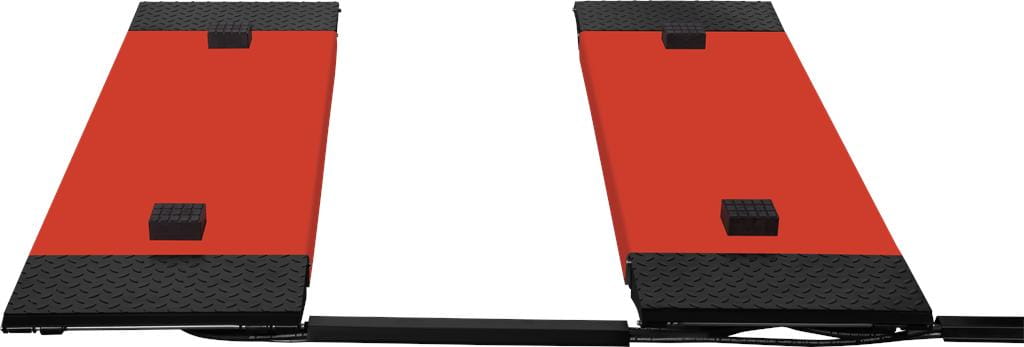

• ⚙️ Platform length: 2080 mm
• ⚙️ Platform width: 1550 mm
• ⚙️ Lifting time: ≤50 s
• ⚙️ Lowering time: ≤60 s
• ⚙️ Total machine length: 2085 mm
• ⚙️ Total machine width: > 2000 mm
• ⚙️ Weight: 900 kg
• ⚙️ Power supply: 400V / 50 Hz / 3 phases
• ⚙️ Power: 2.2 kW
• ⚙️ Noise level: ≤70 dB
• ⚙️ Installation location: Under roof
• ⚙️ Limit switch: Yes

What's included

• ✅ User manual in Polish
• ✅ 12-month warranty

Notes

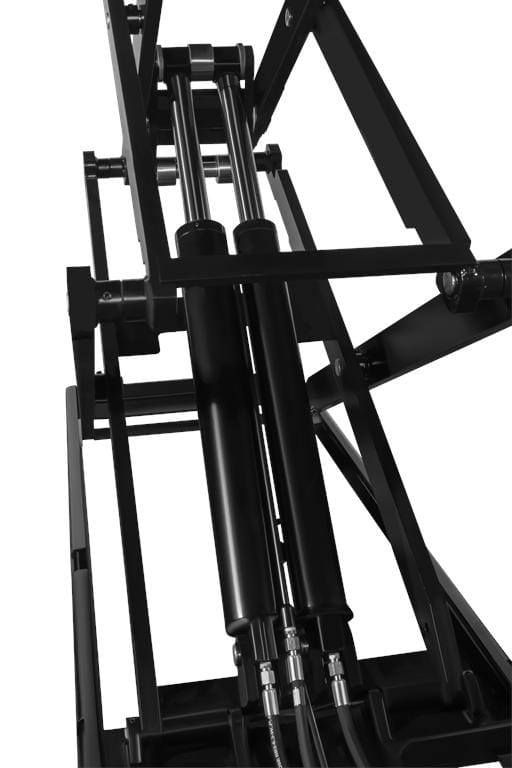

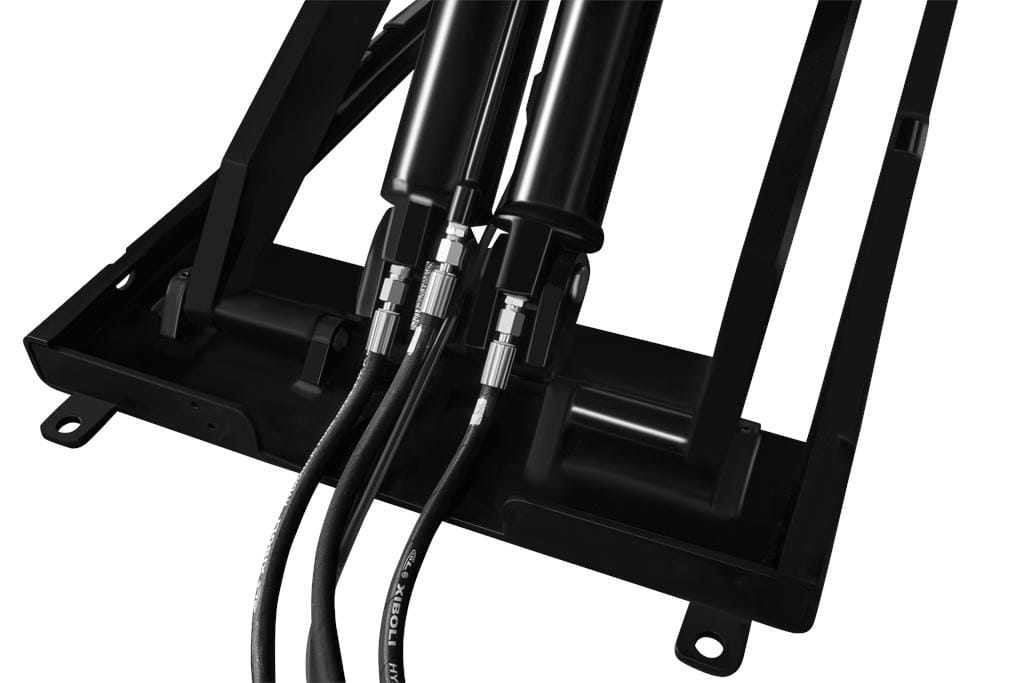

✅ SAFETY AND EFFICIENCY ✅ Complete set of safety devices and hydraulic connectors
