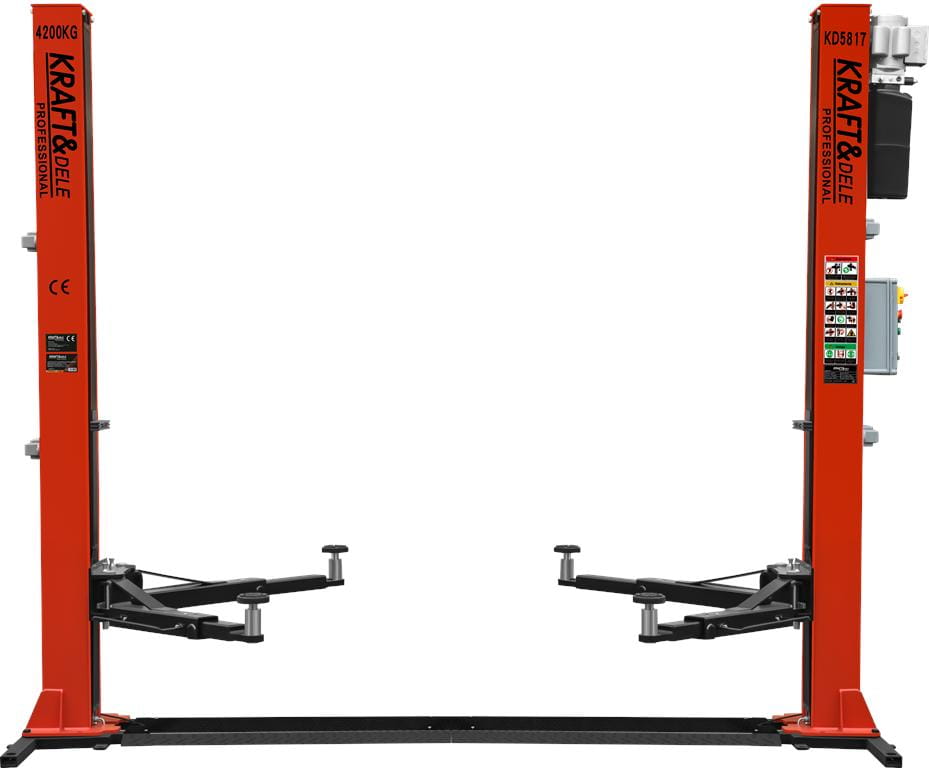

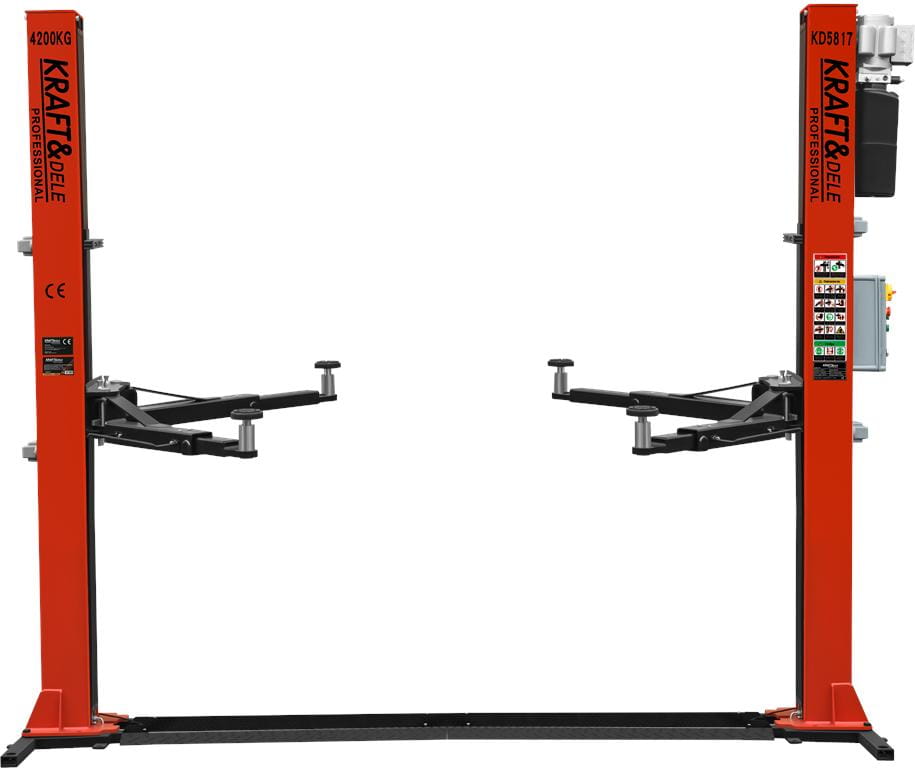

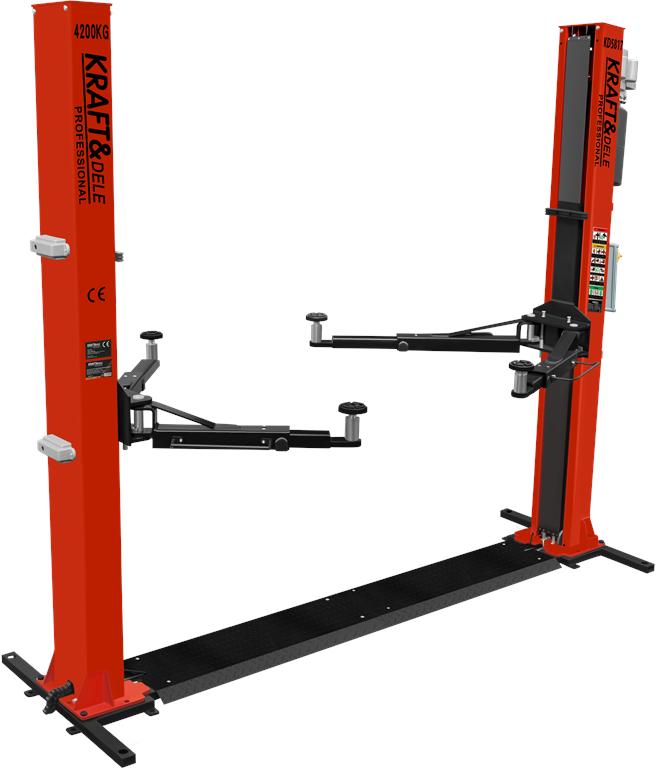

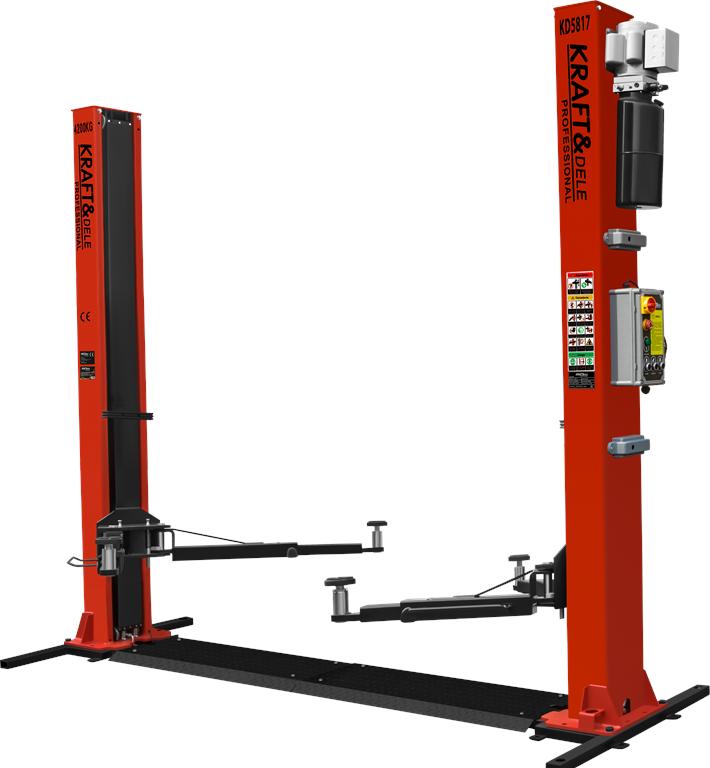

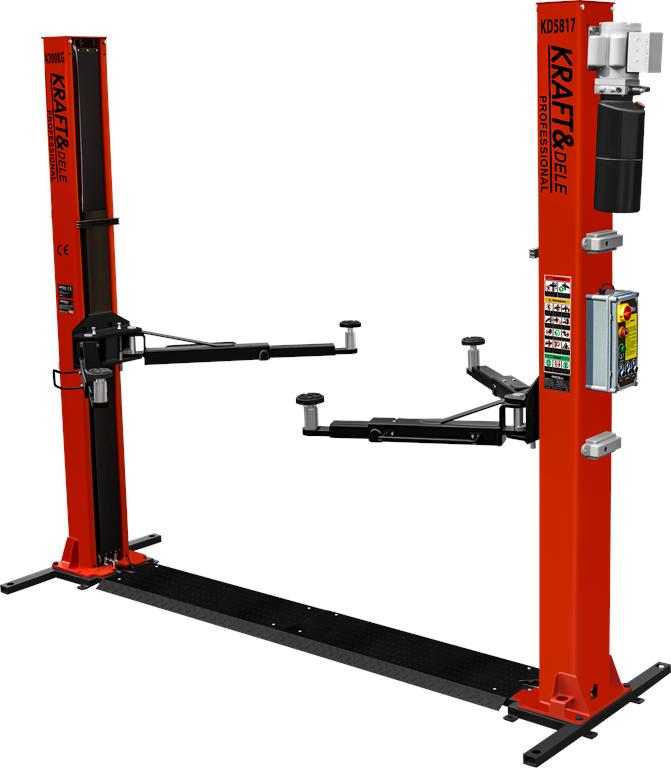

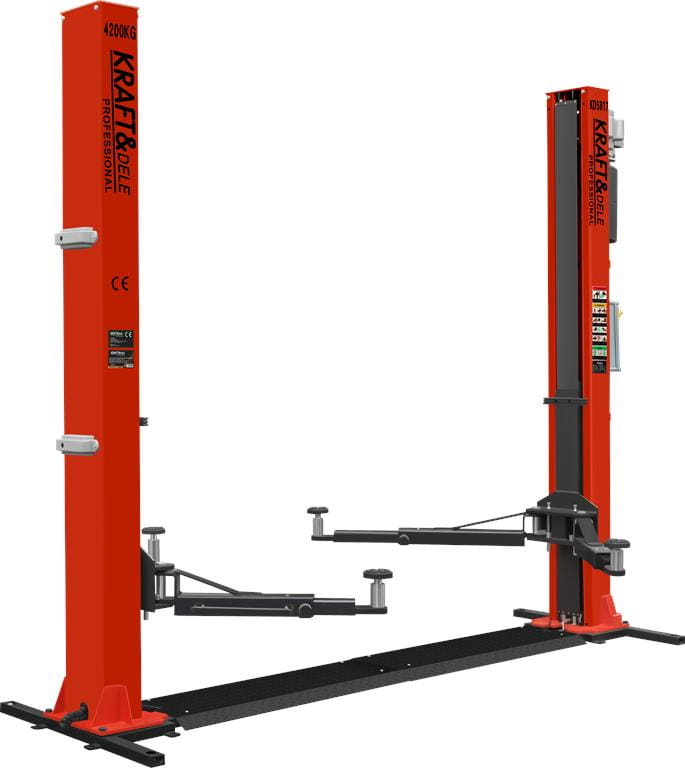

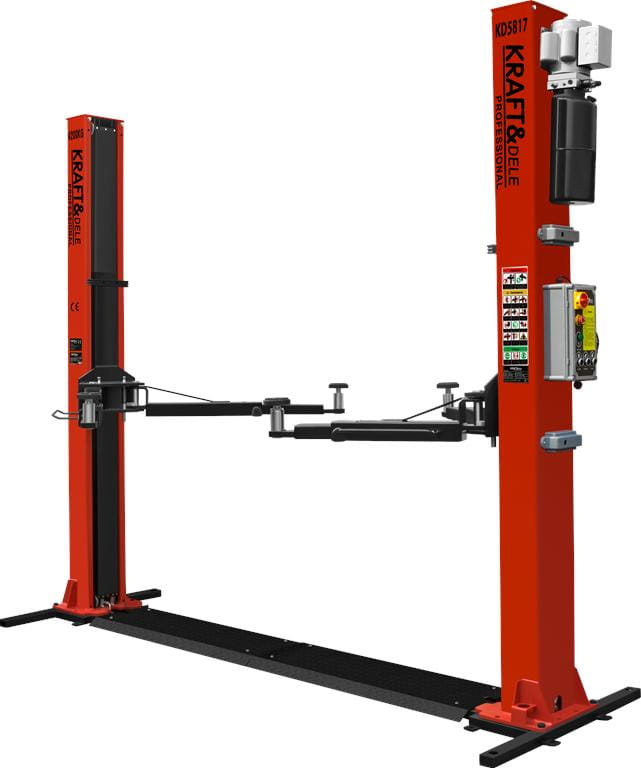

HYDRAULIC COLUMN LIFT AUTOMATIC Description: The KD5817 automatic hydraulic column lift by Kraft&Dele is a technologically advanced device designed for professional workshops and car service centers. Technical data: adjustable adjustable Device advantages: ✅ Automatic operation system ✅ Solid construction and reliable performance ✅ Safe operation thanks to protective curtain and bumpers ✅ Optimal lifting height Set includes: ✅ Automatic hydraulic column lift KD5817

Specifications

• Model: KD5817
• Power supply: 400 V

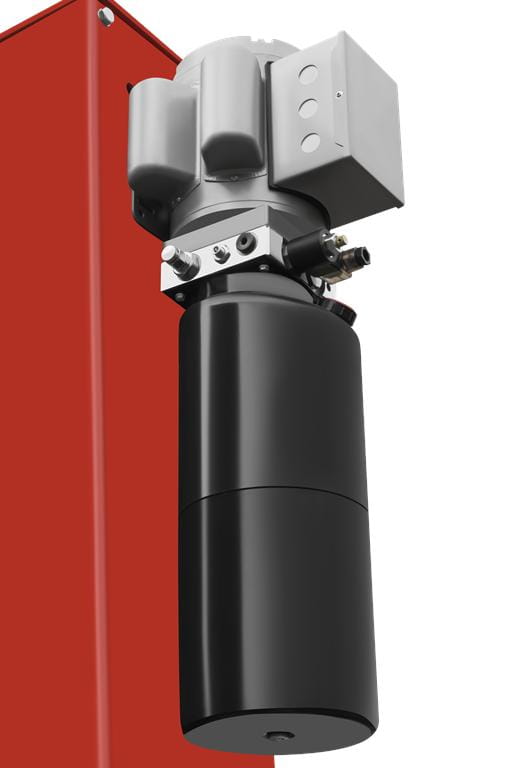

• Motor power: 2.2 KW
• With a lifting capacity of 4200 kg and a solid construction, it provides safe and efficient lifting of vehicles of various sizes.
• ⚙️ Lifting capacity: 4200 kg
• ⚙️ Power supply: 400 V
• ⚙️ Motor power: 2.2 KW
• ⚙️ Max. lifting height: 1900 mm
• ⚙️ Minimum lifting height: 110 mm
• ⚙️ Total width: 3470 mm
• ⚙️ Total height: 2826 mm
• ⚙️ Distance between columns: 2820 mm

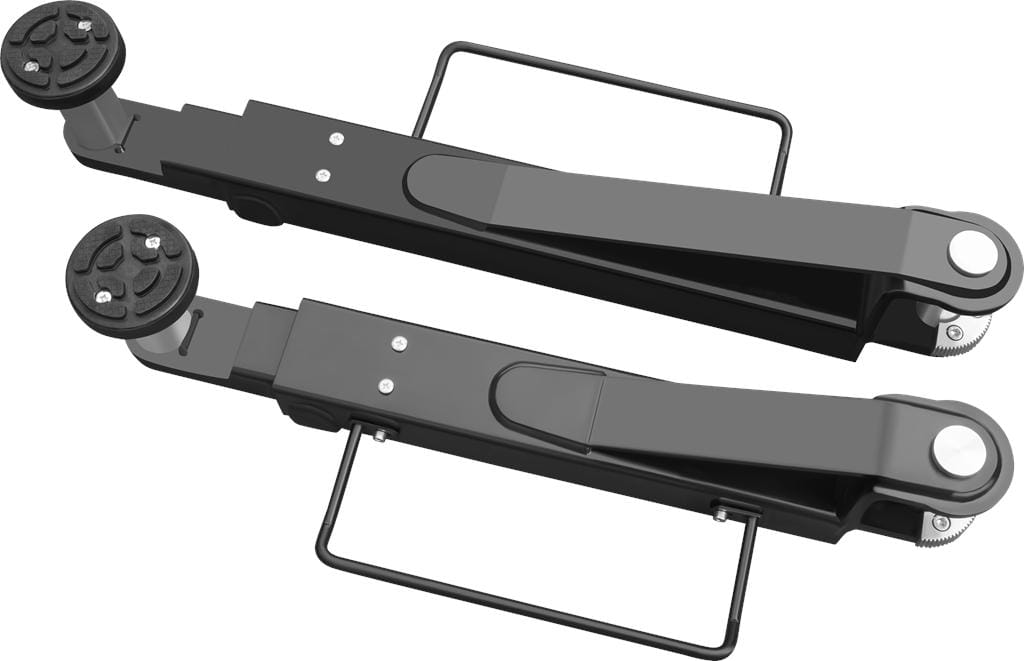

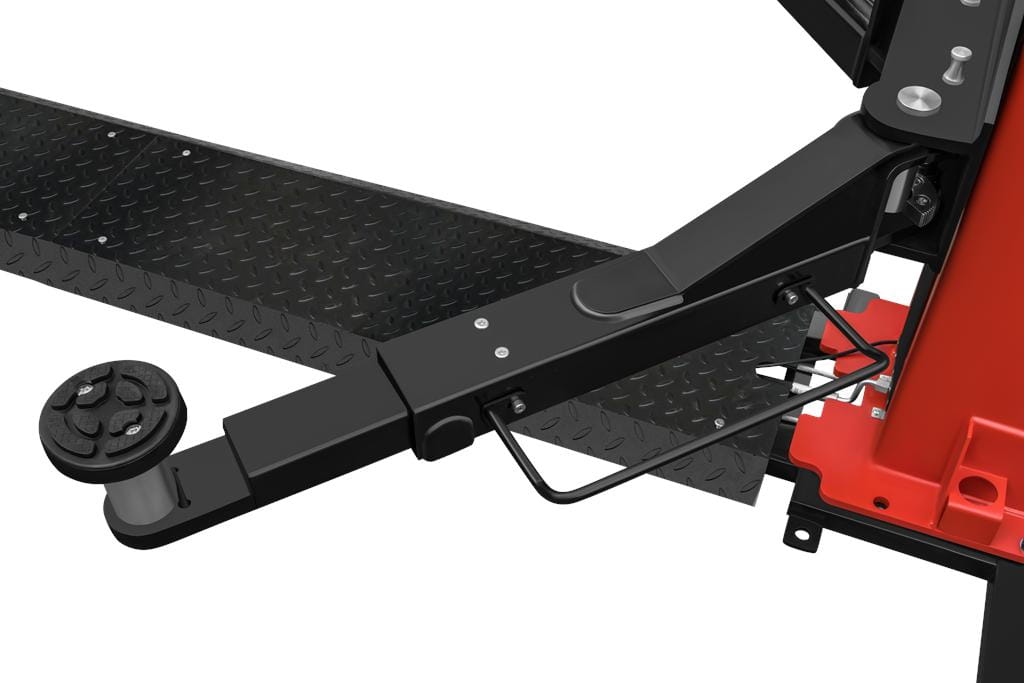

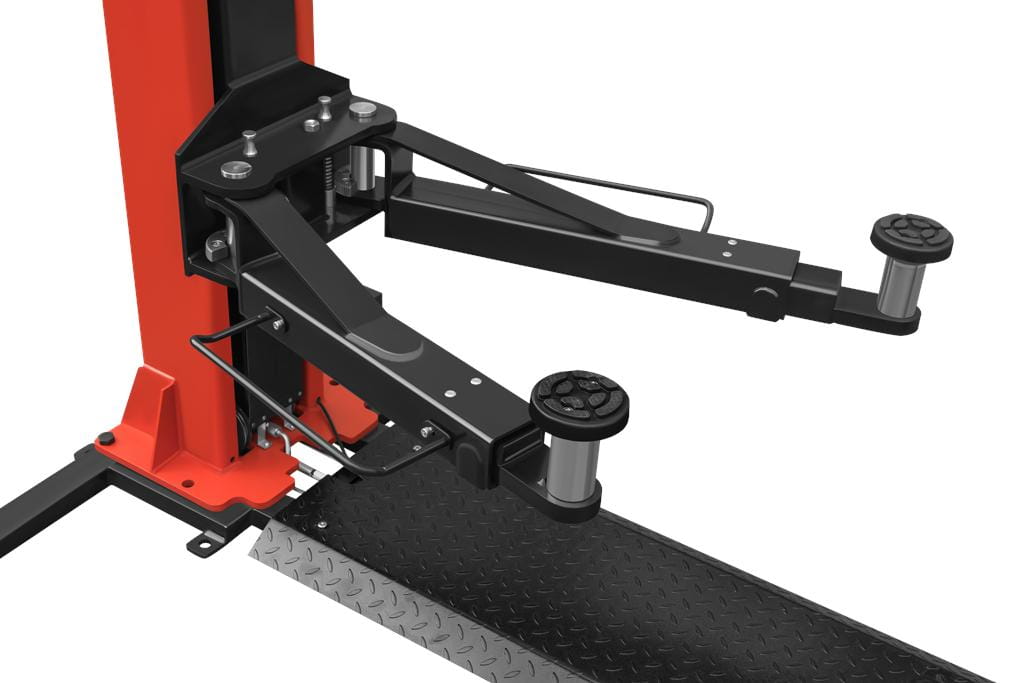

• ⚙️ Arm: asymmetric 2+2
• ⚙️ Arm length: 900-1400 mm and 750-1080 mm
• ⚙️ Lifting time: ＜55s
• ⚙️ Lowering time: ＞30s
• ⚙️ Oil pressure: 20 MPa
• ⚙️ Oil tank: 10 l
• ⚙️ Noise: <70 dB

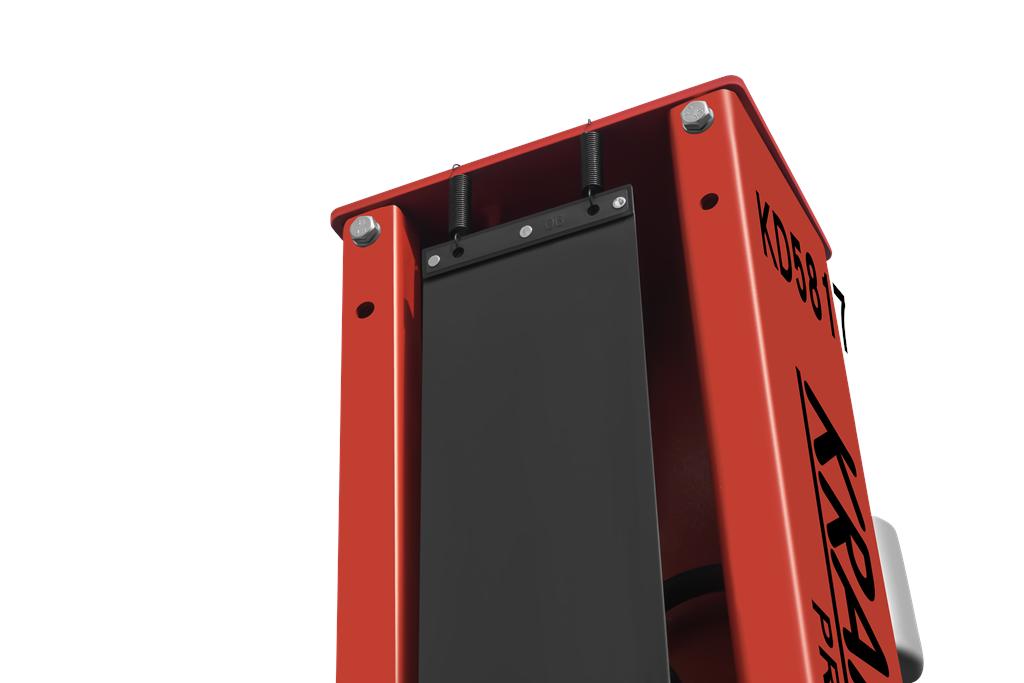

• ⚙️ Column curtain: YES

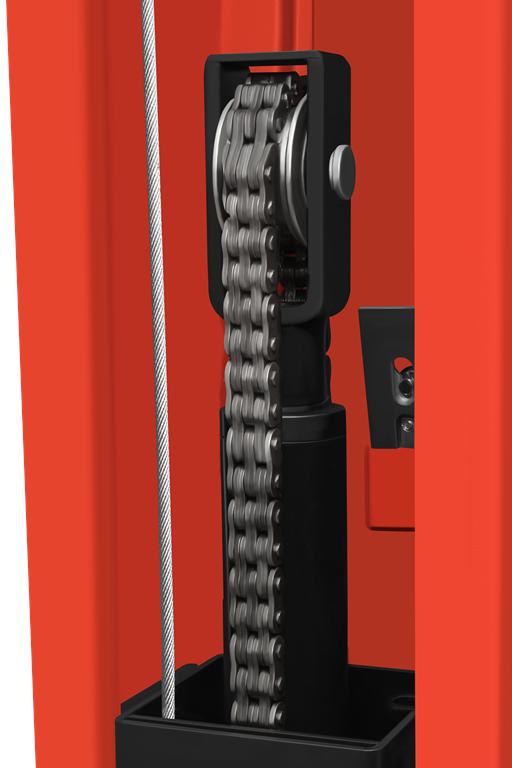

• ⚙️ Chain: 8 links
• ⚙️ Door bumpers: YES
• ⚙️ Gross weight: 600 kg
• ✅ High lifting capacity of 4200 kg
• up to 1900 mm
• ✅ Warranty: 12 months

What's included

• ✅ User manual
• ✅ Original packaging

Notes

The automatic operation system and asymmetric arms increase operator comfort, reducing the time needed to prepare the vehicle for service.
