Overview

The device is ideal for automotive workshops and service centers, guaranteeing stability, precision, and fast lifting and lowering times.

Specifications

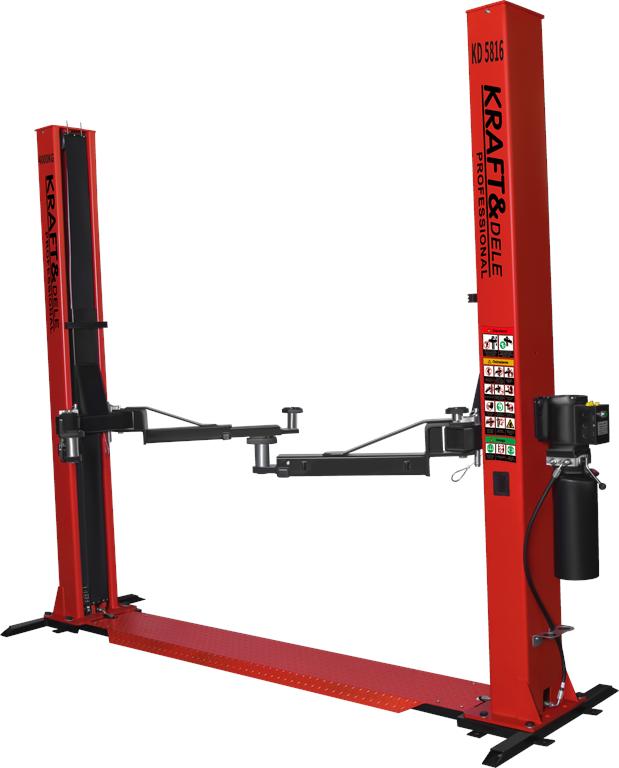

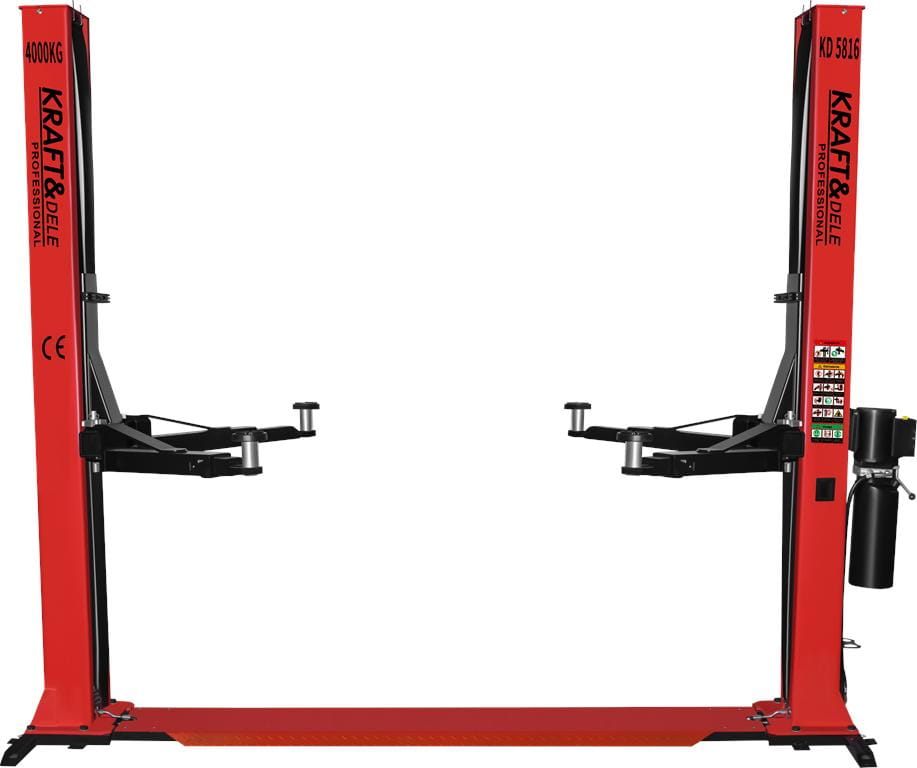

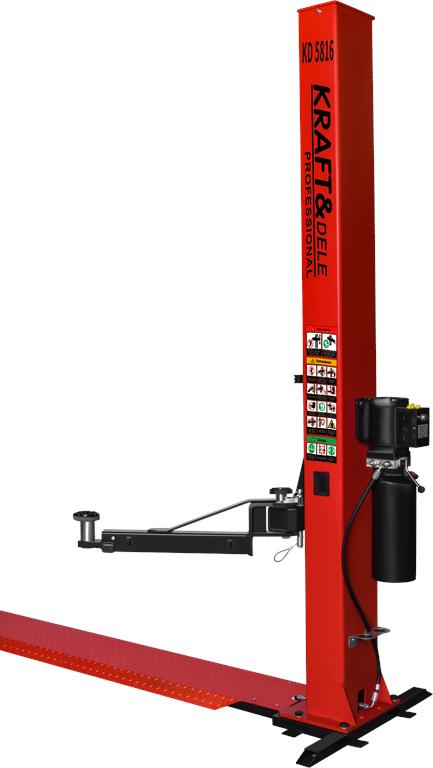

• HYDRAULIC COLUMN SEMI-AUTOMATIC LIFT Model: KD5816 Power supply: 230 V Motor power: 2.2 KW Description: The Kraft&Dele KD5816 semi-automatic hydraulic column lift is a reliable device designed for lifting vehicles with a capacity of up to 4000 kg.

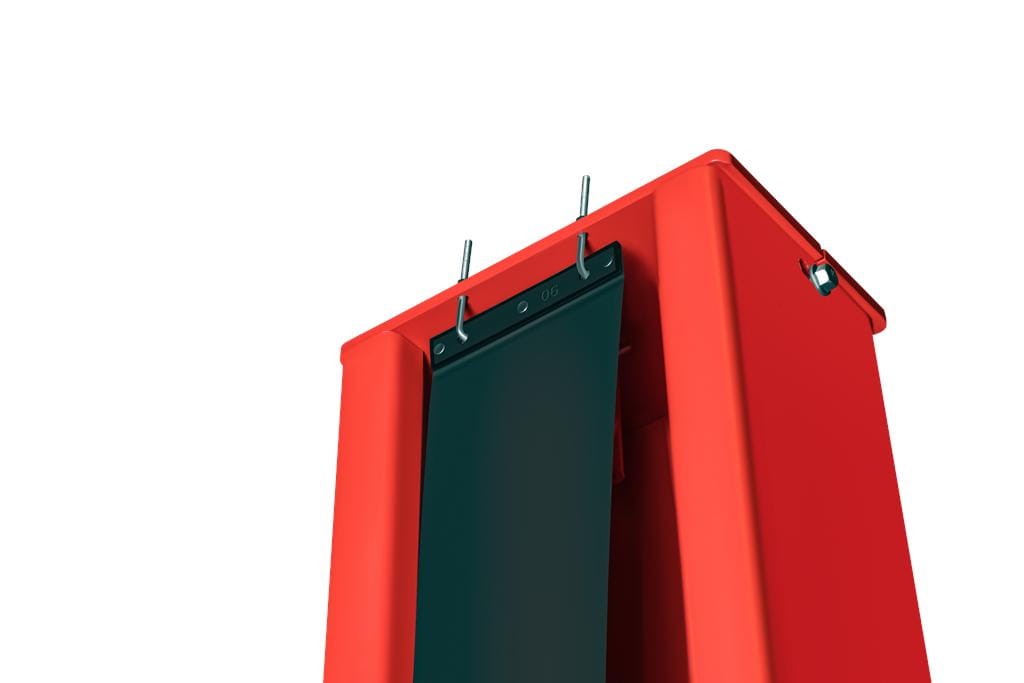

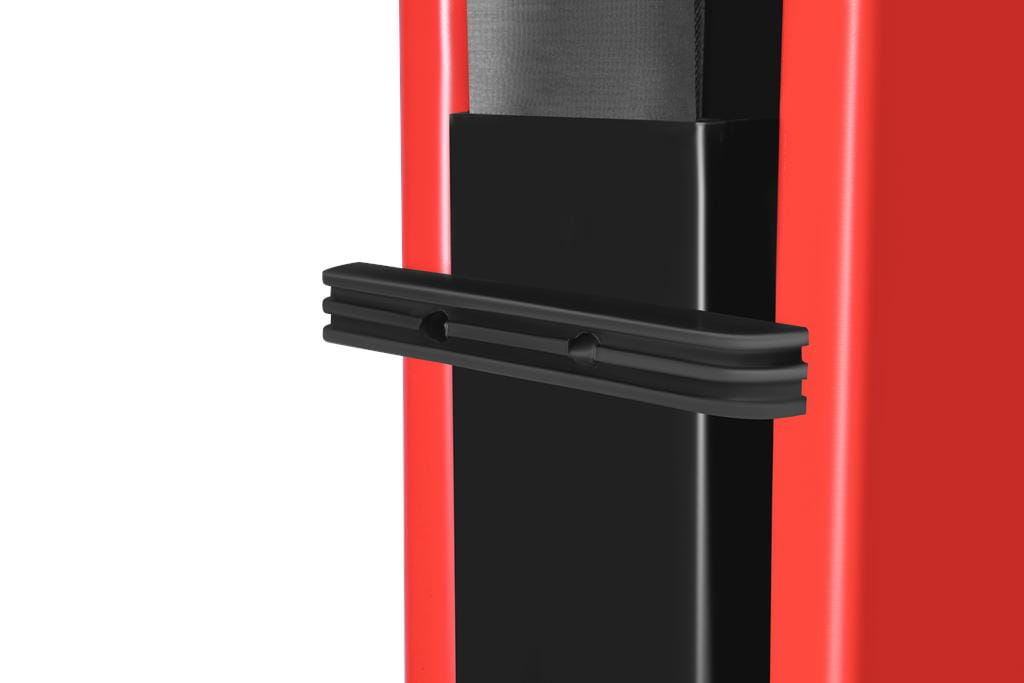

• Technical data: ⚙️ Capacity: 4000 kg ⚙️ Voltage: 230 V ⚙️ Motor power: 2.2 KW ⚙️ Max. lifting height: 1900 mm ⚙️ Minimum lifting height: 110 mm ⚙️ Total width: 3470 mm ⚙️ Total height: 2800 mm ⚙️ Distance between columns: 2800 mm ⚙️ Arm: asymmetrical two-stage arms ⚙️ Arm length: 710-1050 mm and 760-1200 mm ⚙️ Lifting time: 45 s ⚙️ Lowering time: 60 s ⚙️ Oil pressure: 20 MPa ⚙️ Oil tank: 10 l ⚙️ Noise: <70 dB ⚙️ Curtains on columns: YES ⚙️ Chain: 8 links ⚙️ Door bumpers: YES ⚙️ Gross weight: 570 kg Device advantages: ✅ High capacity of 4000 kg ✅ Precise arm length adjustment ✅ Fast lifting and lowering times ✅ Solid and durable construction ✅ Equipped with protective curtains and door bumpers Set contents: ✅ KD5816 semi-automatic hydraulic column lift ✅ User manual ✅ Original packaging ✅ Warranty: 12 months

Notes

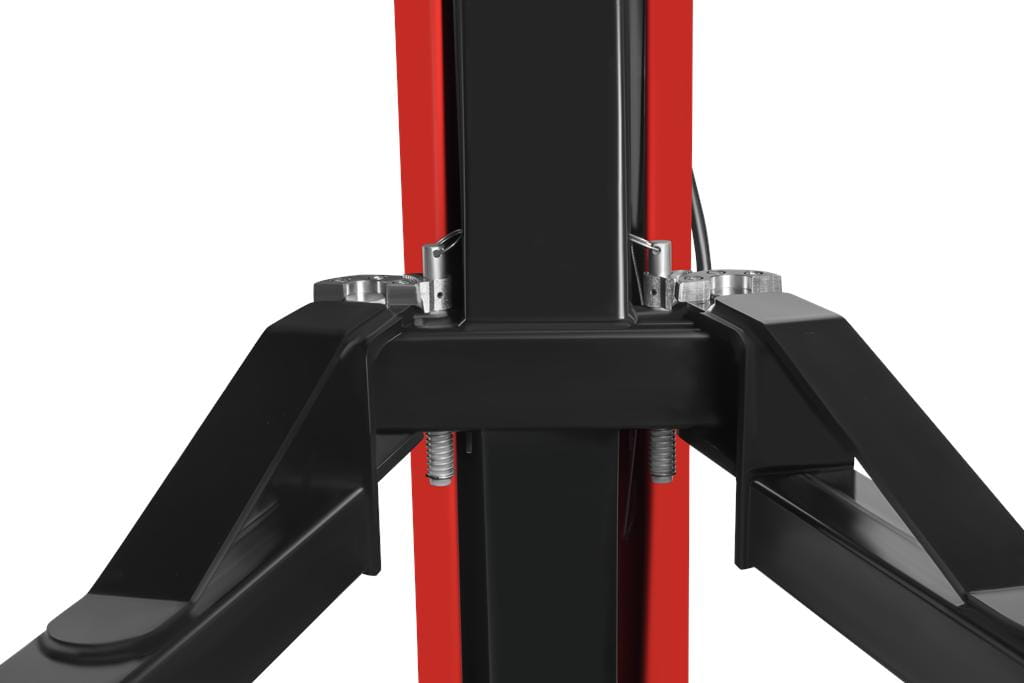

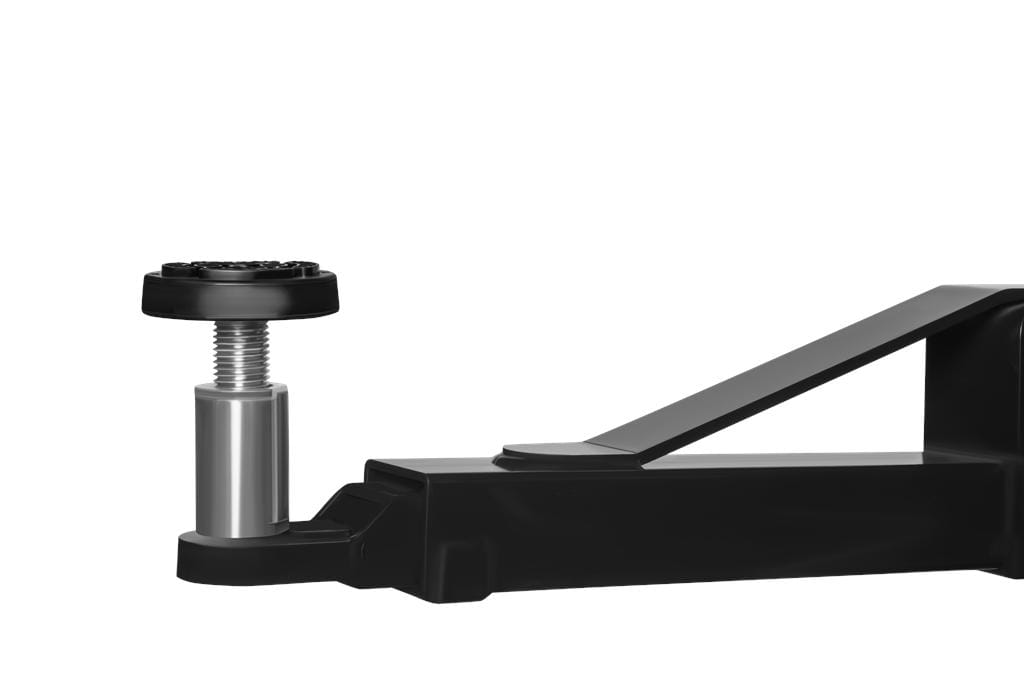

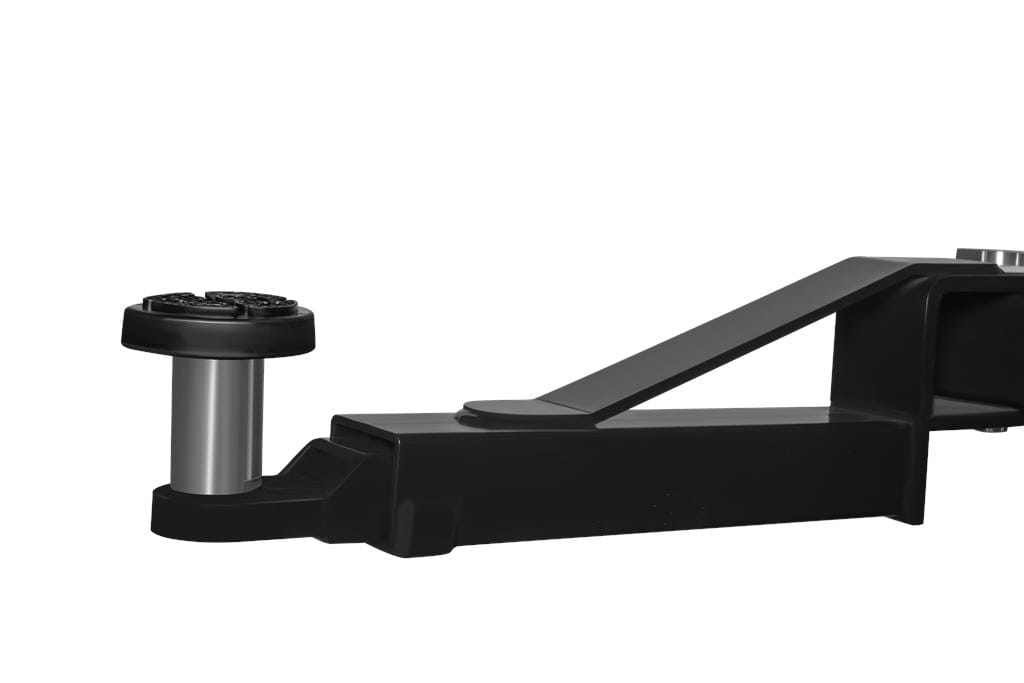

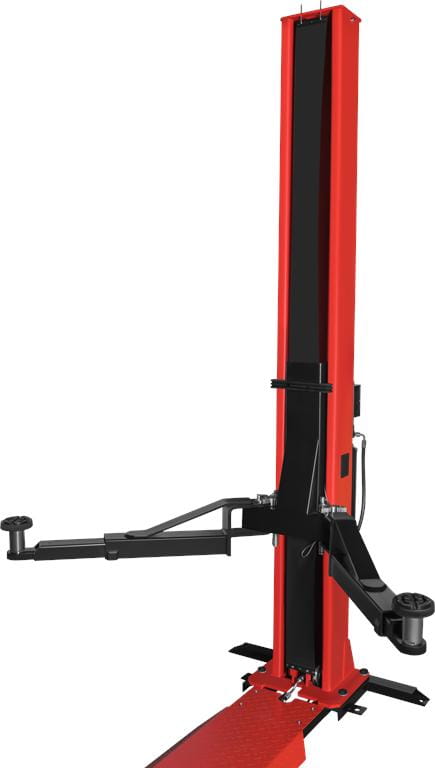

Equipped with asymmetrical two-stage arms with adjustable length, it ensures ease of use and safety during operation.
