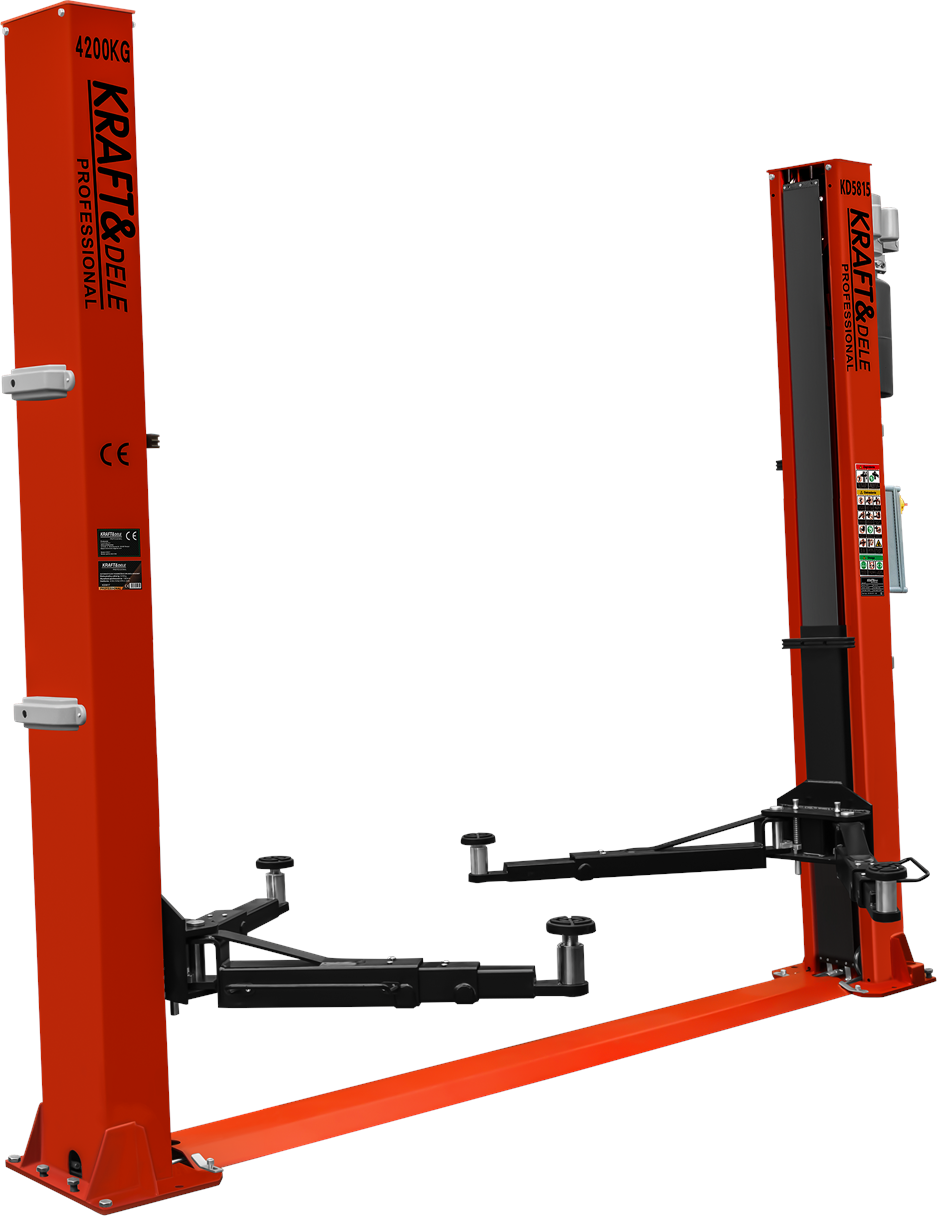

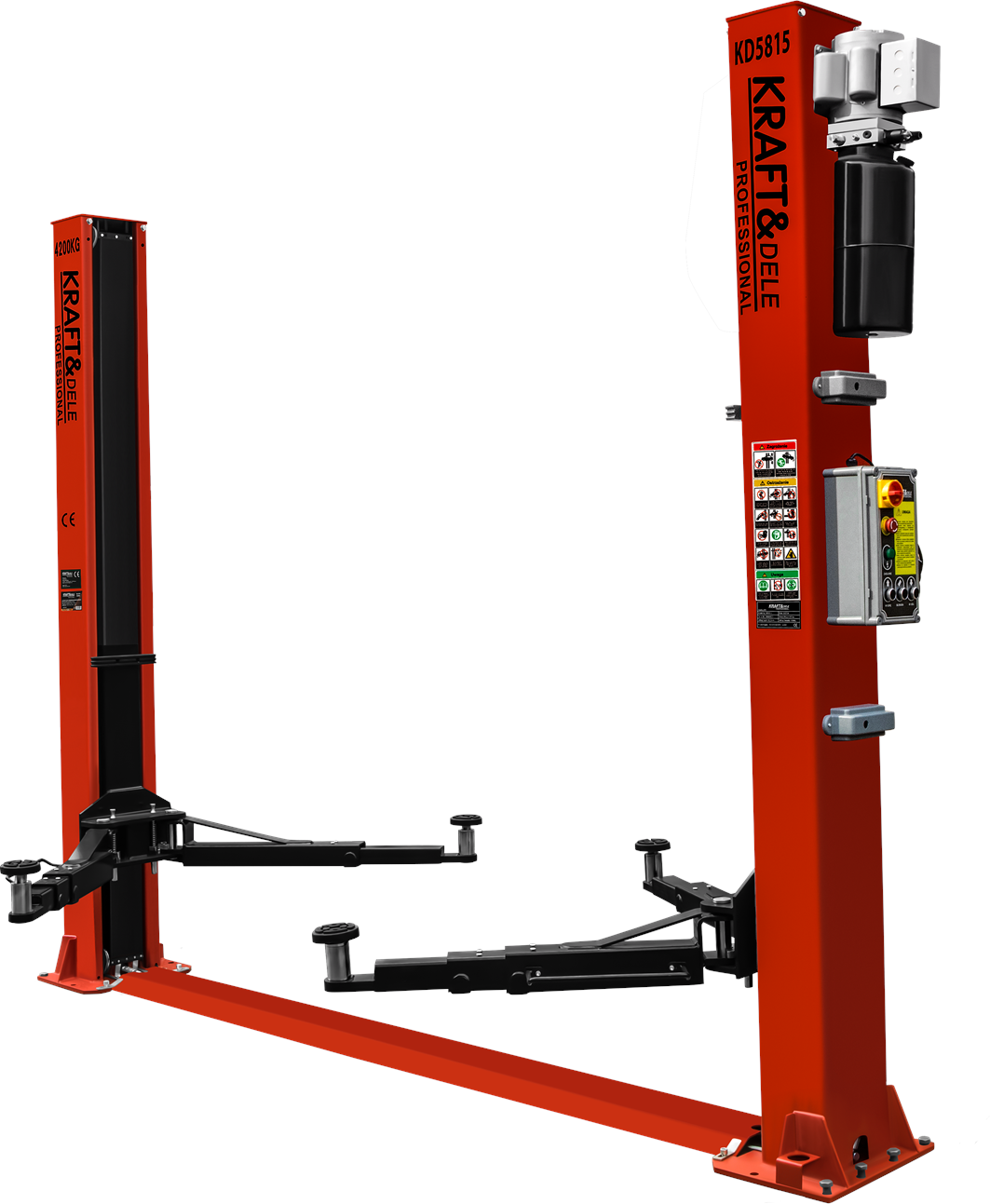

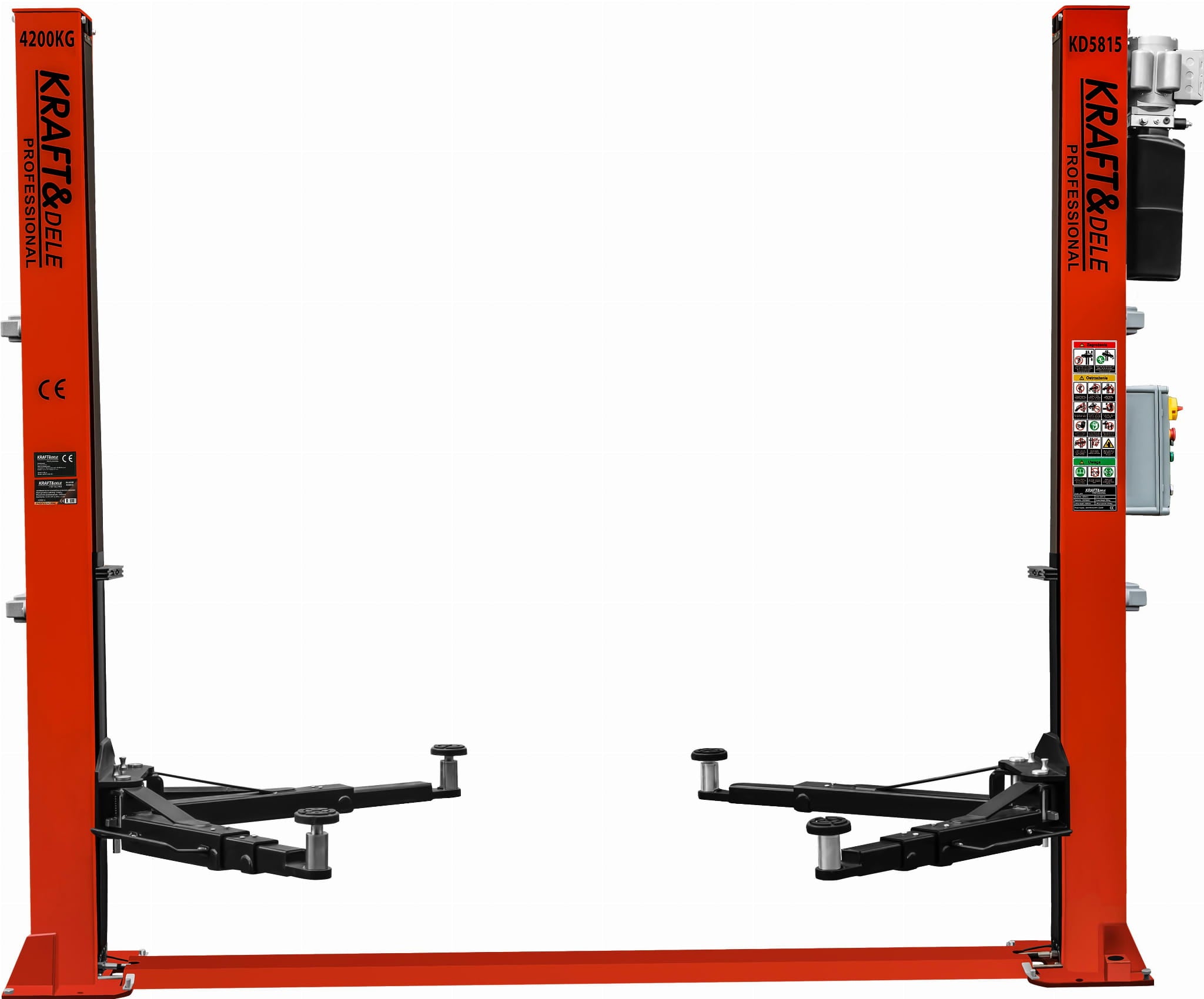

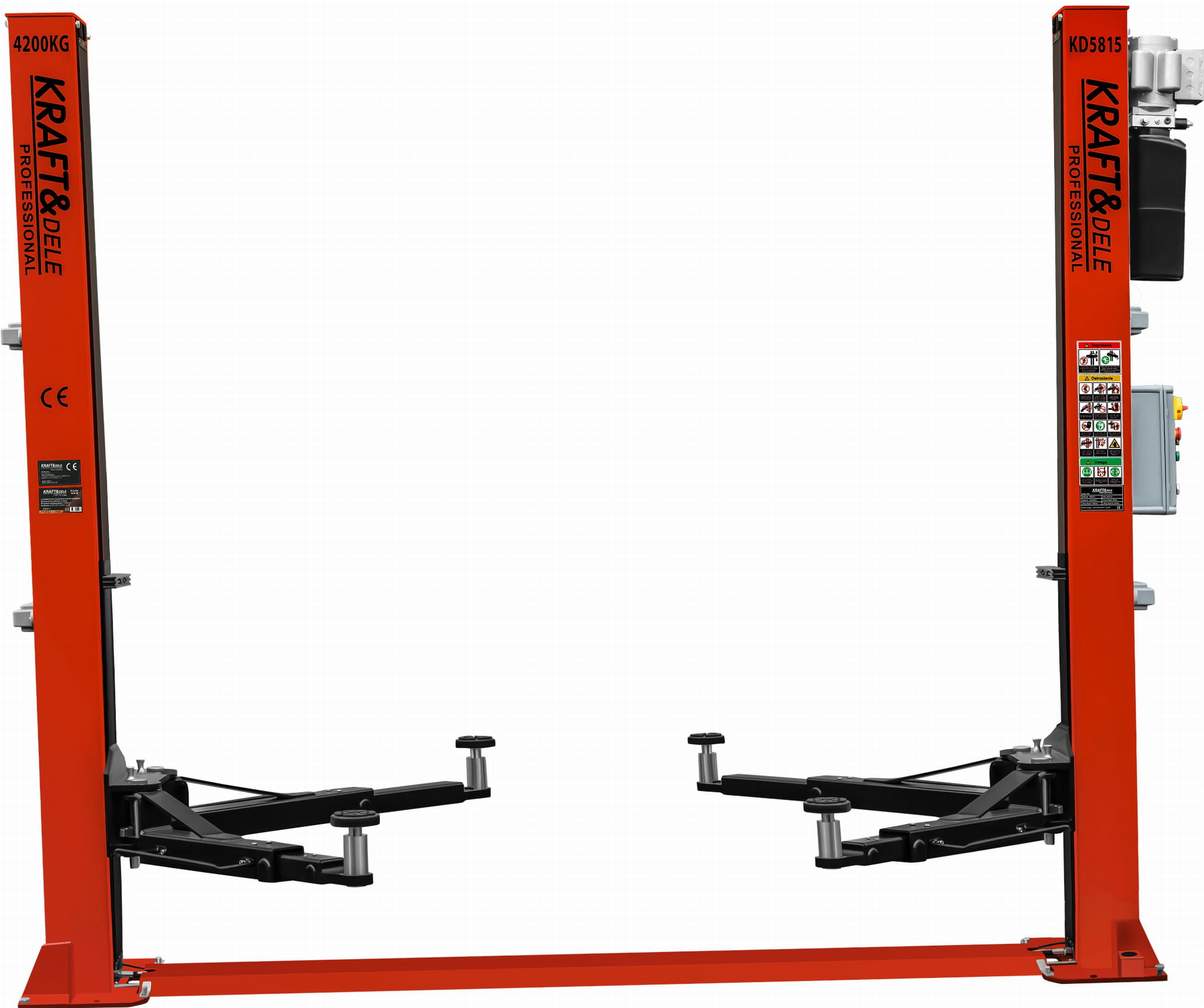

Hydraulic Column Lift Automatic KD5815 KD5815 is an automatic hydraulic column lift by KRAFT&DELE, designed for professional automotive workshops and mechanical service centers. Thanks to its high load capacity and stable construction, the device ensures safe and comfortable lifting of vehicles during daily service tasks. Asymmetric 2+3 arms with adjustable length allow the lift to be adapted to different types of vehicles. Quiet operation and the ability to adjust lifting and lowering times make the device ideal for intensive workshop use. hydraulic lift; car lift; workshop lift; two-post lift; car lift; 4200kg lift;

Specifications

• The KD5815 model is equipped with a 2.2 kW motor powered by 230 V and an automatic control system that significantly facilitates operation.
• PRODUCT FEATURES: ✅ Automatic control
• convenient and intuitive operation ✅ High load capacity up to 4200 kg

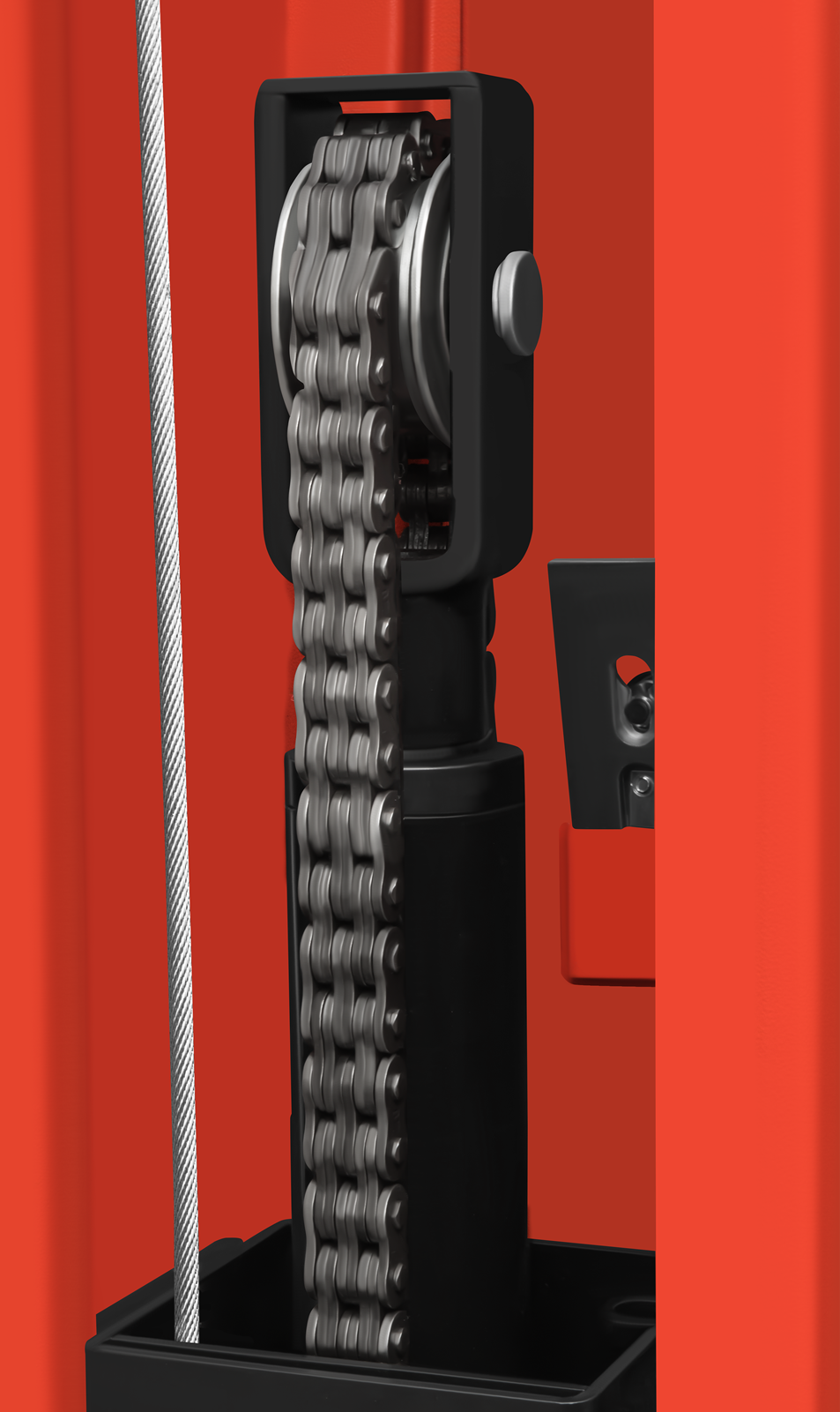

• wide workshop application ✅ Asymmetric 2+3 arms with adjustable length ✅ Stable and durable construction ✅ Quiet operation at 70 dB ✅ Protective curtains on columns enhancing safety ✅ Door bumpers protecting the vehicle body TECHNICAL DATA: ⚙️ Model KD5815 ⚙️ Power supply 230 V ⚙️ Motor power 2.2 kW ⚙️ Load capacity 4200 kg ⚙️ Max. lifting height 1900 mm ⚙️ Min. lifting height 110 mm ⚙️ Distance between columns 2820 mm ⚙️ Total height 2826 mm ⚙️ Asymmetric arms 2+3 ⚙️ Arm length 700–1400 mm / 900–1400 mm ⚙️ Lifting time 30 s (adjustable) ⚙️ Oil pressure 20 MPa ⚙️ Oil tank 10 l ⚙️ Noise level 70 dB ⚙️ Curtains on columns YES ⚙️ Chain 8 links ⚙️ Door bumpers YES ⚙️ Total width 3470 mm ⚙️ Gross weight 600 kg PRODUCT CONTENT: ✅ Hydraulic column lift KD5815 ✅ User manual ✅ Original packaging ✅ 12-month warranty column lift

Notes

Protective curtains on the columns and door bumpers increase work safety and protect the vehicle from accidental damage.
