Overview

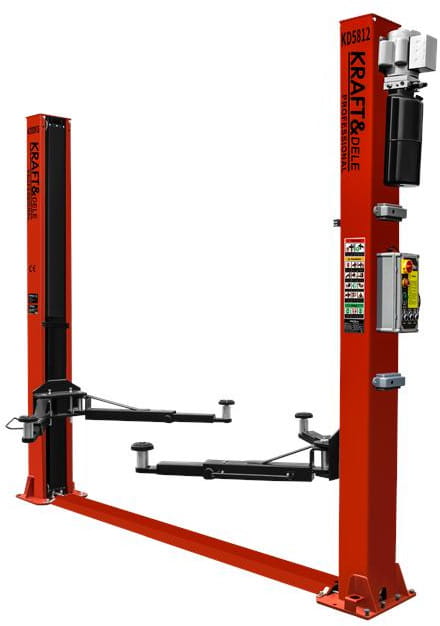

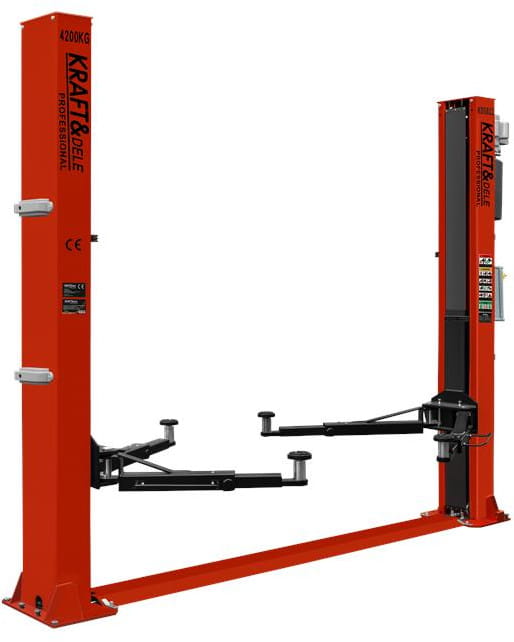

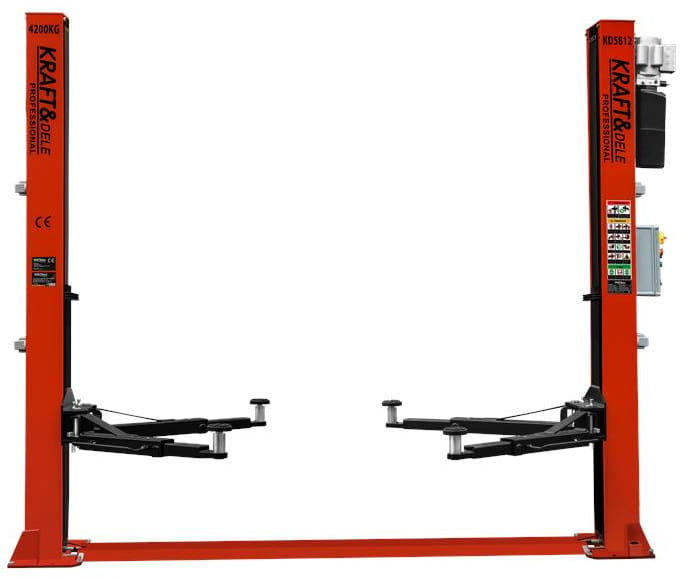

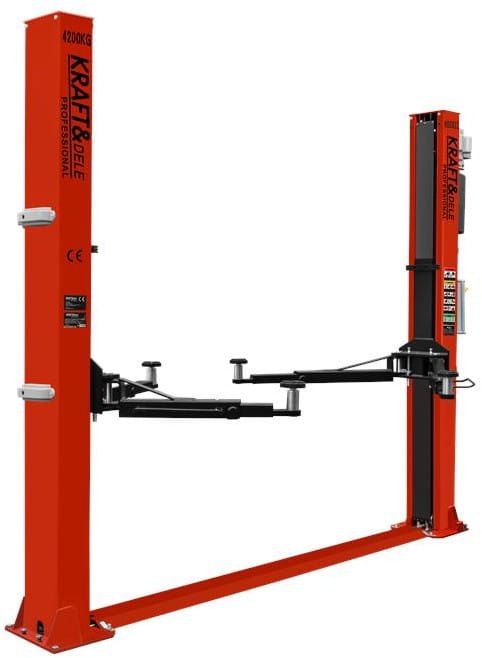

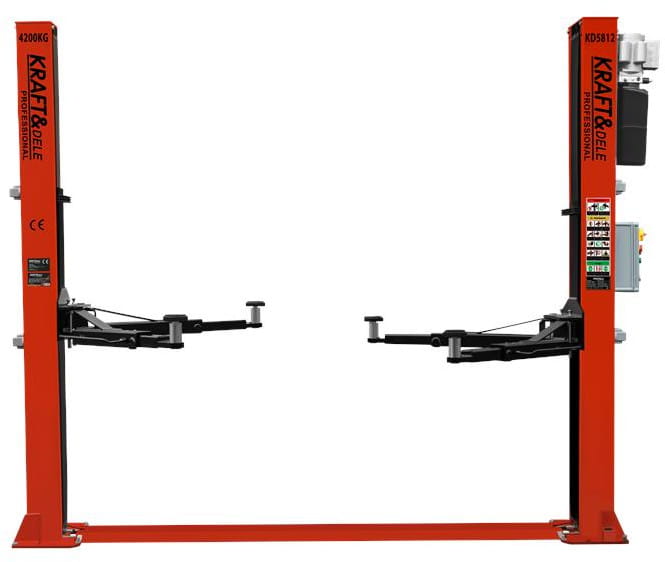

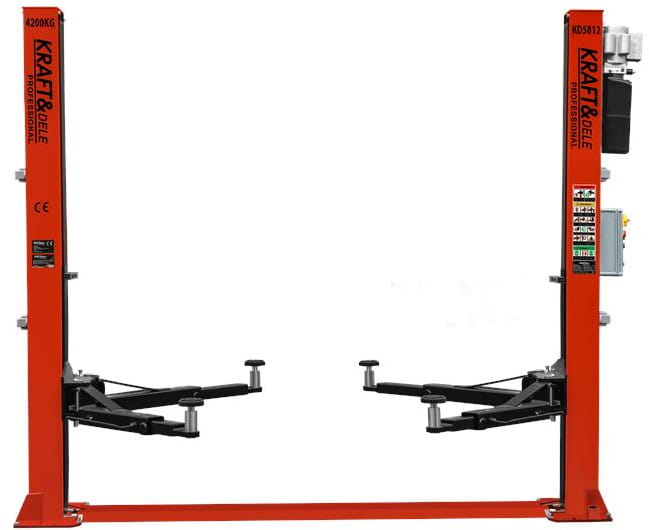

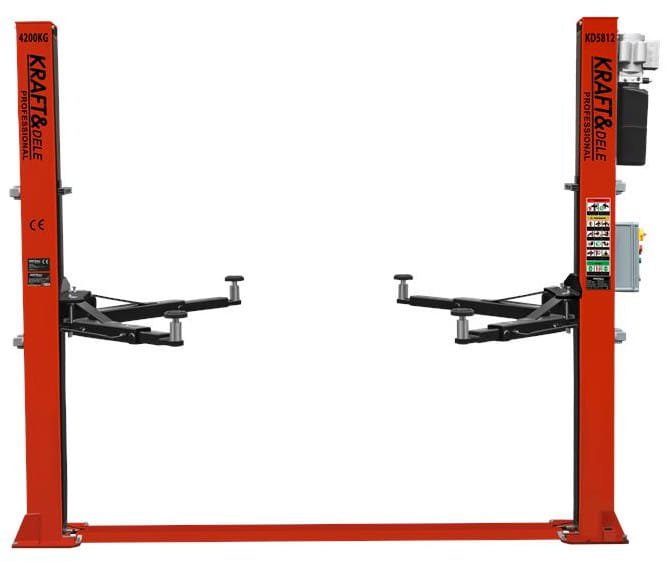

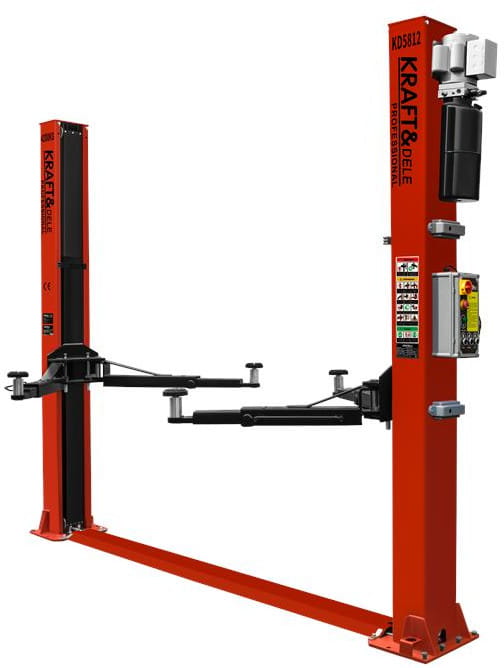

HYDRAULIC AUTOMATIC COLUMN CAR LIFT KD5812 Thanks to its solid construction and automatic control, it ensures reliable and safe operation in car service centers, service stations, and mechanical workshops. Three-phase 400V power supply and an efficient hydraulic system provide fast lifting and lowering of the vehicle while maintaining a low noise level. The KD5812 model combines high performance with durable construction, designed for intensive, daily use. ✅ PRODUCT FEATURES: ✅ Automatic control powered by three-phase (400V) ideal for passenger cars and delivery vehicles ✅ Asymmetrical, 2-stage arms with adjustable length ✅ Protective curtains on the columns and door bumpers ✅ High precision and reliability thanks to solid load chains ⚙️ TECHNICAL DATA: Model KD5812 Power supply 400V (3 phases) Arms Asymmetrical, 2-stage Lifting / lowering time 55 s / 30 s Oil pressure 20 MPa Oil tank capacity 10 l Protective curtain Yes Load chain 8 links Door bumpers Yes ✅ PRODUCT CONTENT: ✅ Hydraulic column lift KD5812

Specifications

• The HYDRAULIC AUTOMATIC COLUMN CAR LIFT KD5812 is a professional workshop device designed for servicing vehicles weighing up to 4200 kg.
• ✅ Maximum load capacity 4200 kg
• ✅ Low noise level below 70 dB
• Load capacity 4200 kg
• Lifting height (max/min) 1900 mm / 110 mm
• Total width 3420 mm
• Total height 2826 mm
• Distance between columns 2820 mm
• Arm length 900–1400 mm / 720–1050 mm
• Noise level <70 dB
• Weight 570 kg

What's included

• ✅ User manual in Polish
• ✅ 12-month warranty

Notes

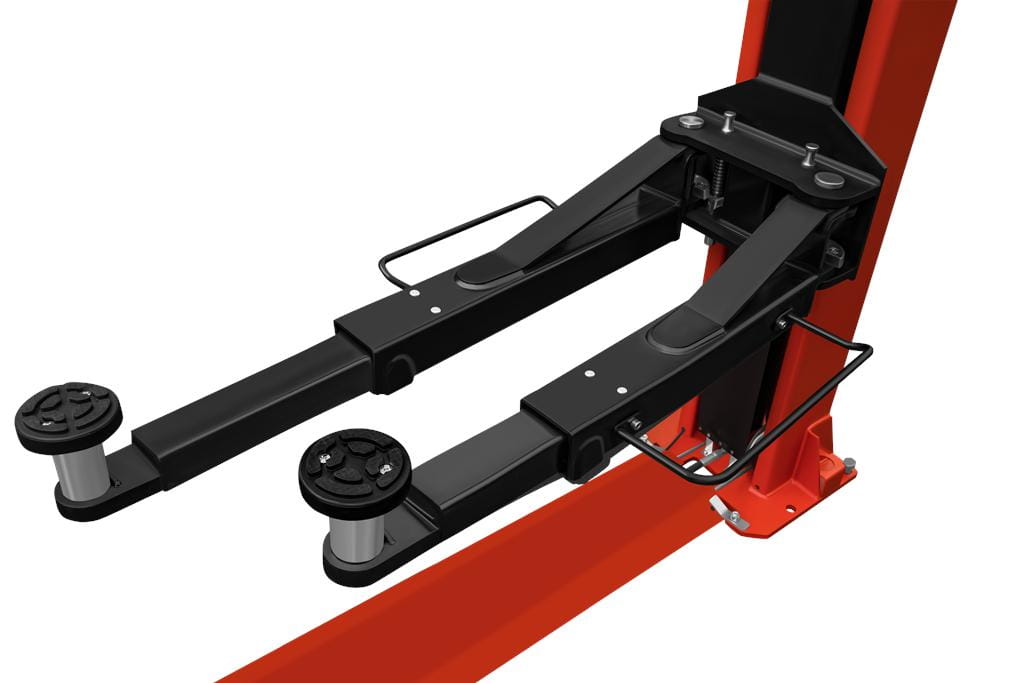

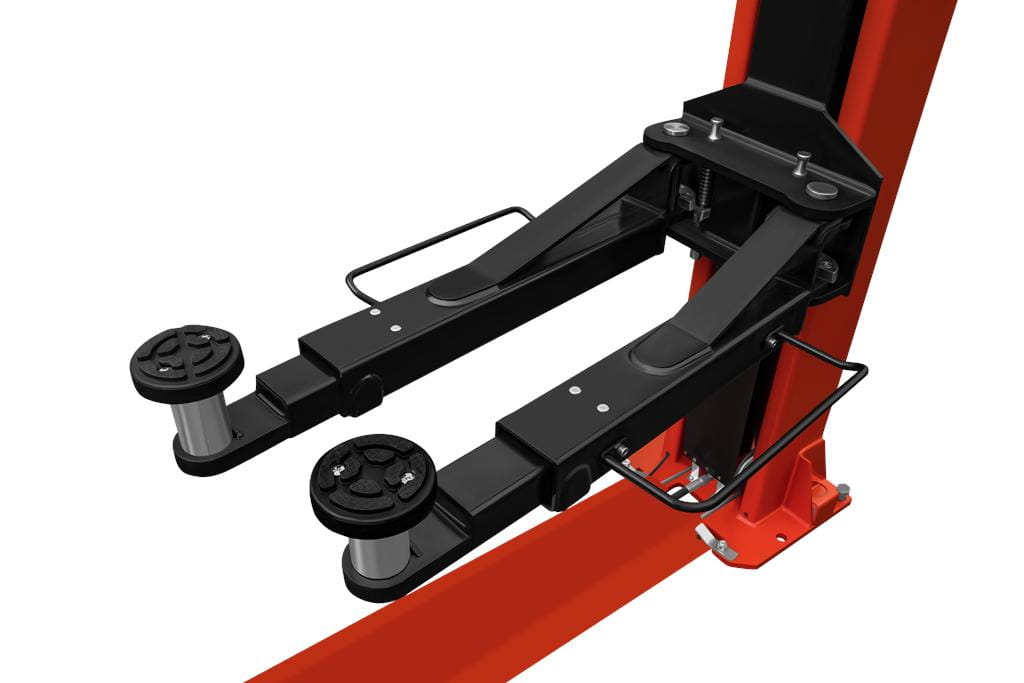

Equipped with asymmetrical, 2-stage arms with adjustable length and protective curtains on the columns, the lift guarantees easy access to the chassis and work safety.
