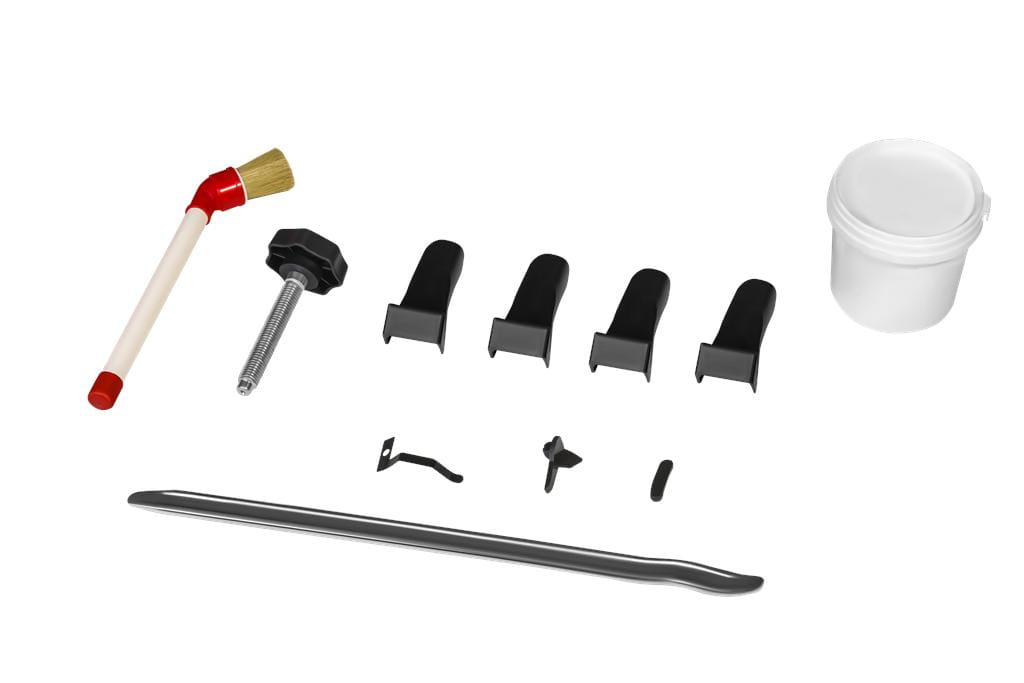

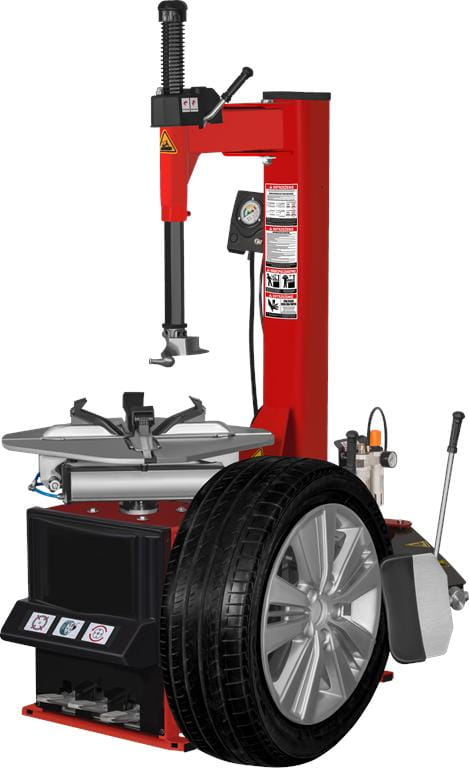

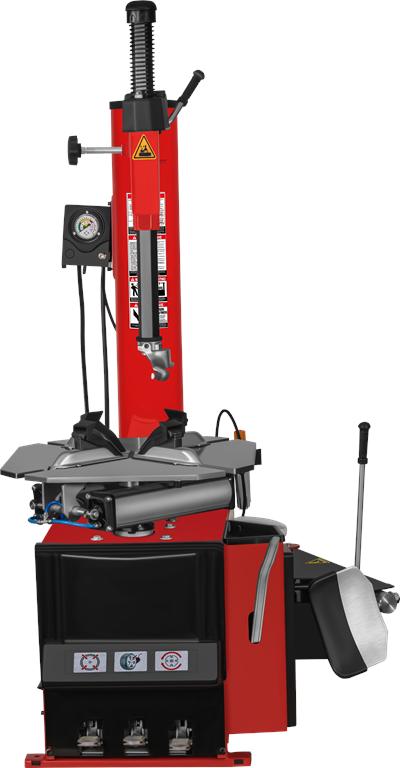

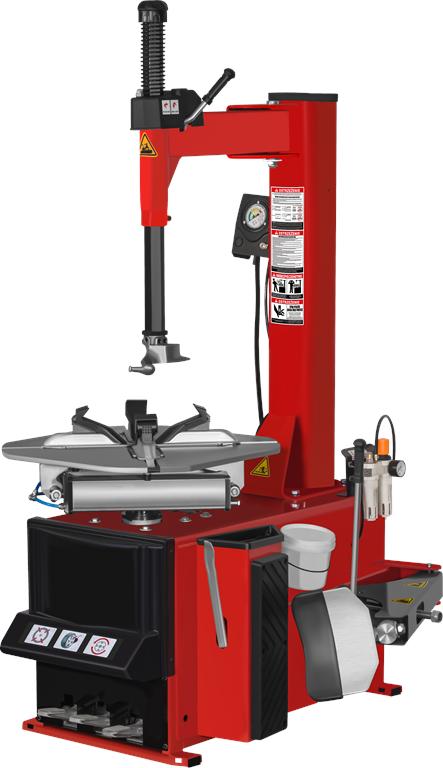

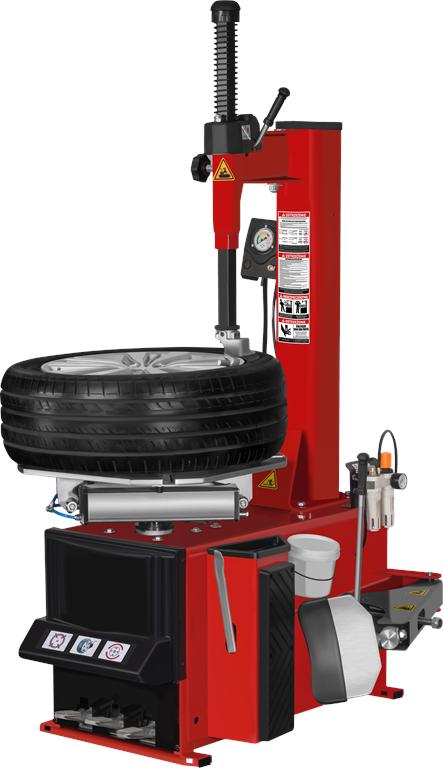

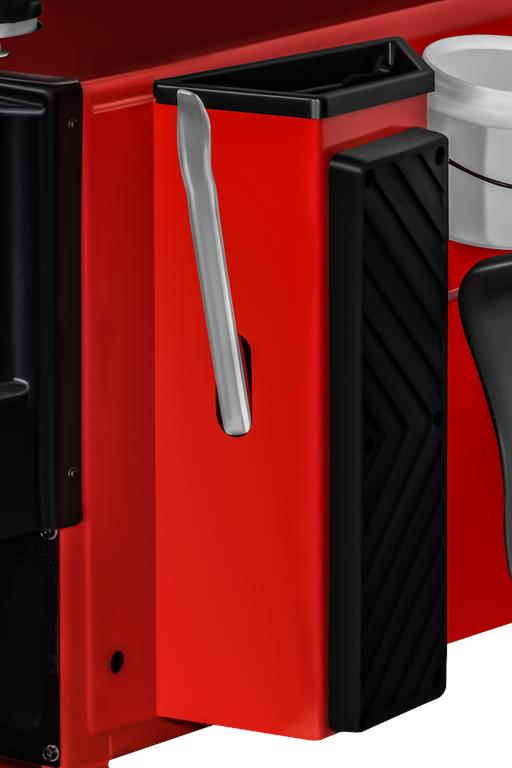

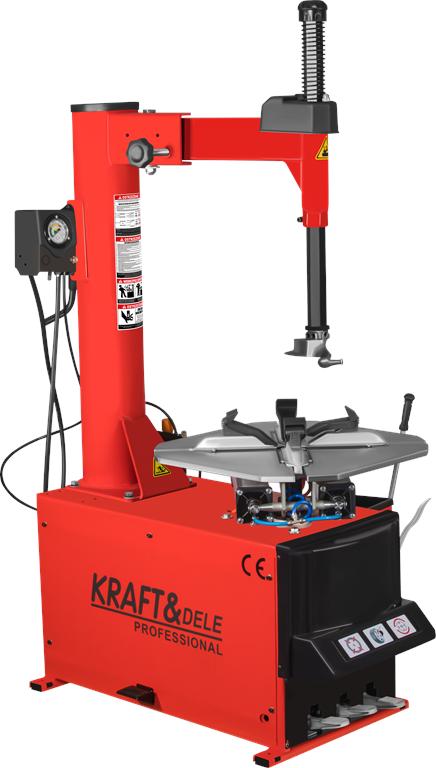

SEMI-AUTOMATIC TIRE CHANGER 230V KD5802 SEMI-AUTOMATIC TIRE CHANGER KD5802 RELIABLE AND EFFICIENT WORK IN EVERY WORKSHOP The semi-automatic tire changer KD5802 is a robust device designed for professional tire service centers, car workshops, and vulcanization points. Thanks to its proven construction and powerful 1.1kW motor, it ensures stable and precise operation with a wide range of tire sizes. ✅ WIDE RANGE OF SUPPORTED RIMS AND TIRES The KD5802 model allows handling of outer rims with diameters from 10" to 22" and inner rims from 12" to 24", making it a universal solution for servicing most passenger and delivery vehicles. ✅ STRONG CONSTRUCTION AND HIGH BEAD BREAKING FORCE Operation takes place at a working pressure of 8–10 bar (145 psi), ensuring reliability and power of the cylinders. PRODUCT TECHNICAL PARAMETERS 22" 24" SET CONTENT: ✅ Semi-automatic tire changer KD5802 ✅ Bead breaker arm ✅ Tire lever ✅ Tire paste ✅ Paste brush ✅ Protective covers

Specifications

• The maximum tire diameter is up to 1040 mm, and the width up to 410 mm (16").

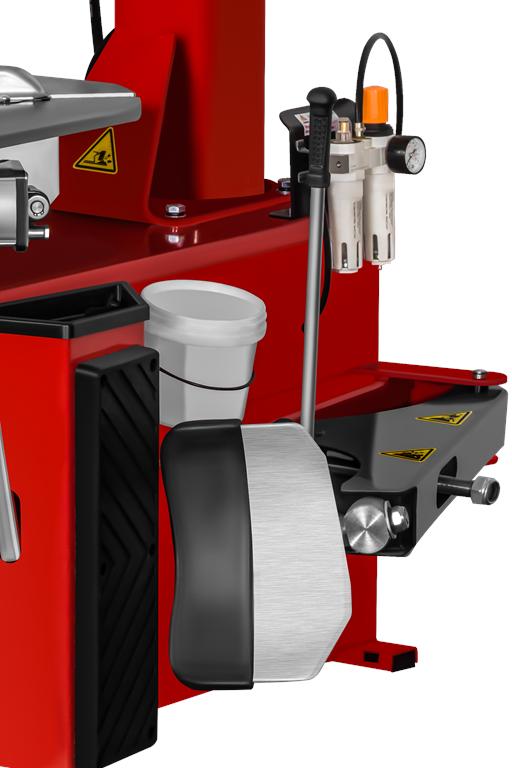

• The bead breaker with a force of 2500 kg allows easy handling of even very stubborn tires.
• The turntable speed of 6.1 rpm provides comfortable and efficient operator work.
• The device operates exceptionally quietly (below 70 dB), significantly increasing comfort in the workplace.

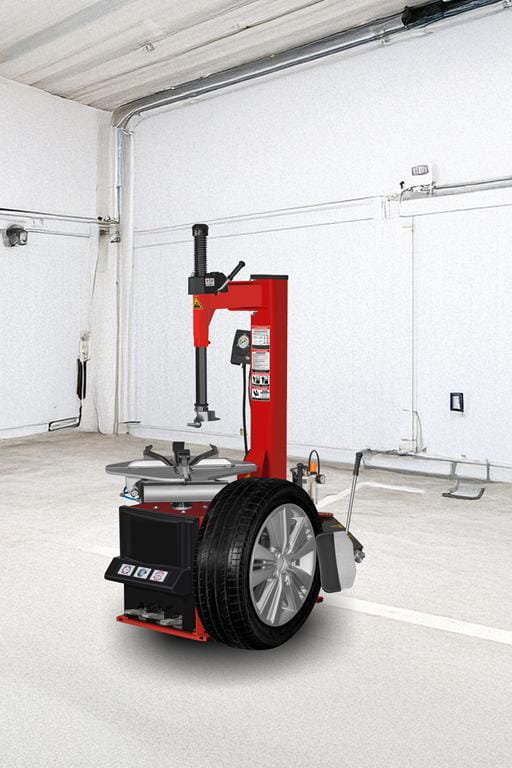

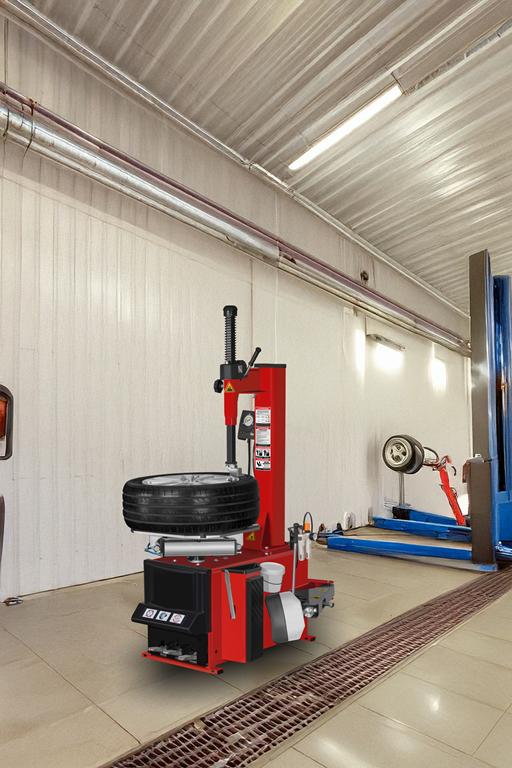

• Compact dimensions and a stable, heavy construction (240 kg) allow safe installation and use even in limited workshop spaces.
• ⚙️ Type: Semi-automatic tire changer

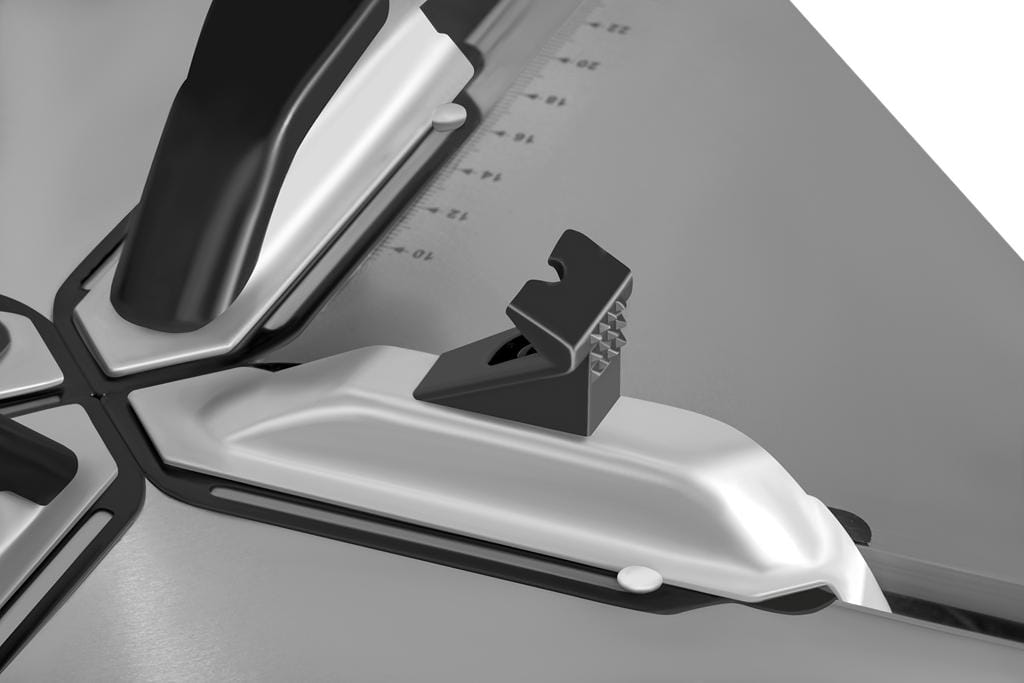

• ⚙️ Outer rim range: 10"
• ⚙️ Inner rim range: 12"
• ⚙️ Max. tire diameter: 1040 mm
• ⚙️ Max. tire width: 410 mm (16")

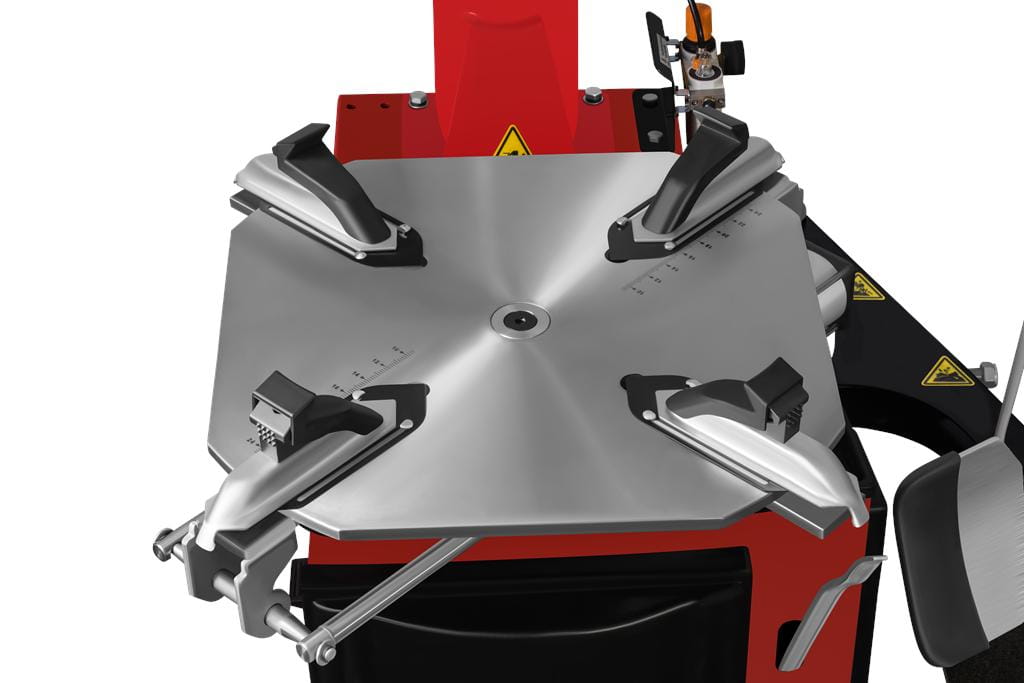

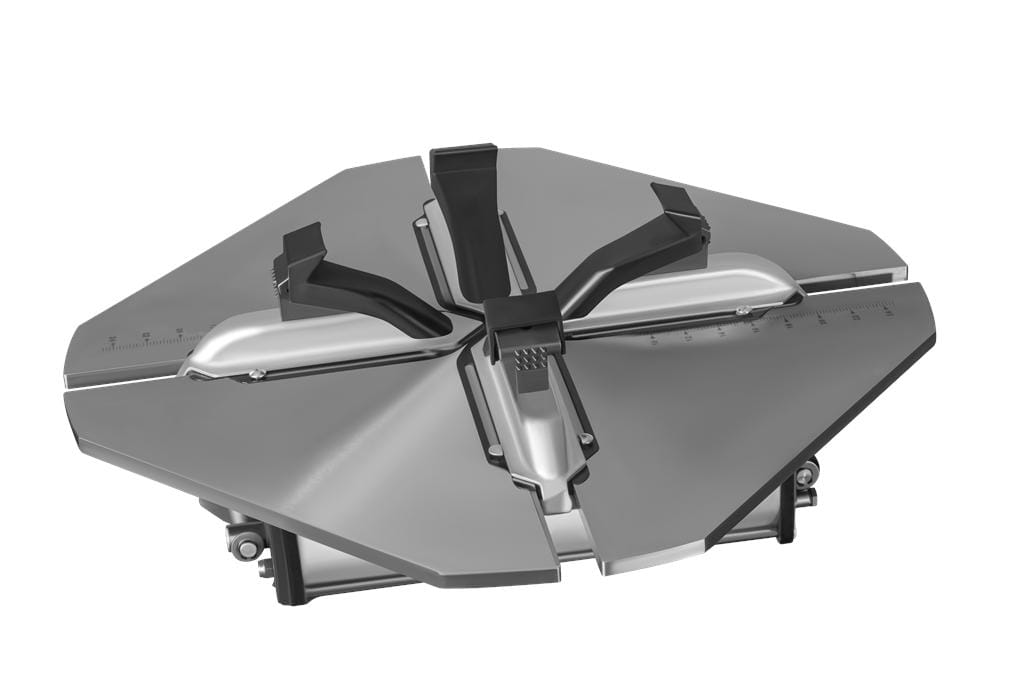

• ⚙️ Turntable speed: 6.1 rpm
• ⚙️ Bead breaker force (10 bar): 2500 kg

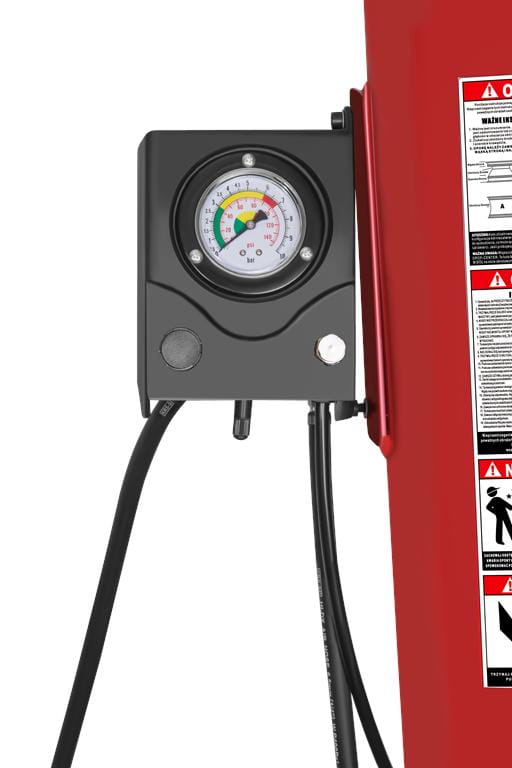

• ⚙️ Working pressure: 8-10 bar (145 psi)
• ⚙️ Power supply: 230V / 50–60 Hz
• ⚙️ Motor power: 1.1 kW
• ⚙️ Device dimensions: 1940 × 860 × 970 mm
• ⚙️ Net weight: 240 kg
• ⚙️ Operating noise: <70 dB

What's included

• ✅ Instruction manual in Polish
• ✅ 12-month warranty

Notes

✅ COMFORT, SAFETY, AND QUIET OPERATION
