Overview

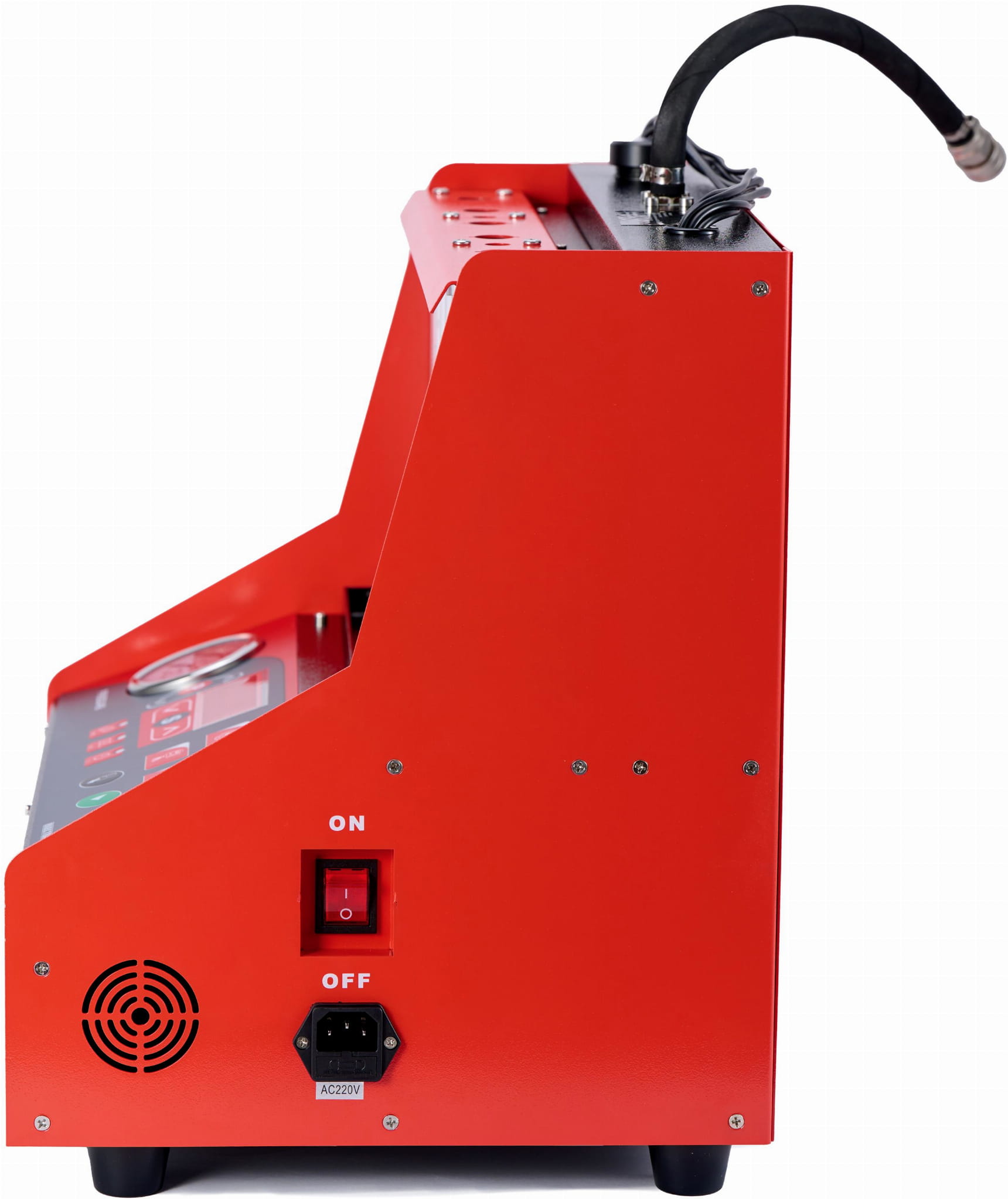

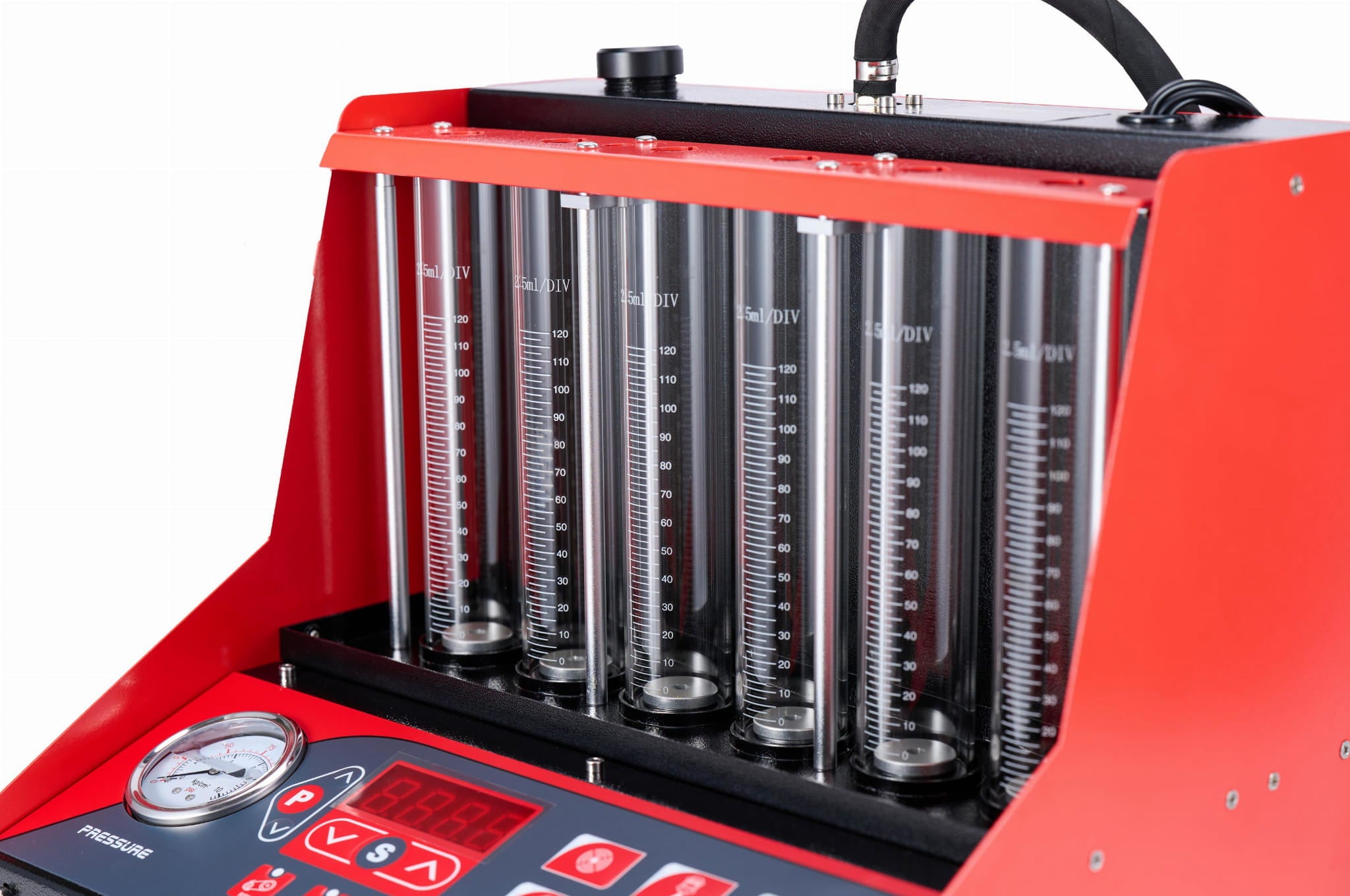

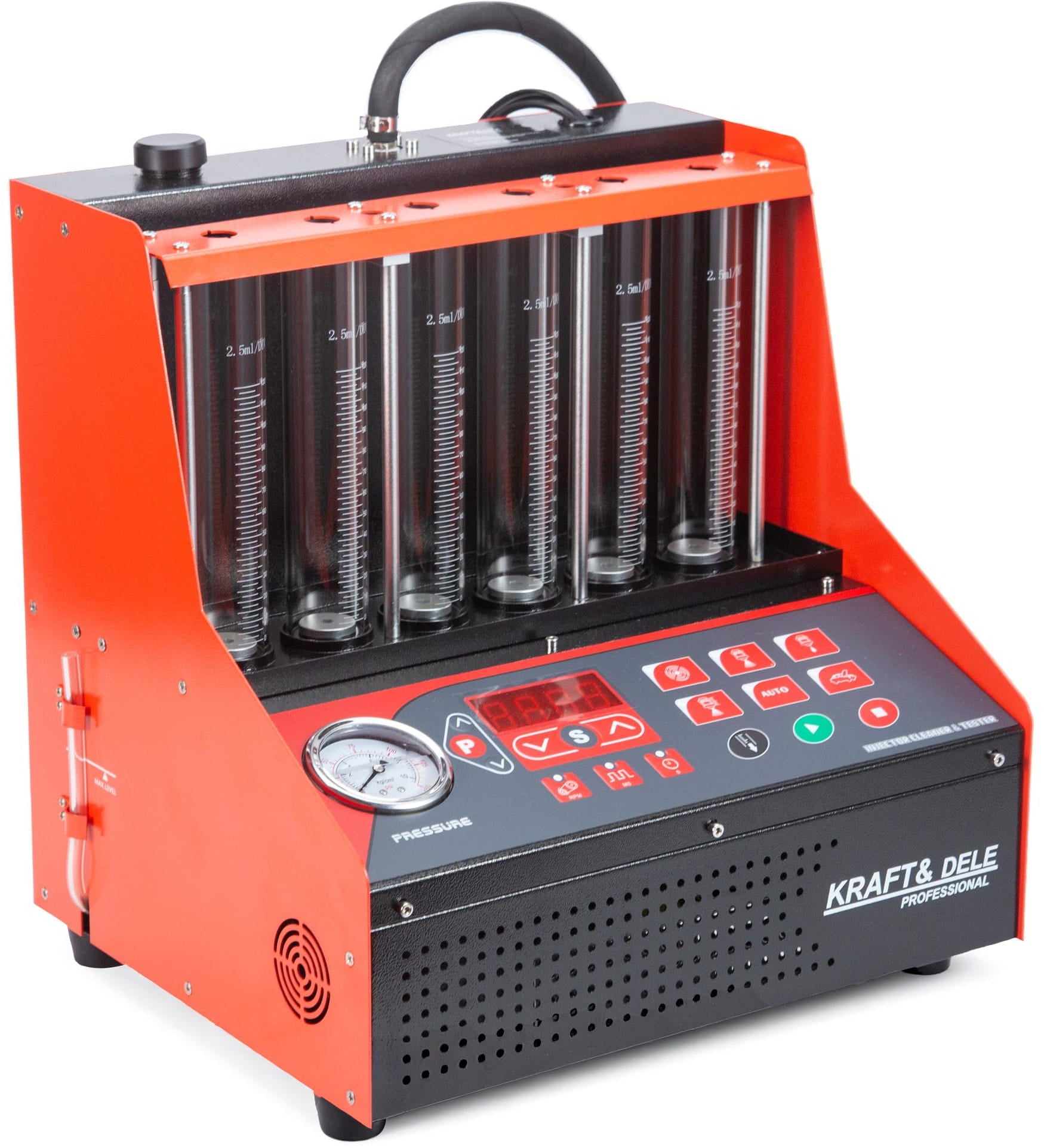

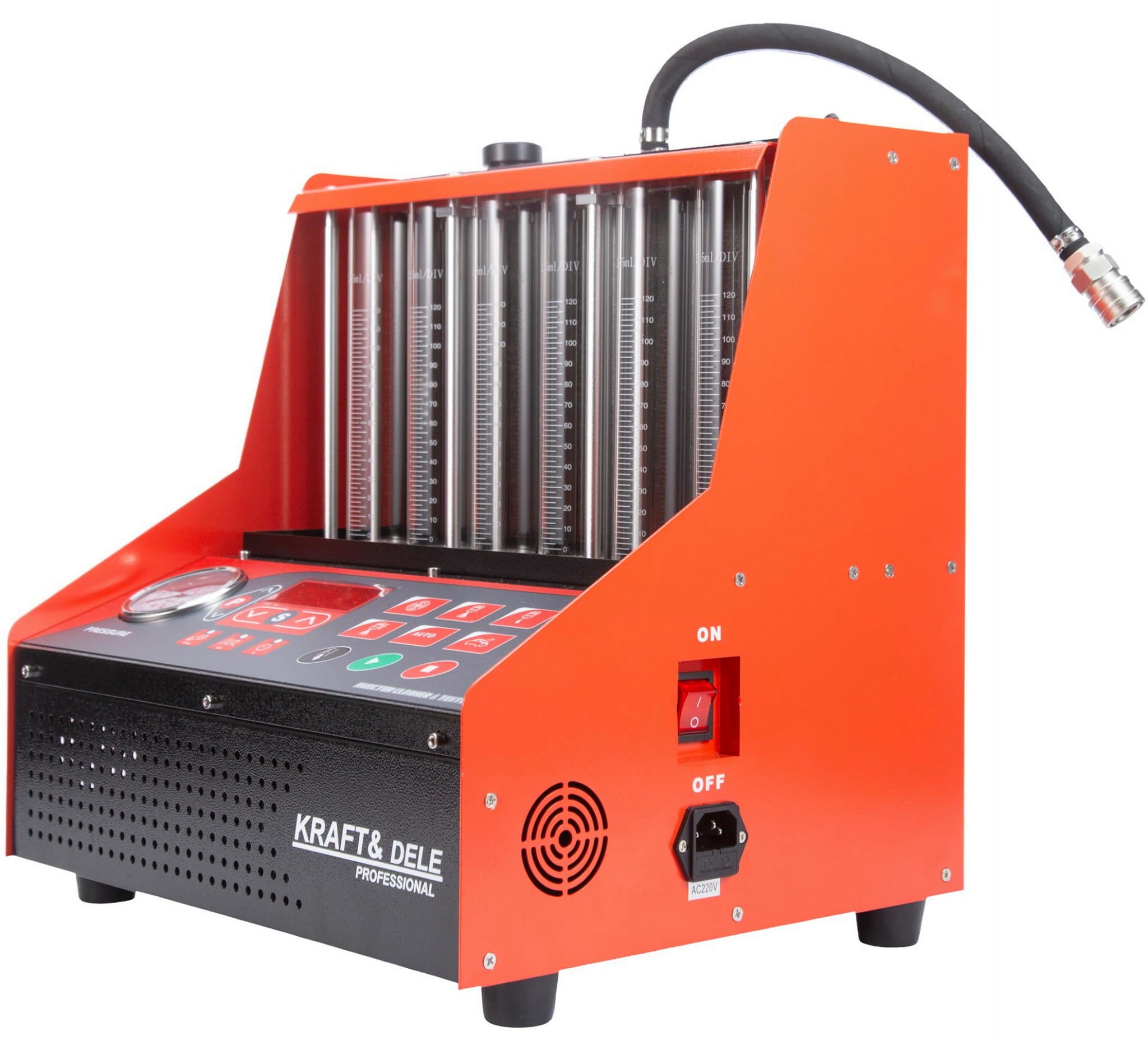

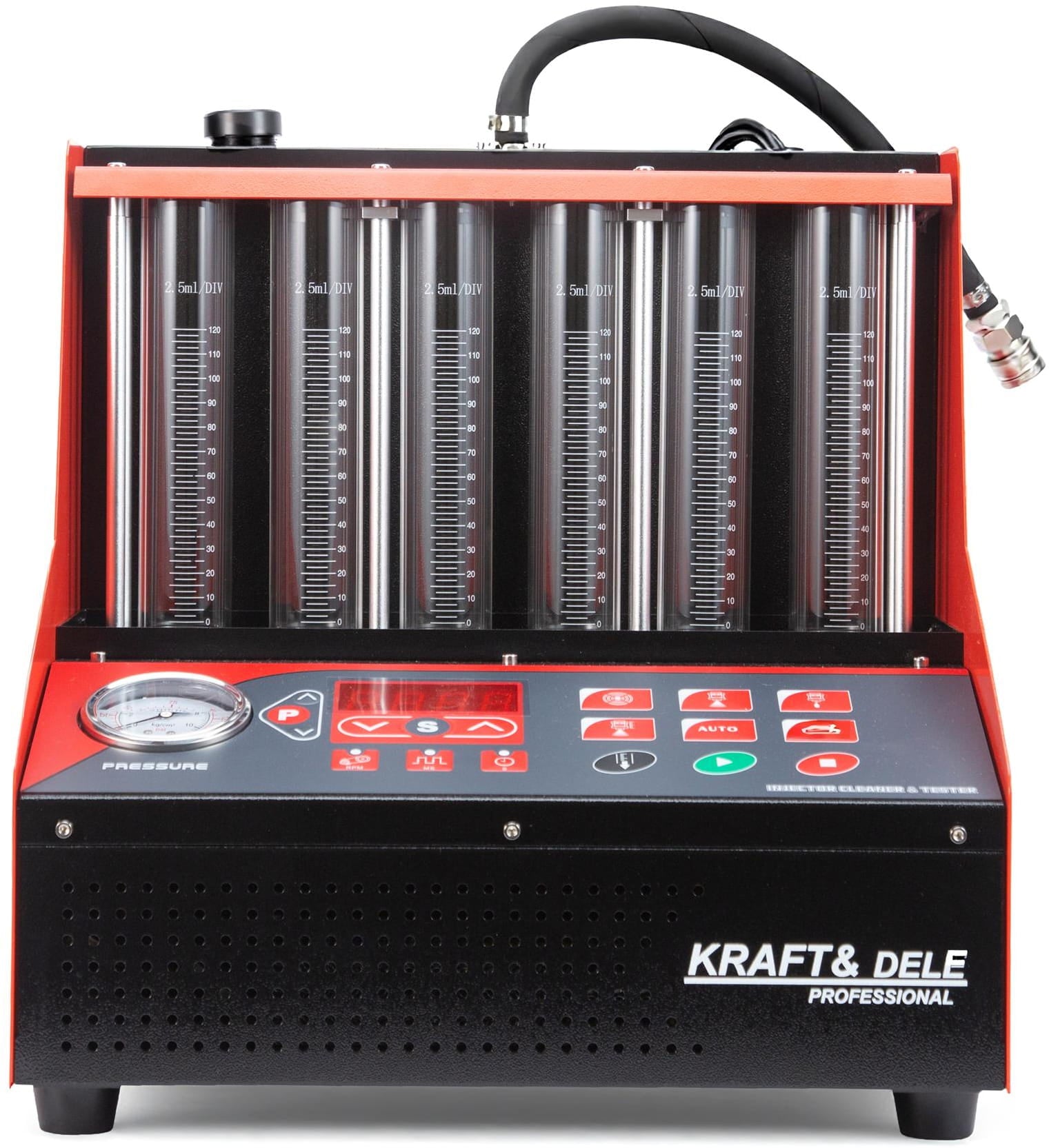

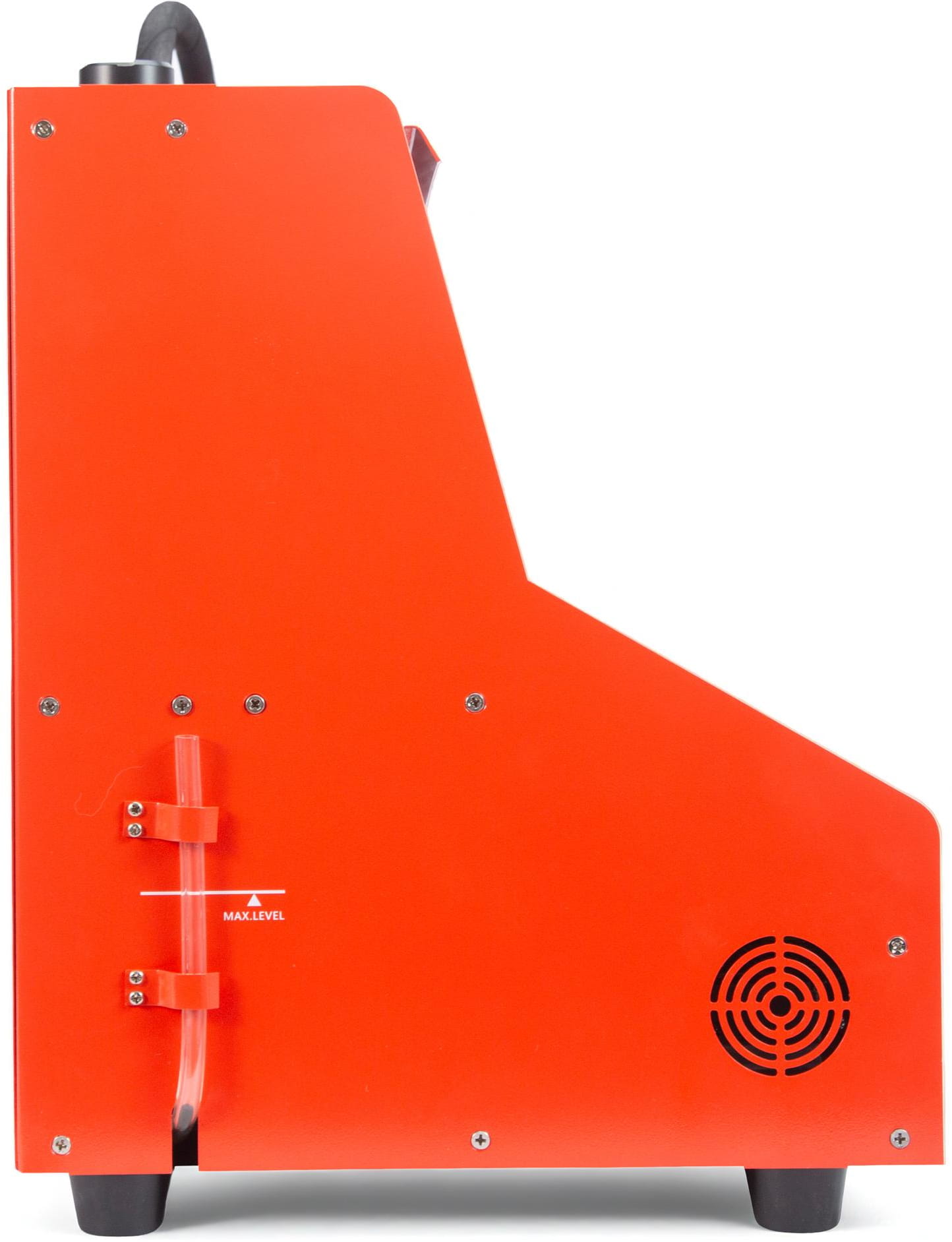

INJECTOR CLEANING AND TESTING DEVICE KD3541 KRAFT&DELE KD3541 is a professional workshop device designed for comprehensive cleaning and testing of fuel injectors. It combines ultrasonic cleaning with automatic diagnostic tests, allowing for quick and accurate assessment of injector condition and restoring their full functionality. Thanks to microcomputer control and advanced software, the device enables performing multiple test modes, including leak test, spray pattern uniformity, and injection volume. KD3541 is essential equipment for any service specializing in the repair and regeneration of injection systems. PRODUCT FEATURES ✅ Ultrasonic cleaning for effective removal of deposits ✅ Capability to perform various tests: uniformity, injector spray pattern, tightness, and injection flow ✅ Automatic mode with real-time RPM and PW adjustment ✅ Automatic draining and fuel shortage alarm ✅ Large pressure gauge and intuitive control panel ✅ Compact design facilitating transport and installation in the workshop

Specifications

• ⚙ Model KD3541
• ⚙ Power supply 110-220V 50/60Hz
• ⚙ Input power 230W
• ⚙ Ultrasonic cleaning power 100W
• ⚙ Simulated RPM range 100–9900rpm, step 100rpm
• ⚙ Time range 60–5400s, step 60s
• ⚙ Pulse width 0.5–25ms, step 0.1ms
• ⚙ Fuel tank capacity 4000ml
• ⚙ Operating temperature from -10 to 40°C
• ⚙ Relative humidity ＜85%
• ⚙ External magnetic field intensity ＜400A/m
• ⚙ Weight 19.5kg

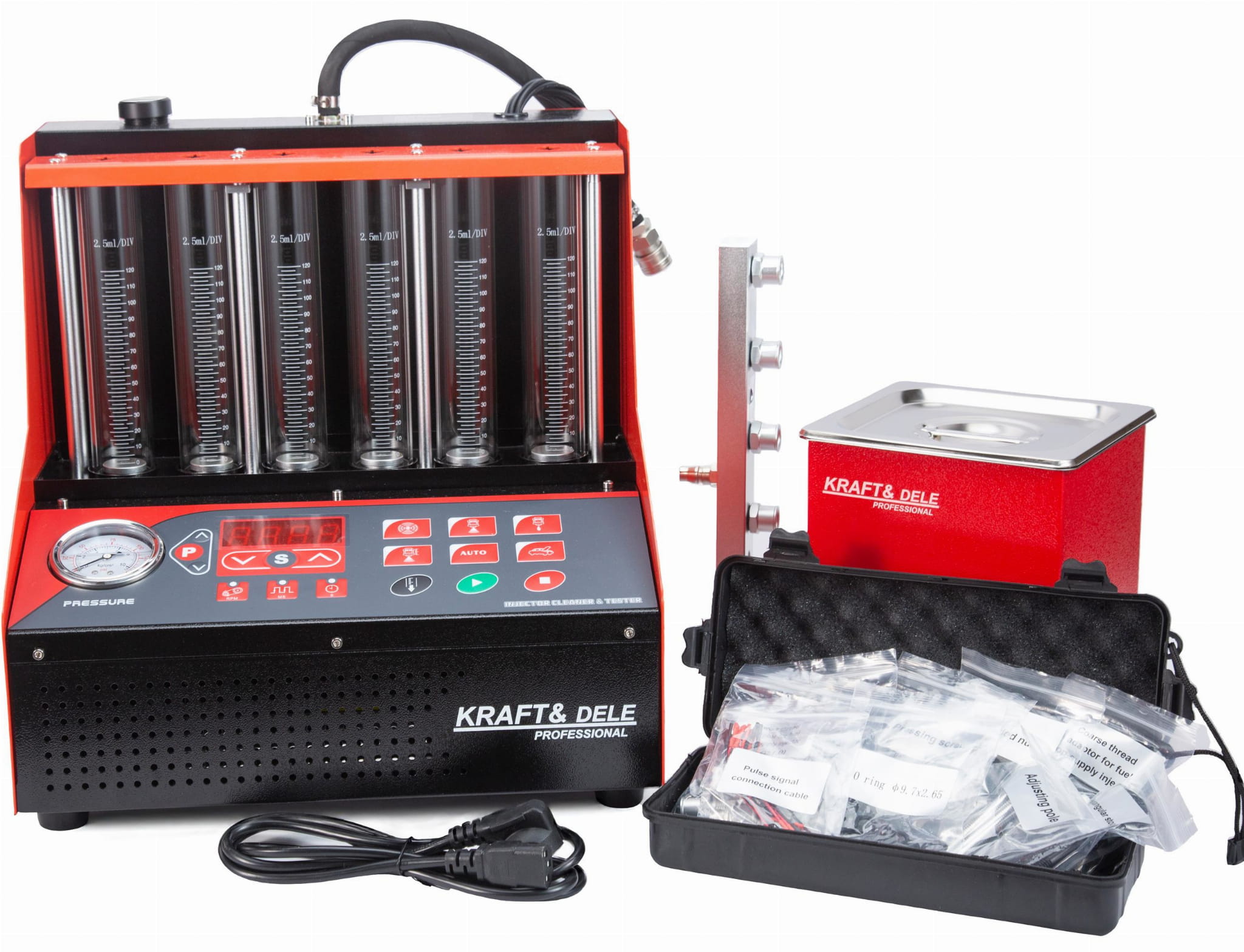

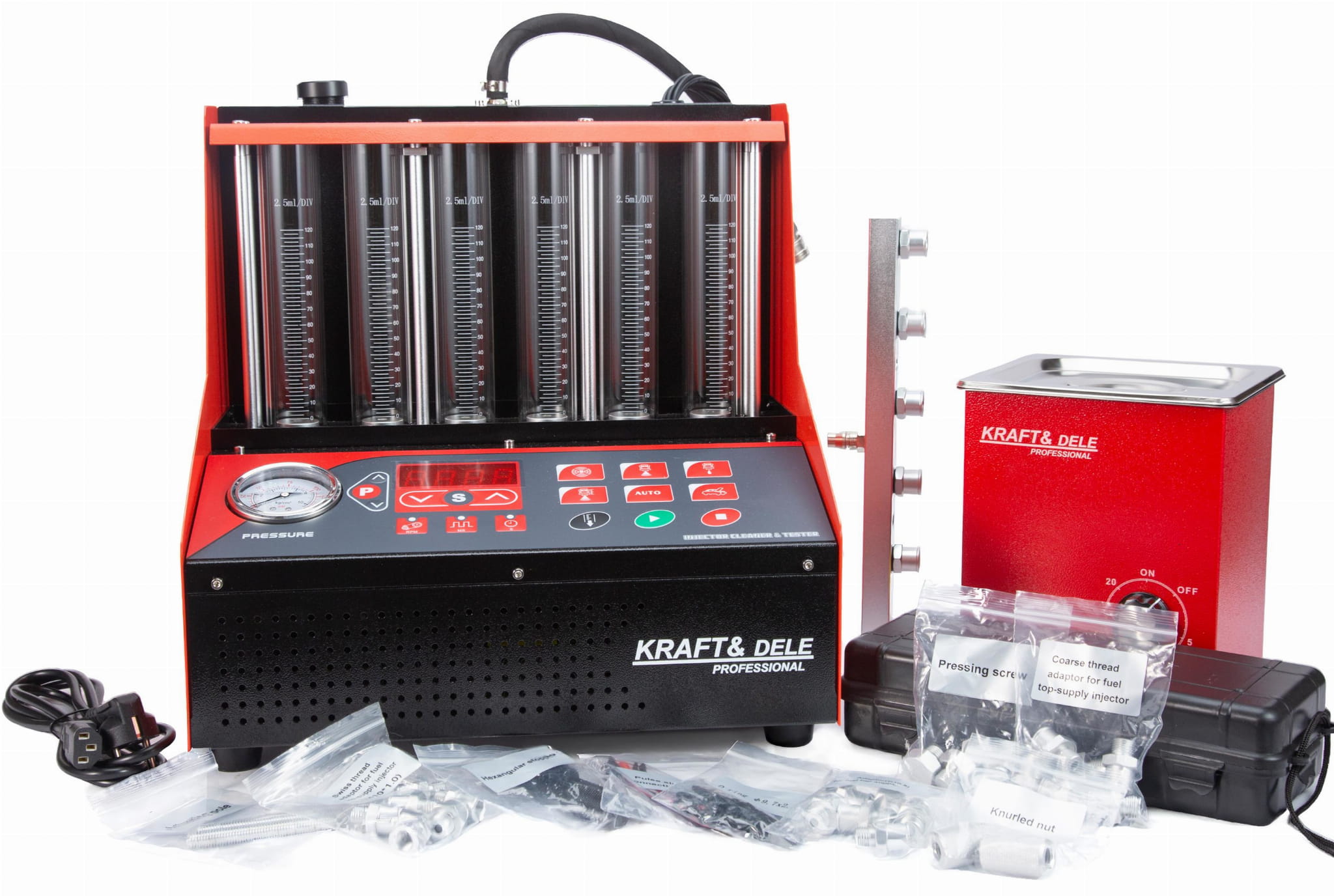

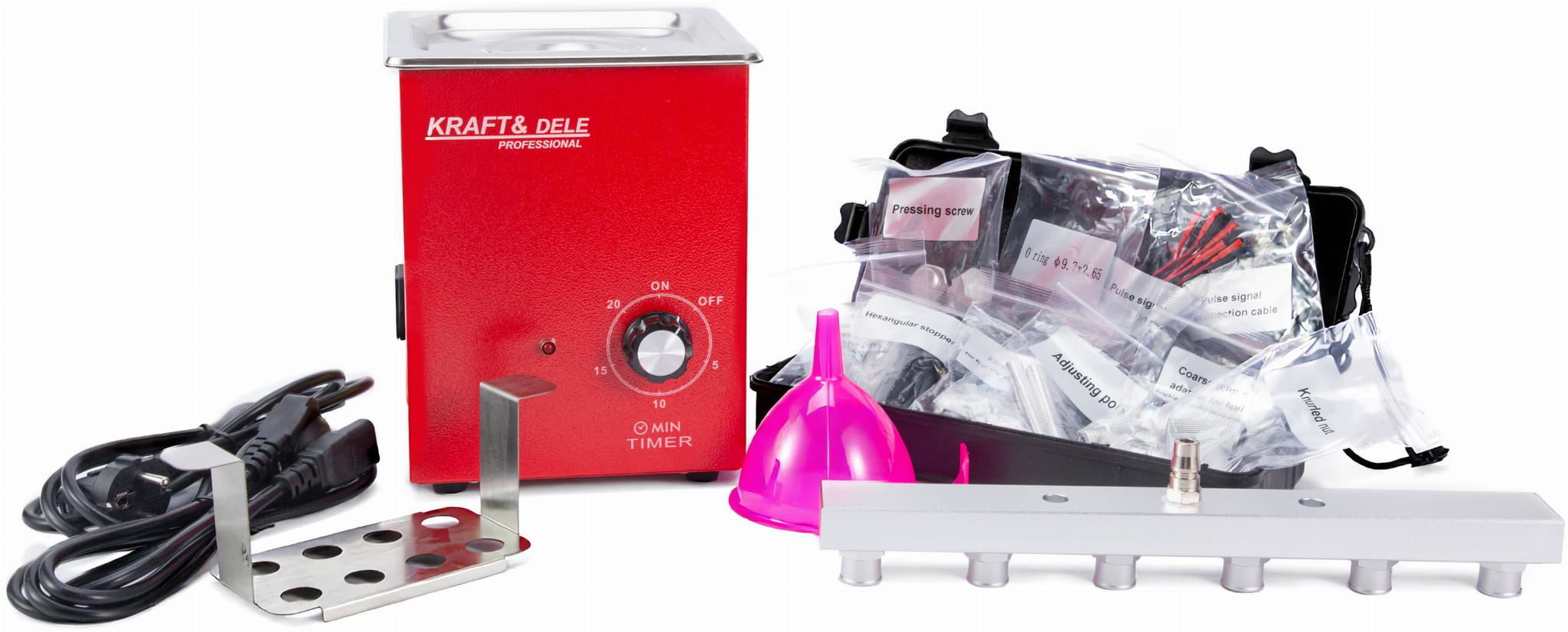

• PRODUCT CONTENT
• ✅ Injector tester KD3541

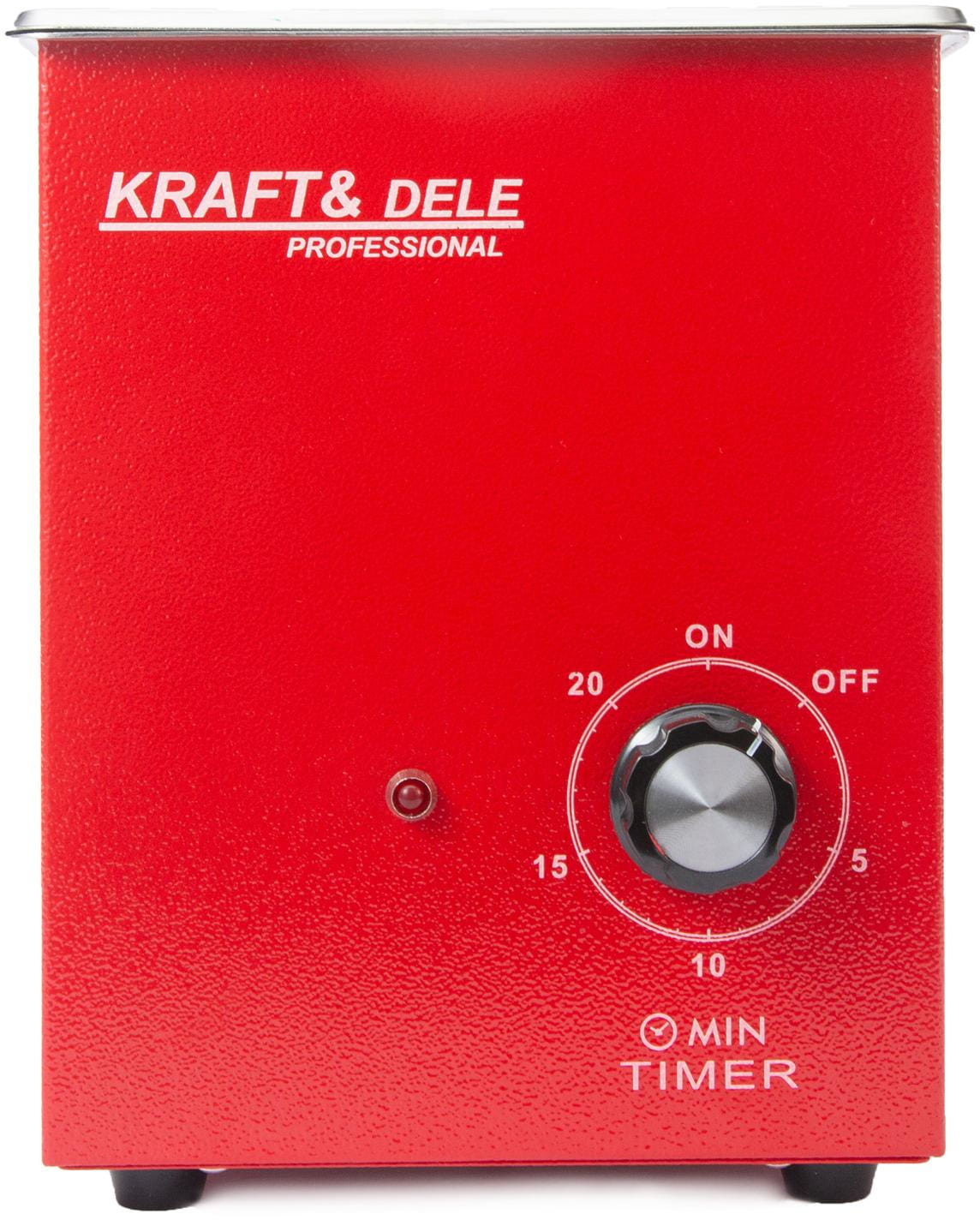

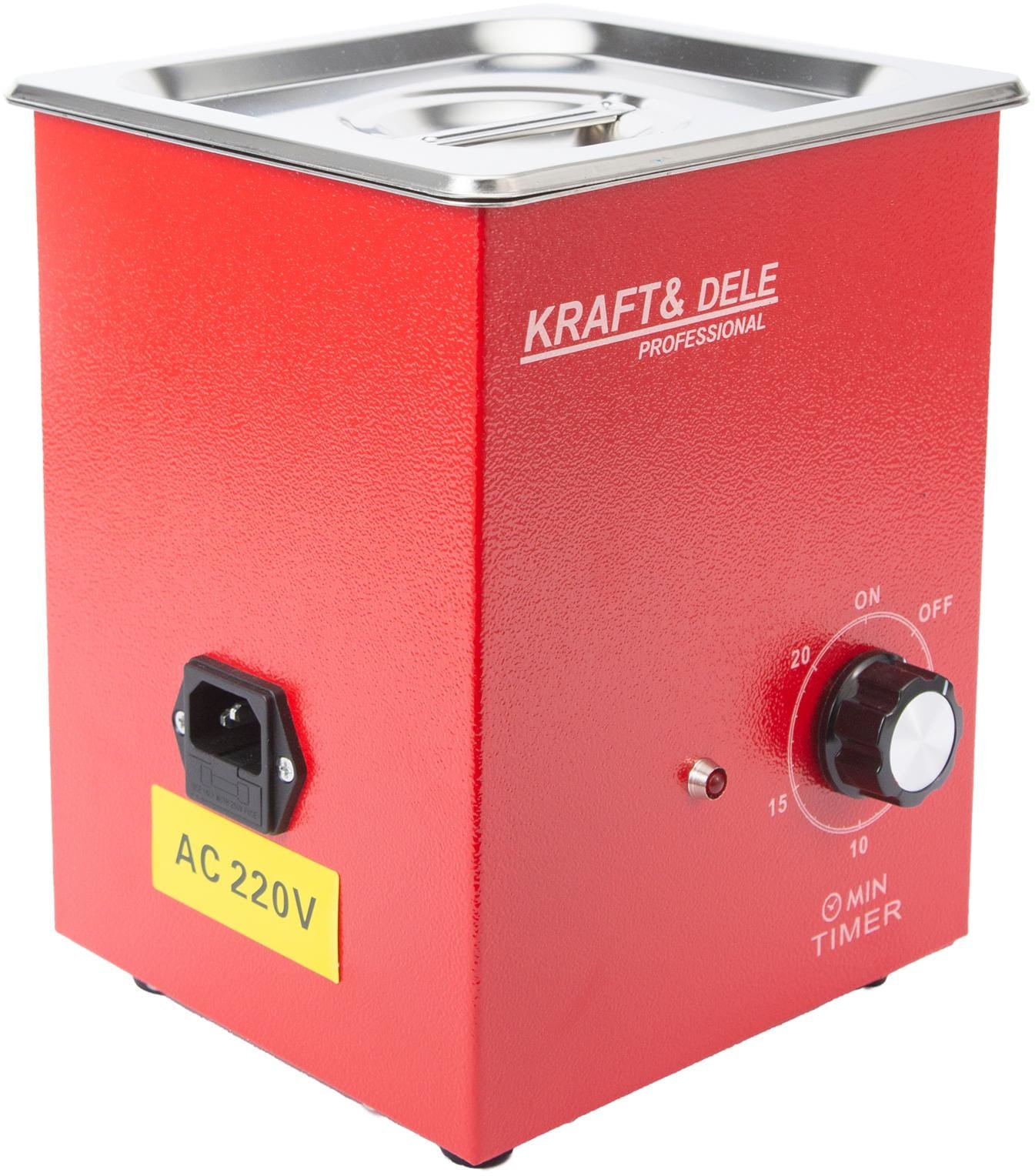

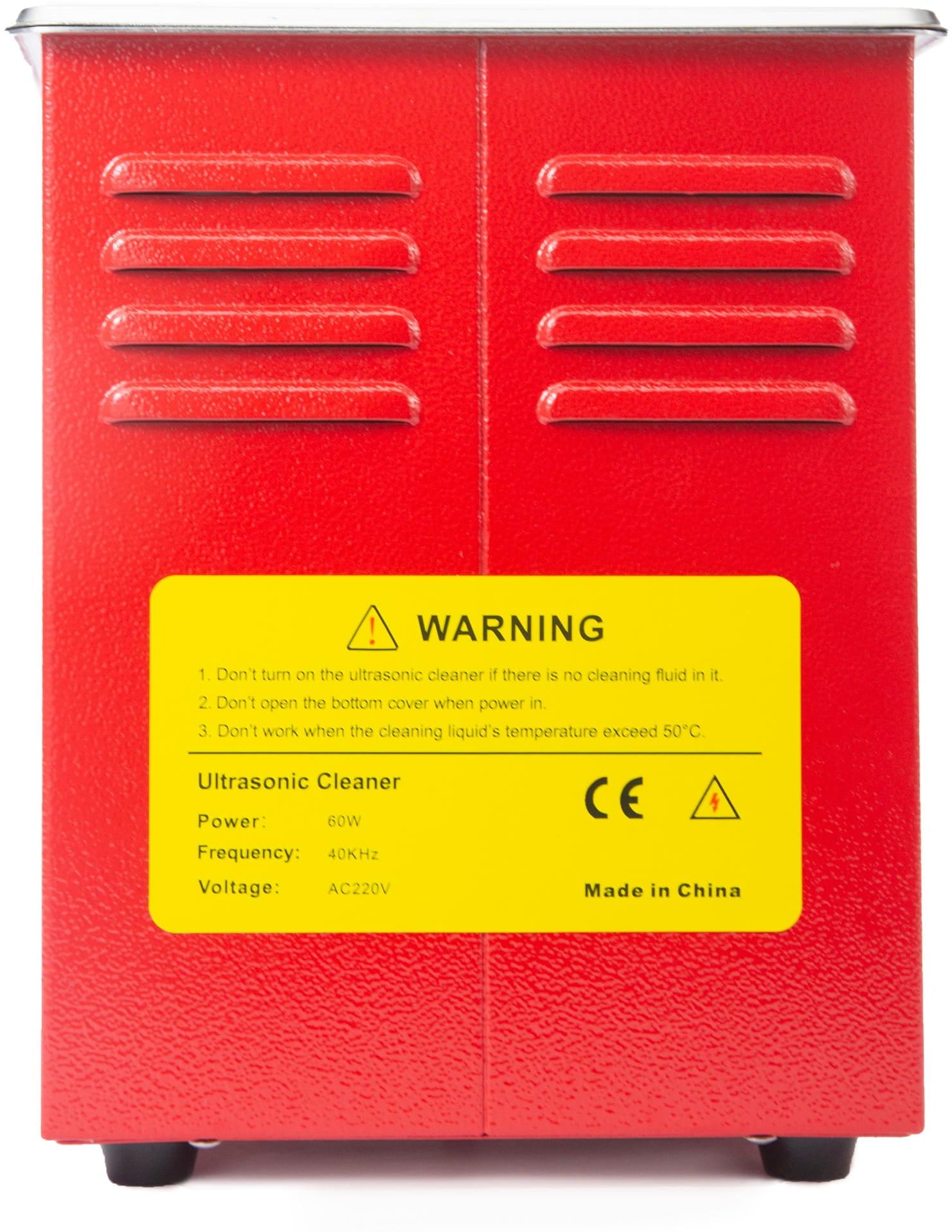

• ✅ Ultrasonic cleaner

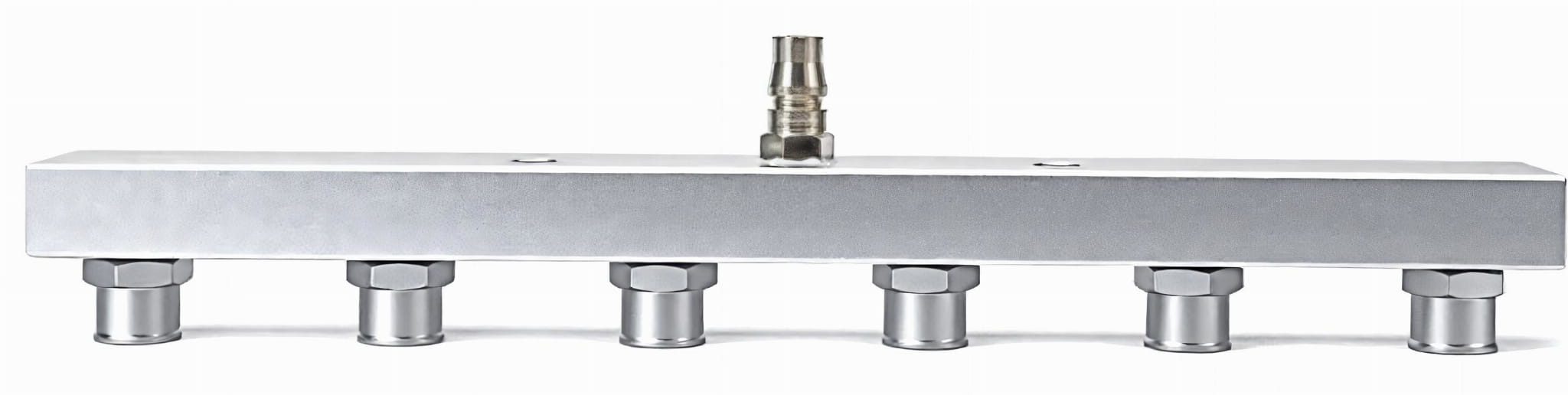

• ✅ Accessories
• ✅ User manual in Polish
• ✅ 12-month warranty
