Overview

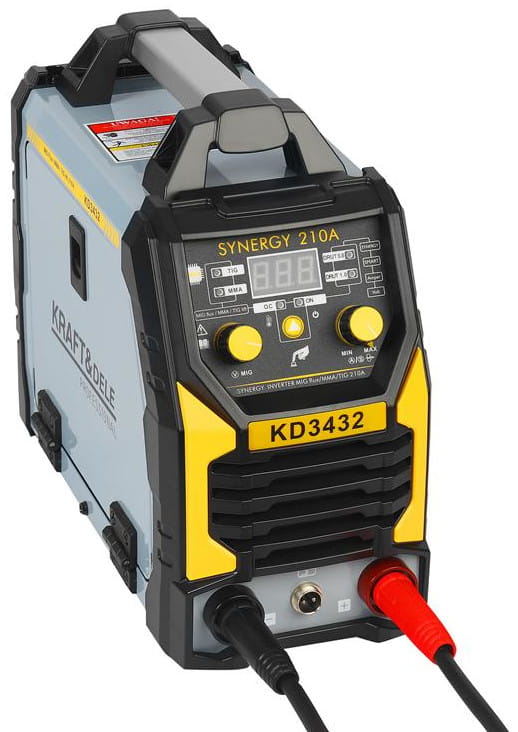

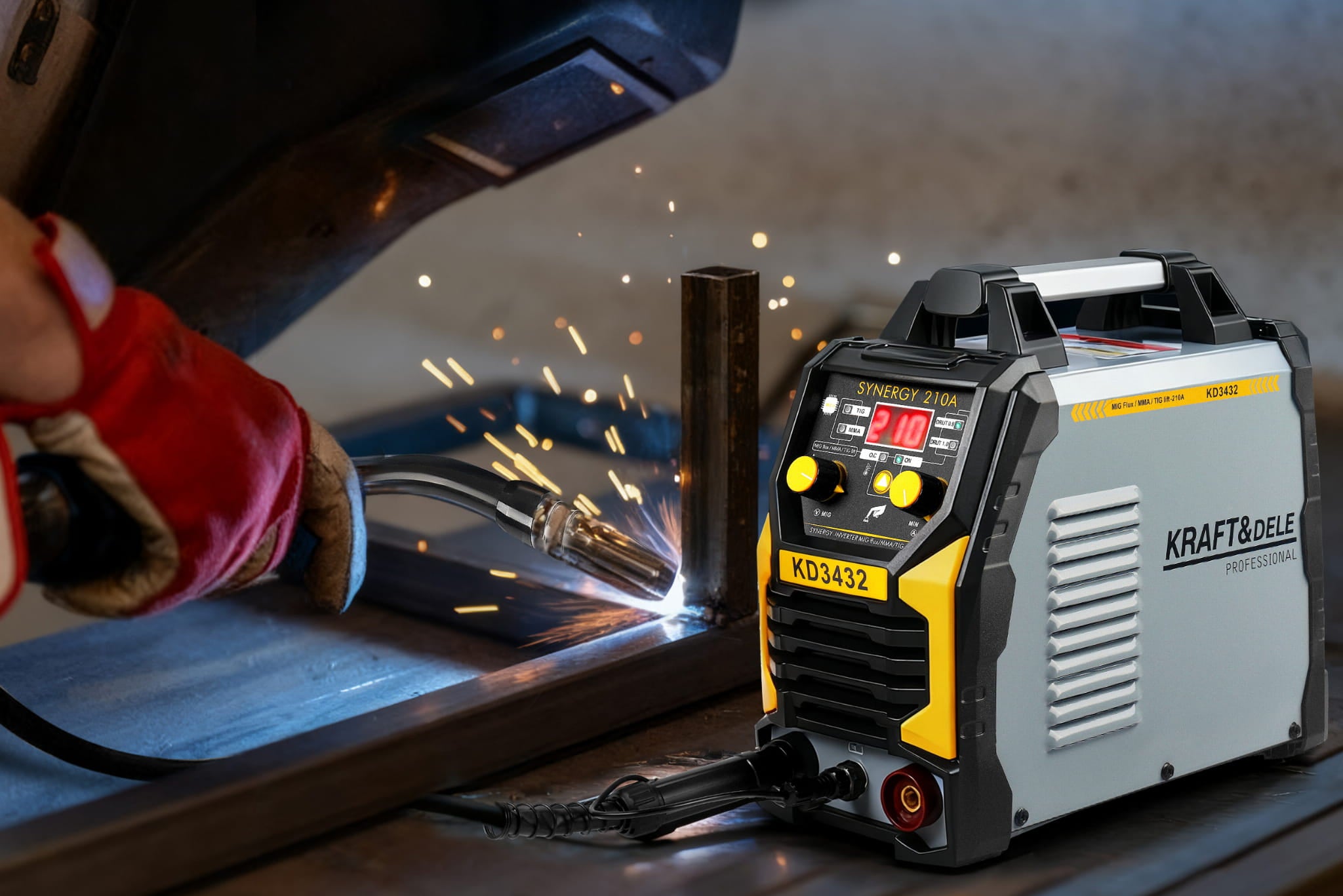

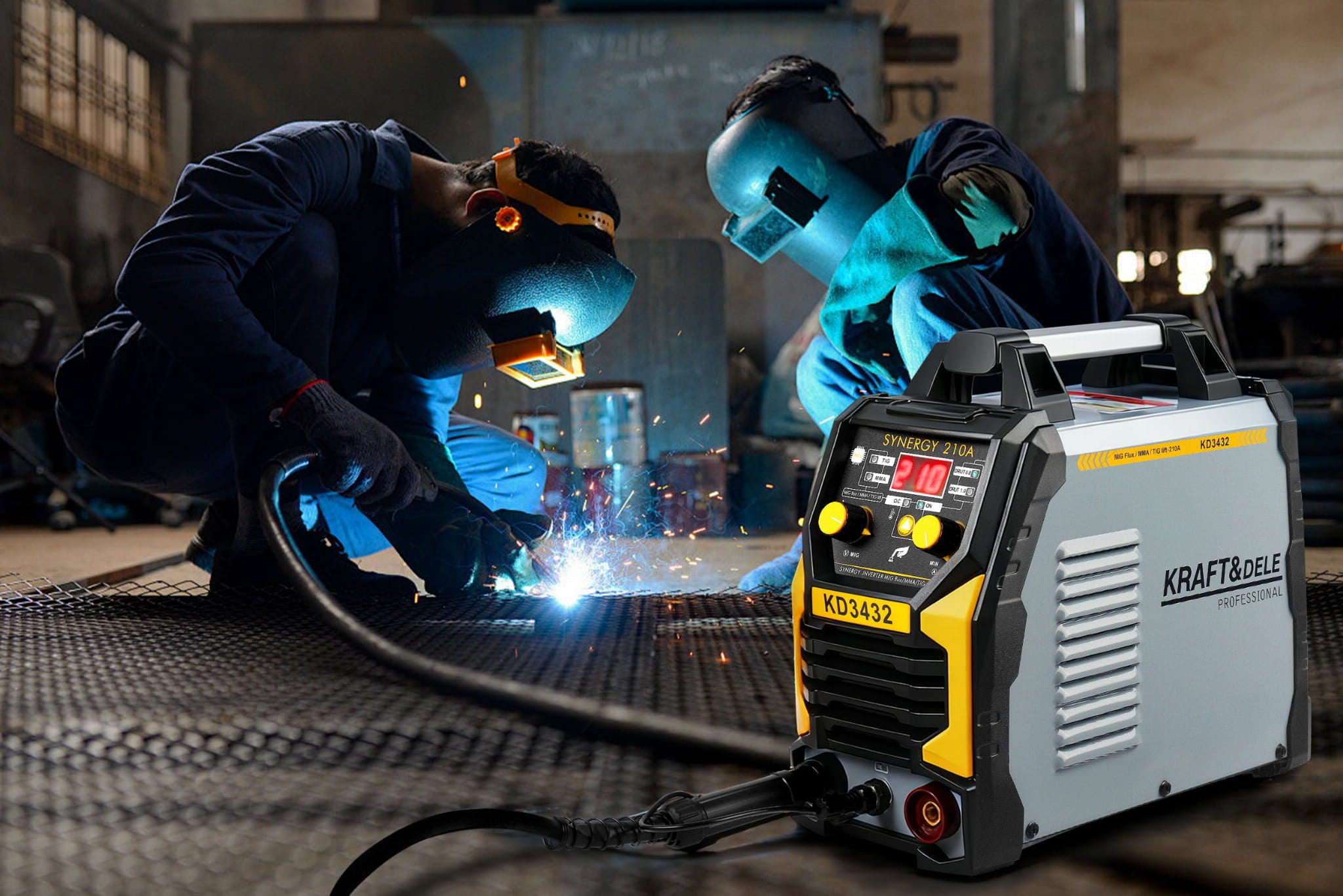

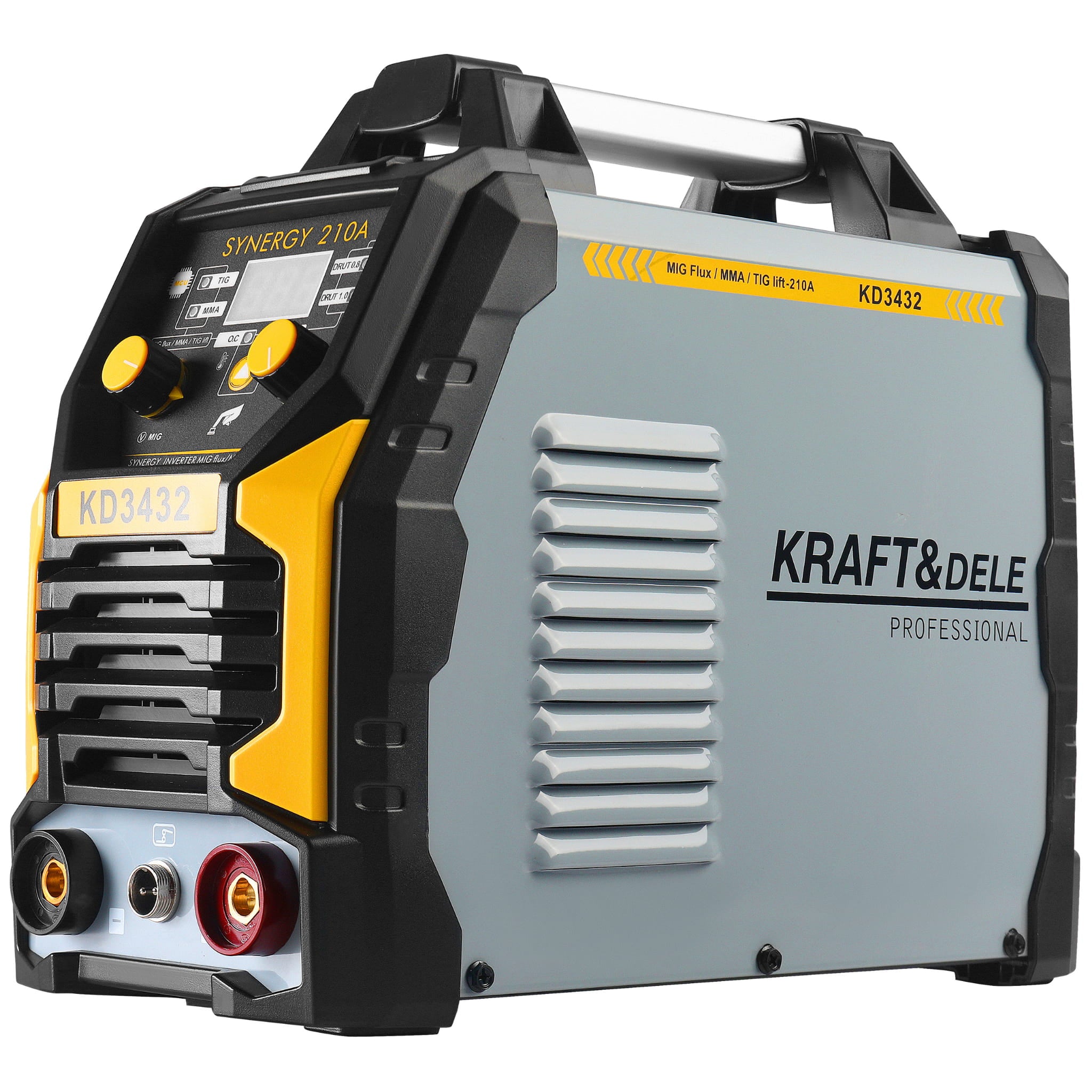

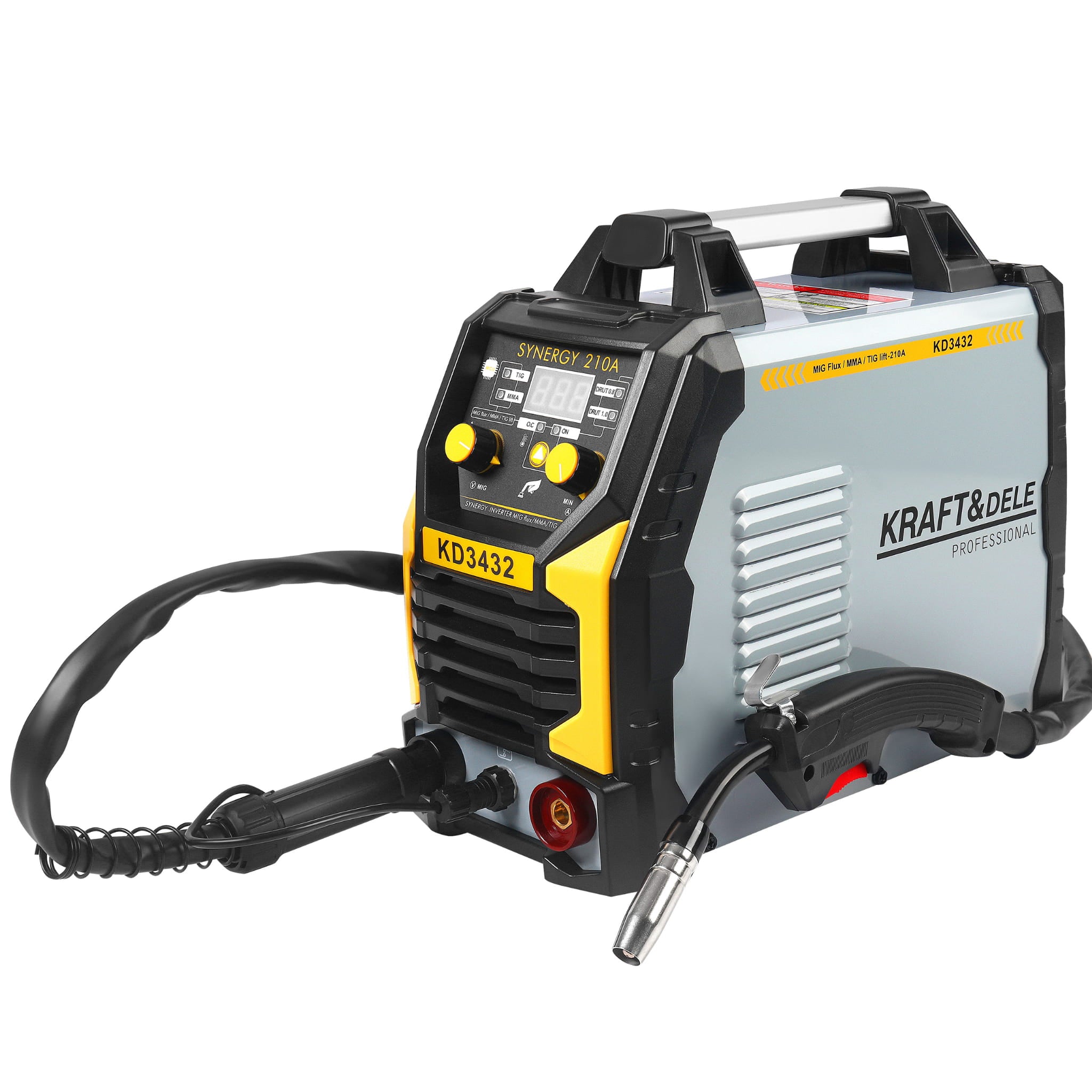

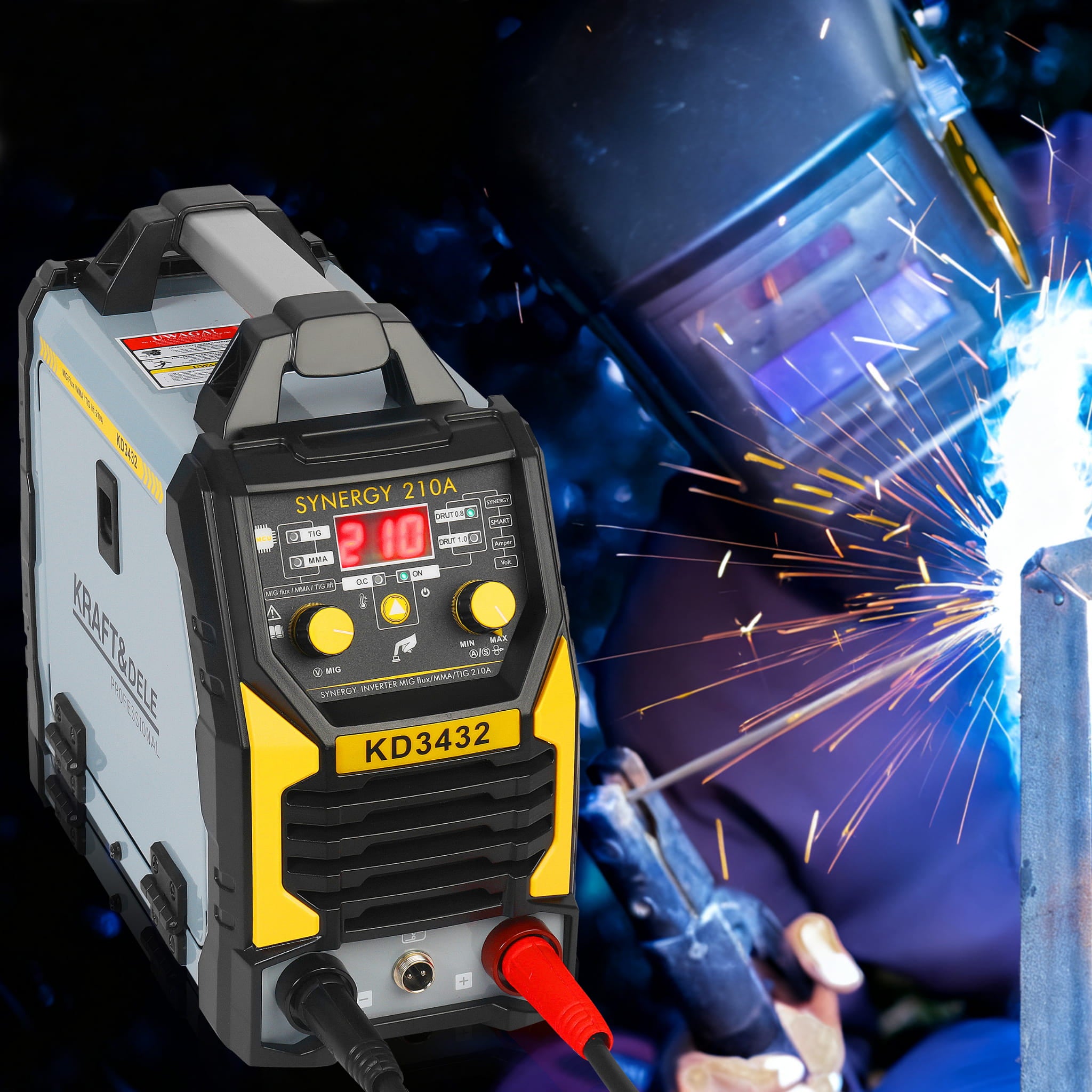

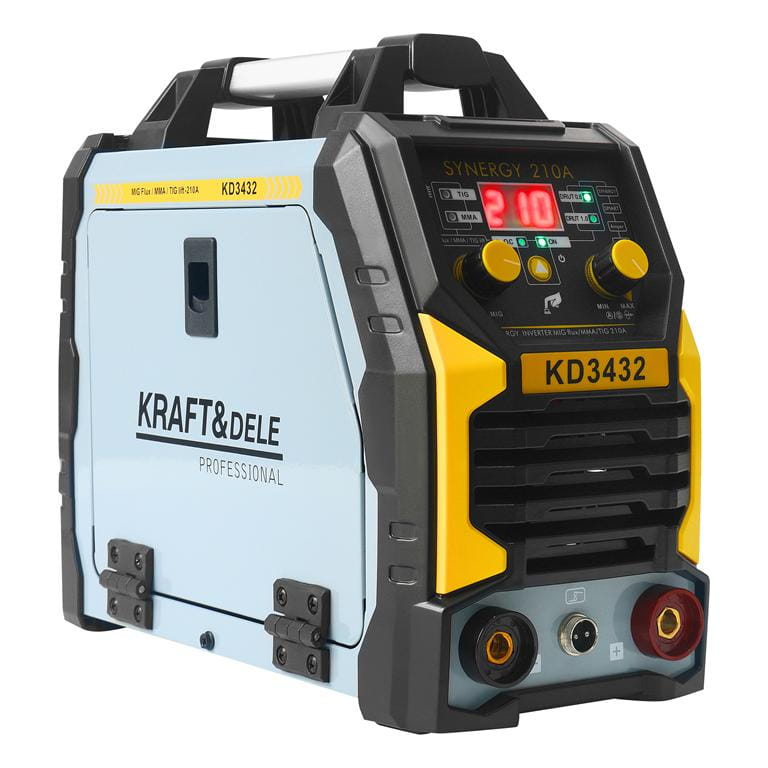

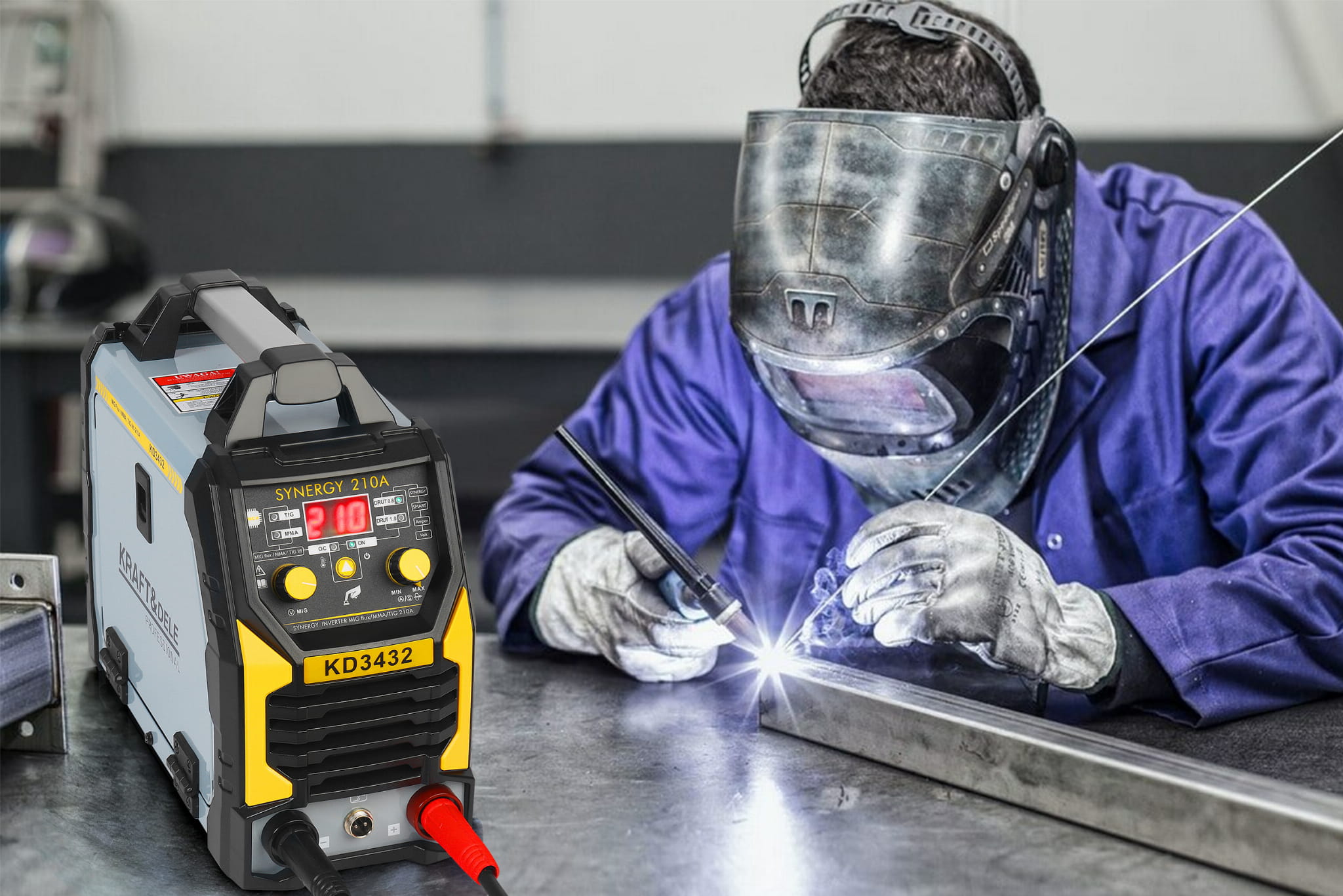

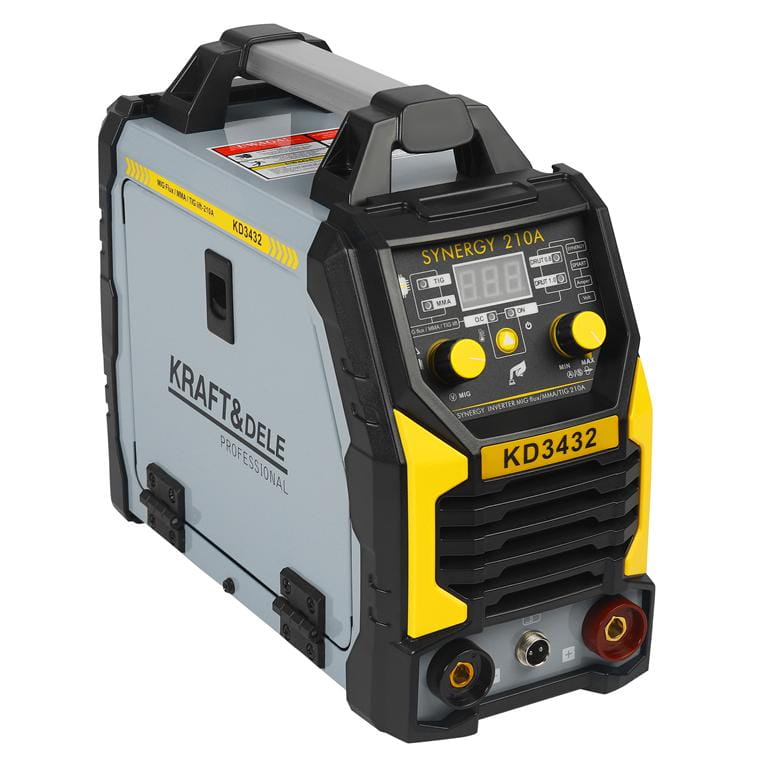

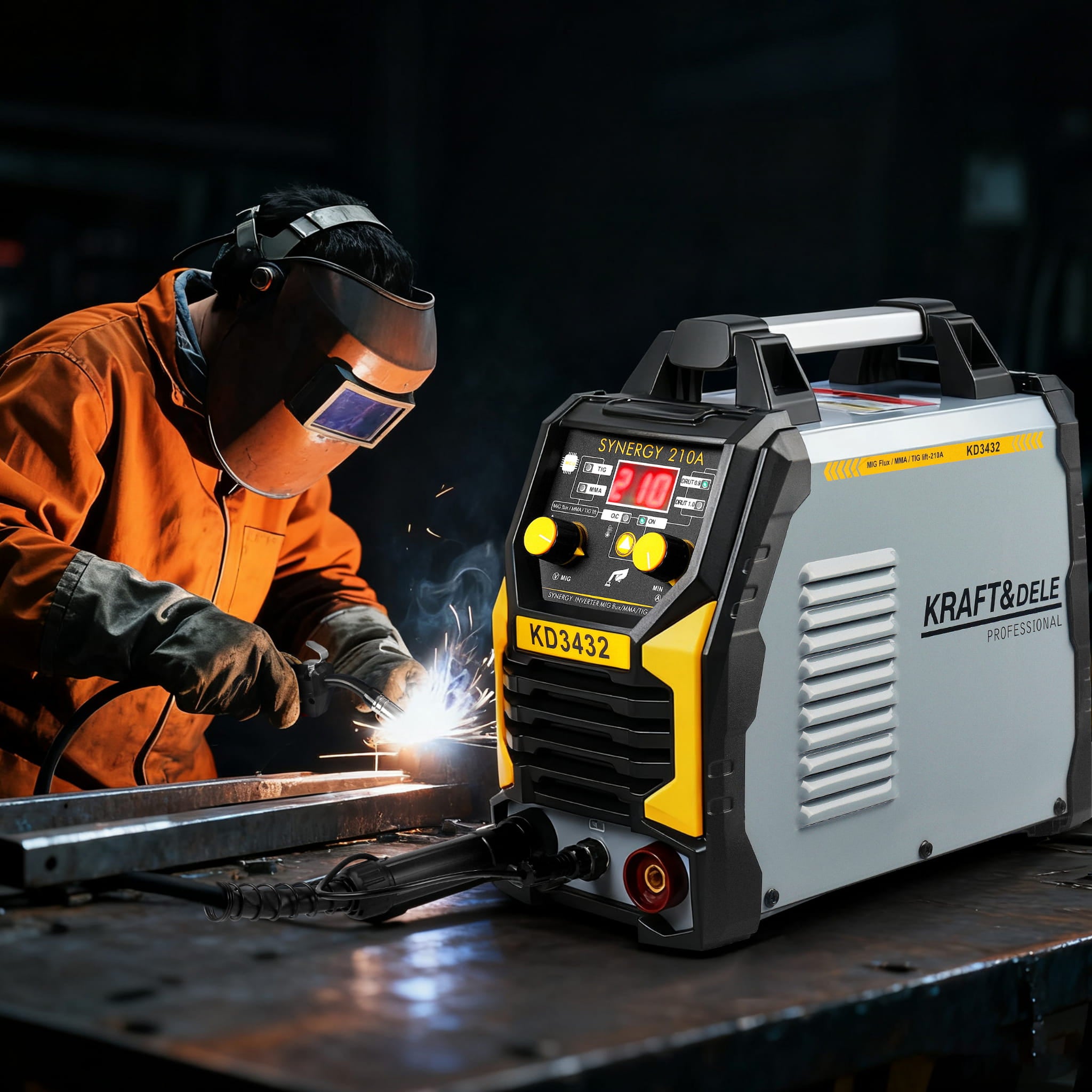

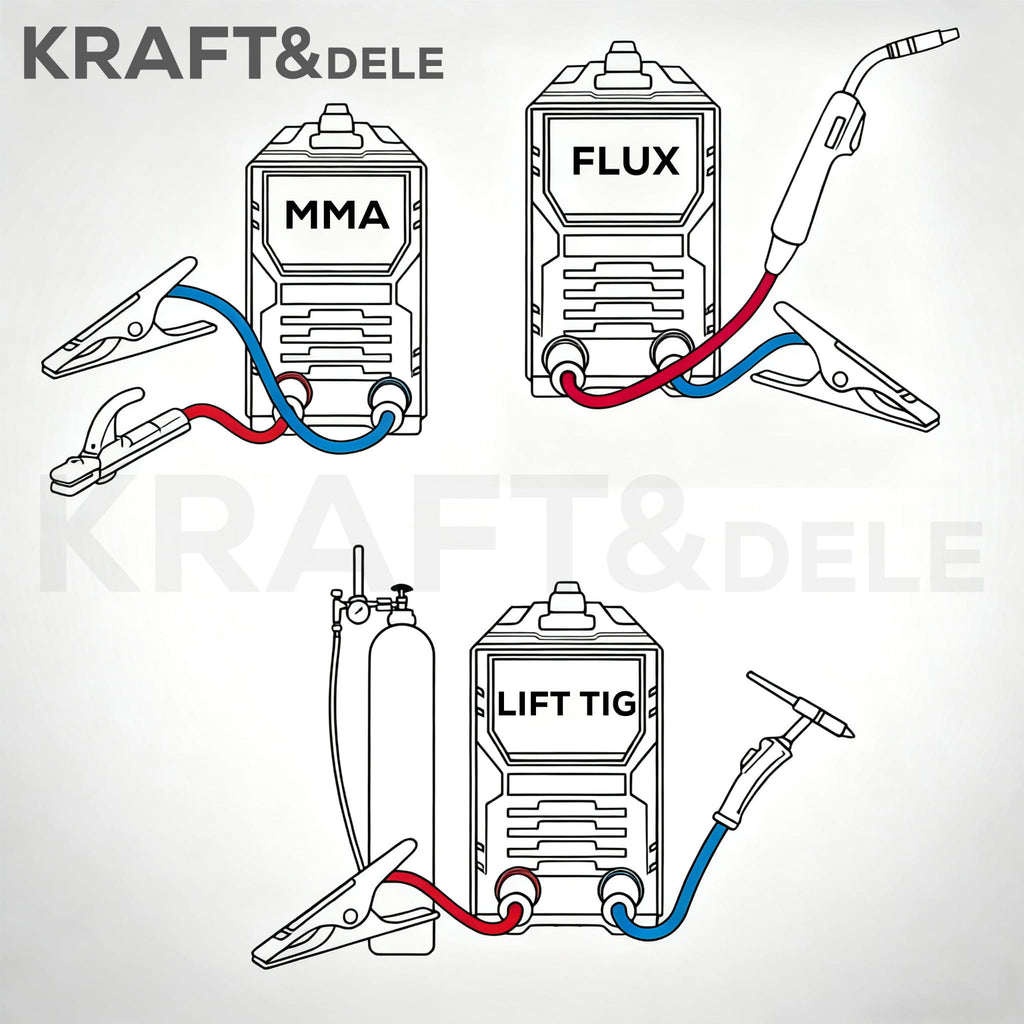

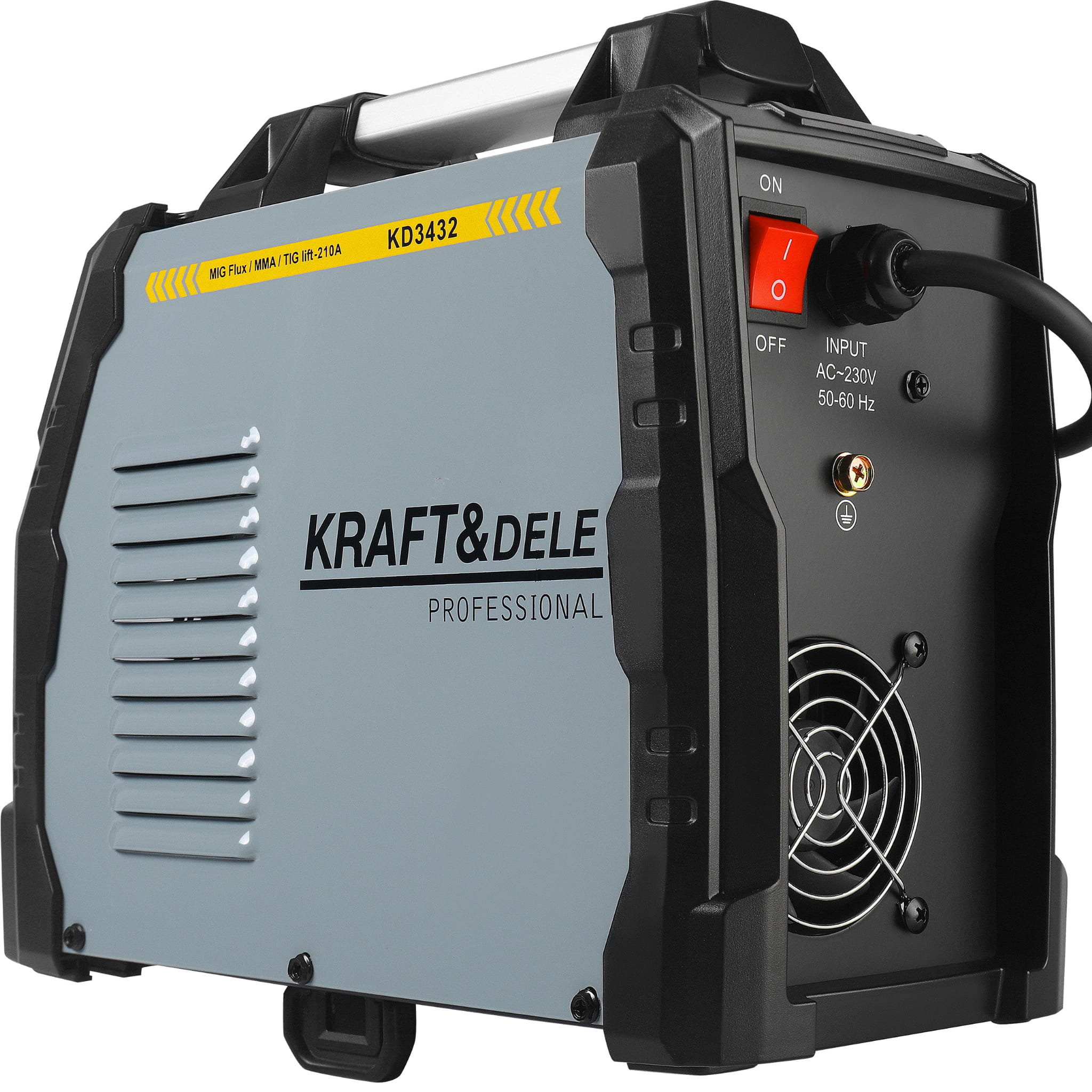

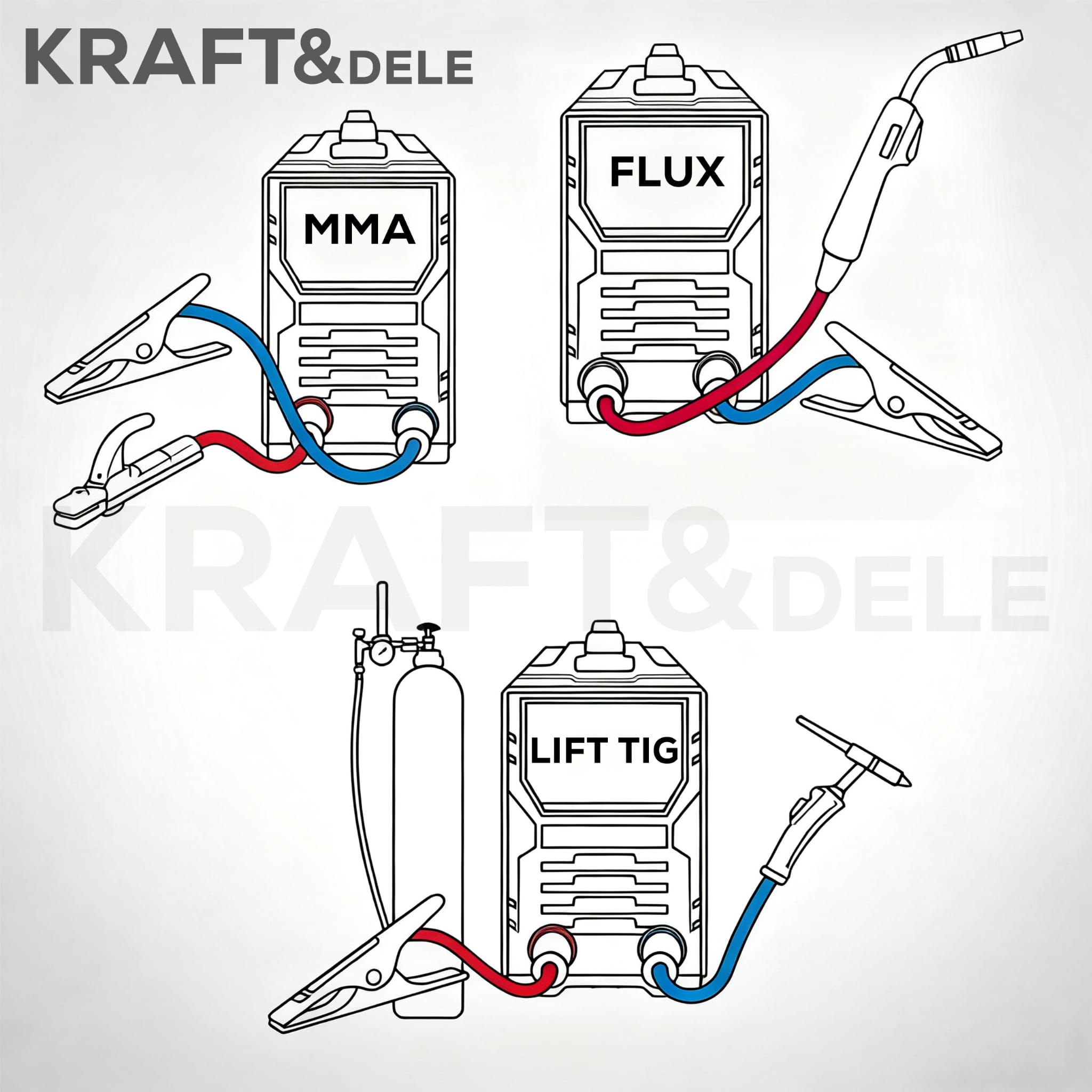

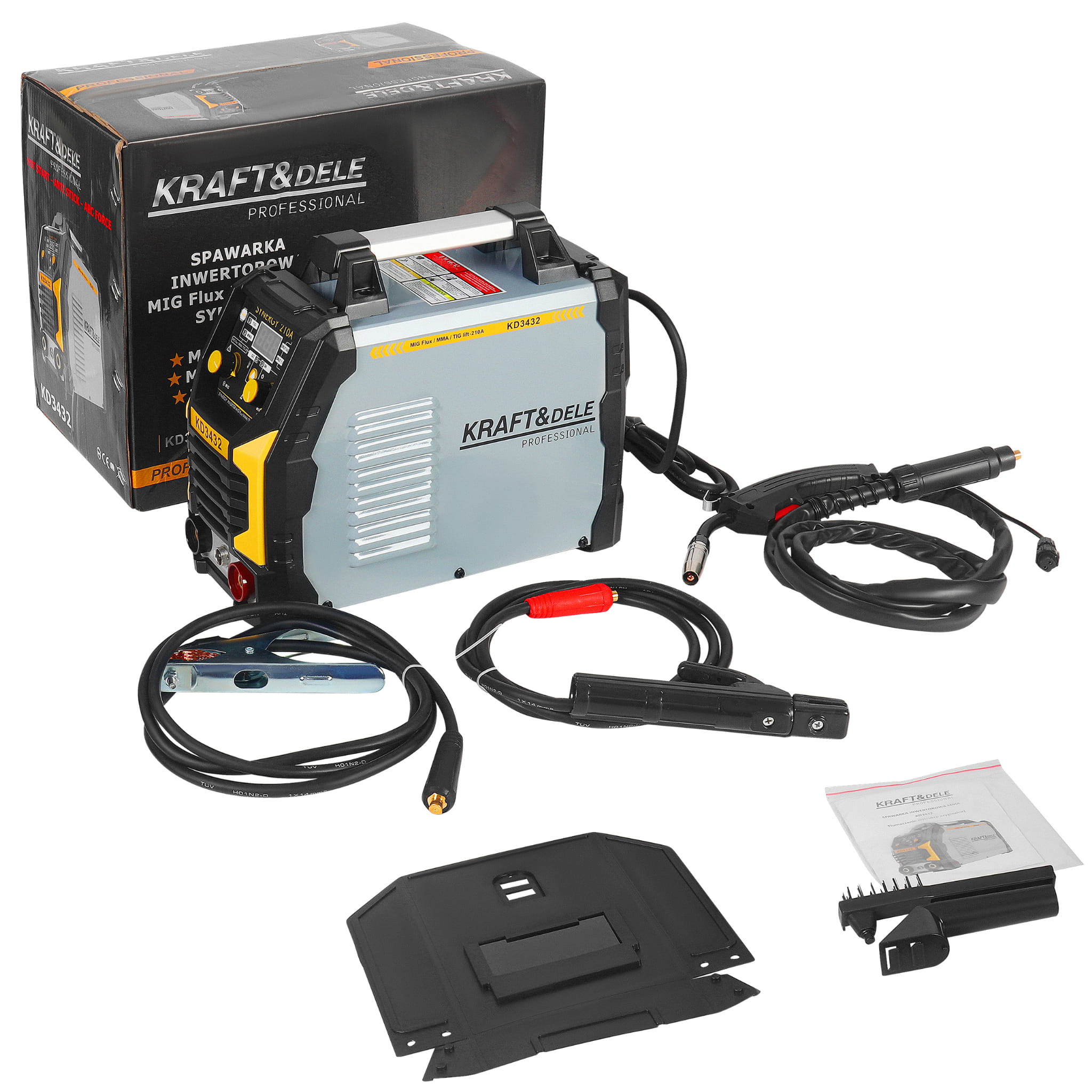

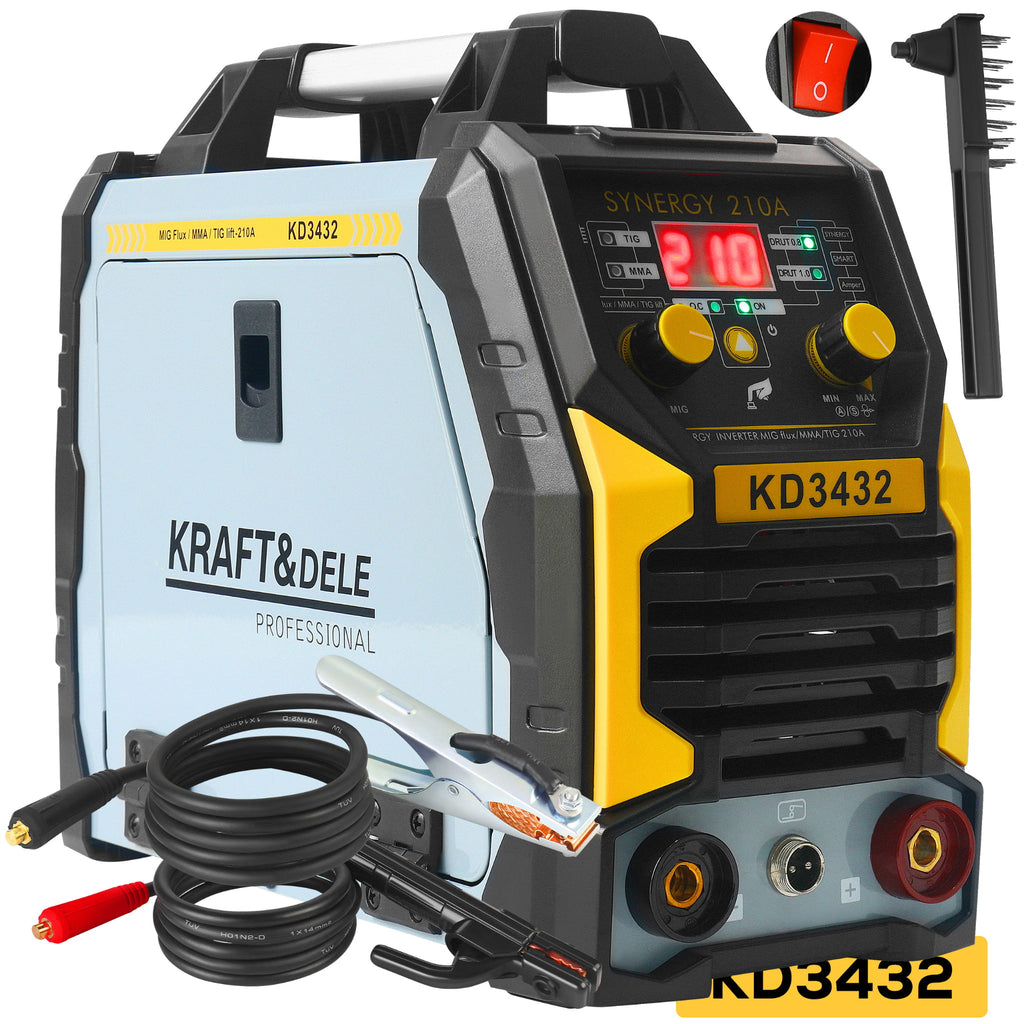

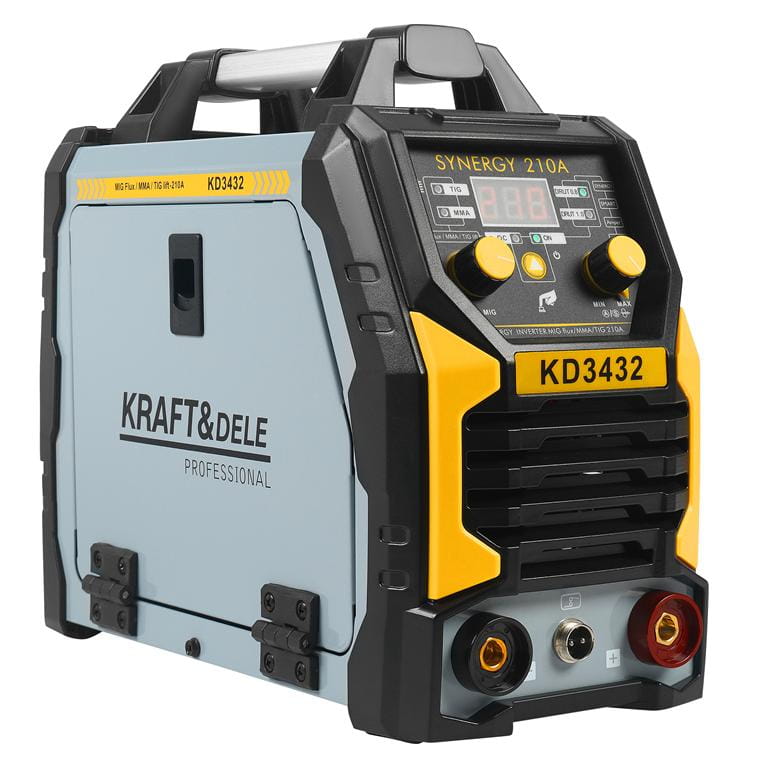

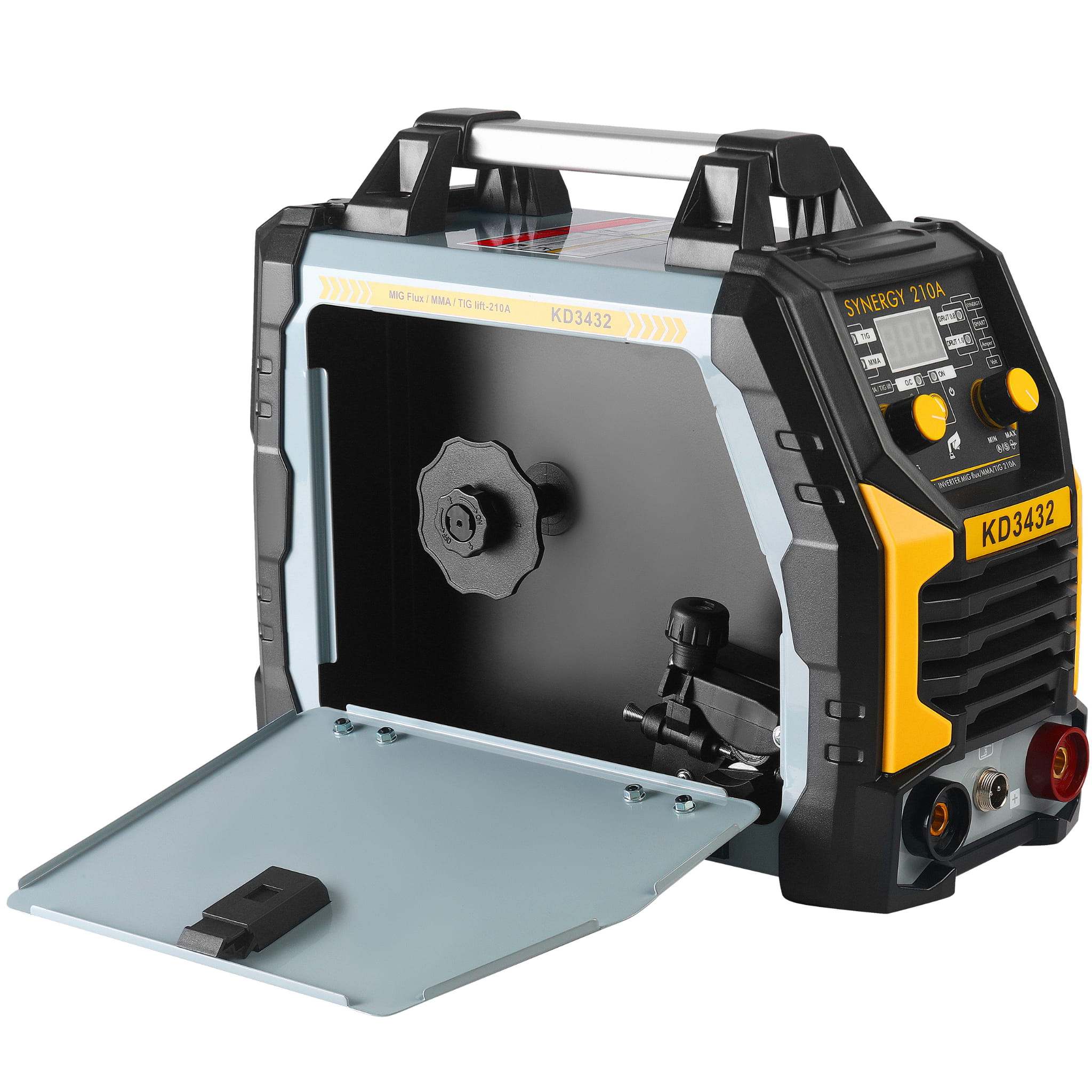

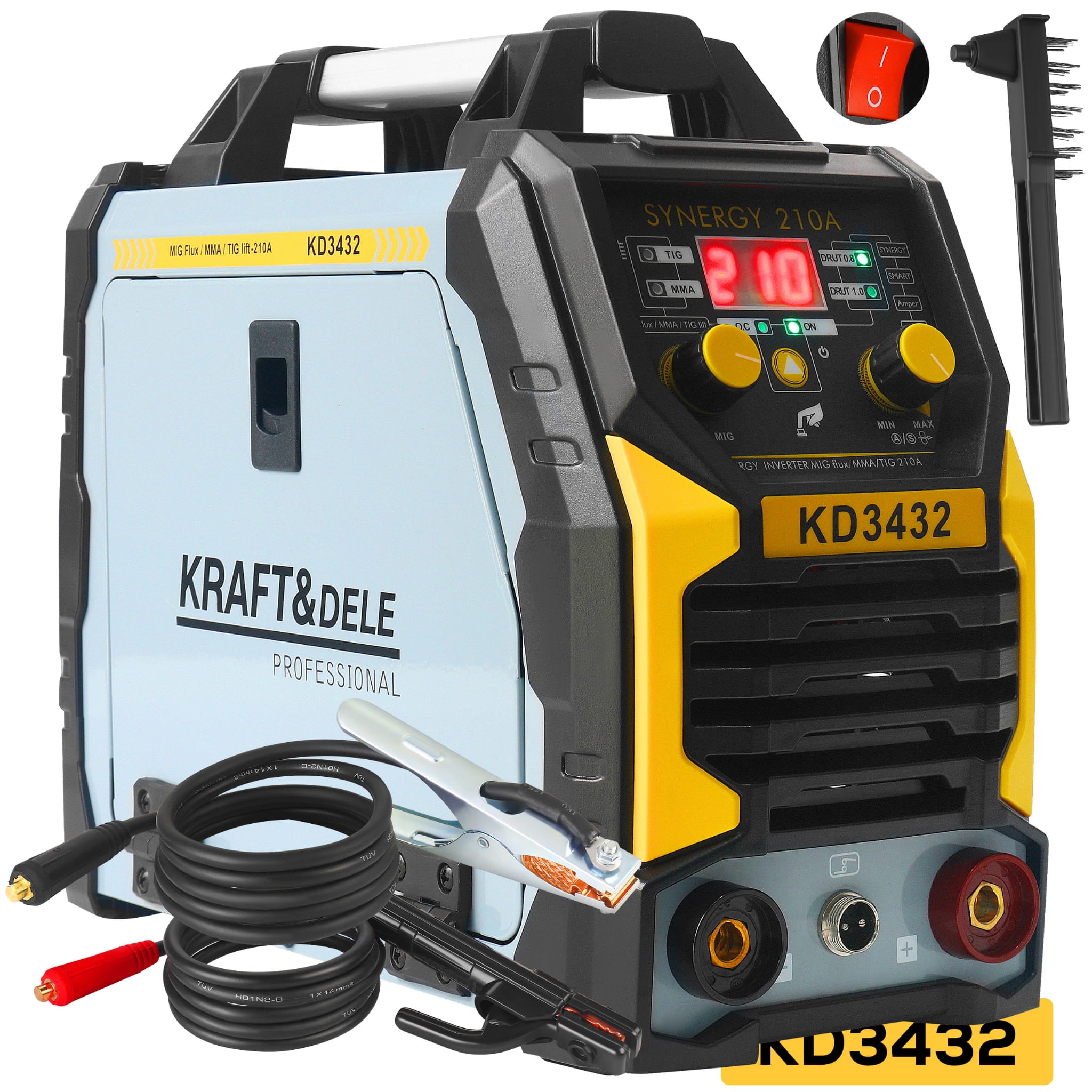

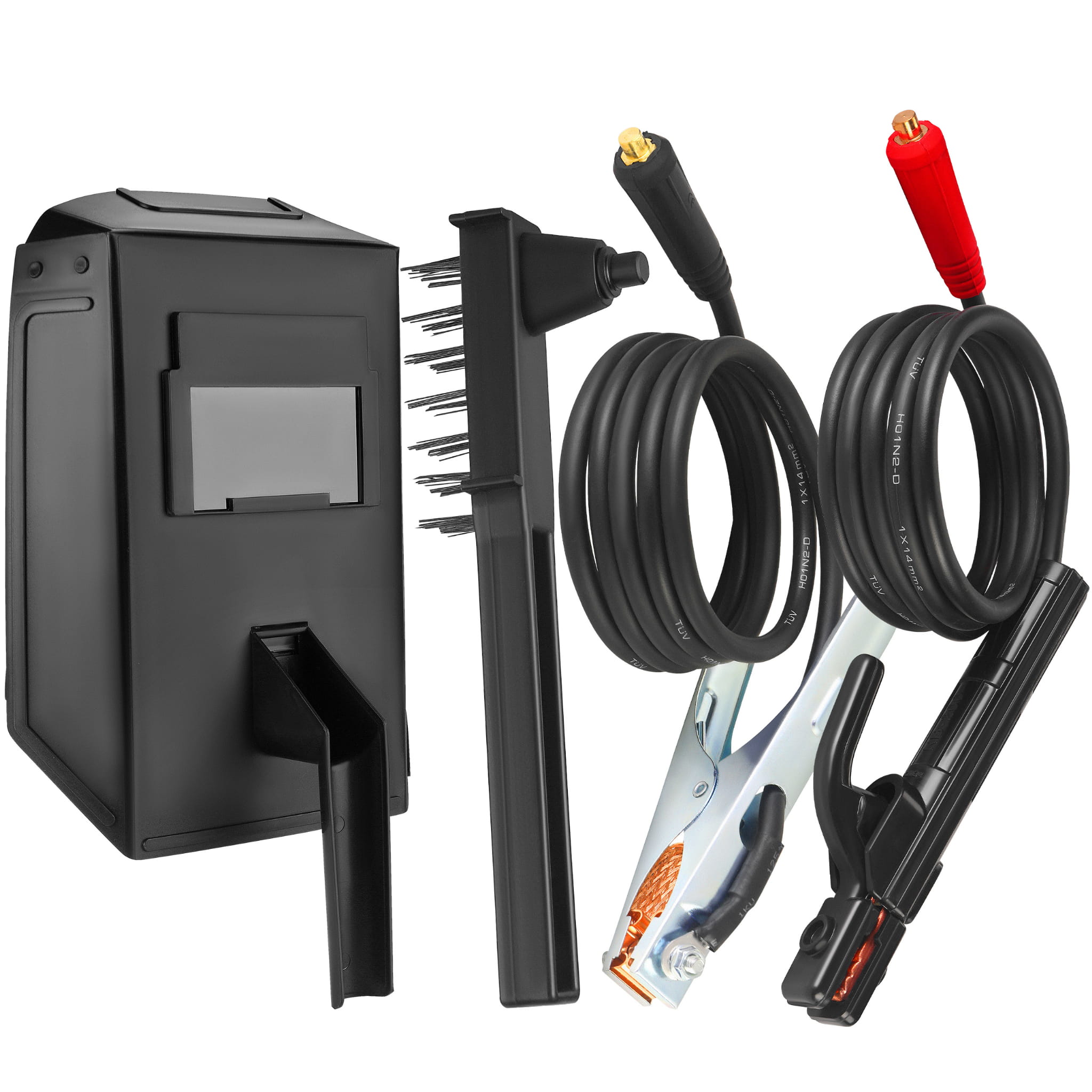

Inverter Welder MMA KD3432 The inverter welder KD3432 is a modern and multifunctional device that allows welding using MIG Flux, MMA, and Tiglift methods. Equipped with advanced features such as SYN MIG and FLUX, it enables precise and convenient welding both in workshop conditions and on construction sites. PRODUCT FEATURES: ✅ SYN MIG function automatic selection of welding parameters ✅ FLUX function welding with self-shielded wires without shielding gases ✅ Automatic parameter selection for different gases and aluminum ✅ Inductance adjustment from -10 to +10 for arc characteristic tuning ✅ Burnback adjustment 0-10 for controlling wire burn-off height ✅ 2-roll feeder ensuring precise wire feeding ✅ Insulation class F and protection rating IP21S TECHNICAL DATA: ⚙️ Model KD3432 ⚙️ Welding type MIG Flux / MMA / Tiglift / Alu ⚙️ Rated voltage 230V 50Hz ⚙️ Input current 45A ⚙️ Open-circuit voltage 58V ⚙️ Output current 210A ⚙️ Efficiency 60% ⚙️ Insulation class / protection rating F / IP21S PRODUCT CONTENT: ✅ Inverter welder KD3432 ✅ Ground clamp ✅ MIG/MAG welding torch ✅ MMA welding torch ✅ Welding mask ✅ Wire brush

Specifications

• The KD3432 model operates on a standard voltage of 230V 50Hz, offering an output current of up to 210A and an open-circuit voltage of 58V. It supports electrodes with a diameter of 1.6–4.0 mm and welding wire with a diameter of 0.8 or 1 mm.

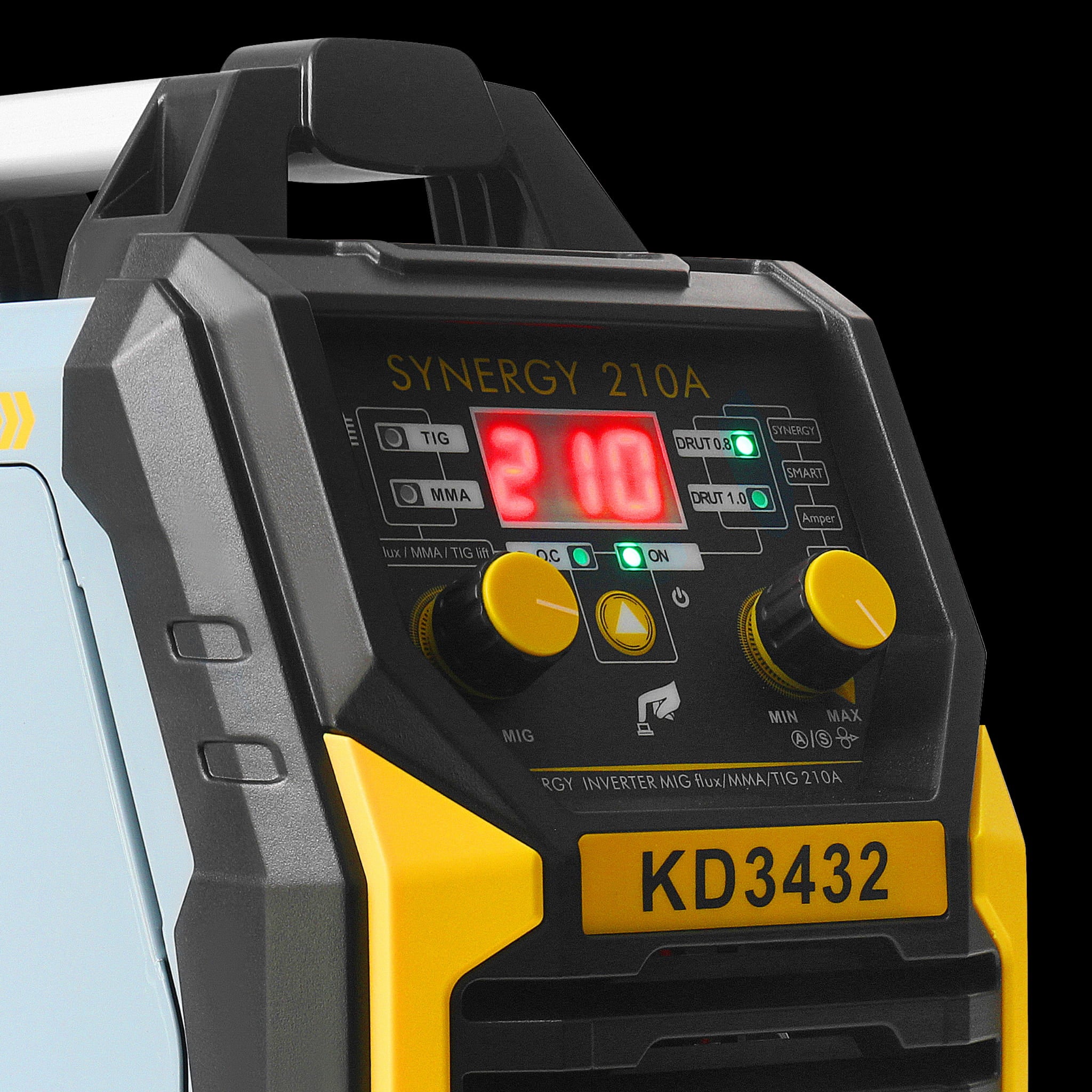

• ✅ Welding control: 2T (two-stroke), 4T (four-stroke), SPT (spot)
• ✅ Output current: 210A
• ✅ Electrode support 1.6–4.0 mm
• ⚙️ Electrode diameter 1.6–4.0 mm
• ⚙️ Wire diameter 0.8 / 1.0 mm
• ⚙️ Net / gross weight 7.0 / 7.8 kg

What's included

• ✅ Manual selection of wire thickness and operating range
• ✅ User manual in Polish
• ✅ 12-month warranty

Notes

The device efficiency is 60%, and the insulation class F and protection rating IP21S ensure safe and reliable operation.
