Overview

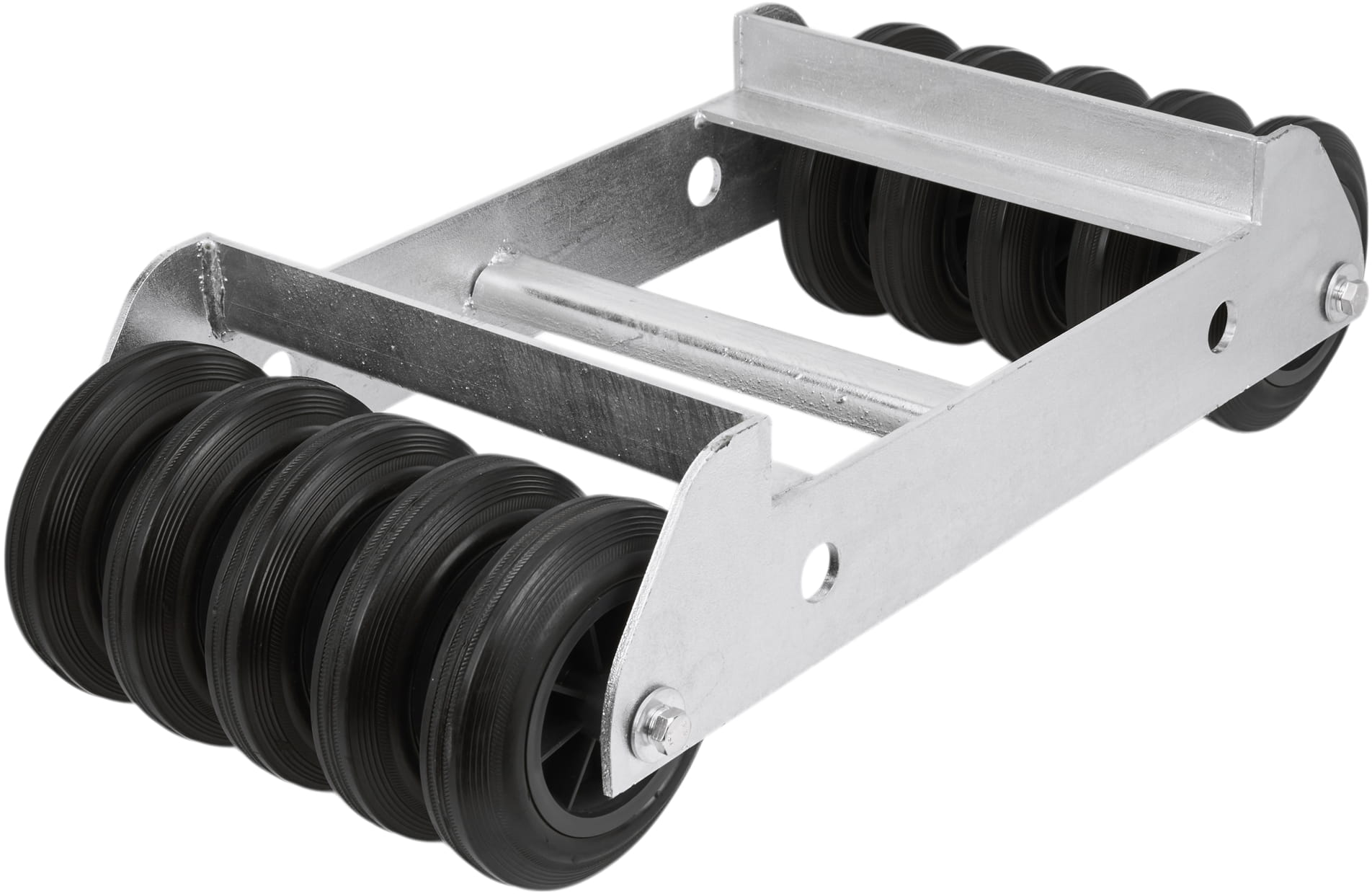

Transport trolley roller for broken-off wheel 1200kg KD3200 KD3200 is a solid transport trolley from the KRAFT&DELE brand, designed for efficient movement of vehicles with damaged or broken-off wheels. The workshop roller significantly reduces working time and facilitates loading and unloading of vehicles, both in workshop conditions and in the field. It is widely used in automotive transport, roadside assistance, tow truck operators, workshops, service centers, and body shops. The KD3200 model is also suitable for private use it makes maneuvering a vehicle in a garage, workshop, or when pulling a car onto a tow truck easier. The use of as many as 10 rubber-polyamide wheels ensures smooth movement, stability, and even load distribution. high durability and resistance ✅ Hot-dip galvanizing effective corrosion protection ✅ Shaft supported on the frame stability without tilting ✅ 10 rubber-polyamide wheels smooth and stable movement ✅ 4 holes for a transport strap secure vehicle fastening ✅ Can be placed under the wheel, threshold, engine, control arm, or sleds ✅ Wide application roller for wheel; trolley for broken-off wheel; workshop roller; tow truck trolley; roadside assistance trolley; transport trolley 1200kg; workshop trolley;

Specifications

• The reinforced 6 mm thick sheet metal construction provides a high static load capacity of up to 1200 kg, and hot-dip galvanizing effectively protects the frame against corrosion even with intensive use.
• PRODUCT FEATURES: ✅ Maximum static load capacity 1200 kg
• for heavy vehicles ✅ Reinforced 6 mm sheet metal frame
• workshops, tow trucks, roadside assistance ✅ Facilitates loading and maneuvering of vehicles with damaged wheels TECHNICAL DATA: ⚙️ Model KD3200 ⚙️ Max. static load capacity 1200 kg ⚙️ Weight 13.5 kg ⚙️ Frame material 6 mm sheet metal, hot-dip galvanized ⚙️ Wheel type Rubber-polyamide ⚙️ Wheel diameter 16 cm ⚙️ Number of wheels 10 pcs. (5 per side) ⚙️ Bed length (space for wheel) 36 cm ⚙️ Trolley width 30 cm ⚙️ Total height 18 cm ⚙️ Bed height from the ground 14 cm ⚙️ Clearance from the ground to the frame 6 cm ⚙️ Frame height 8 cm PRODUCT CONTENT: ✅ Transport trolley roller KD3200 ✅ Original packaging ✅ Receipt or VAT invoice transport trolley

Notes

The shaft resting directly on the frame prevents the trolley from tilting sideways, increasing work safety.
