TESTER DIESEL COMPRESSION PRESSURE METER 0-70 BAR MAX FULL KD12516 The KRAFT&DELE KD12516 compression pressure tester is designed for accurate measurement of compression in diesel engines. The set allows for quick and precise assessment of the engine's technical condition by measuring the pressure in the cylinders. Thanks to the wide measurement range up to 70 BAR (1000 PSI) and a rich set of adapters, the device fits most passenger and delivery vehicle brands. The pressure gauge with a dual scale (bar/psi) is equipped with a release valve, allowing easy and safe reading of results. PRODUCT FEATURES ✅ Compression pressure measurement in diesel engines ✅ Large, clear pressure gauge with dual scale (BAR/PSI) ✅ Measurement range up to 70 BAR (1000 PSI) ✅ 40 cm hose with quick connector ✅ Extensive set of adapters for glow plugs and injectors ✅ H-type mounting compatible with many engine models ✅ Ideal for automotive workshops and home use

Specifications

• ⚙ Model KD12516
• ⚙ Measurement range 0–70 BAR / 0–1000 PSI
• ⚙ Measurement hose length 40 cm
• ⚙ Measurement type Compression measurement in diesel engines
• ⚙ Release valve Yes
• ⚙ Glow plug adapters 6 x M10, M12, M8, M22
• ⚙ Injector adapters M24, M22, M24, M20
• ⚙ Universal adapter M18 x 1.5
• 160 mm
• ⚙ H-type mounting Yes, universal
• ⚙ Set weight 4 kg
• PRODUCT CONTENT

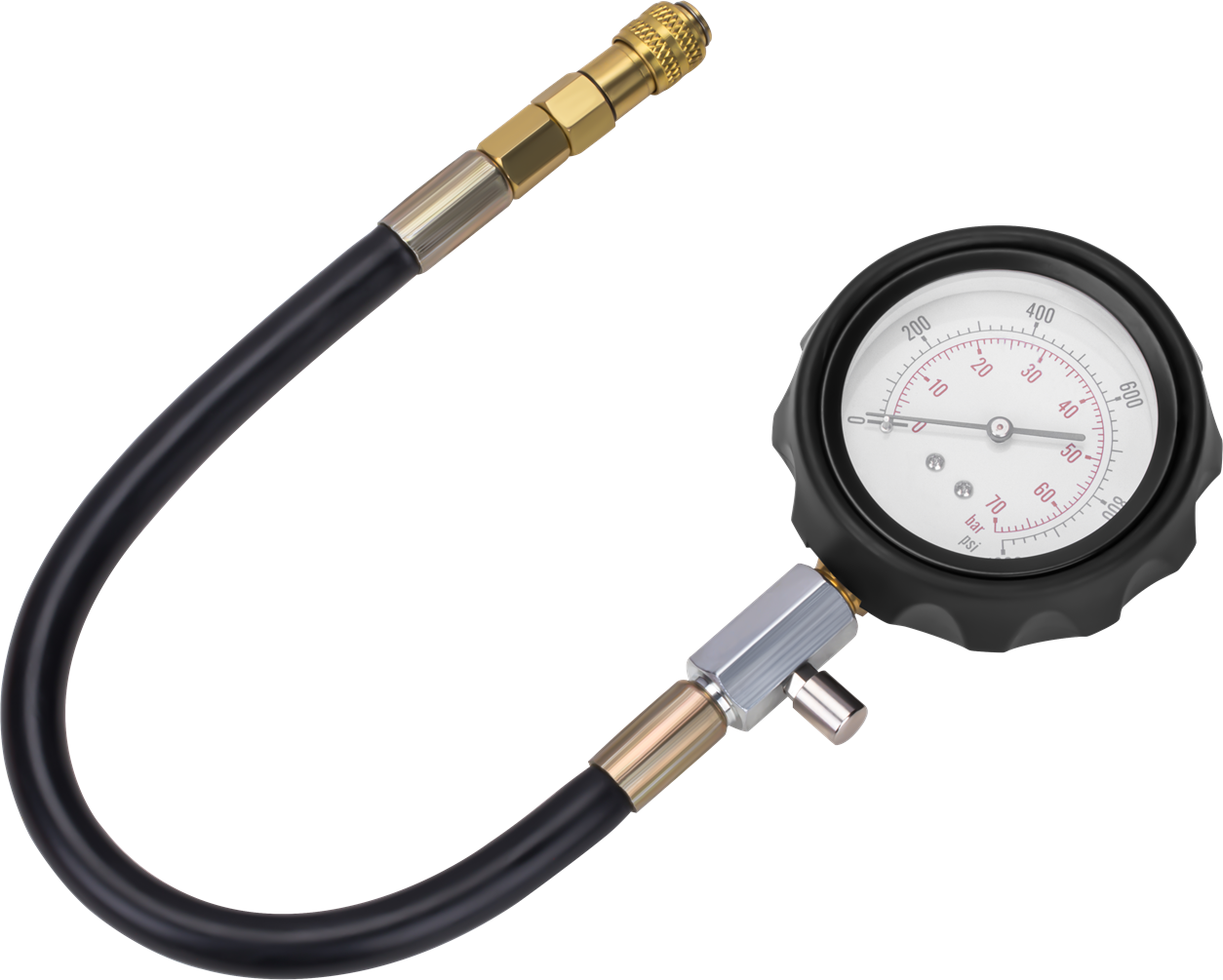

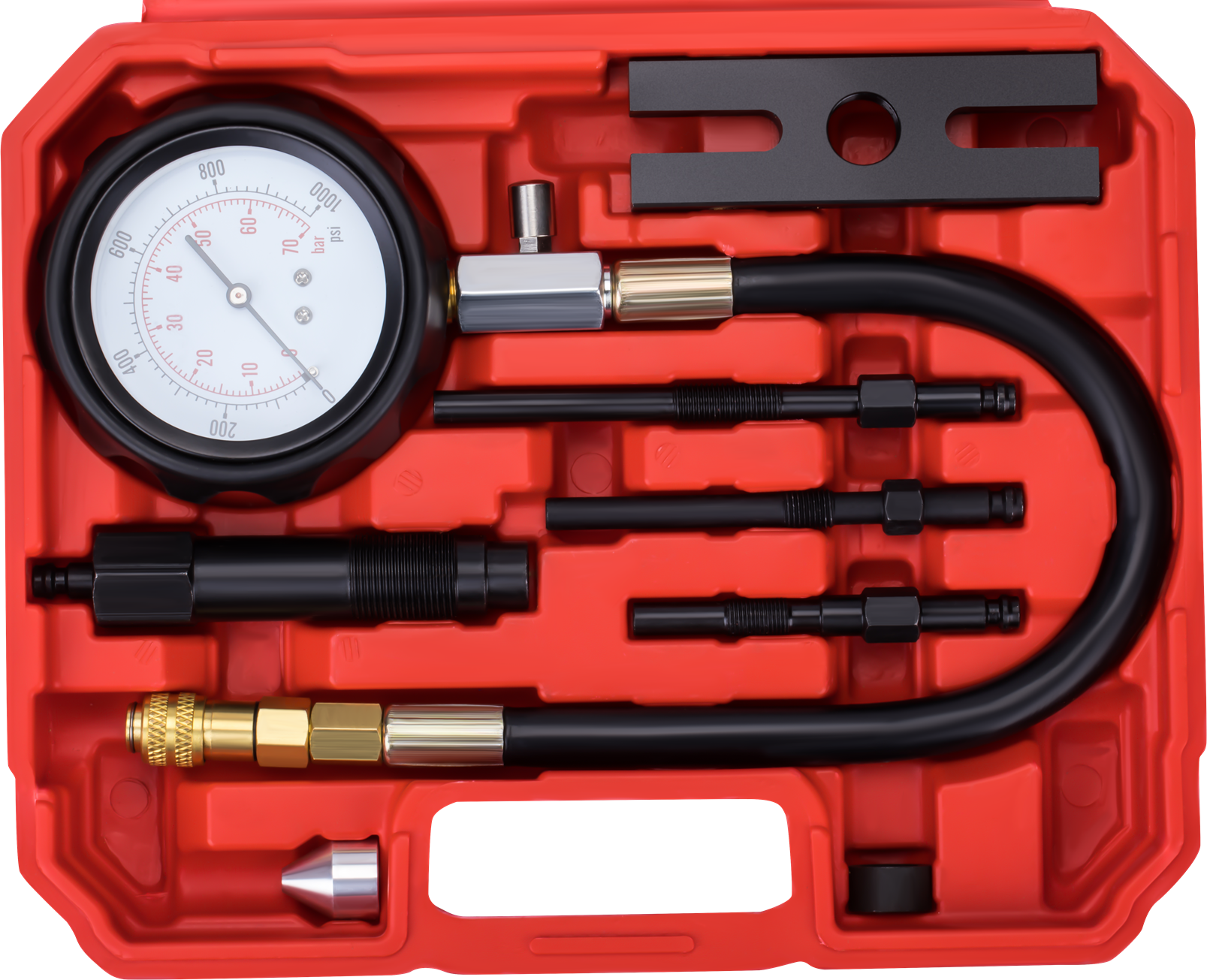

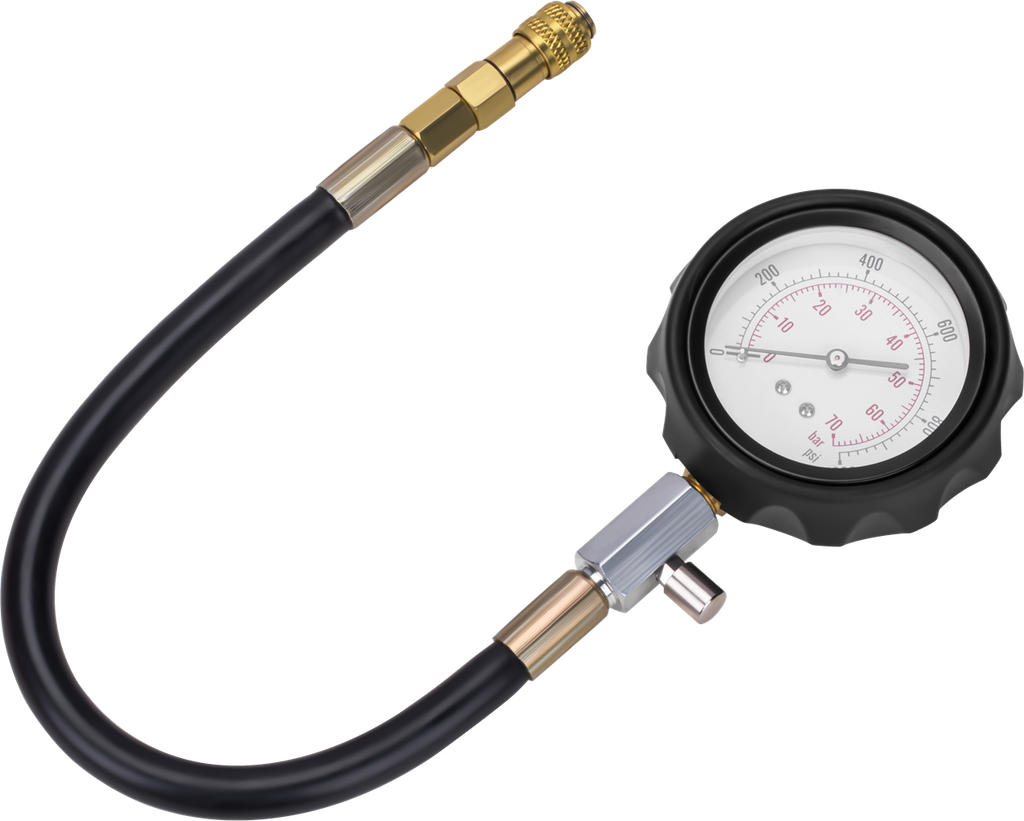

• ✅ Pressure gauge 0–70 BAR (1000 PSI) with release valve
• ✅ 40 cm high-pressure hose with quick connector

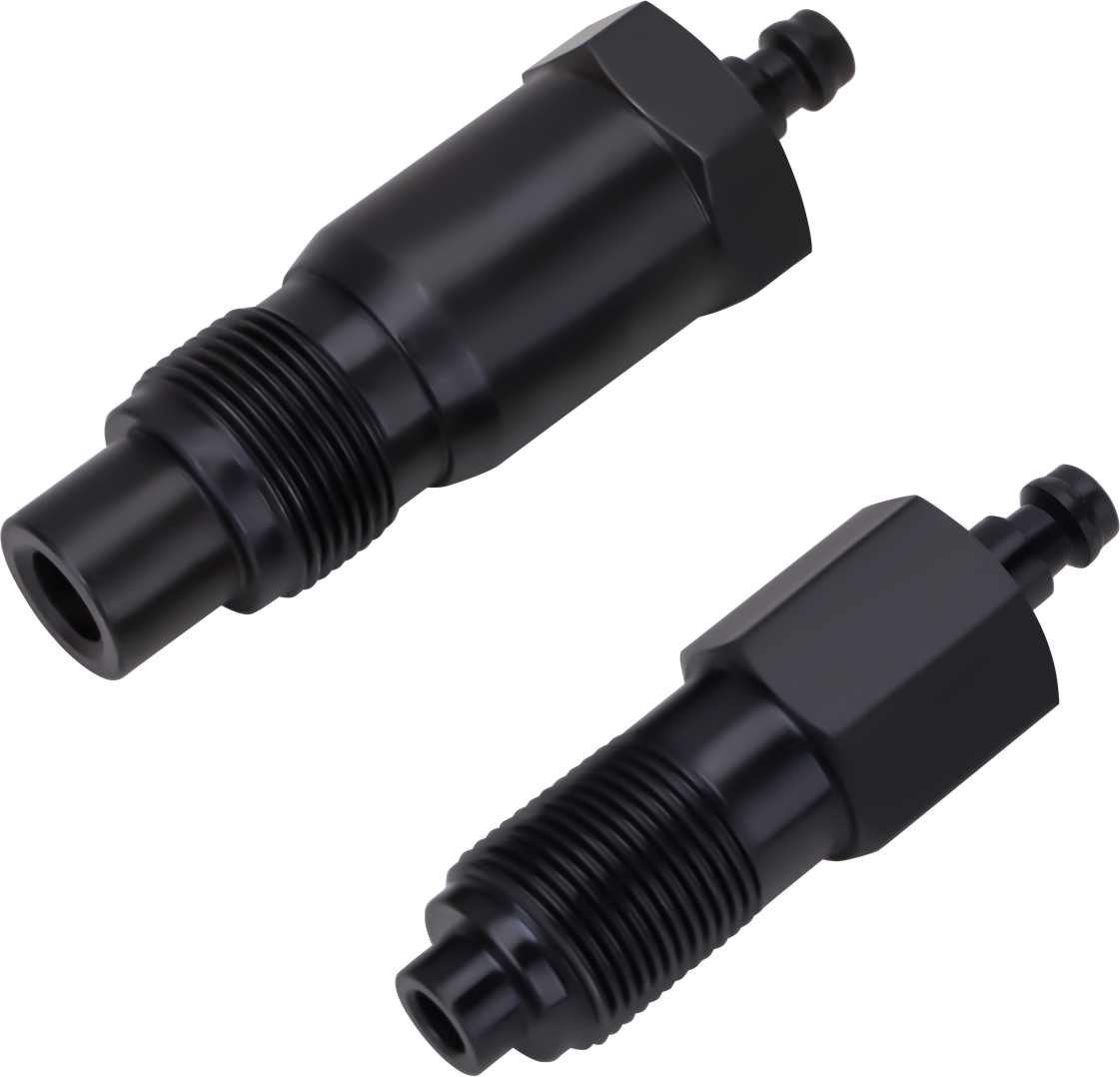

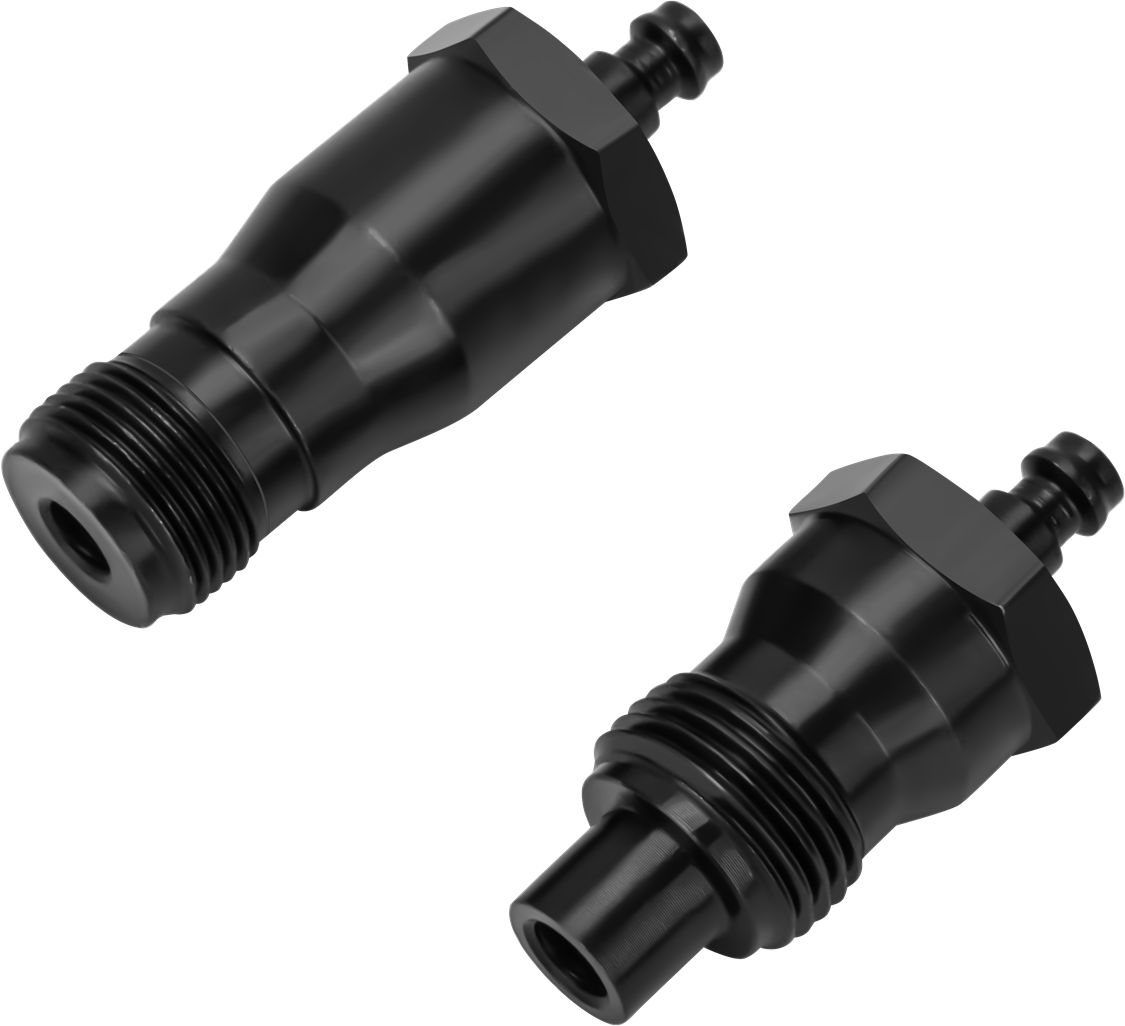

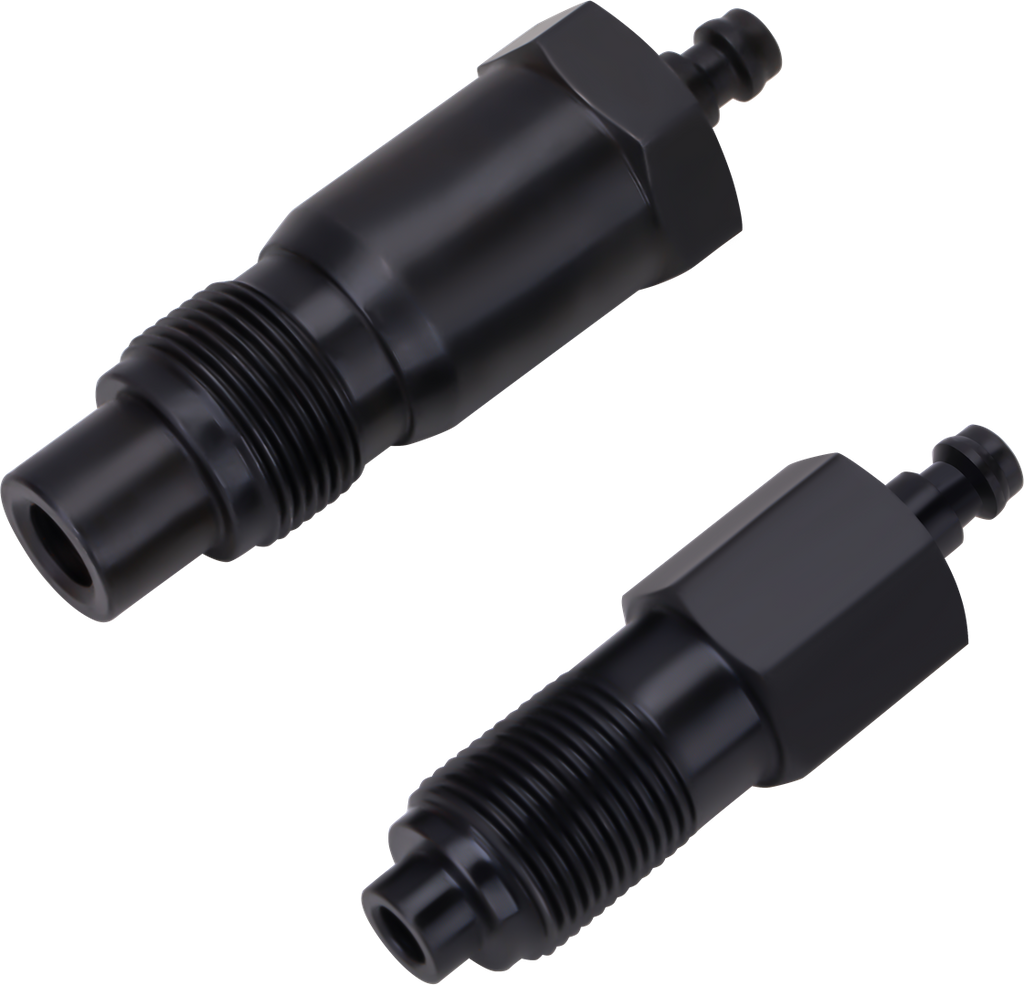

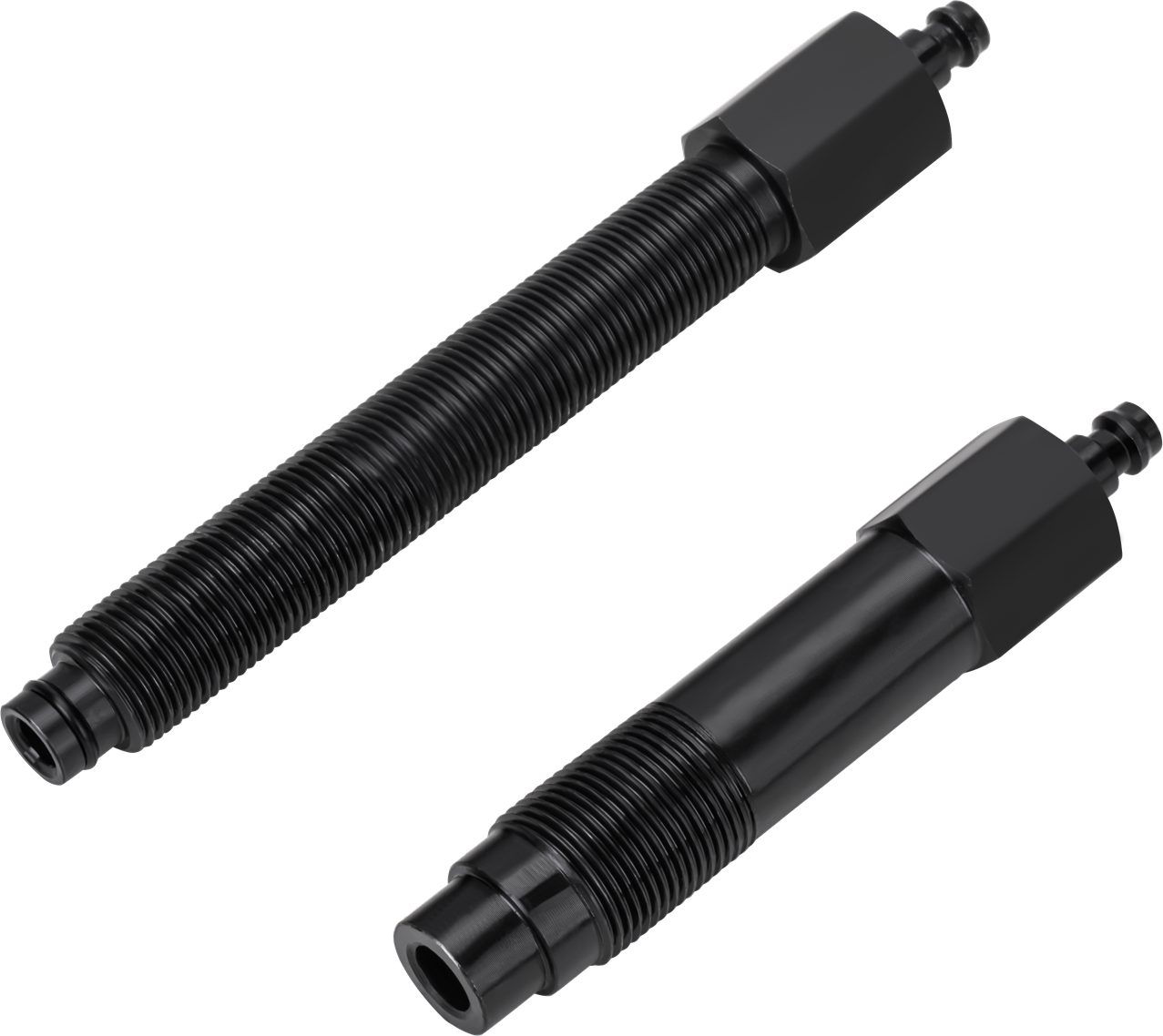

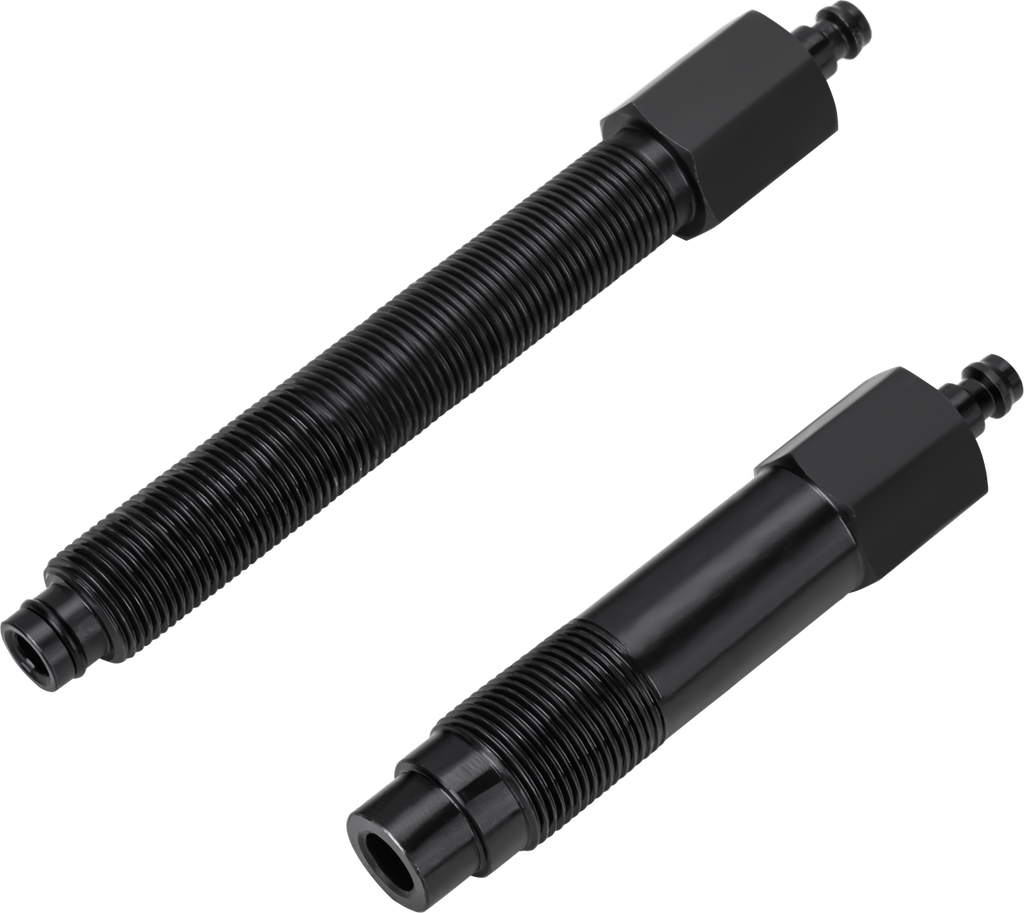

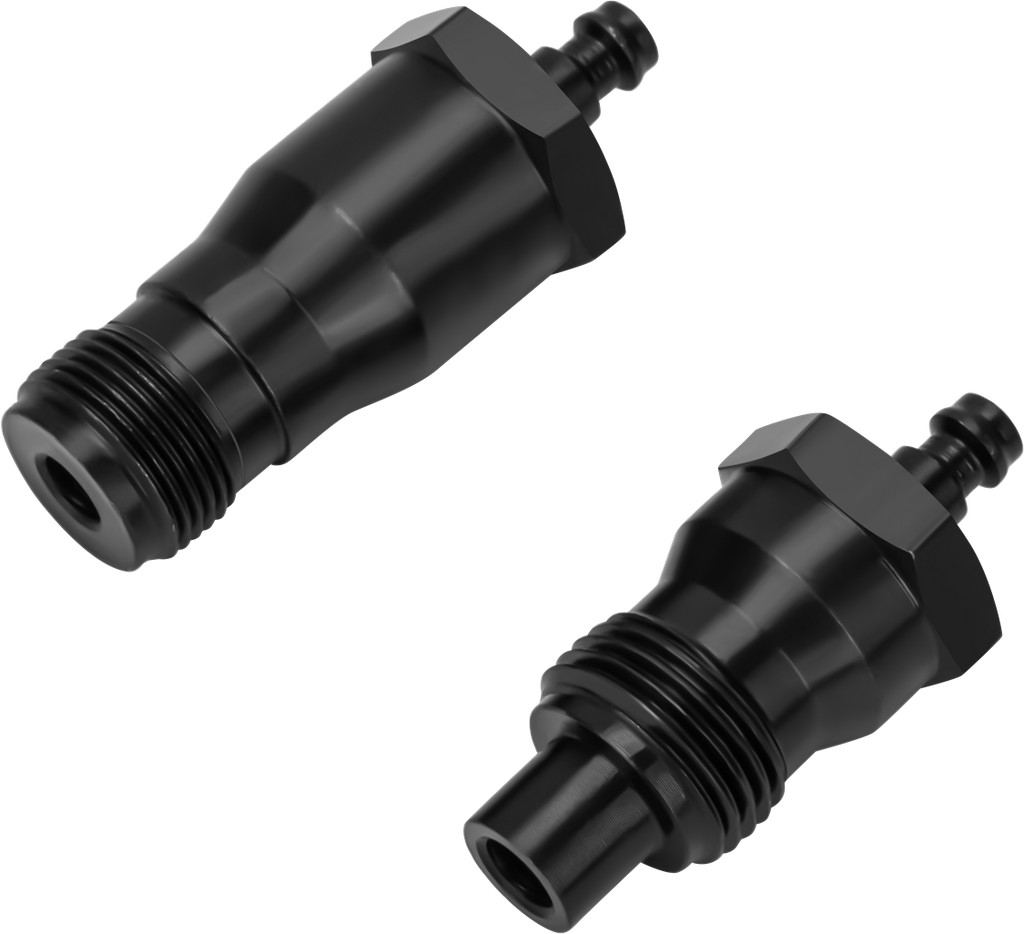

• ✅ 4 adapters for injector mounting M24 x 1.5
• 88 mm M22 x 1.5
• 75 mm M24 x 2
• 63 mm M20 x 1.5
• 75 mm

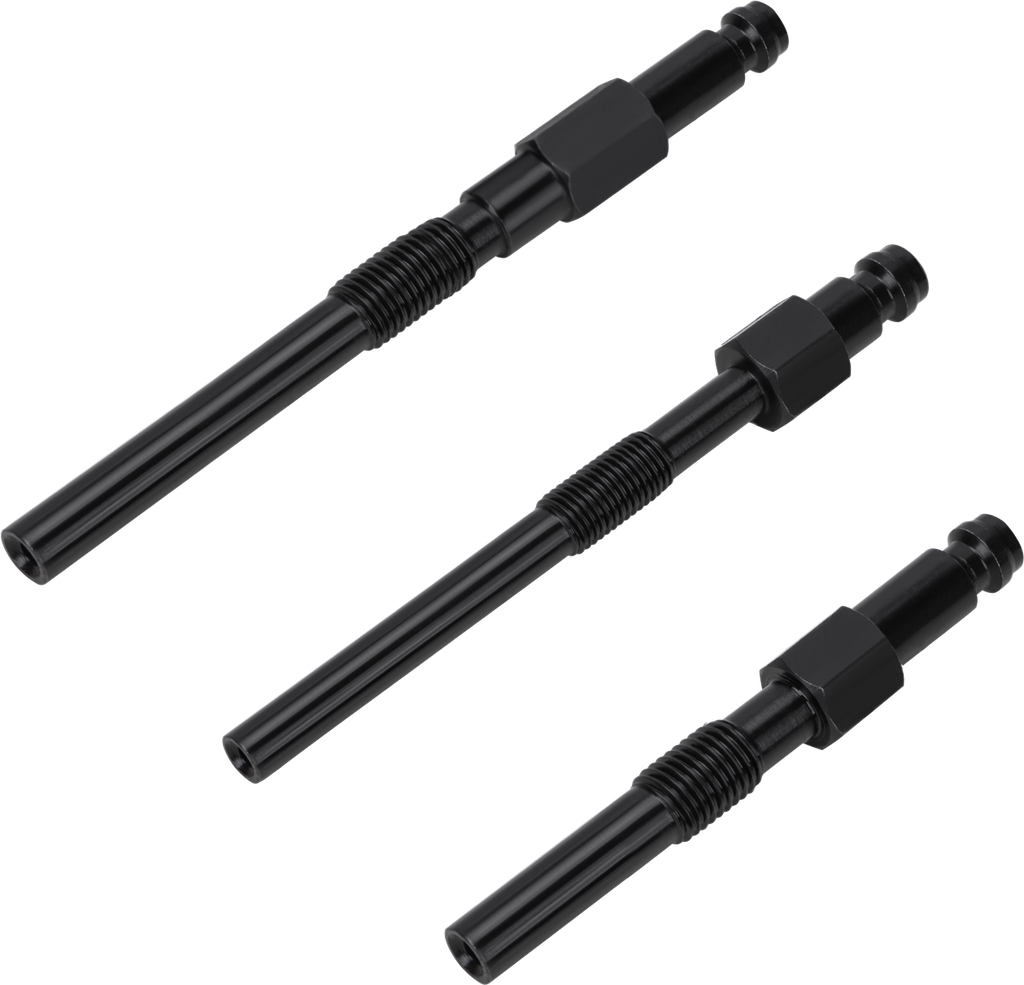

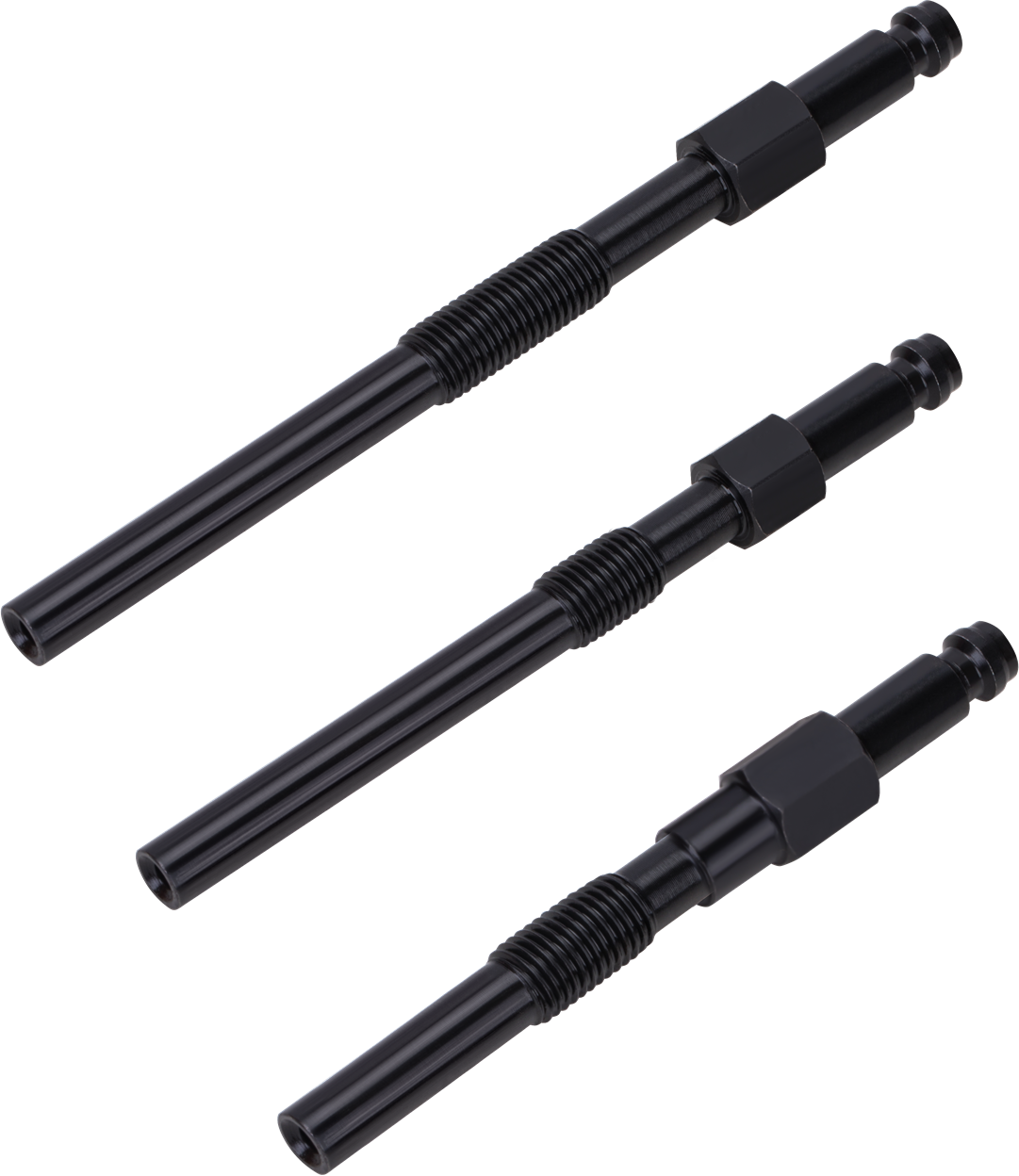

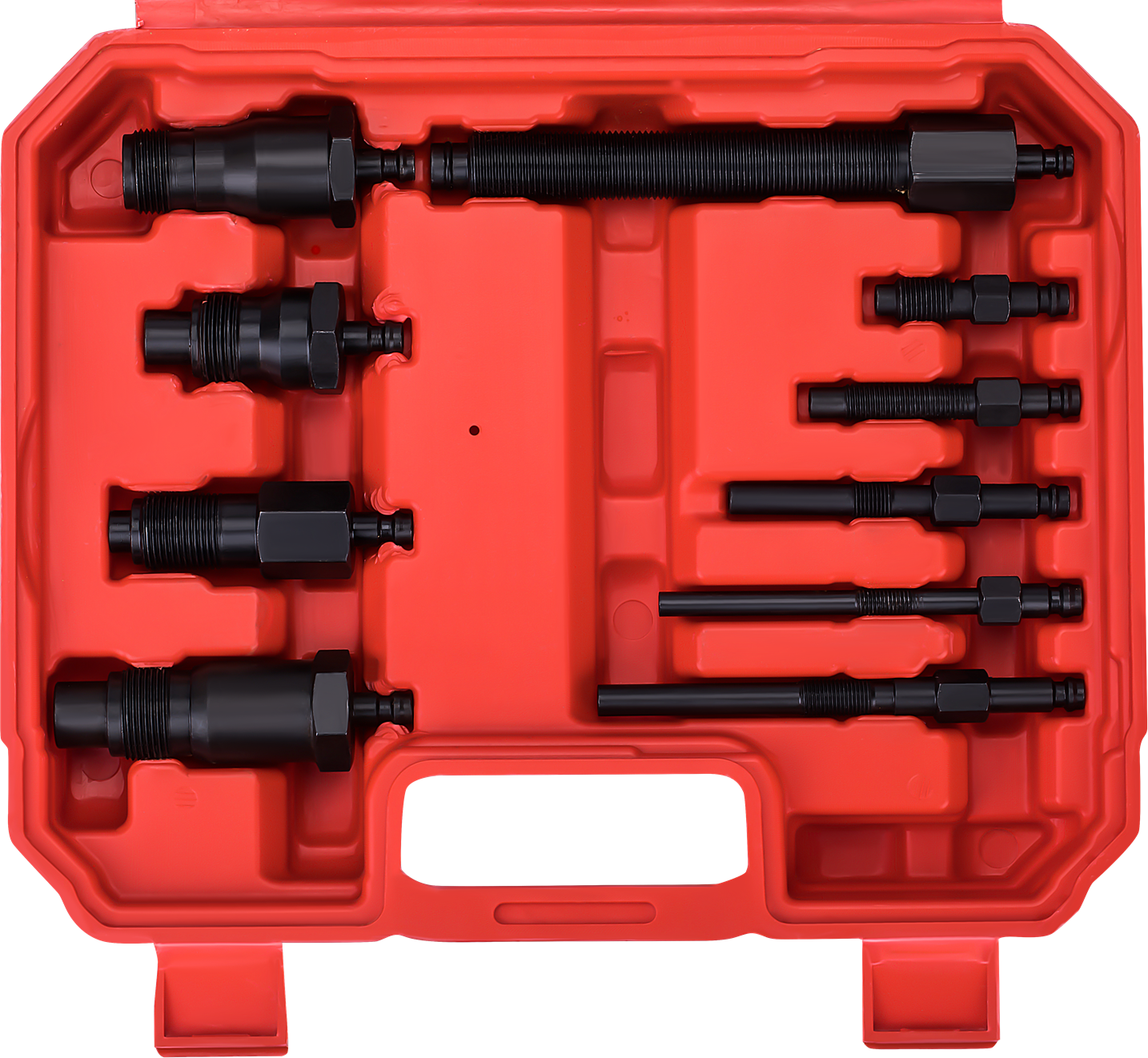

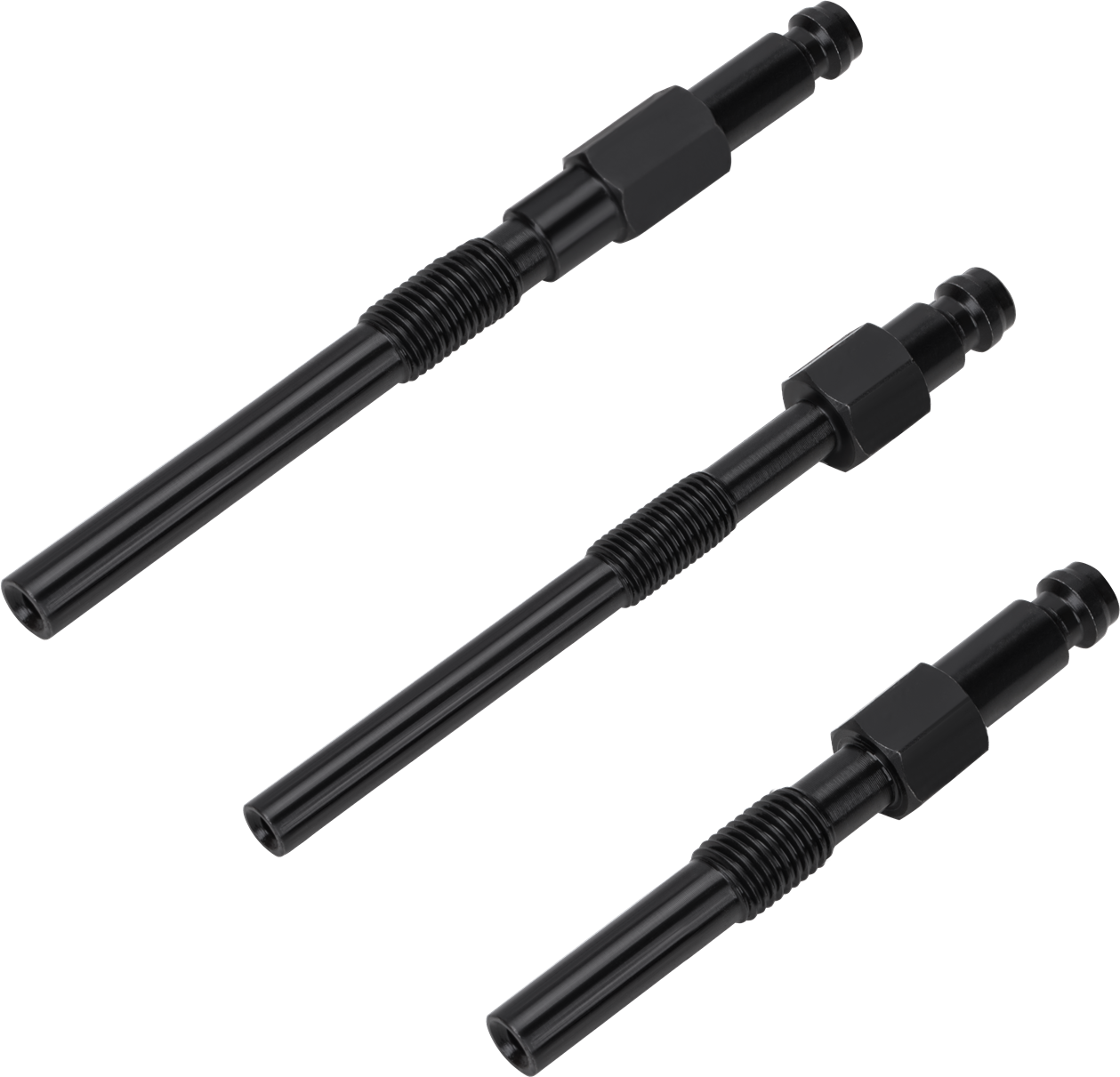

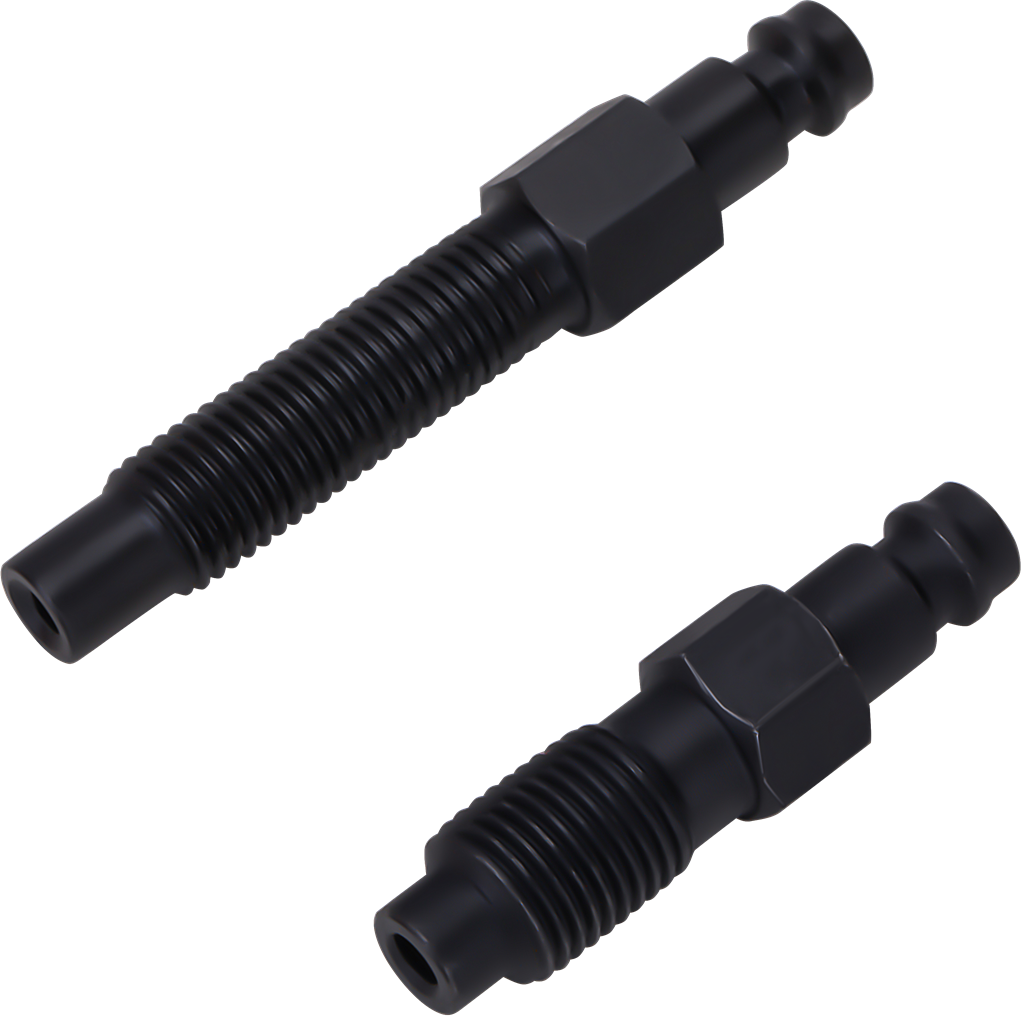

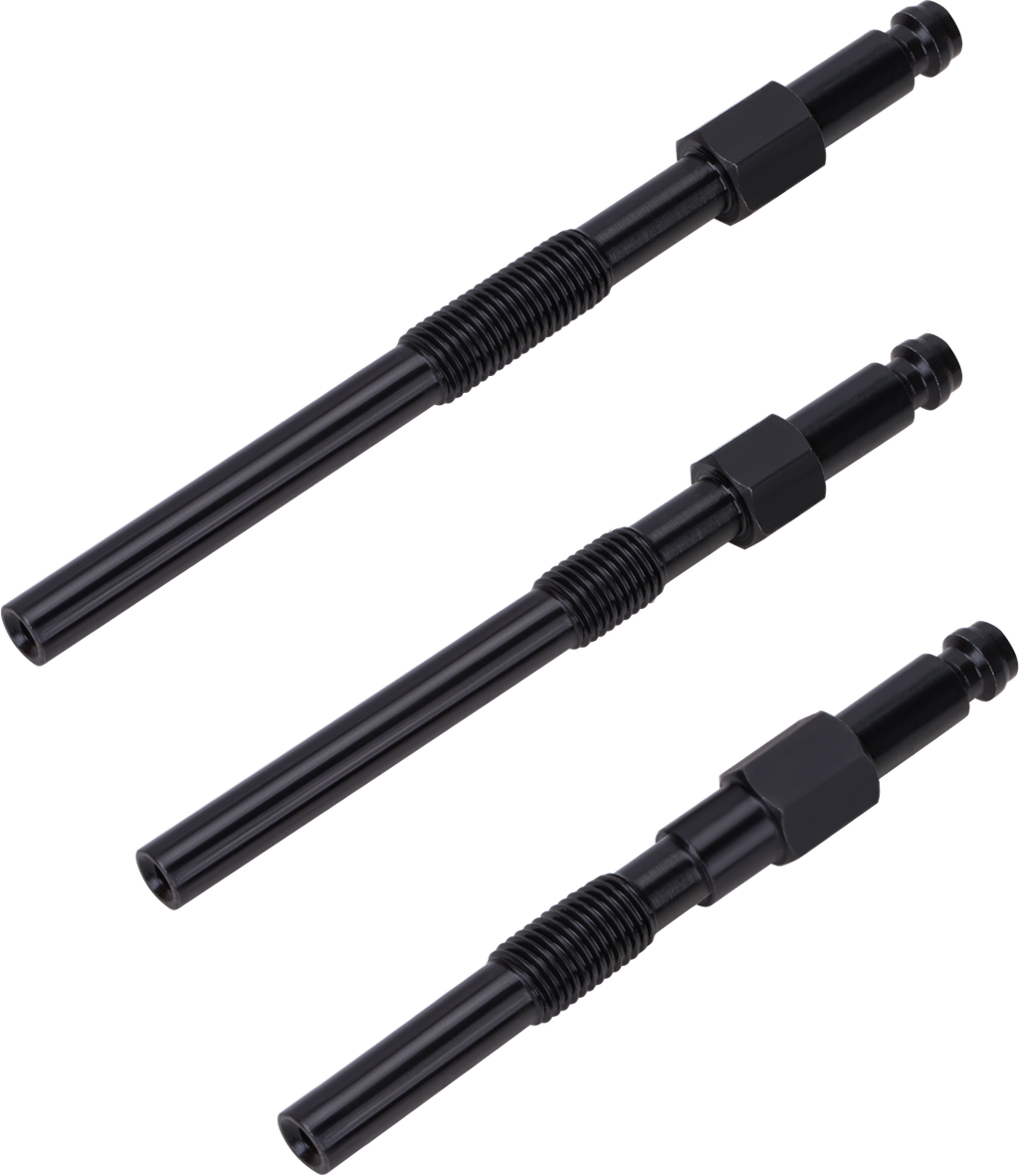

• ✅ 9 adapters for glow plug mounting M10 x 1
• 113 mm M10 x 1
• 91 mm M10 x 1
• 83 mm M10 x 1.25
• 135 mm M10 x 1.25
• 67 mm M10 x 1.25
• long tip M12 x 1.25
• 51 mm M8 x 1
• 102 mm M22 x 1.5
• 118 mm
• ✅ Universal adapter M18 x 1.5

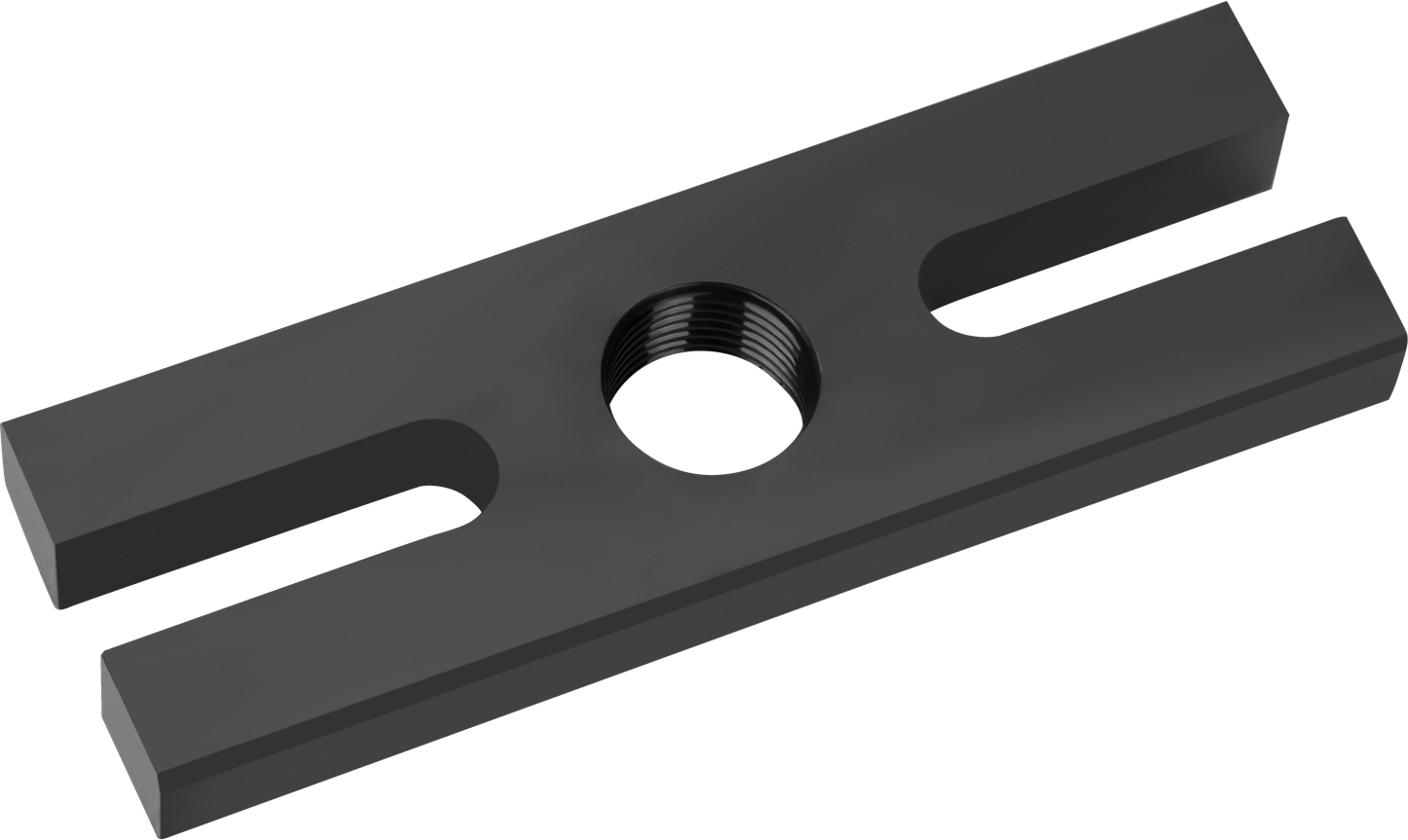

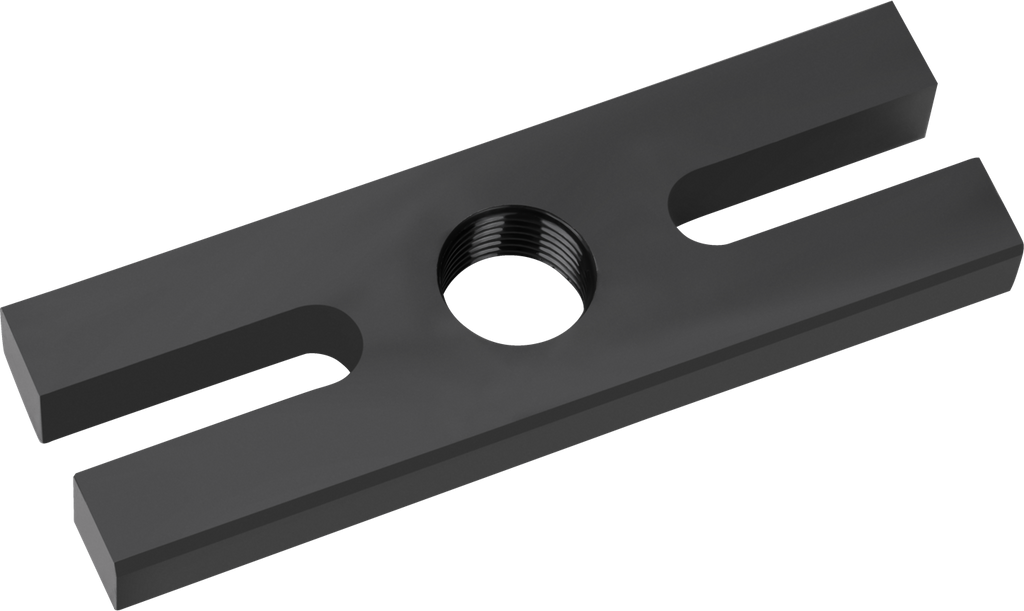

• ✅ H-type mounting

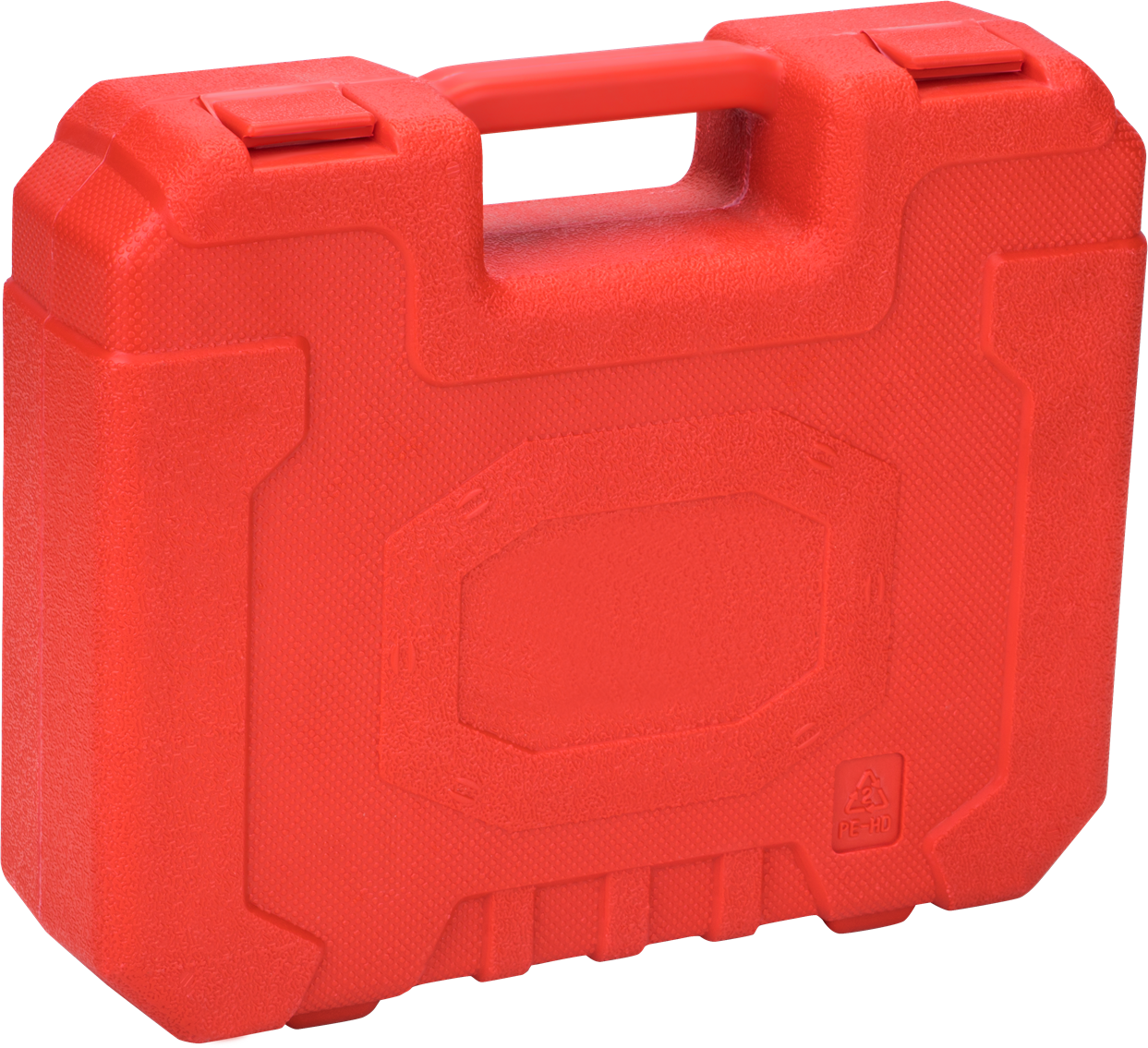

• ✅ Durable transport case
• ✅ 12-month warranty

What's included

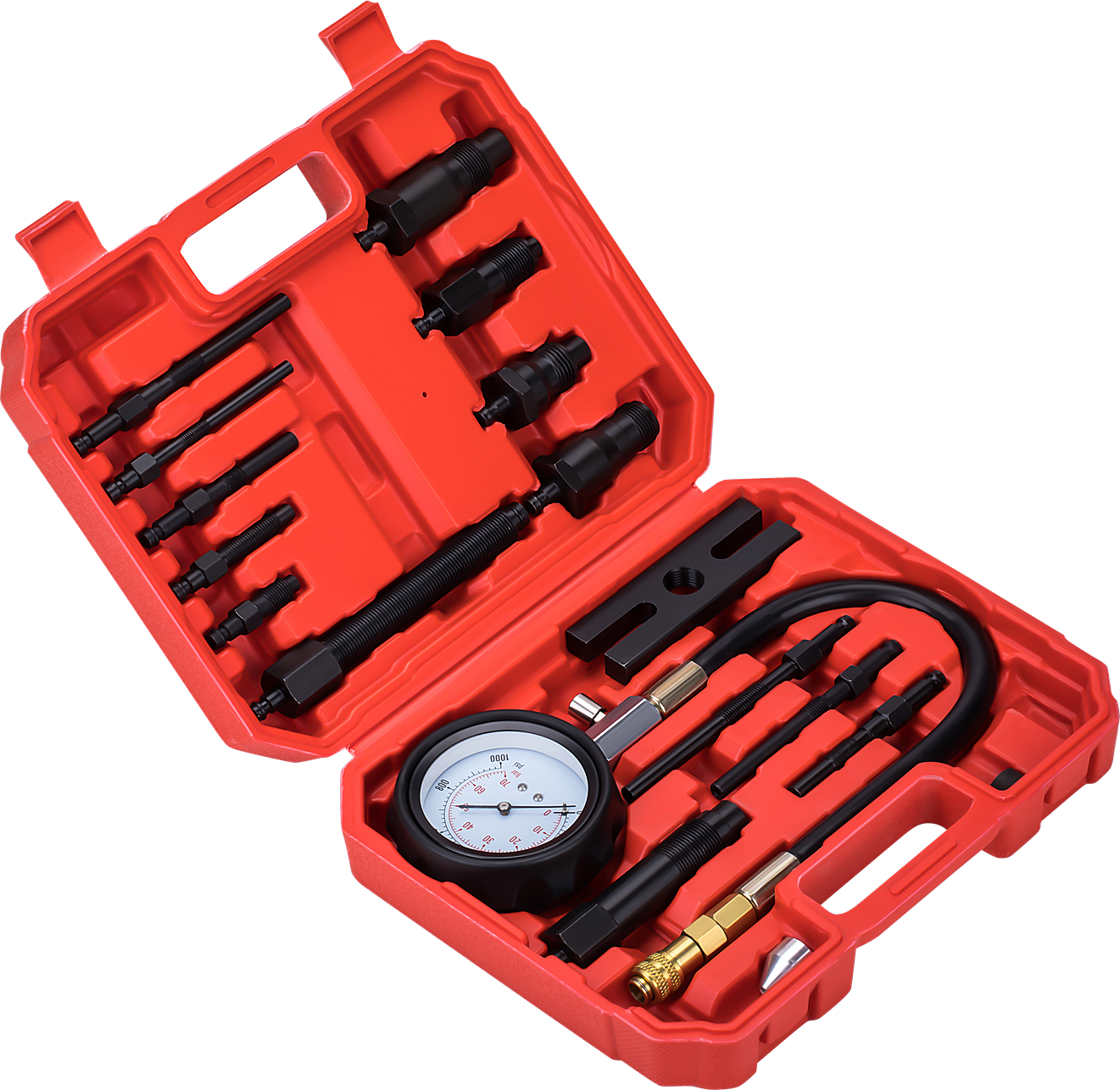

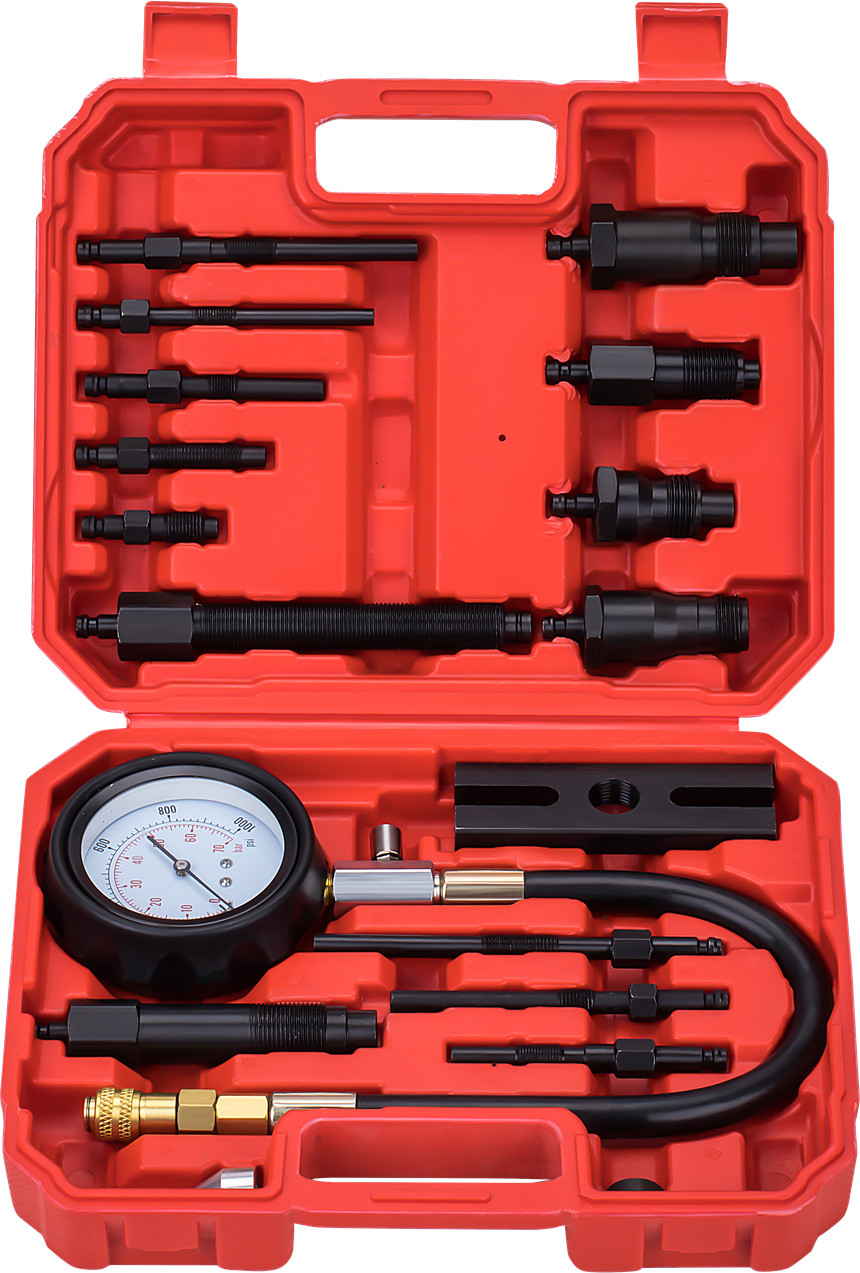

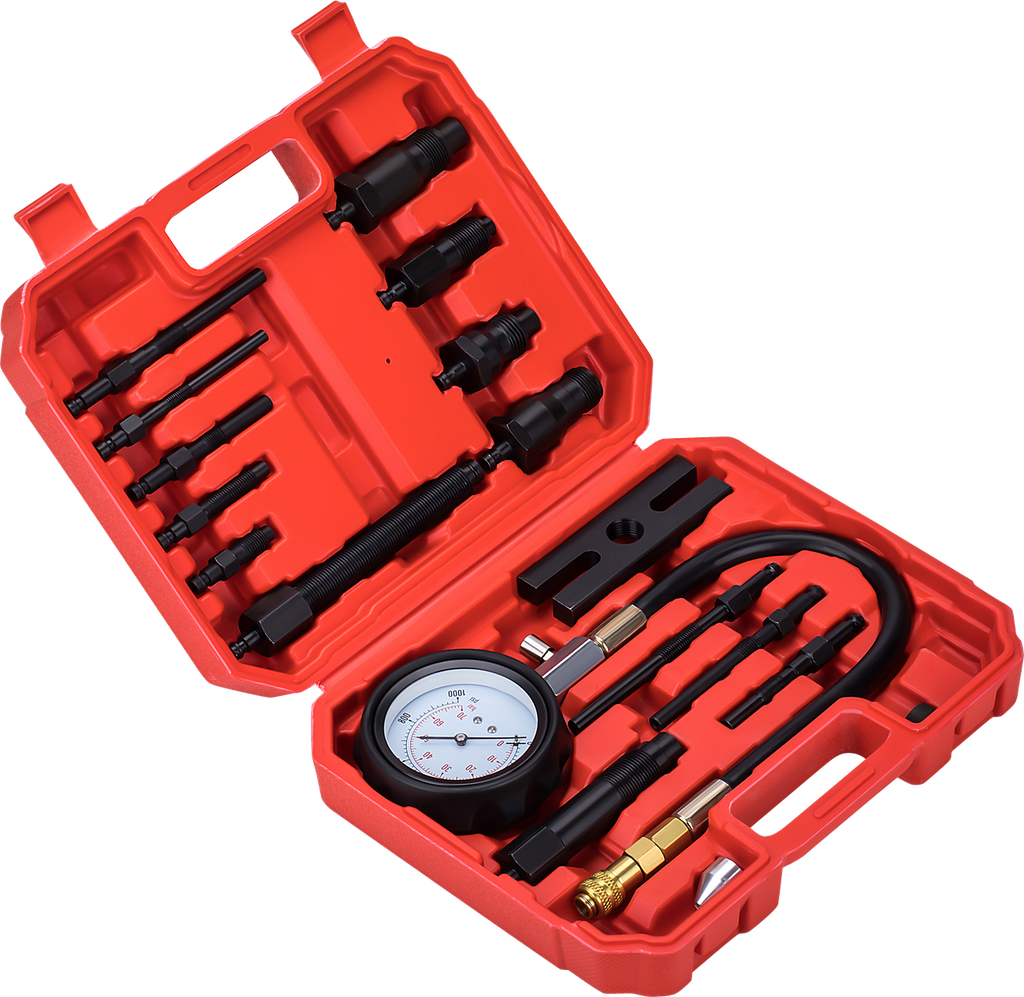

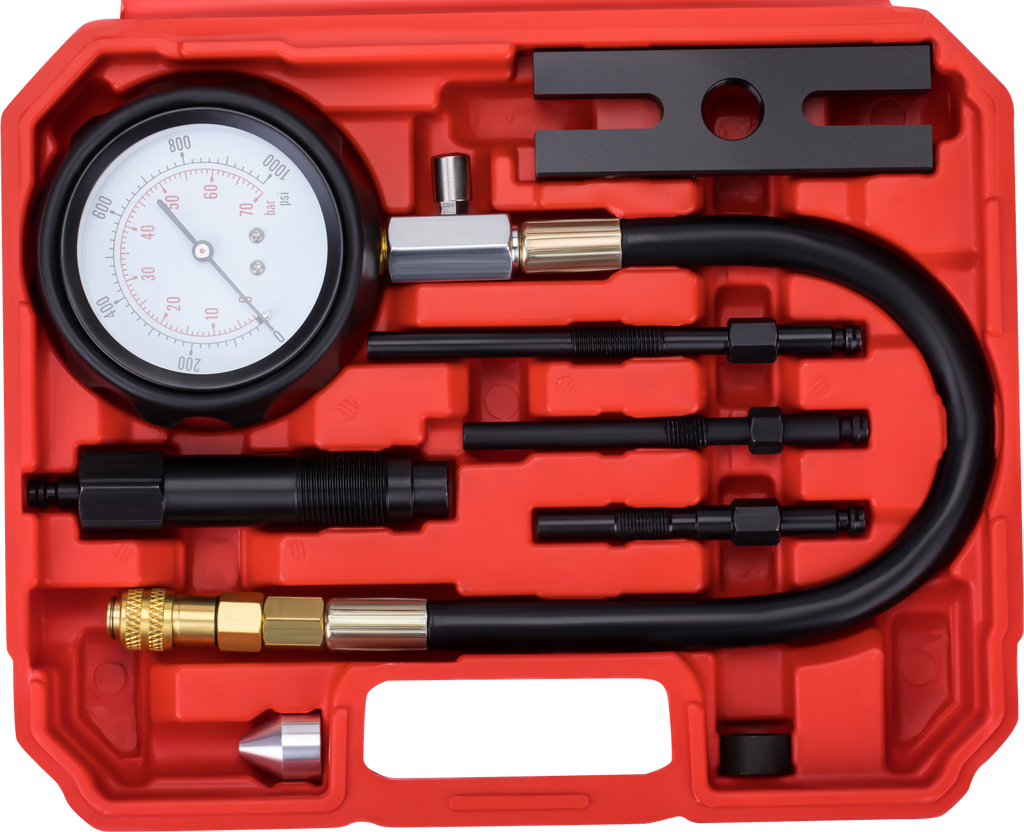

• The entire set is housed in a sturdy, molded case with dedicated spaces for each component.
• ✅ Durable case with dedicated compartments for each element

Notes

✅ Release valve facilitating operation and safety
