Specifications

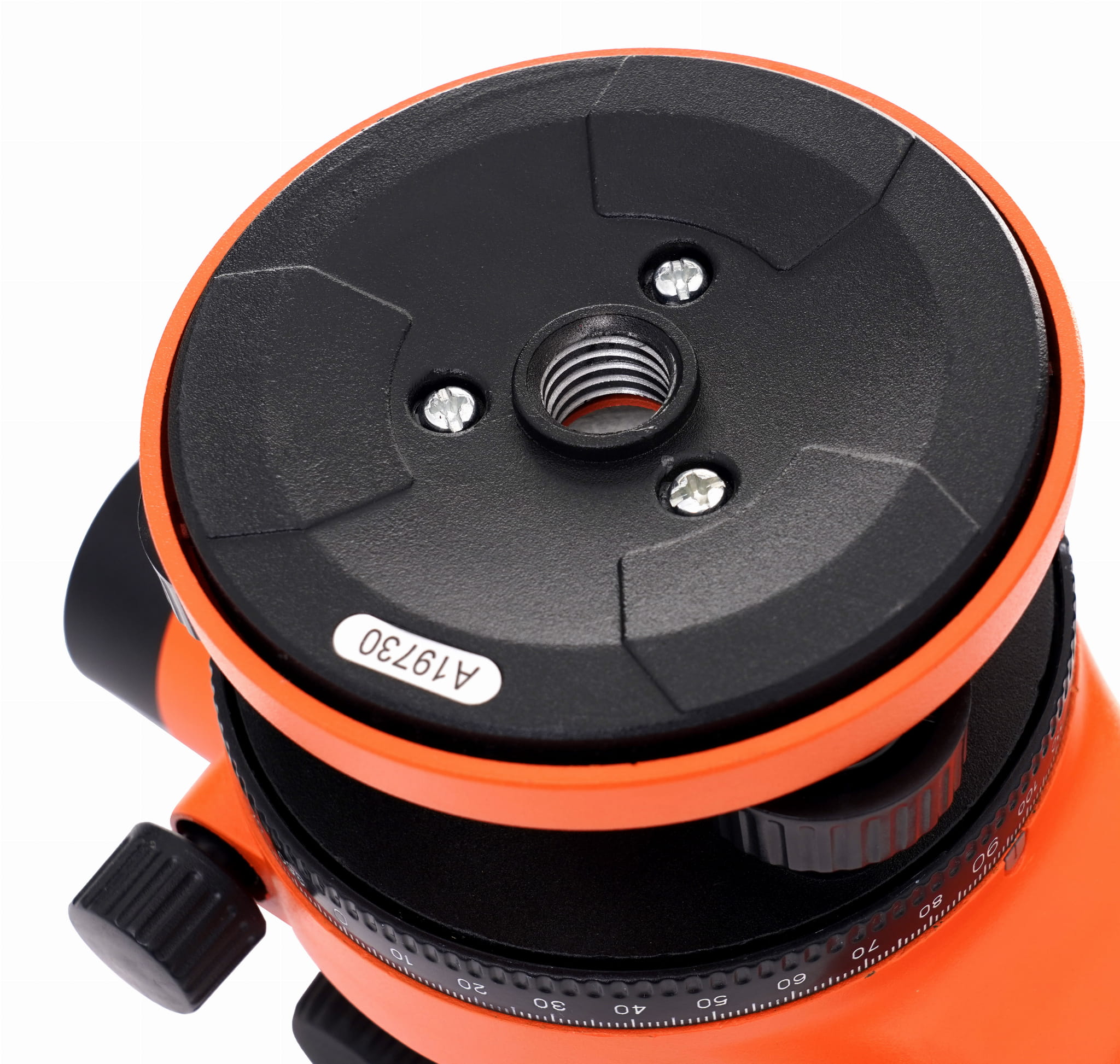

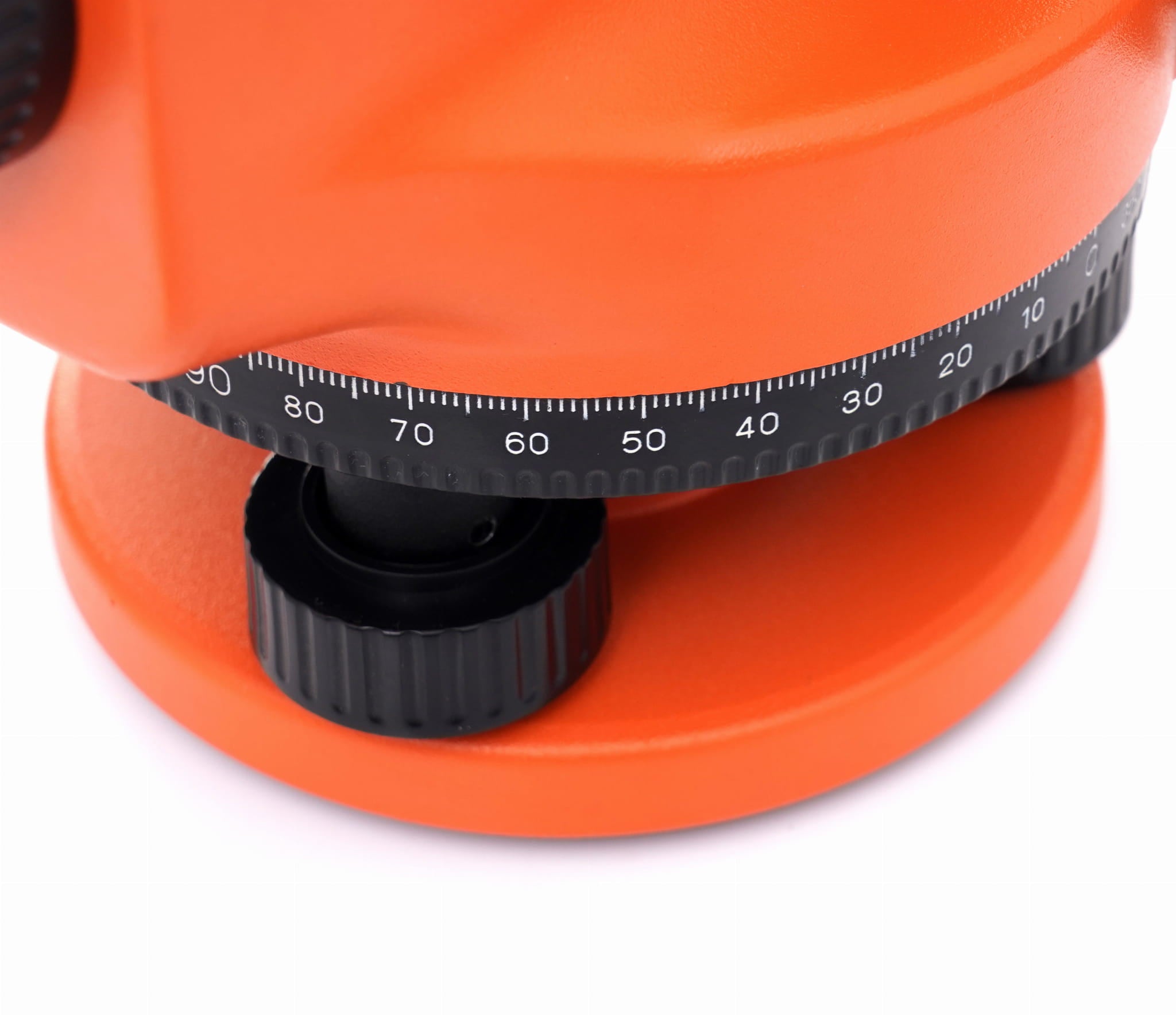

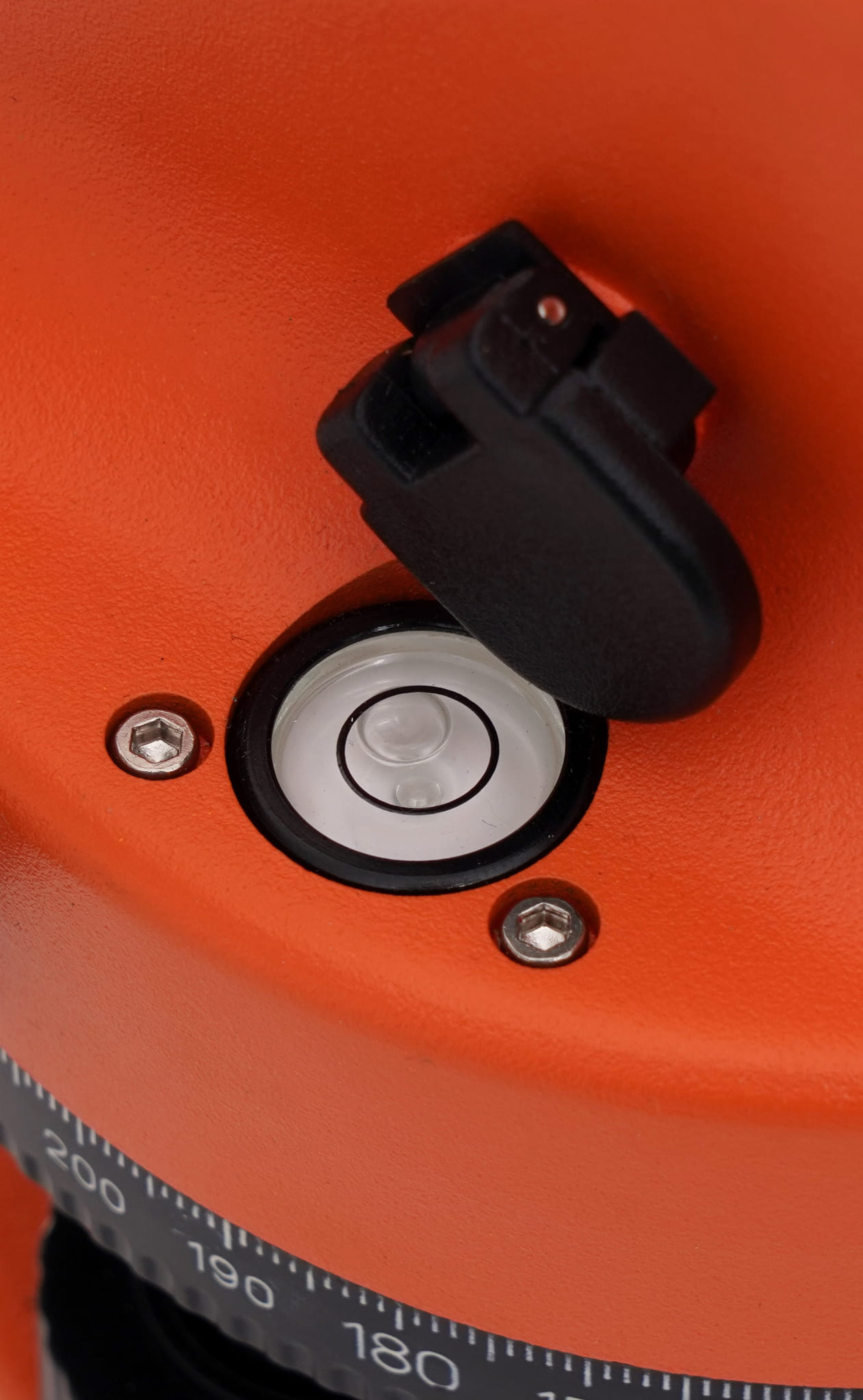

• FUNCTIONS Magnification 32x Suspended compensator with magnetic vibration damping (ensuring optimal range and precision) Compensator lock (Protects the device during transport) Large actual aperture and minimum focal length: 0.3m Convenient optical sight mounted on top Large and easy-to-use precise focus adjustment knob Easy-to-read horizontal circle Pentagonal prism facilitating the view of the bubble level Sealed leveling screws resistant to dust Waterproof, sealed construction with sunshade Micrometer screws with friction rotation Optical rangefinder 1:100 Threads 5/8-11 TECHNICAL DATA: TELESCOPE: Telescope length: 210 mm Magnification: 32x Leveling accuracy: 1/16" Working range: 107 m Objective aperture: 40 mm Field of view: 1.5° Minimum focal length: 0.3 m Optical rangefinder ratio: 100 COMPENSATOR: Leveling range: +/- 15' Adjustment accuracy: +/- 0.8' Magnetic vibration damping: YES Bubble sensitivity: 8/2 mm Circle scale: 1° Standard deviation at 1 km: Double leveling 1.0 mm Weight: 1.7 kg CONTENTS: Optical level + case KD196 Manual Original packaging

What's included

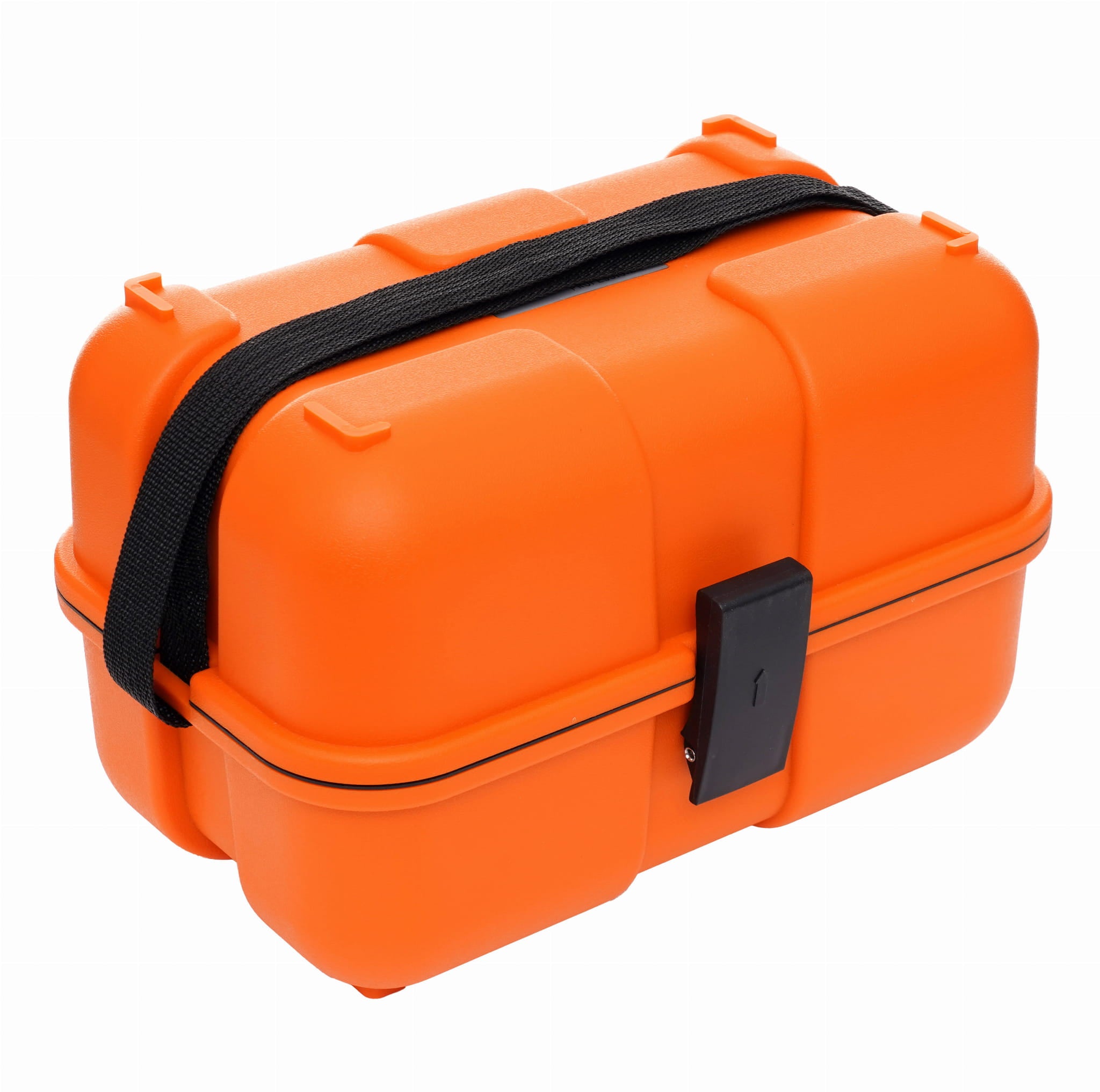

• OPTICAL LEVEL + CASE

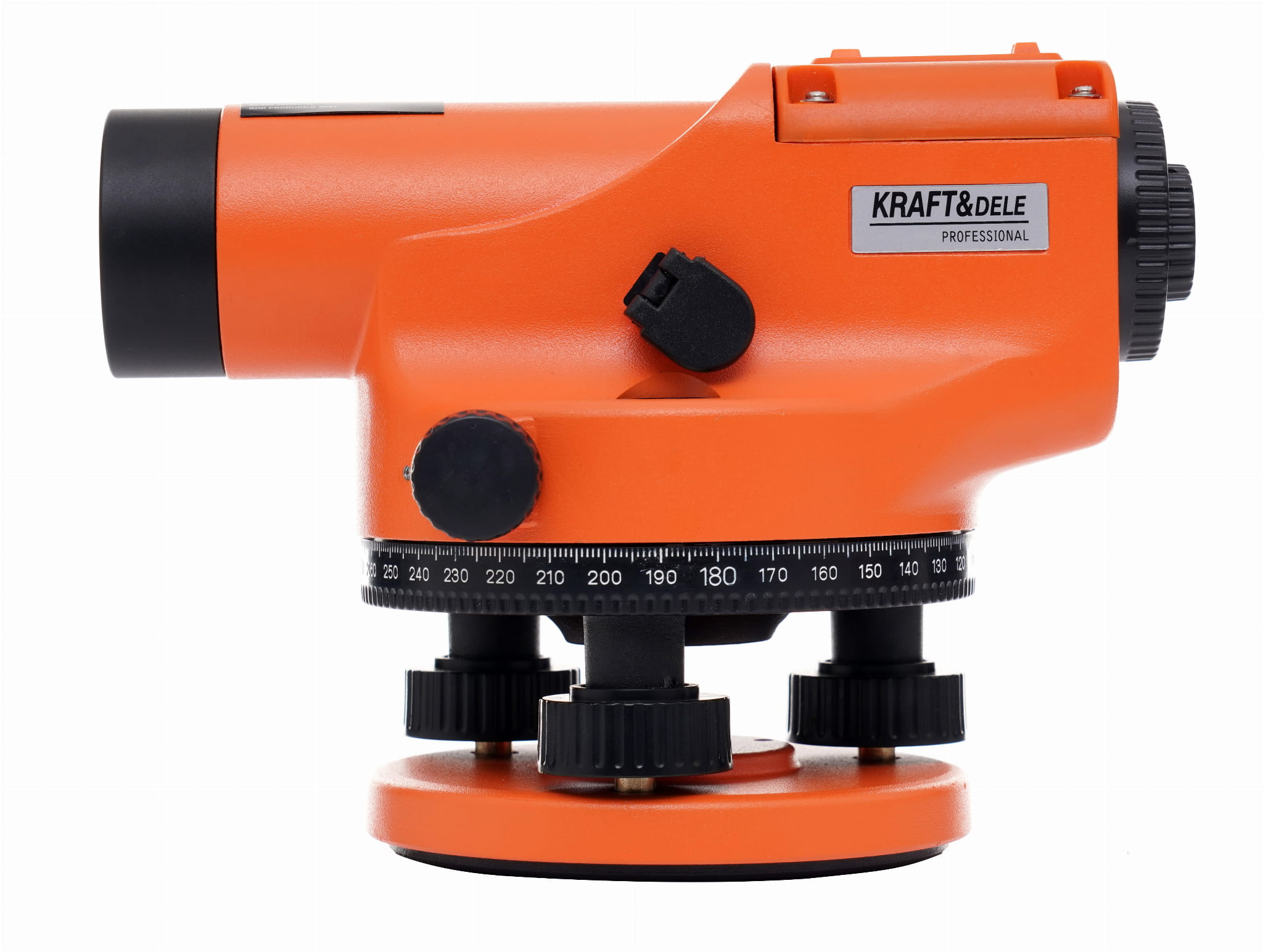

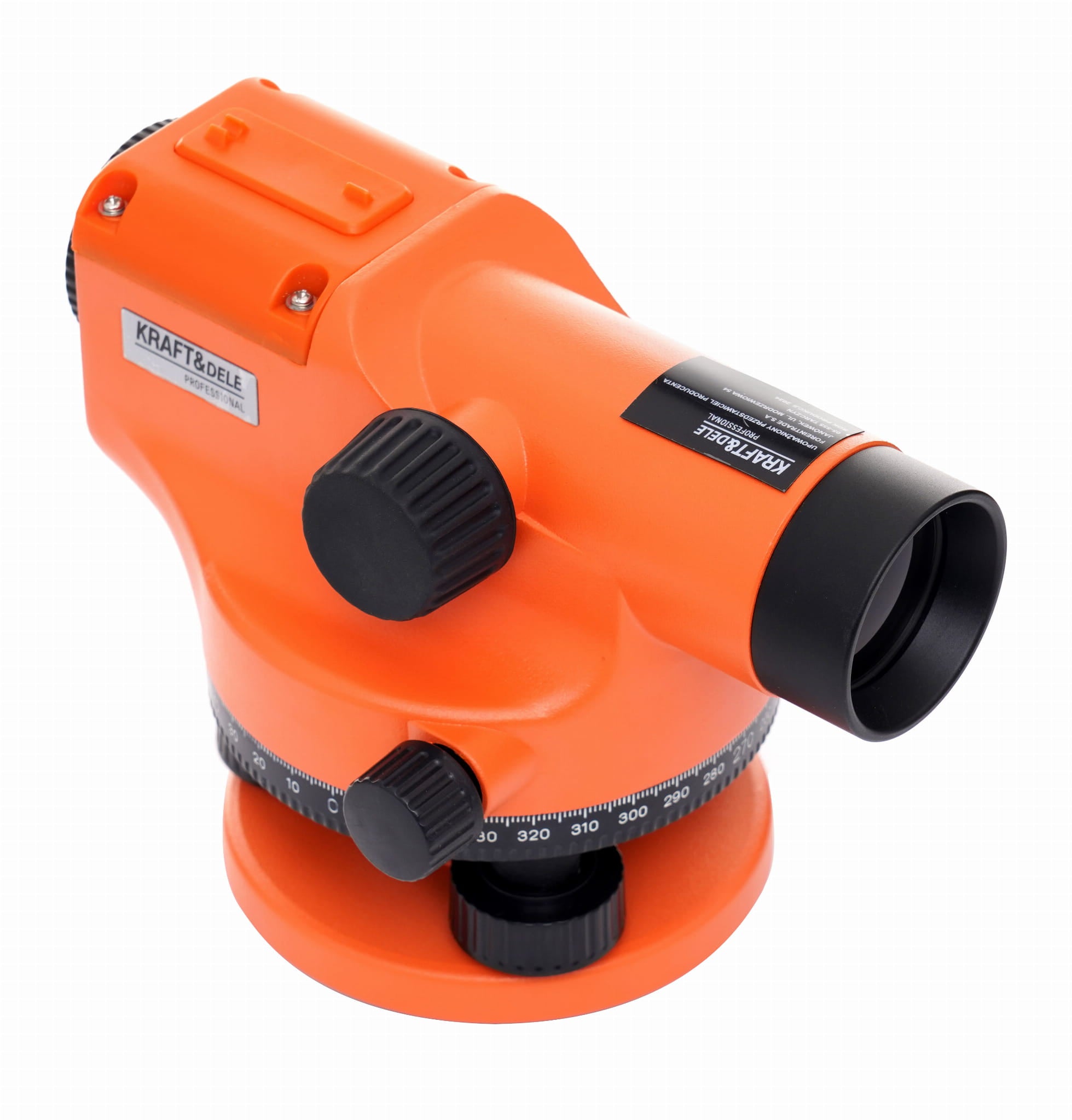

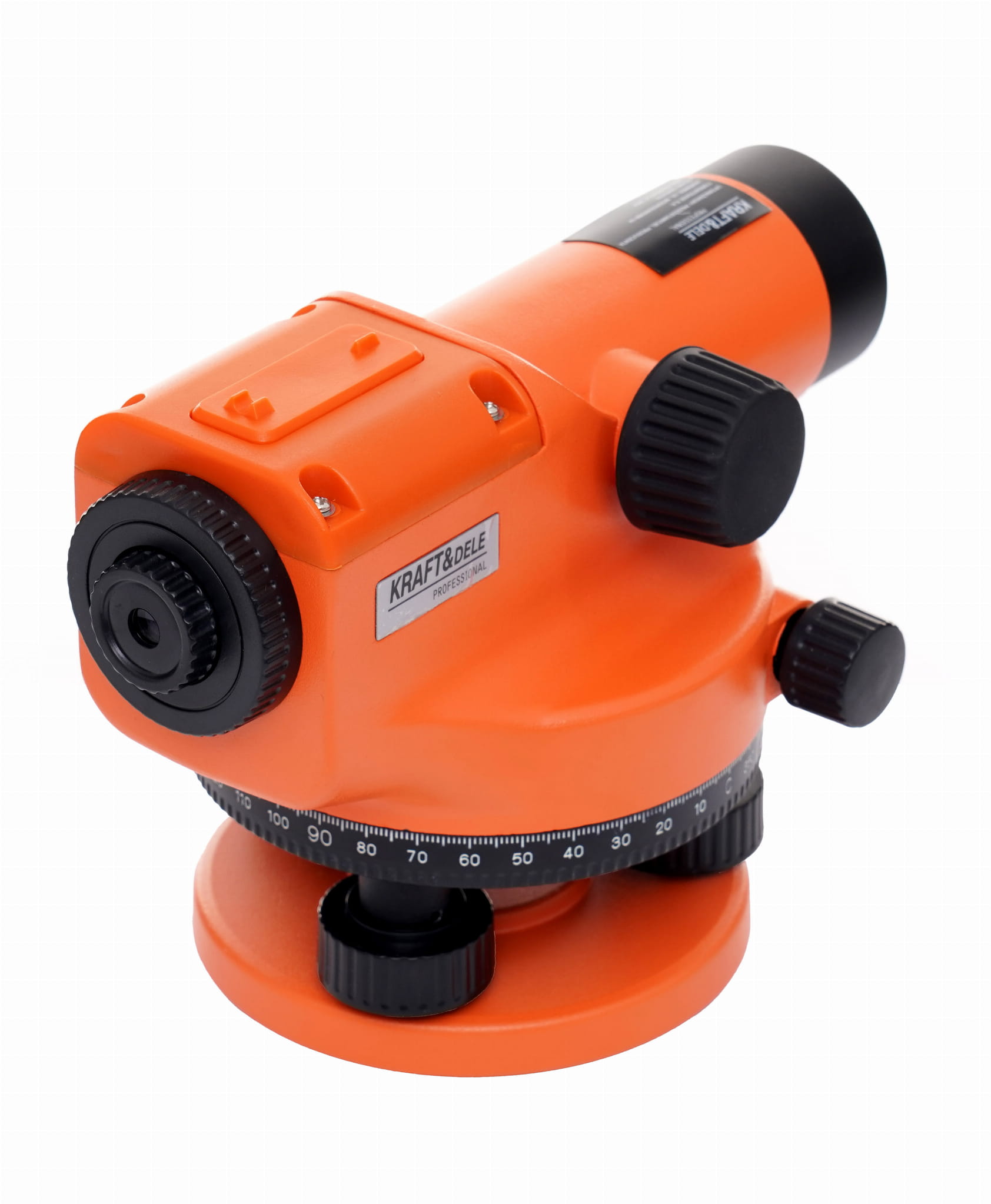

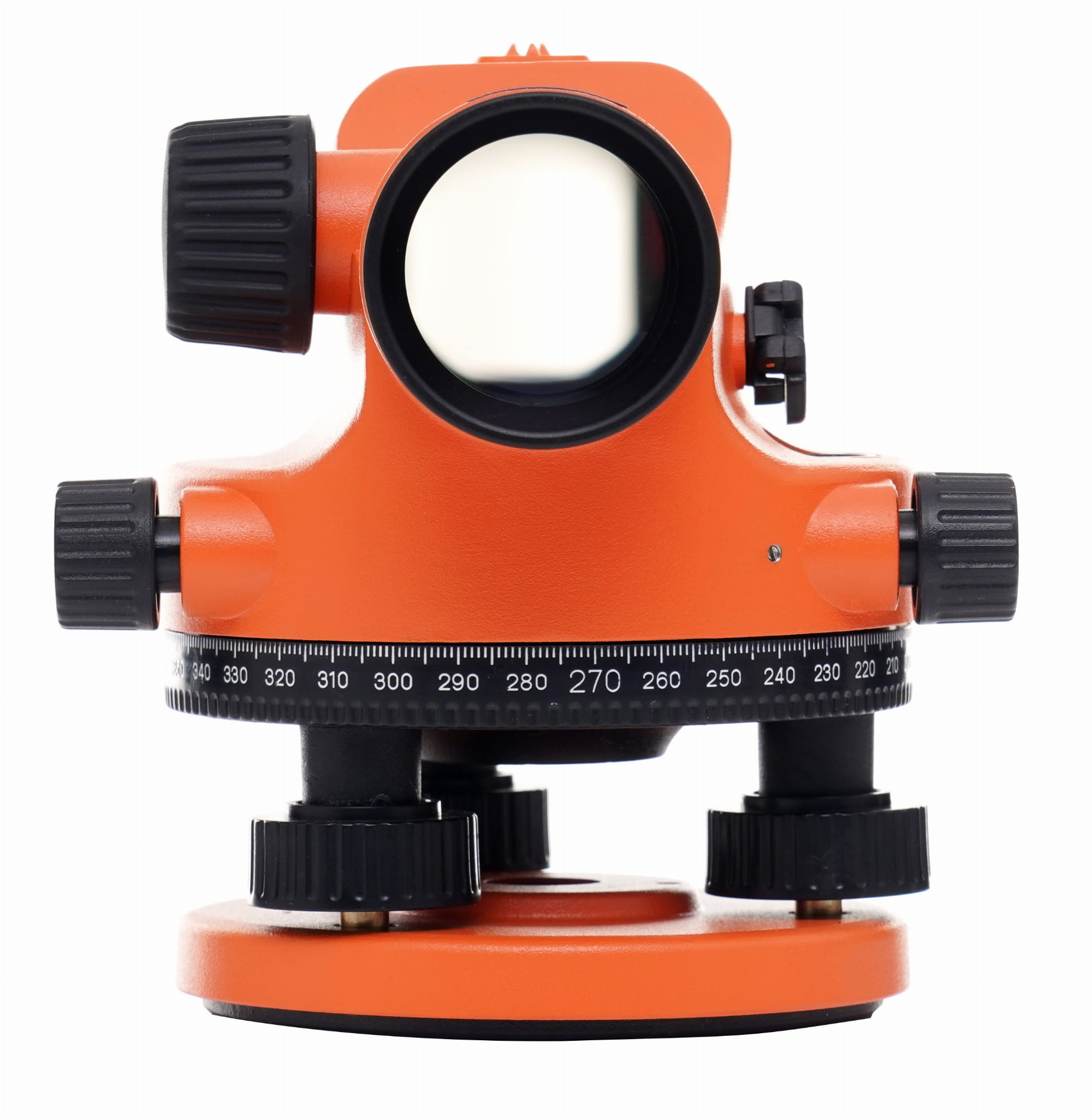

• KD1096 Professional optical level by Kraft&dele model
• KD1096 is a device used for precise measurements
