Overview

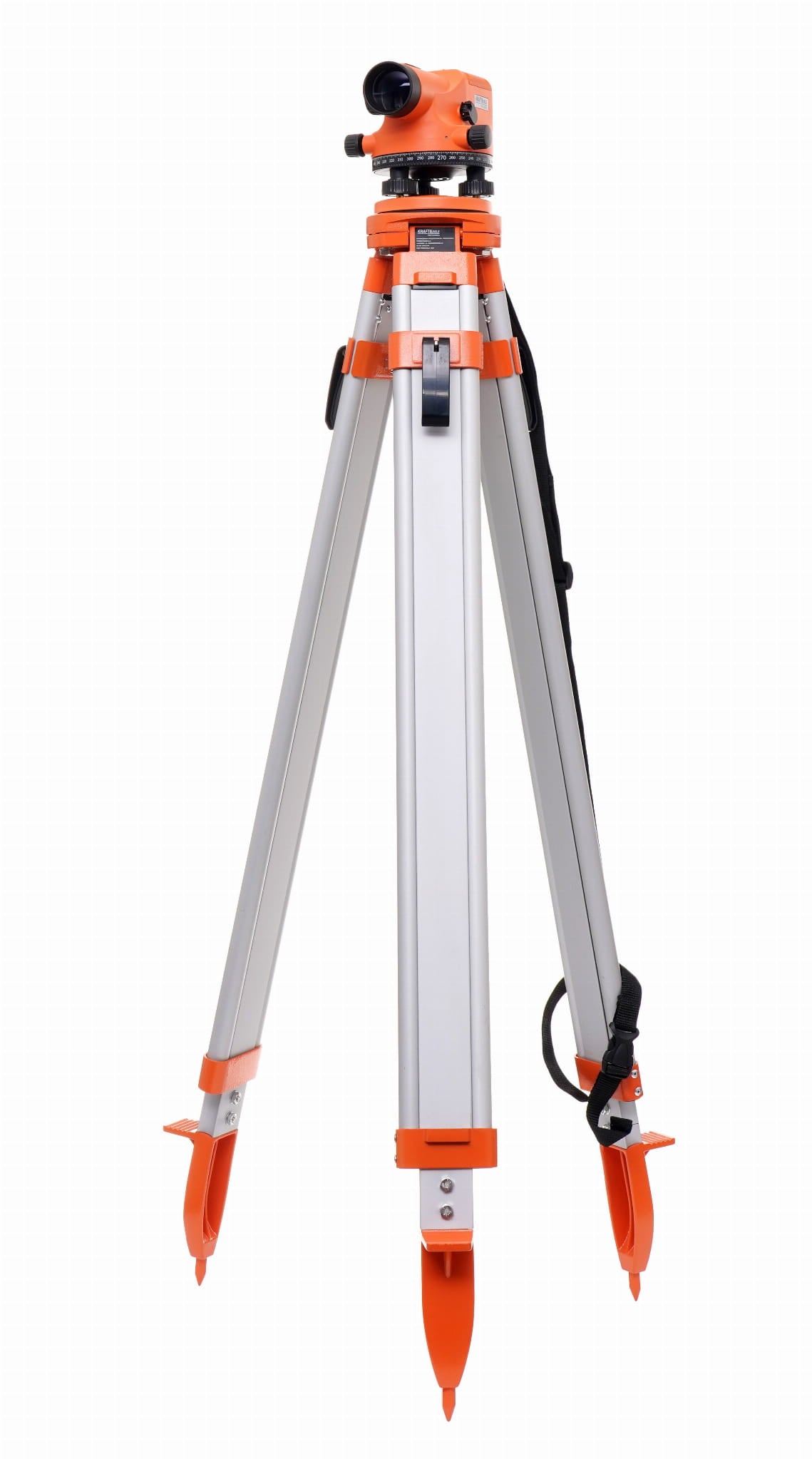

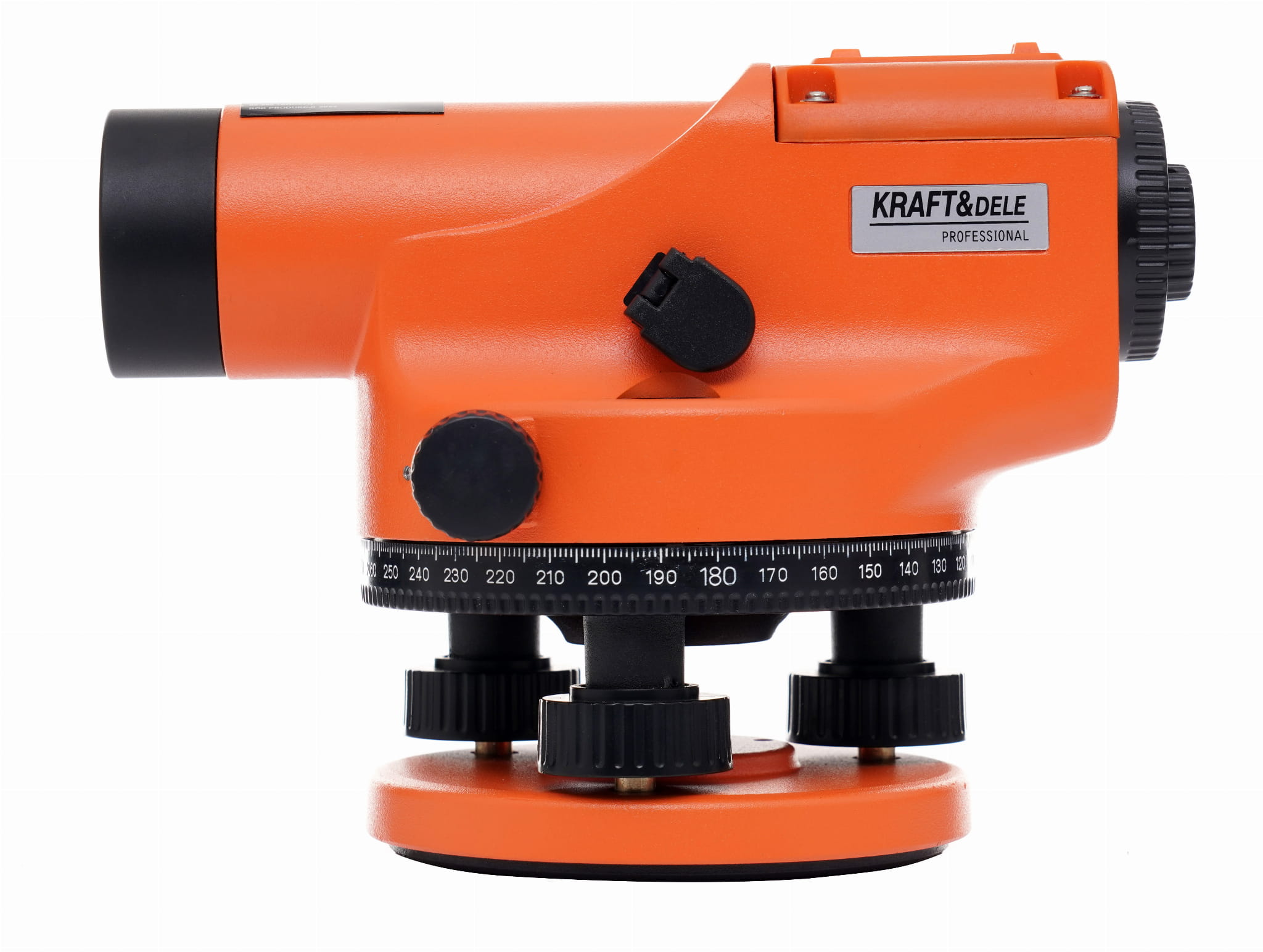

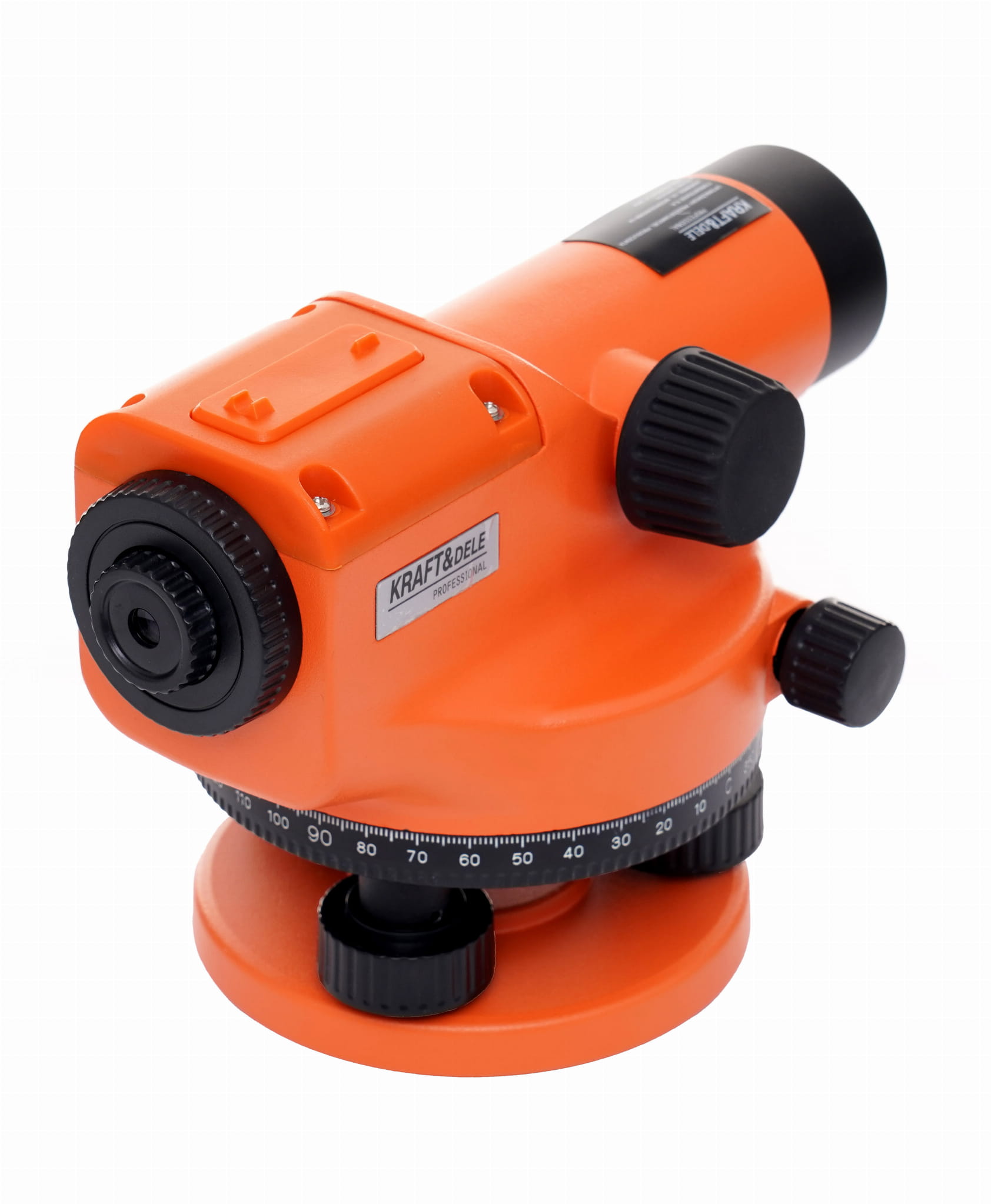

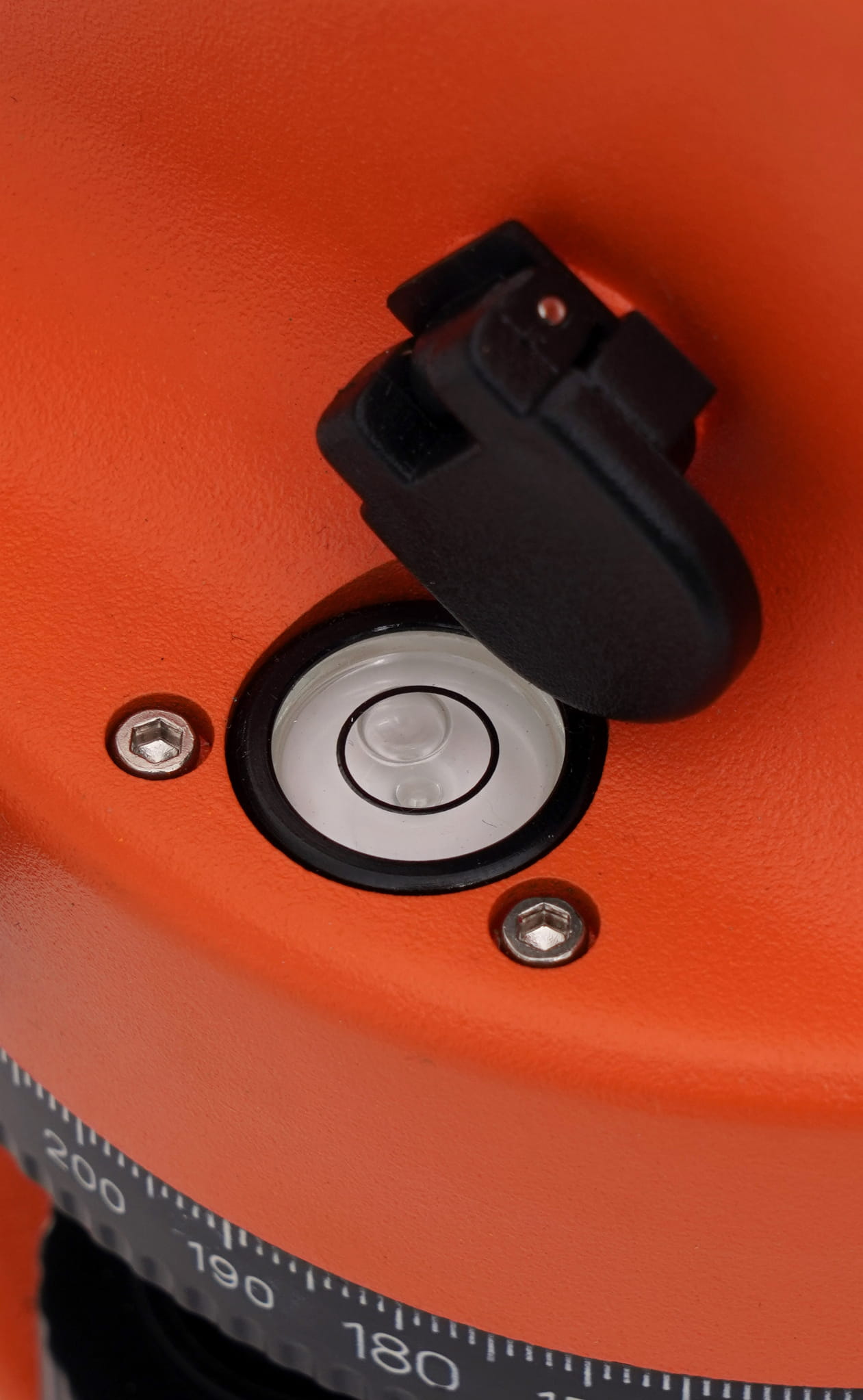

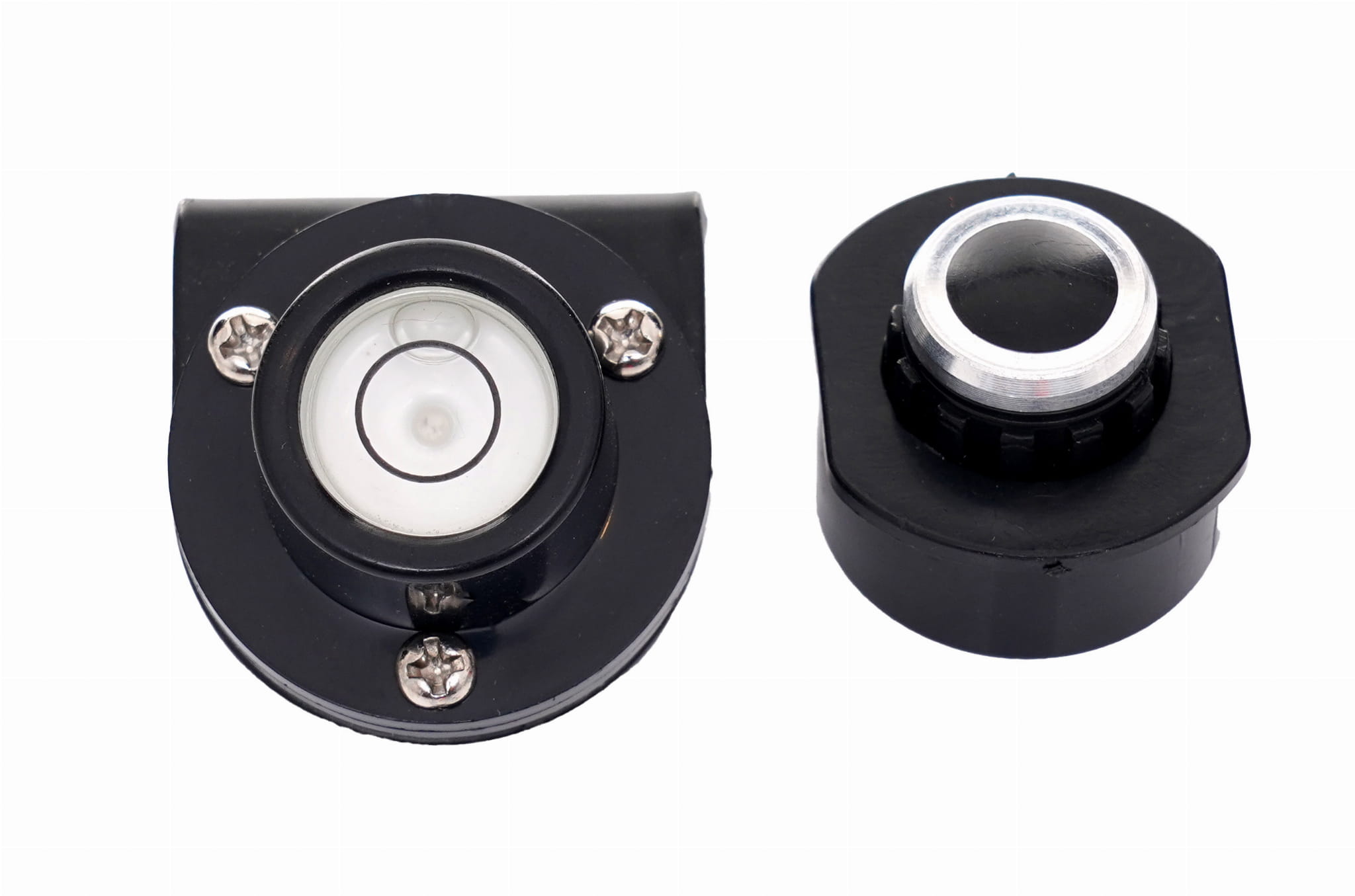

OPTICAL LEVELING INSTRUMENT 3-PIECE SET KD1095 The professional leveling set by KRAFT&DELE, model KD1095, is a complete equipment designed for precise measurements in construction, surveying, and all leveling tasks. Thanks to high-quality workmanship and the use of modern optical solutions, the set guarantees reliability and measurement accuracy in all field conditions. The device's construction is dust and water-resistant, and the magnetic compensator ensures stable and precise readings even with minor ground vibrations. PRODUCT FEATURES ✅ Compensator with magnetic vibration damping for perfect stabilization ✅ Compensator lock protecting the device during transport ✅ Large objective aperture (40 mm) ensuring a bright and clear image ✅ Precise focus adjustment using a large knob ✅ Easy-to-read horizontal circle and pentagonal prism facilitating bubble vial viewing ✅ Waterproof and sealed housing with sunshade ✅ High durability thanks to sealed leveling screws resistant to dust ✅ Optical rangefinder with a 1:100 ratio ✅ Ready-to-use set
Specifications
- ⚙ Brand: KRAFT&DELE
- ⚙ Model: KD1095
- ⚙ Magnification: 32x
- ⚙ Telescope length: 210 mm
- ⚙ Objective aperture: 40 mm
- ⚙ Leveling accuracy: 1/16"
- ⚙ Working range: 107 m
- ⚙ Shortest focal length: 0.3 m
- ⚙ Optical rangefinder ratio: 1:100
- ⚙ Compensator leveling range: +/- 15'
- ⚙ Compensator adjustment accuracy: +/- 0.8'
- ⚙ Magnetic vibration damping: YES
- ⚙ Bubble sensitivity: 8/2 mm

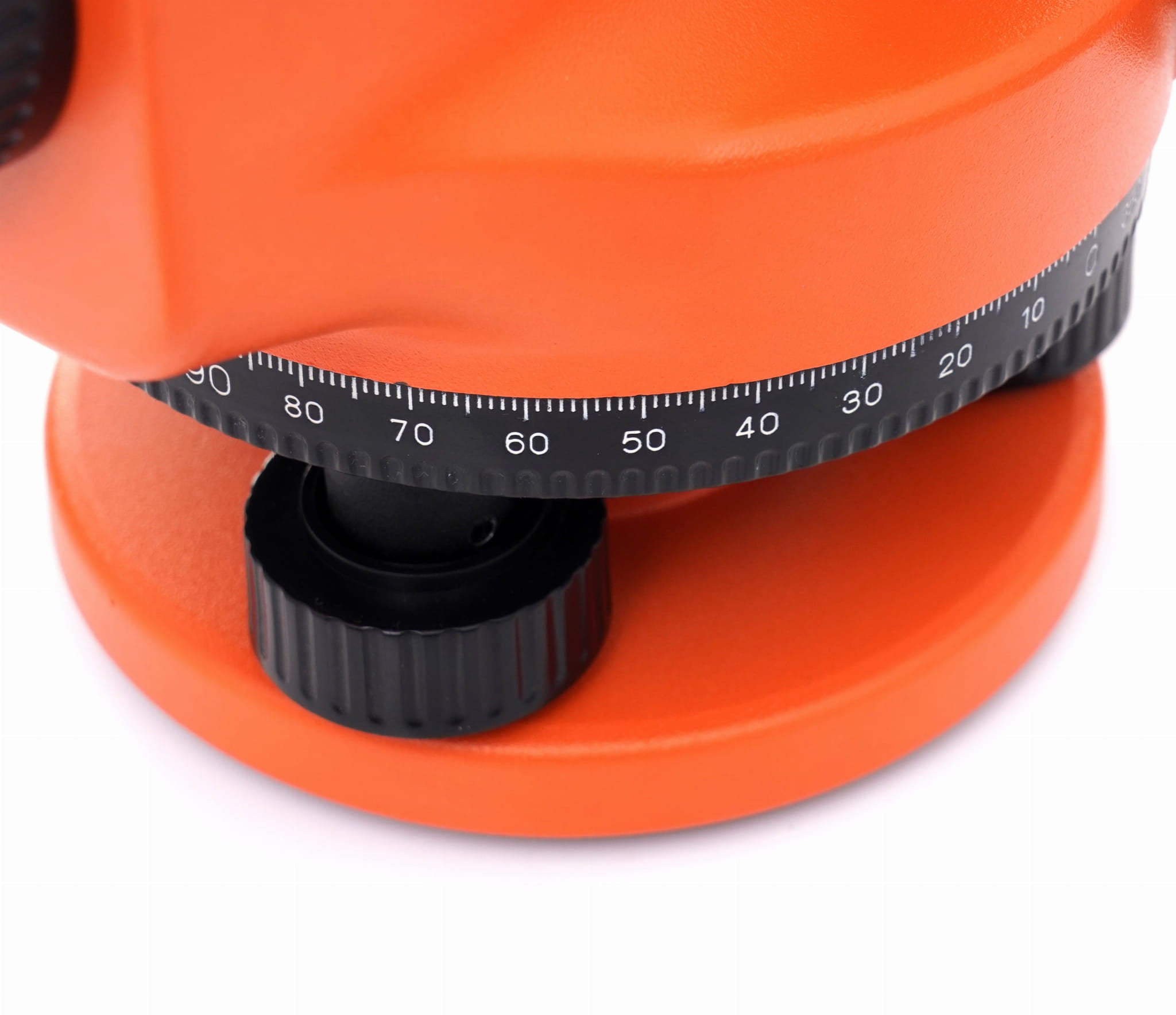

- ⚙ Horizontal circle scale: 1°
- ⚙ Standard deviation (1 km double leveling): 1.0 mm

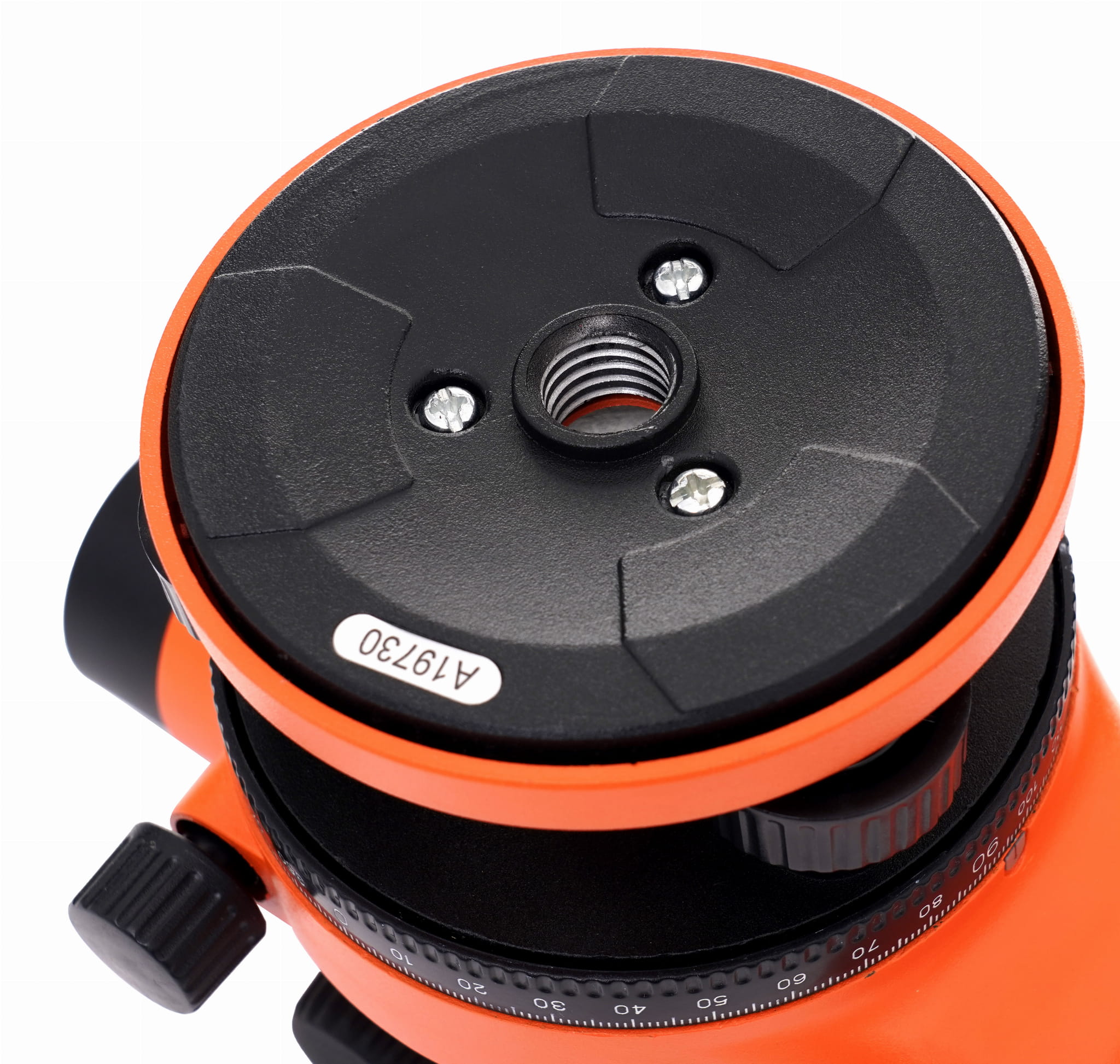

- ⚙ Mount thread: 5/8-11
- PRODUCT CONTENT

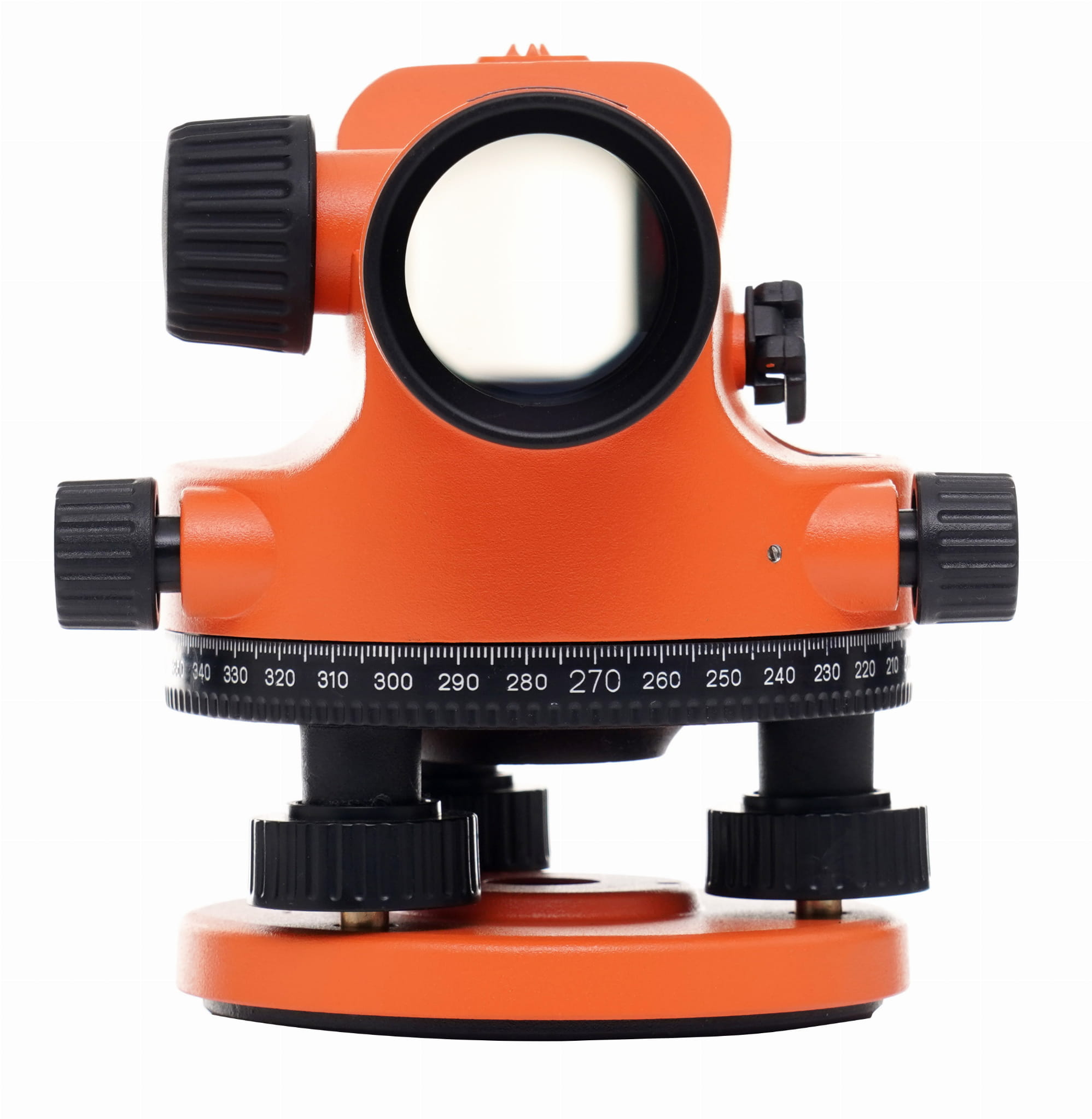

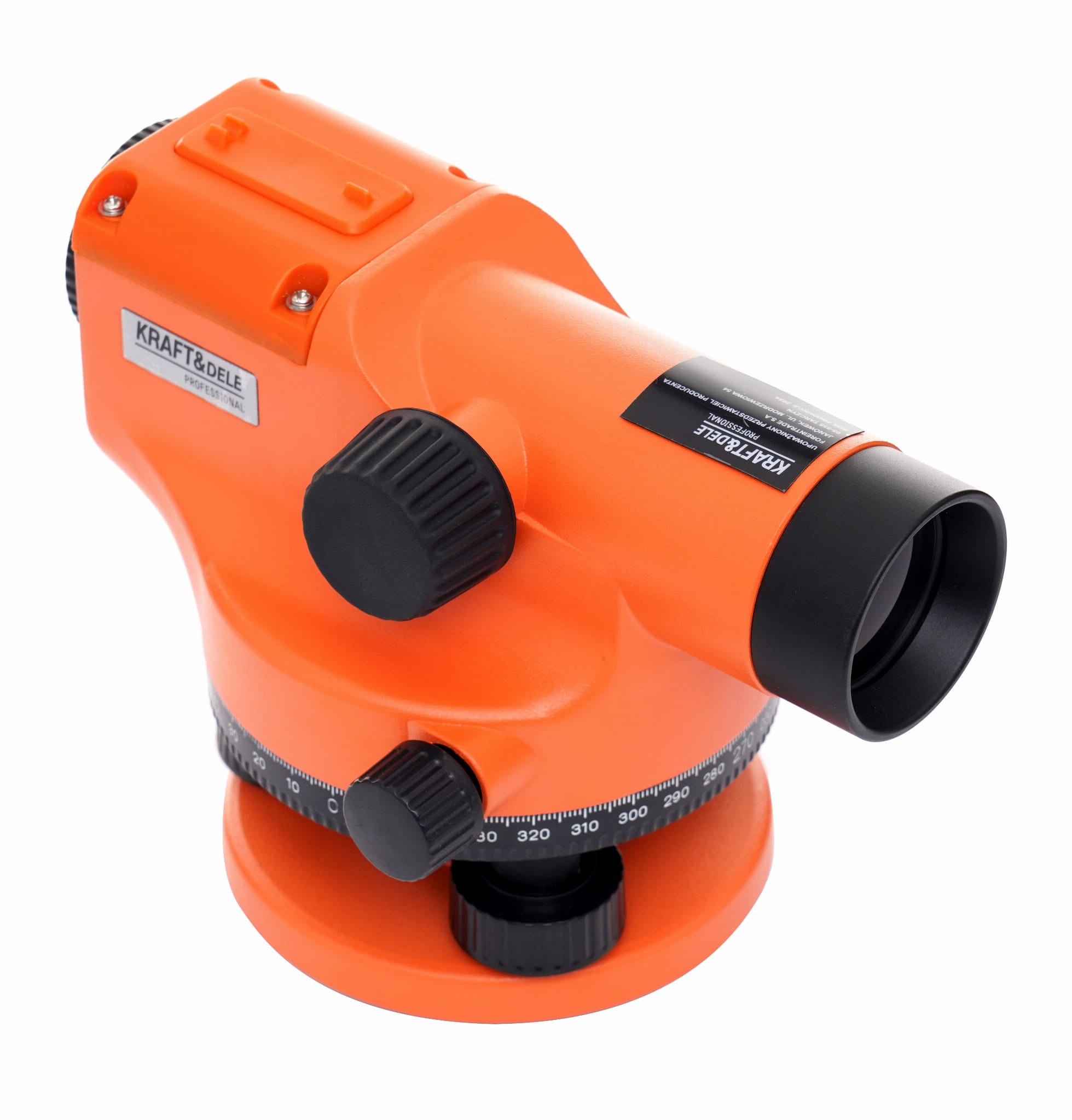

- ✅ Optical level KD1095

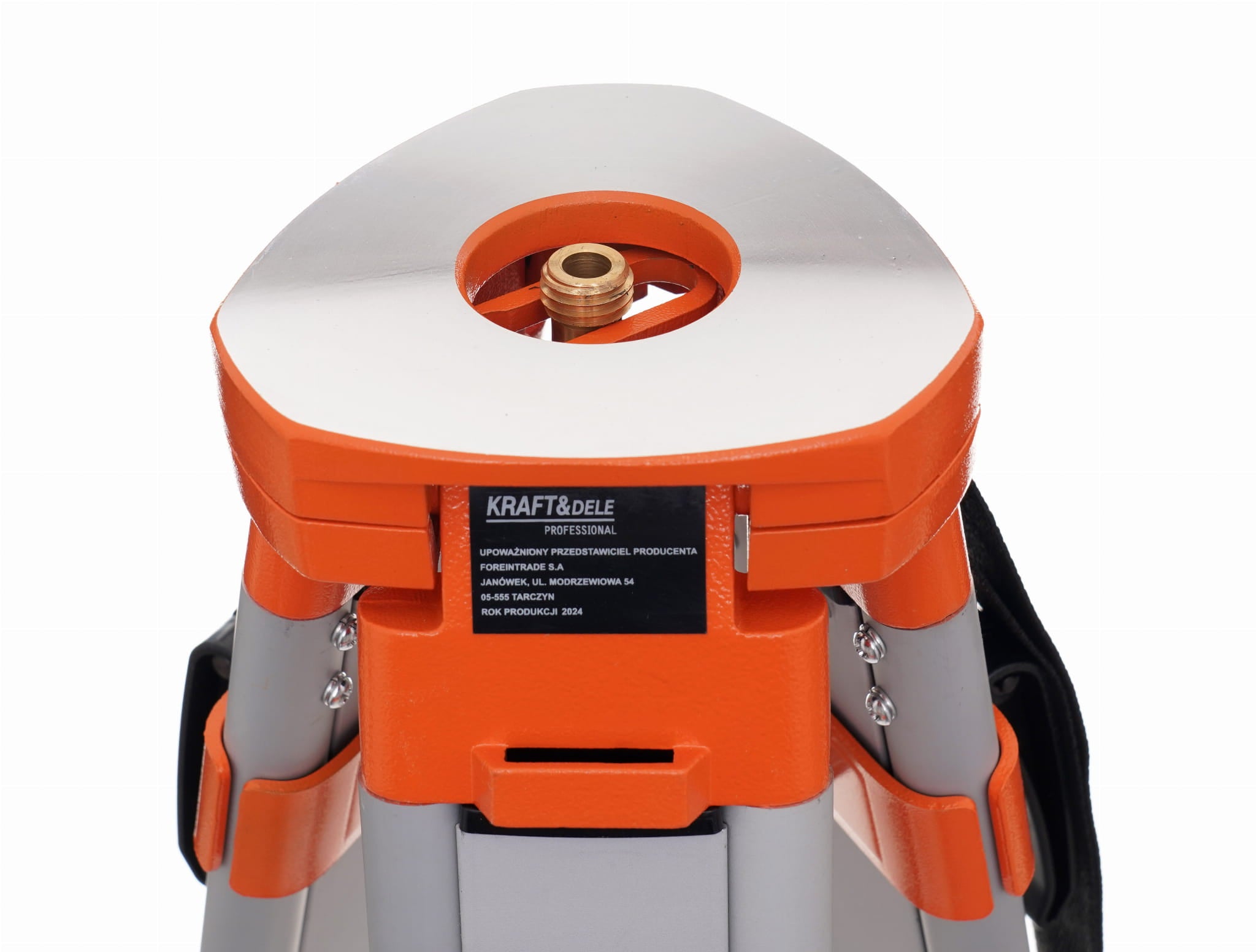

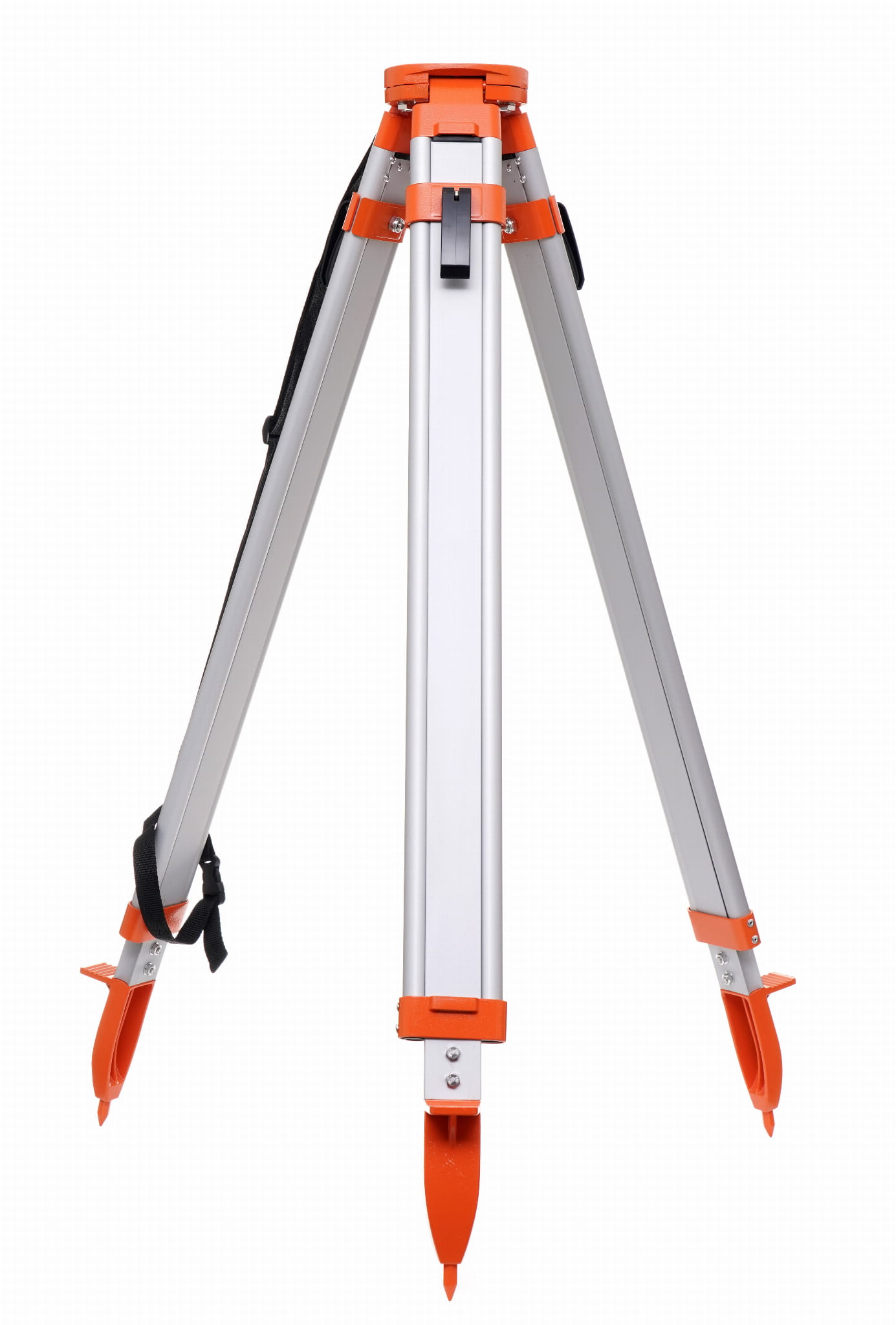

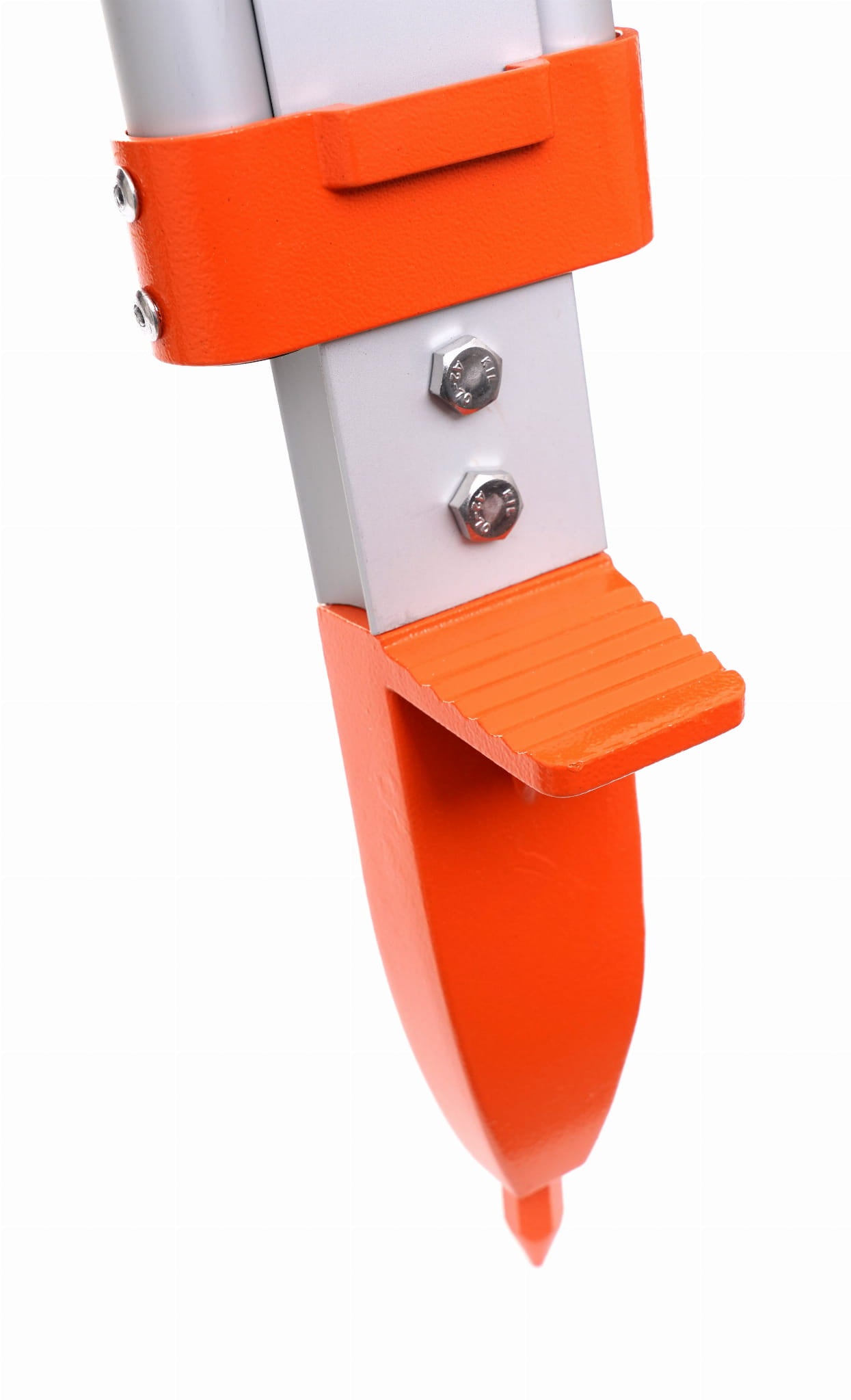

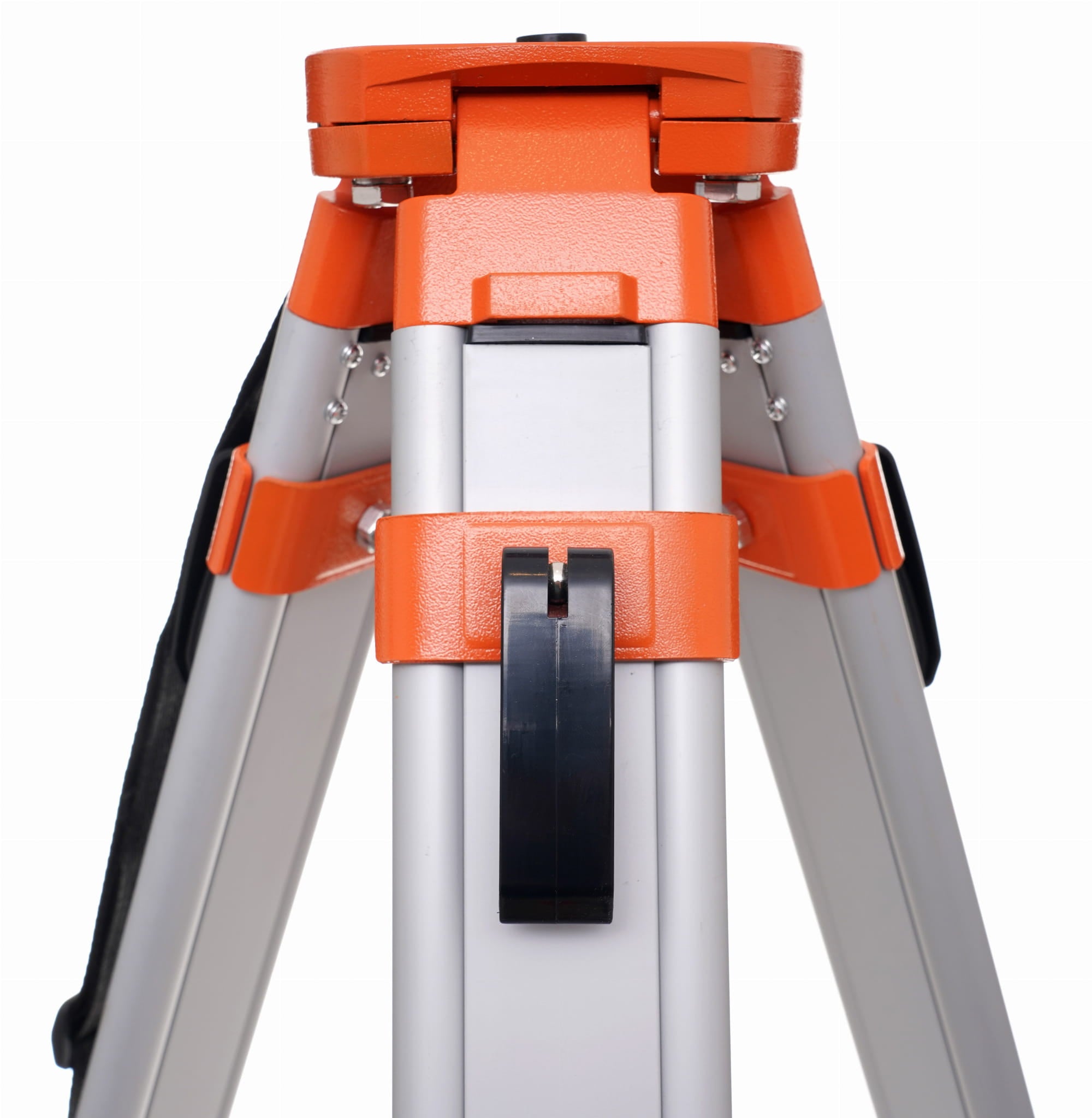

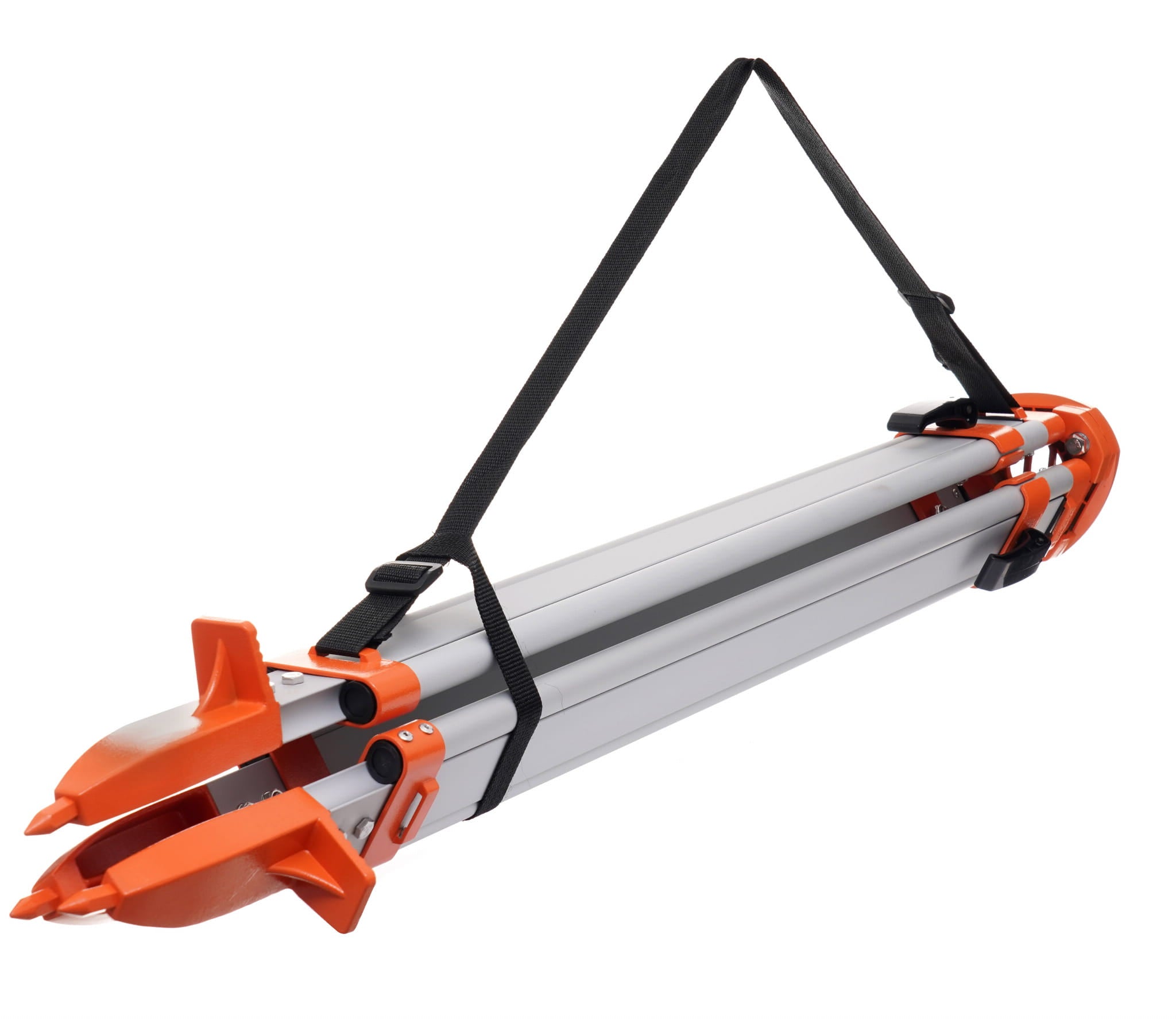

- ✅ Aluminum tripod

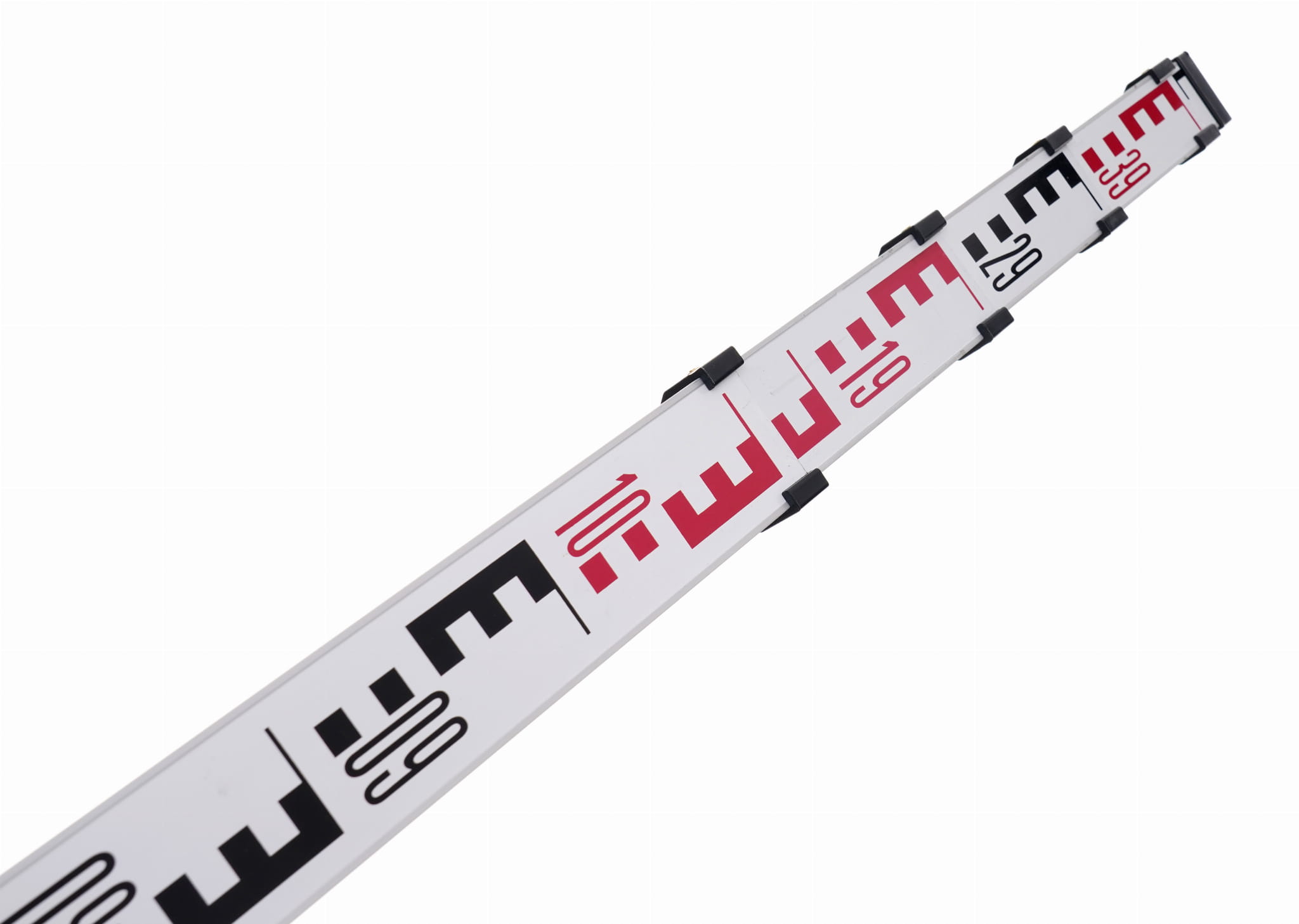

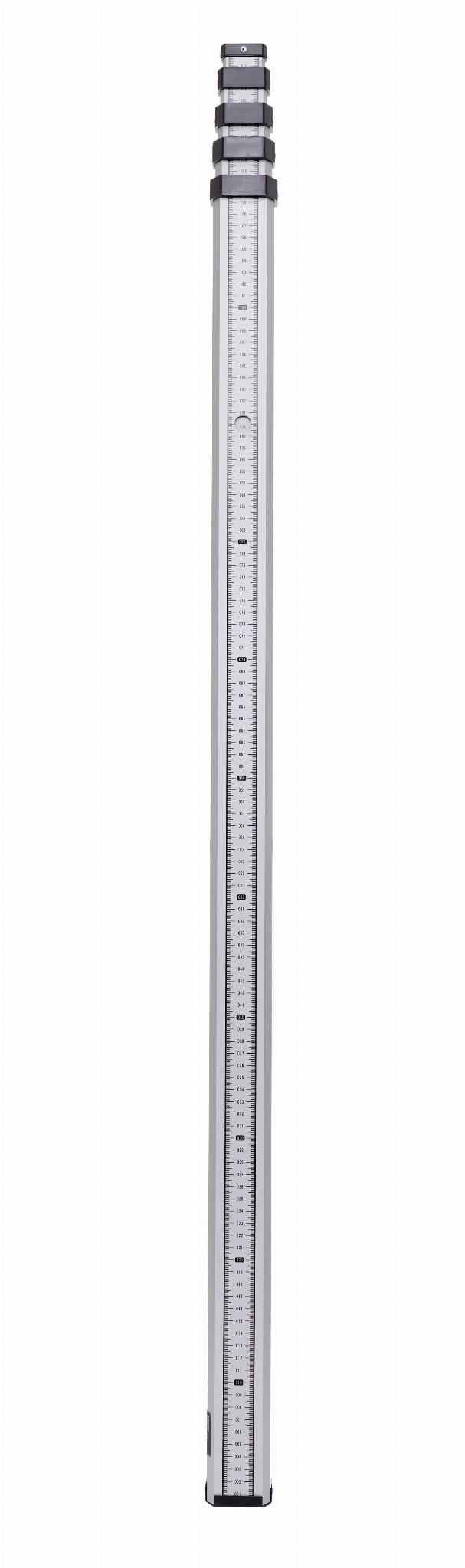

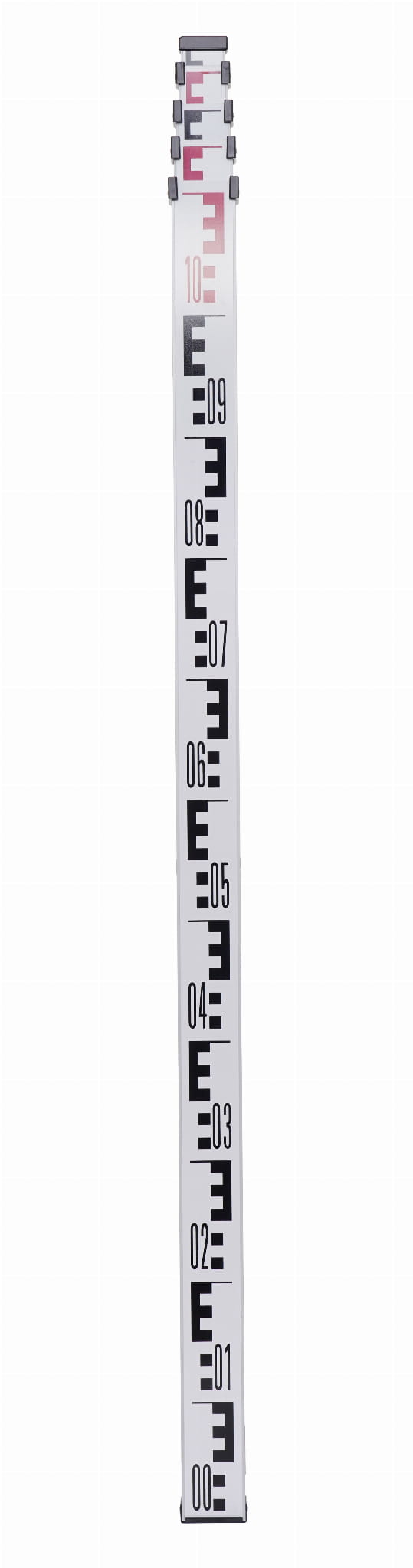

- ✅ Measuring rod

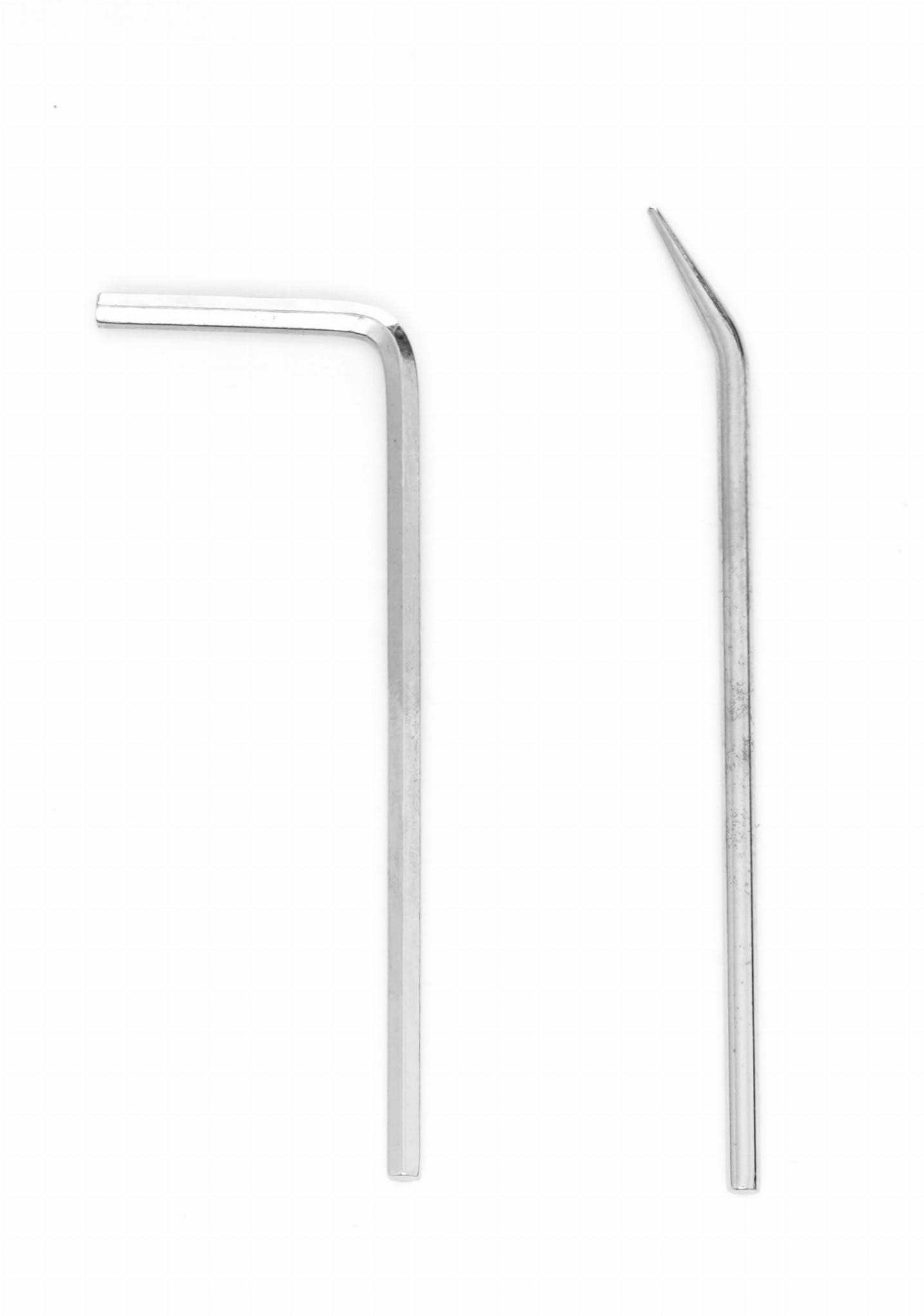

- ✅ Adjusting needle

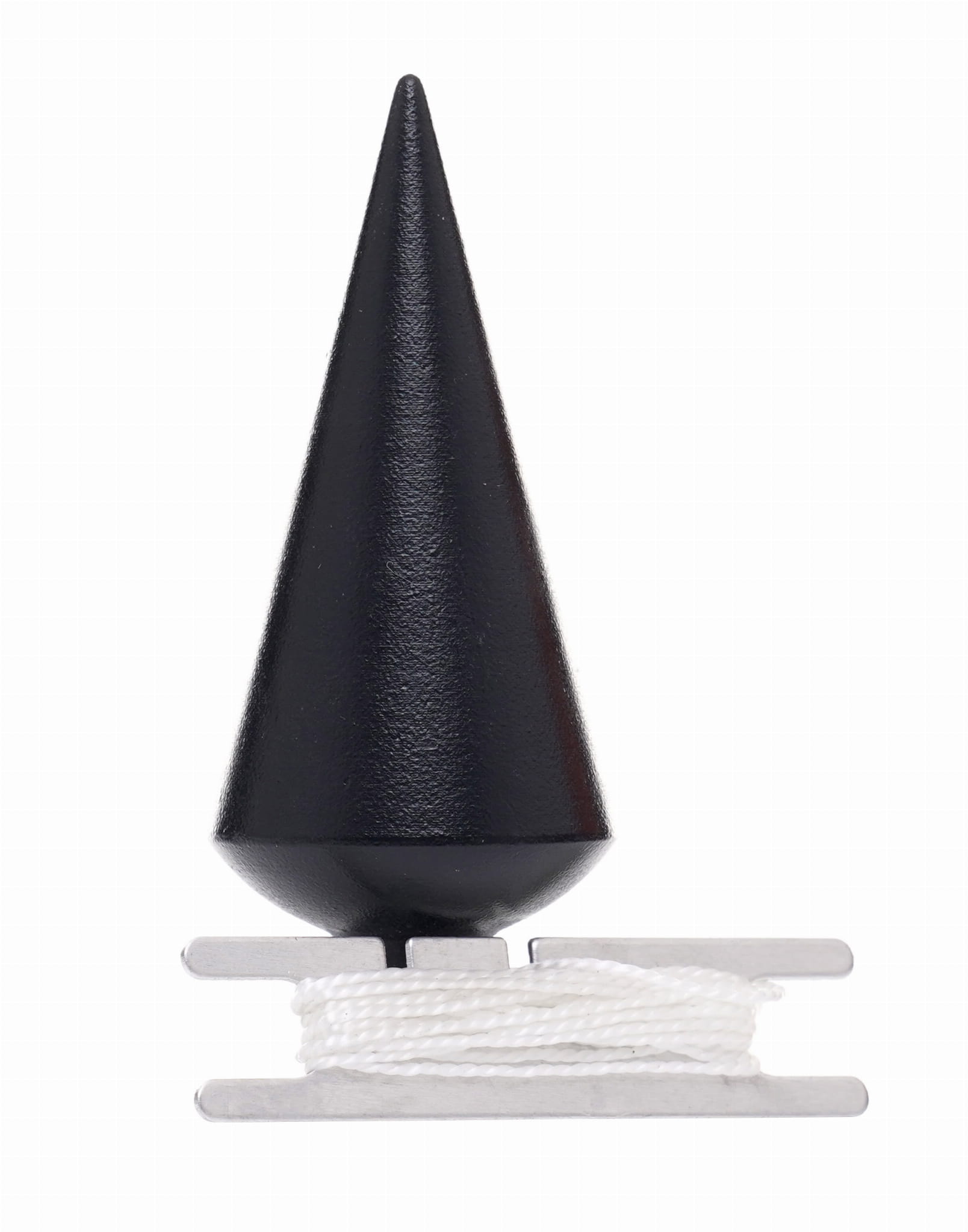

- ✅ Plumb bob

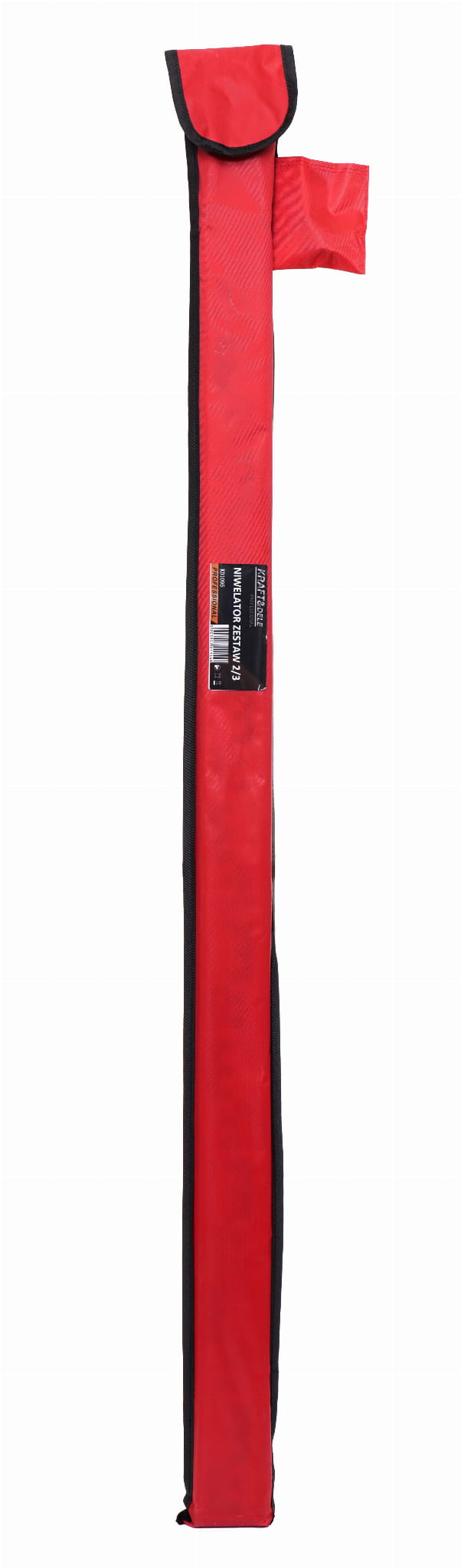

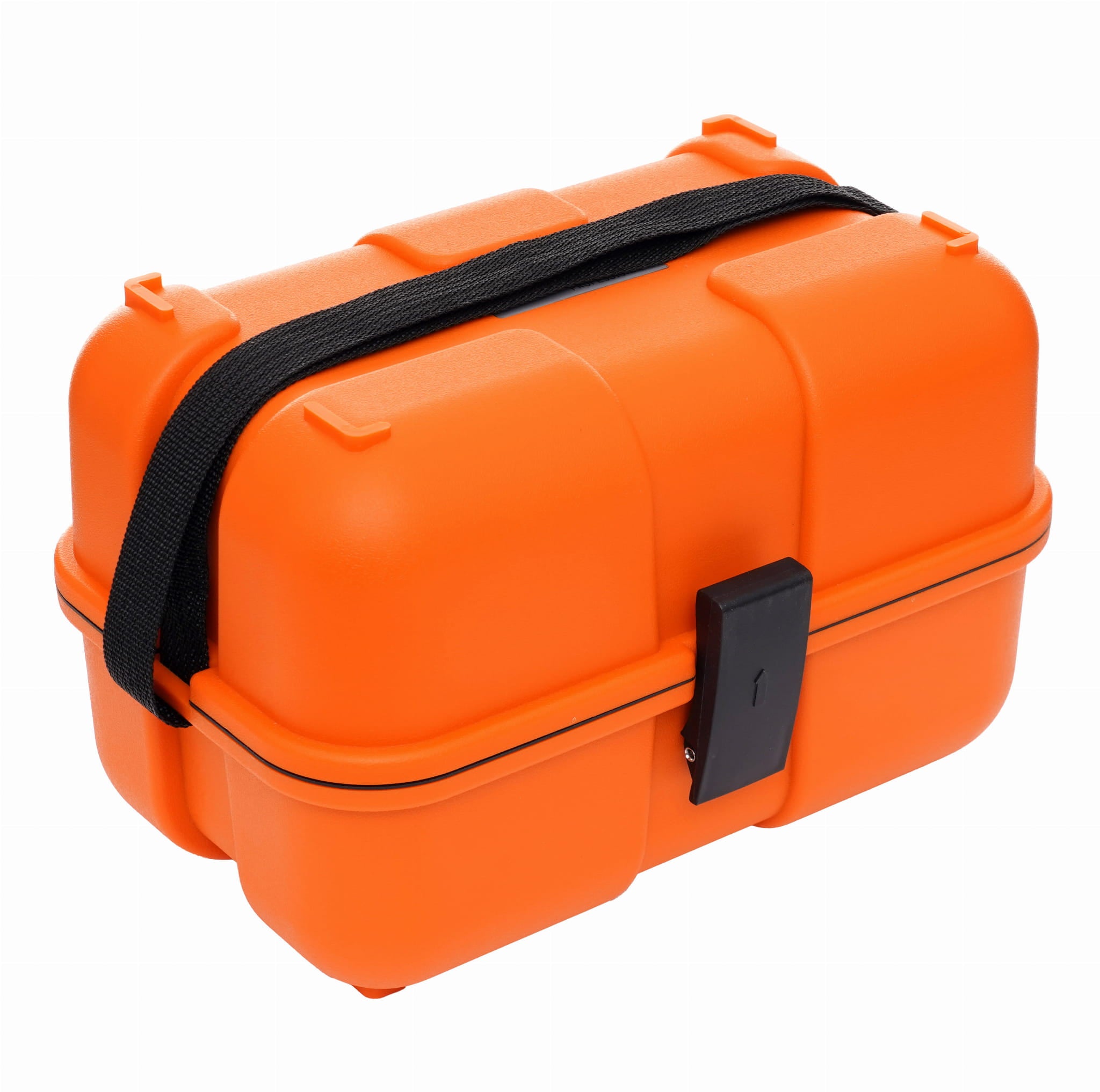

- ✅ Carrying case
- ✅ User manual in Polish
- ✅ 12-month warranty
What's included

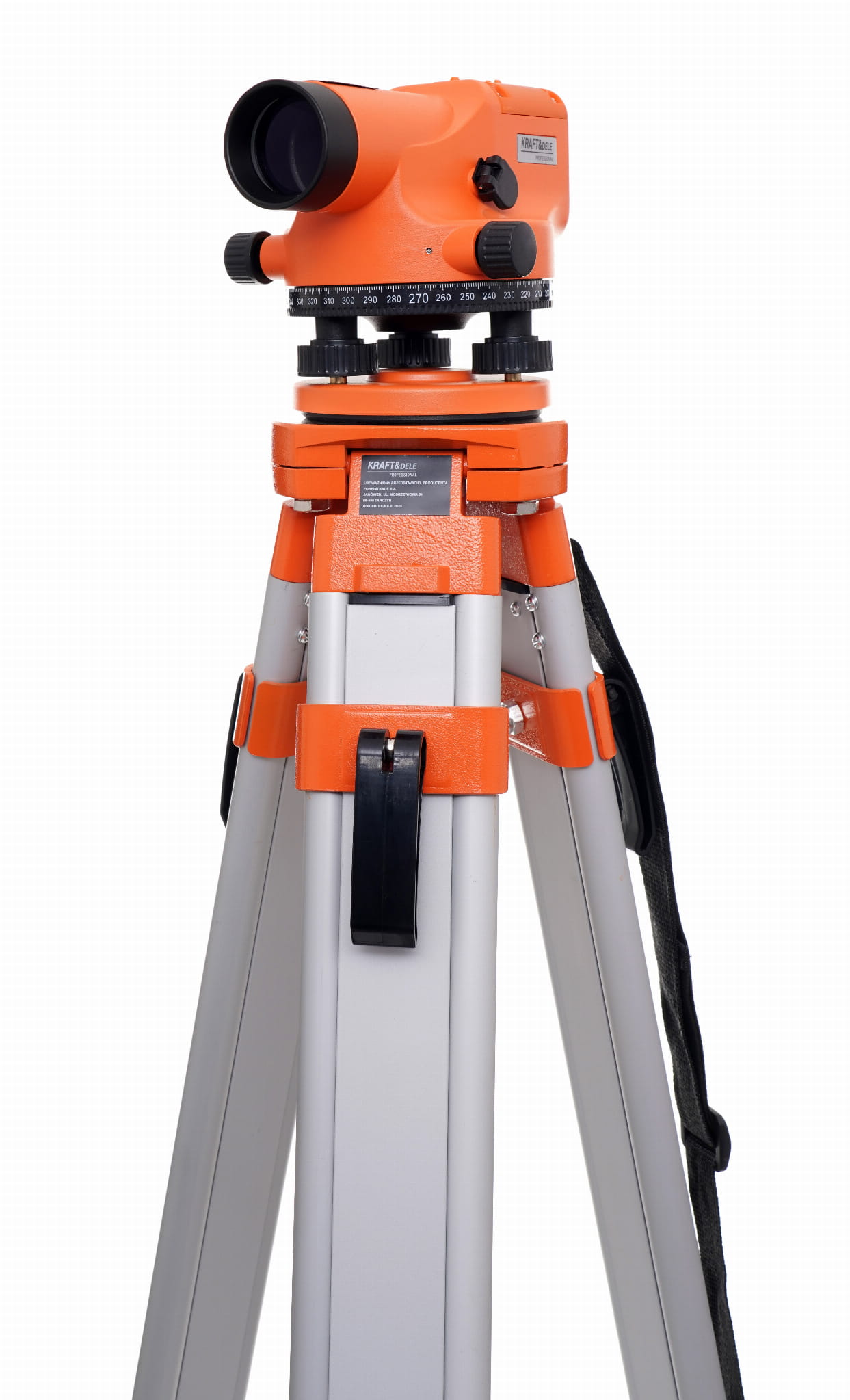

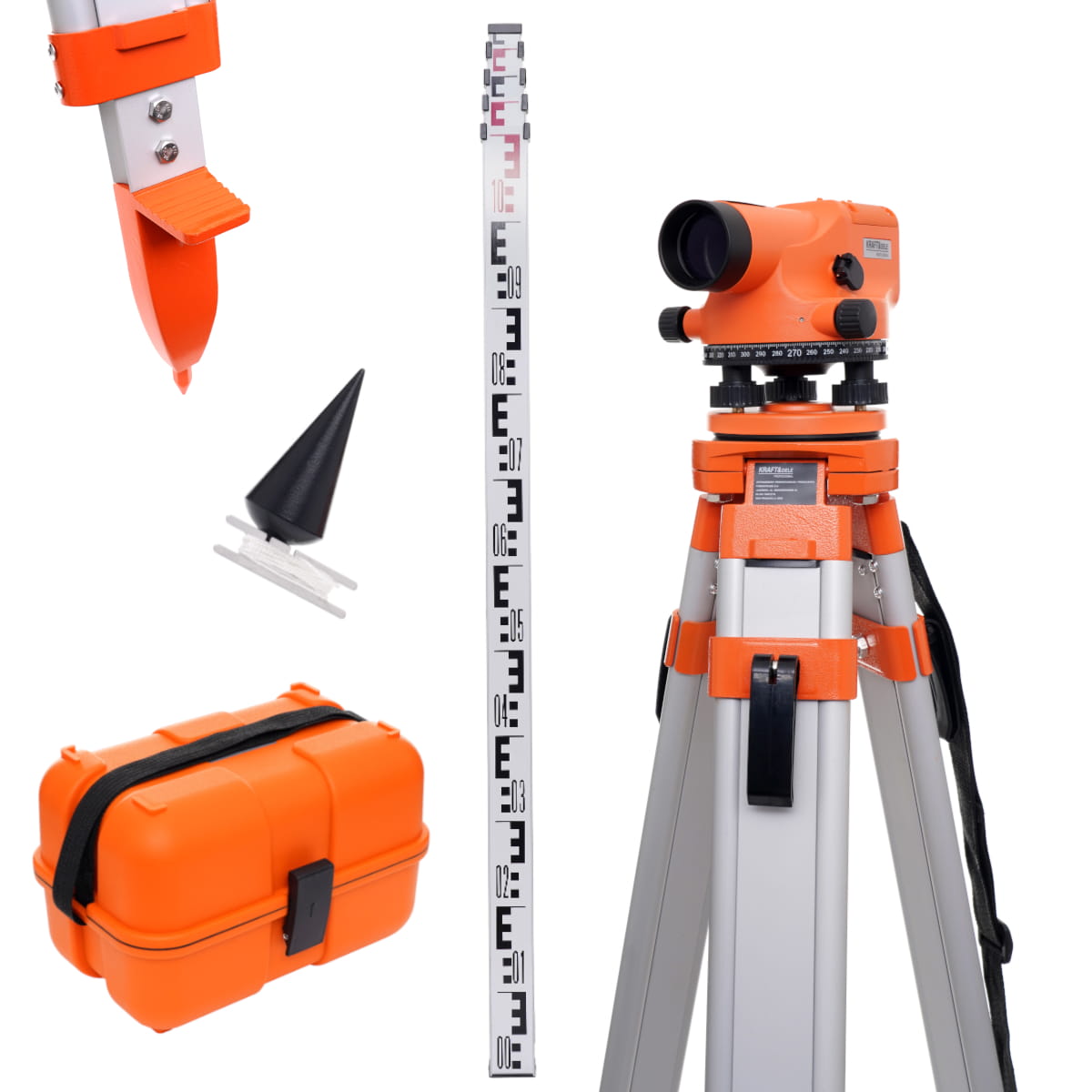

- The set includes an optical level, leveling rod, tripod, and a sturdy carrying case that protects the equipment during transport.
- ✅ 32x optical magnification providing high measurement accuracy
- includes leveling rod, tripod, and carrying case
