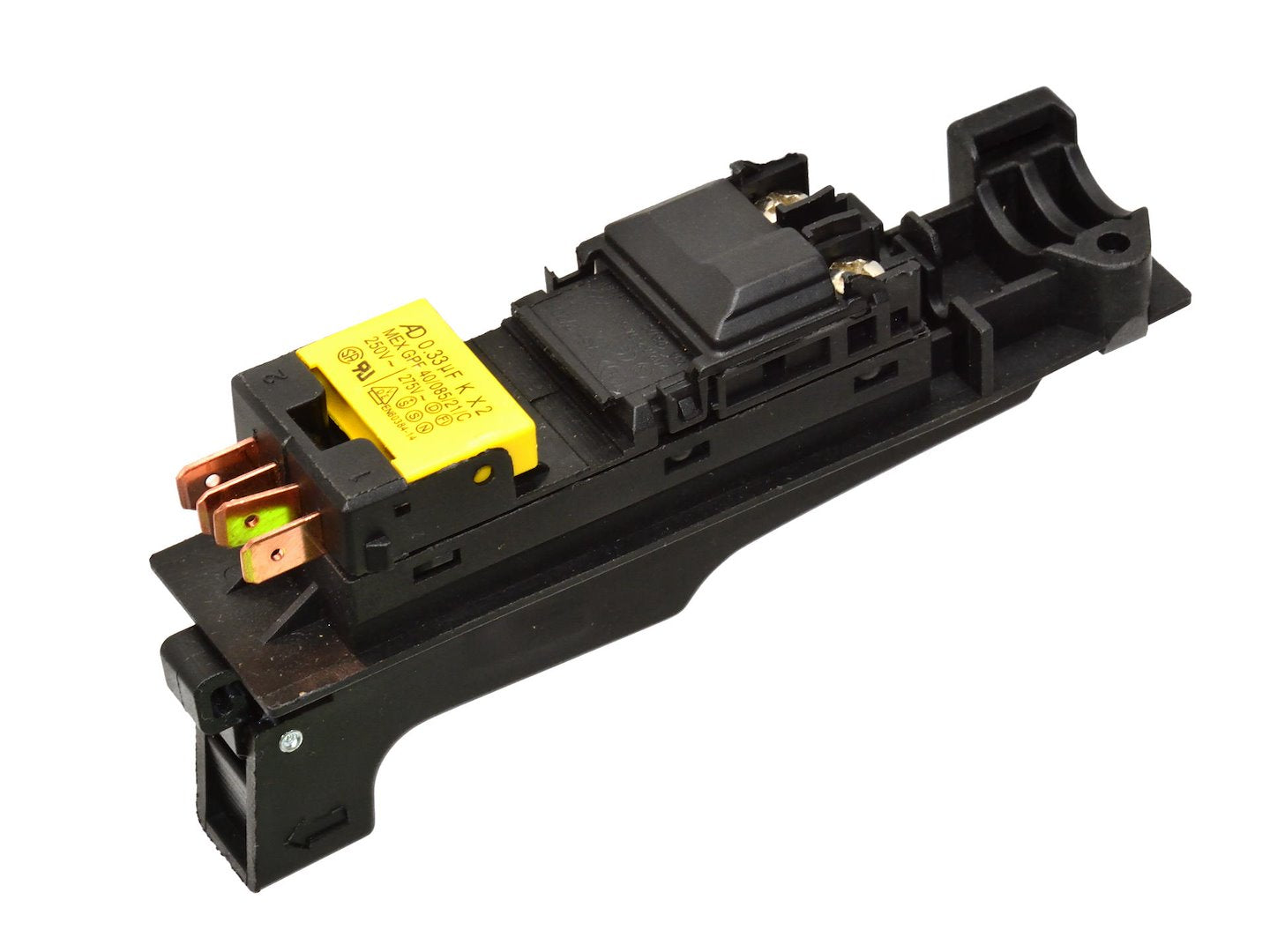

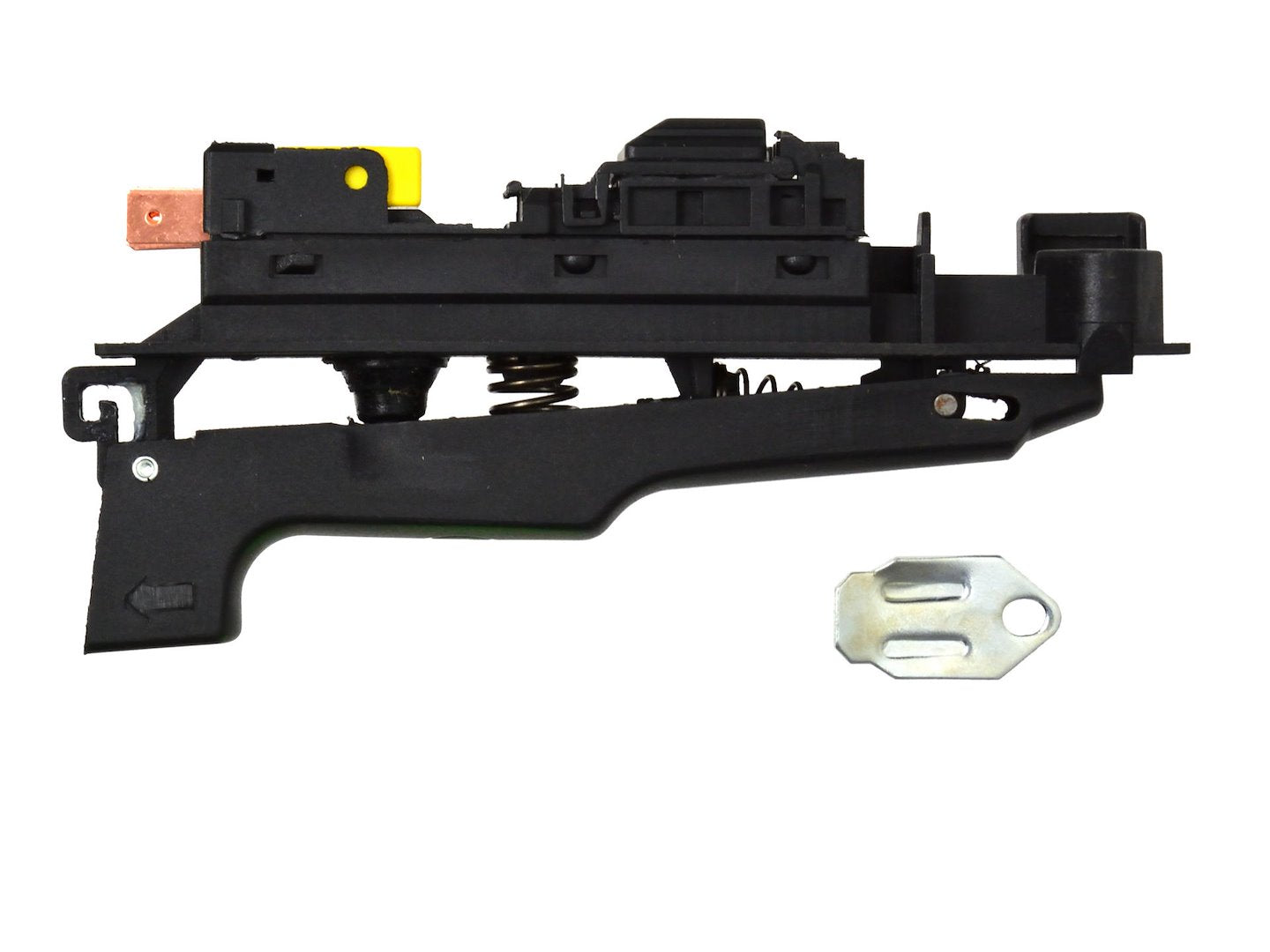

Switch for Bosch-type 230 mm angle grinder with a built-in slow-start system that limits inrush current.

Permanent lock-on when the switch key is pushed forward. The switch has a built-in 0.33uF filter.

Electrical connections: 2x screw terminal, 4x connector M6.3 mm

Dimensions:

• external length: 130 mm
• external width: 31 mm
• external height: 63 mm
• switch key: 121 x 16 mm
• block dimensions: 78 x 28 mm
