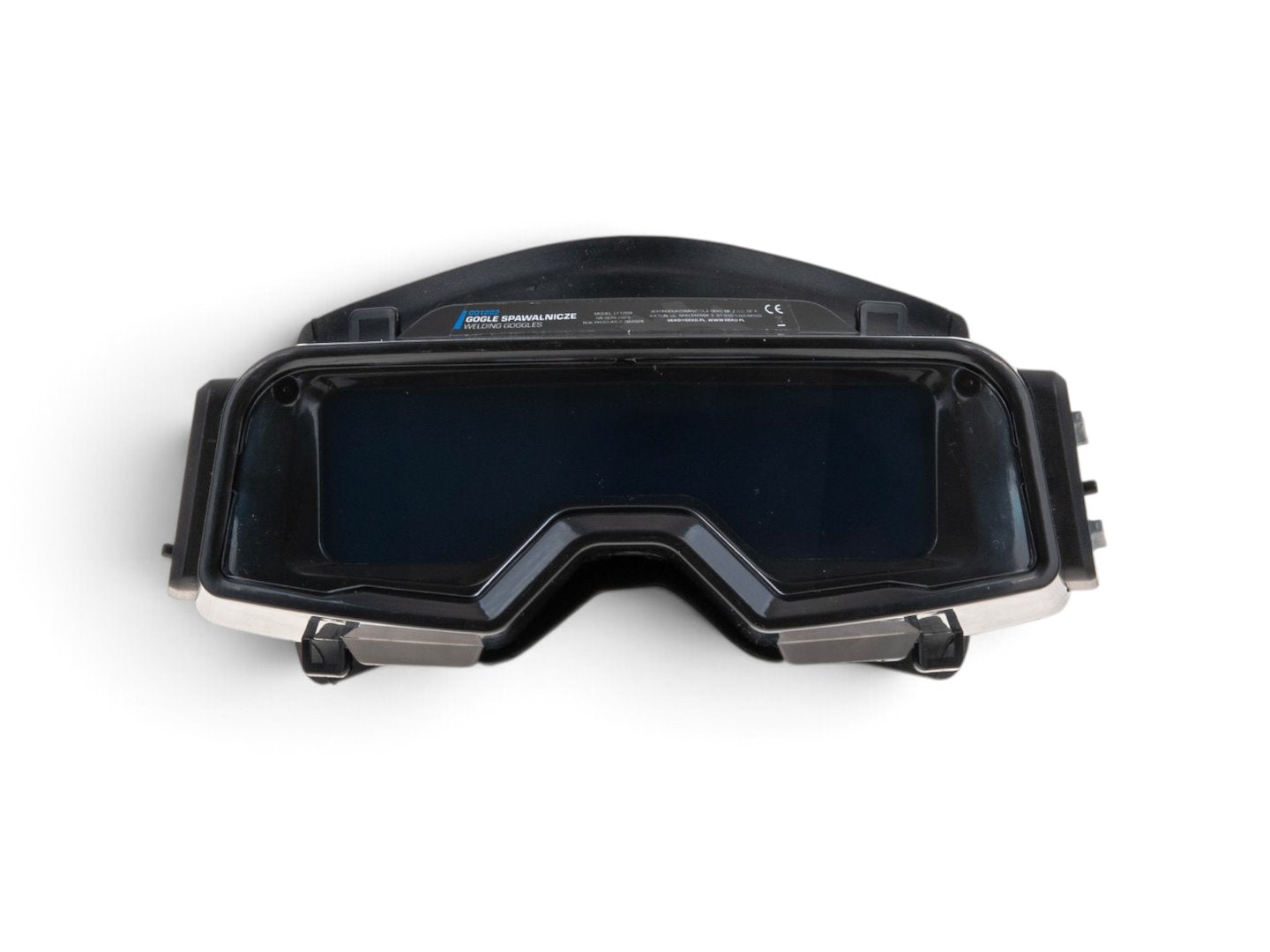

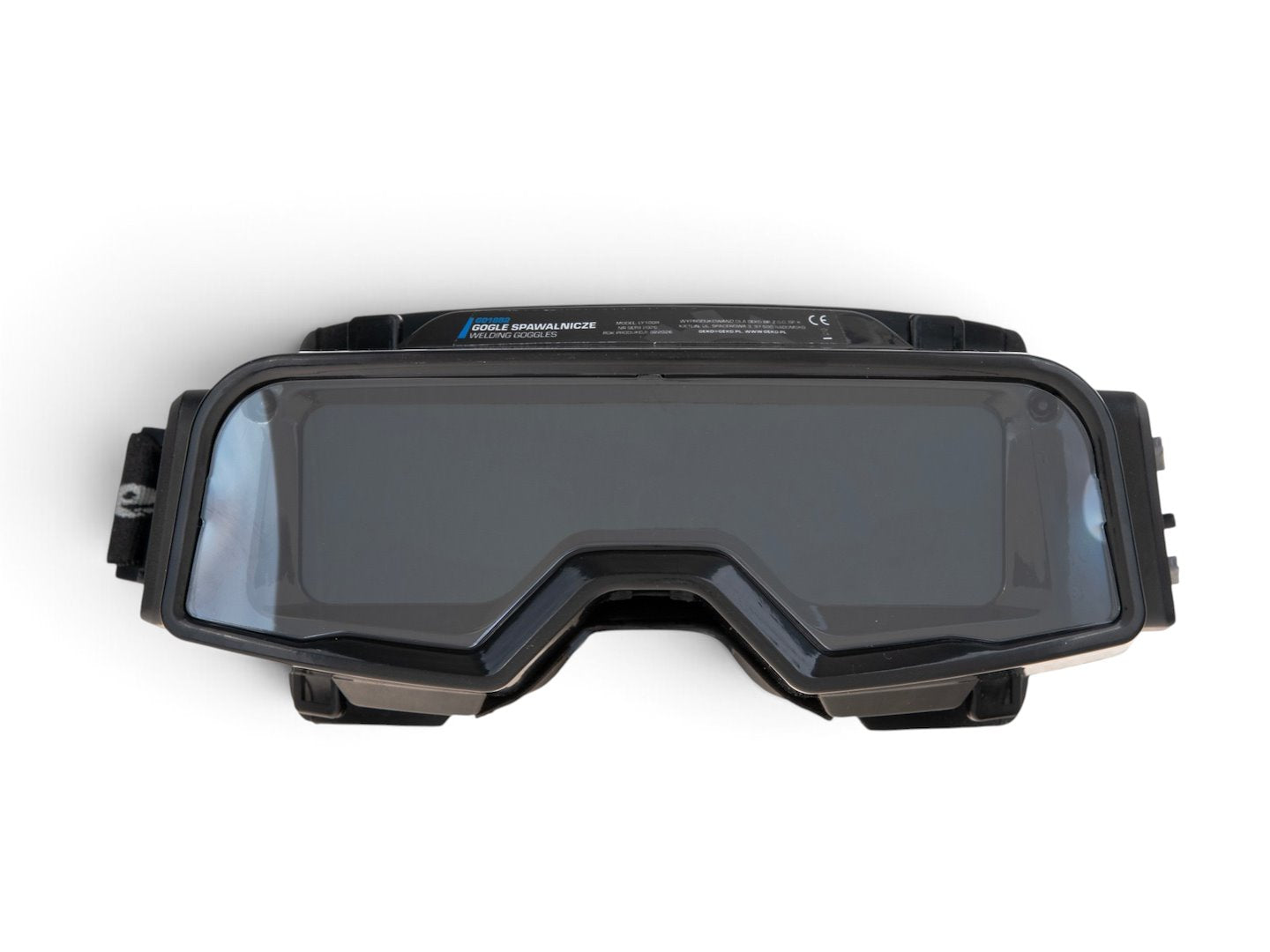

When welding, it is important to be able to observe the work area before the arc strikes, effectively limit intense light during welding and quickly return to work after it has been extinguished. GEKO G01882 auto-darkening goggles automate this process – the filter remains in a light state DIN 4, and upon detecting the arc switches to the set darkening level in the range DIN 5–13.

With adjustment of shade, sensitivity and delay time the user can adapt the filter’s operation to the type of work and ambient conditions. The goggles’ design leaves both hands free, and the WELD / CUT / GRIND modes allow using a single shield during different stages of metalworking.

Product features:

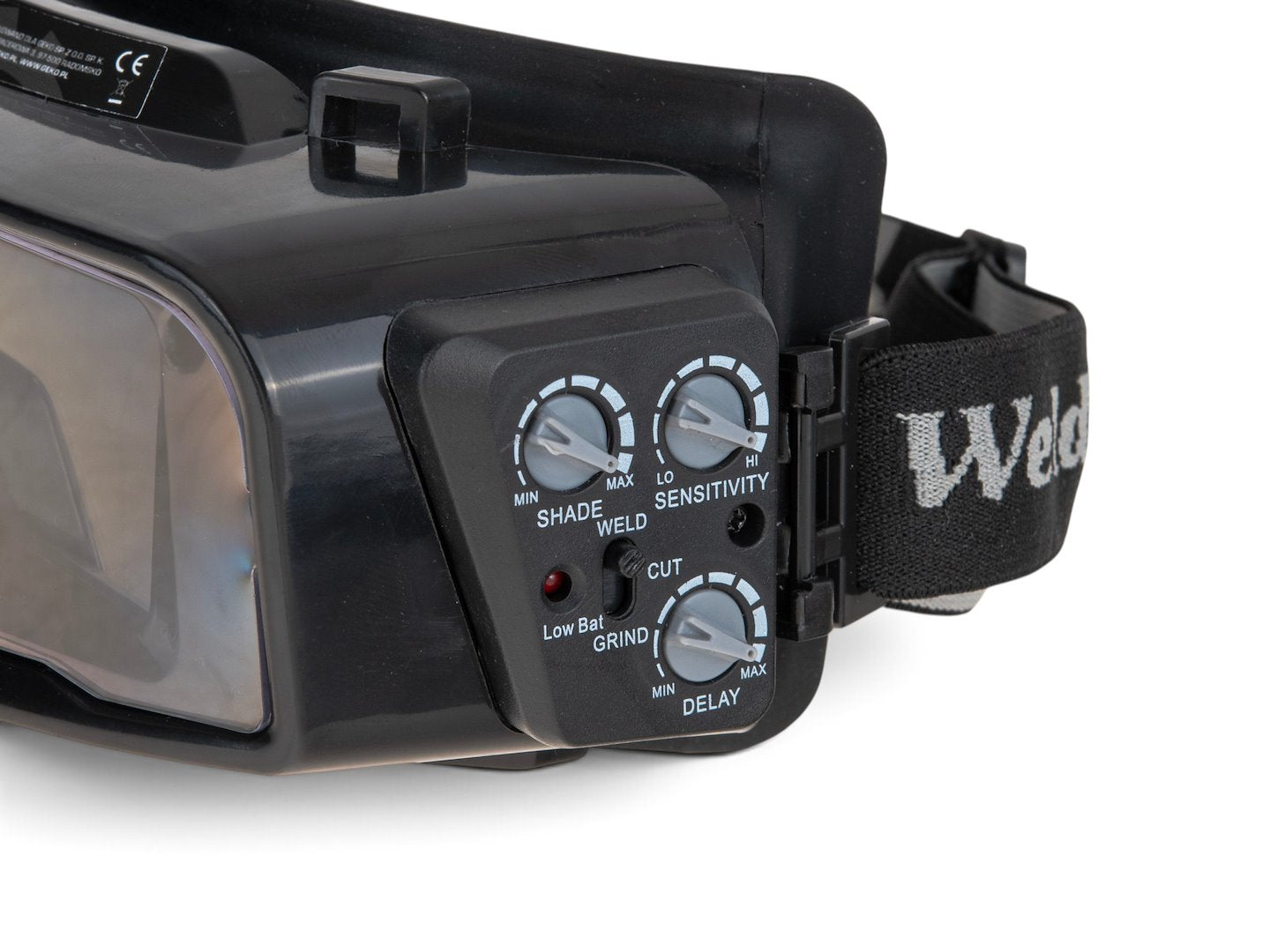

• Auto-darkening – no need to interrupt work to manually shield the eyes from the intense arc light.

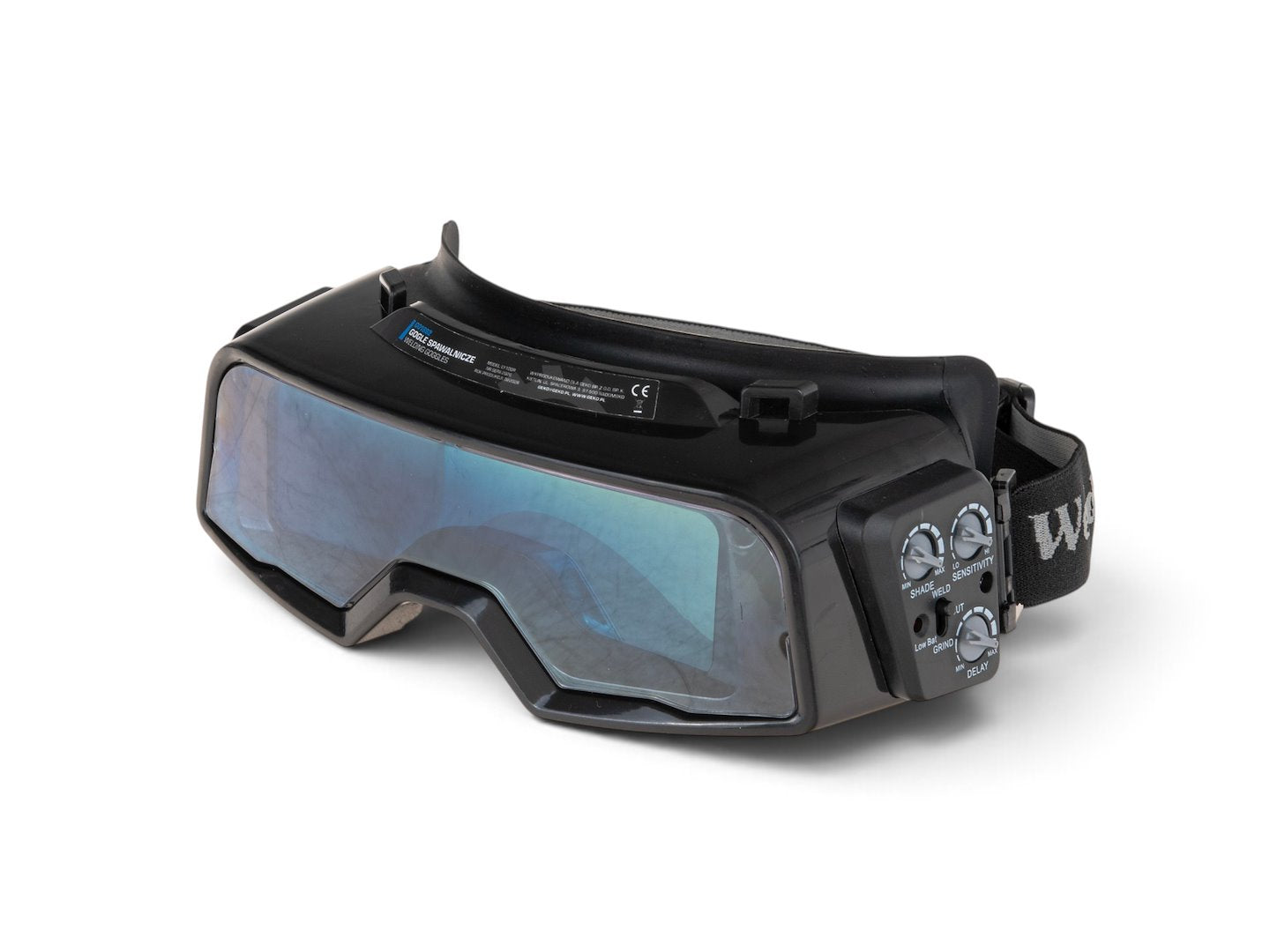

• Adjustable shade DIN 5–13 – allows matching the filter’s darkness level to the task.
• SENSITIVITY adjustment – enables changing the sensitivity of the arc detection system.
• DELAY adjustment 0.1–0.8 s – allows setting how long the filter remains darkened after welding stops.
• WELD / CUT / GRIND modes – allow adapting the goggles’ operation for welding, cutting and grinding.

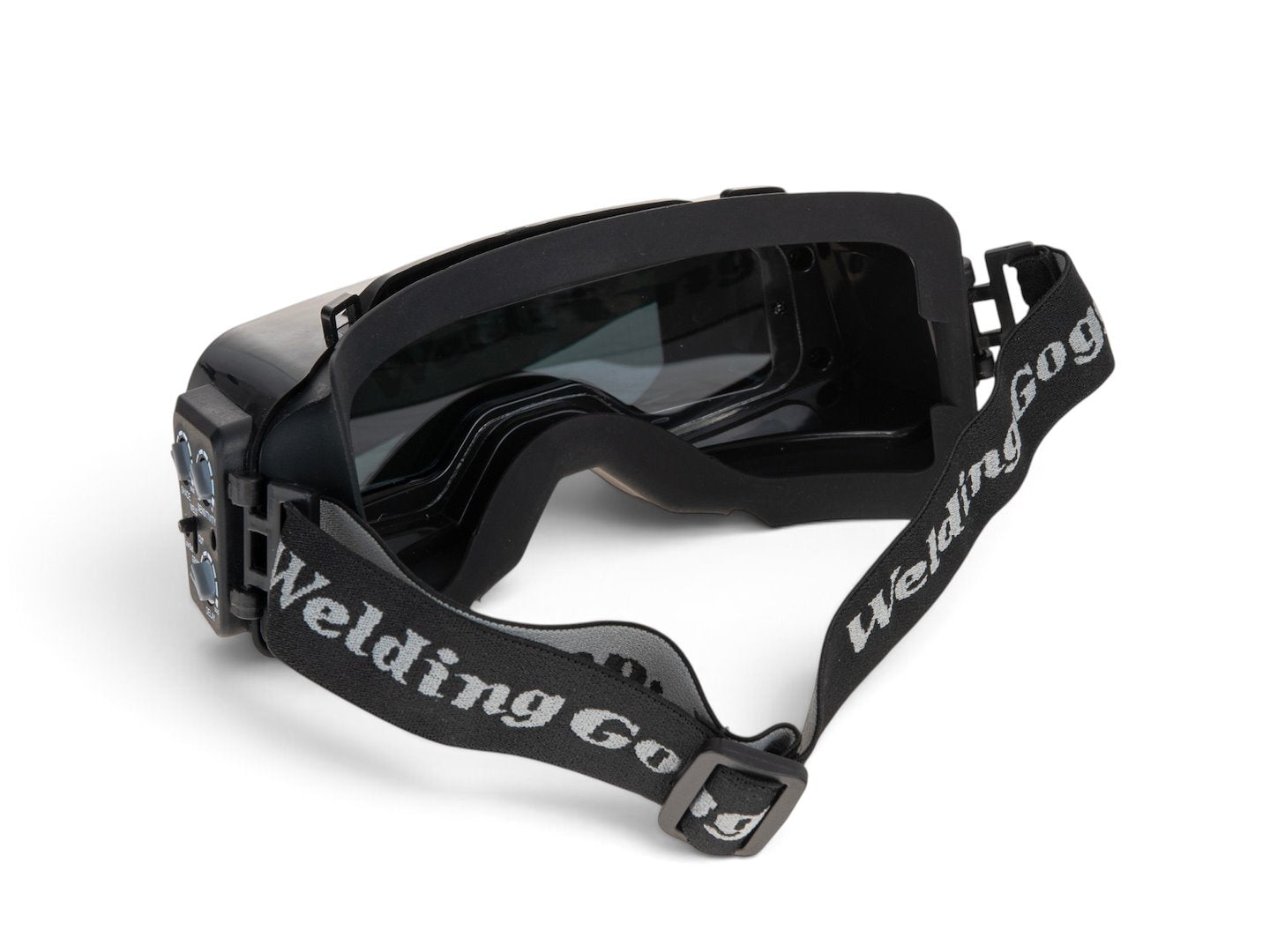

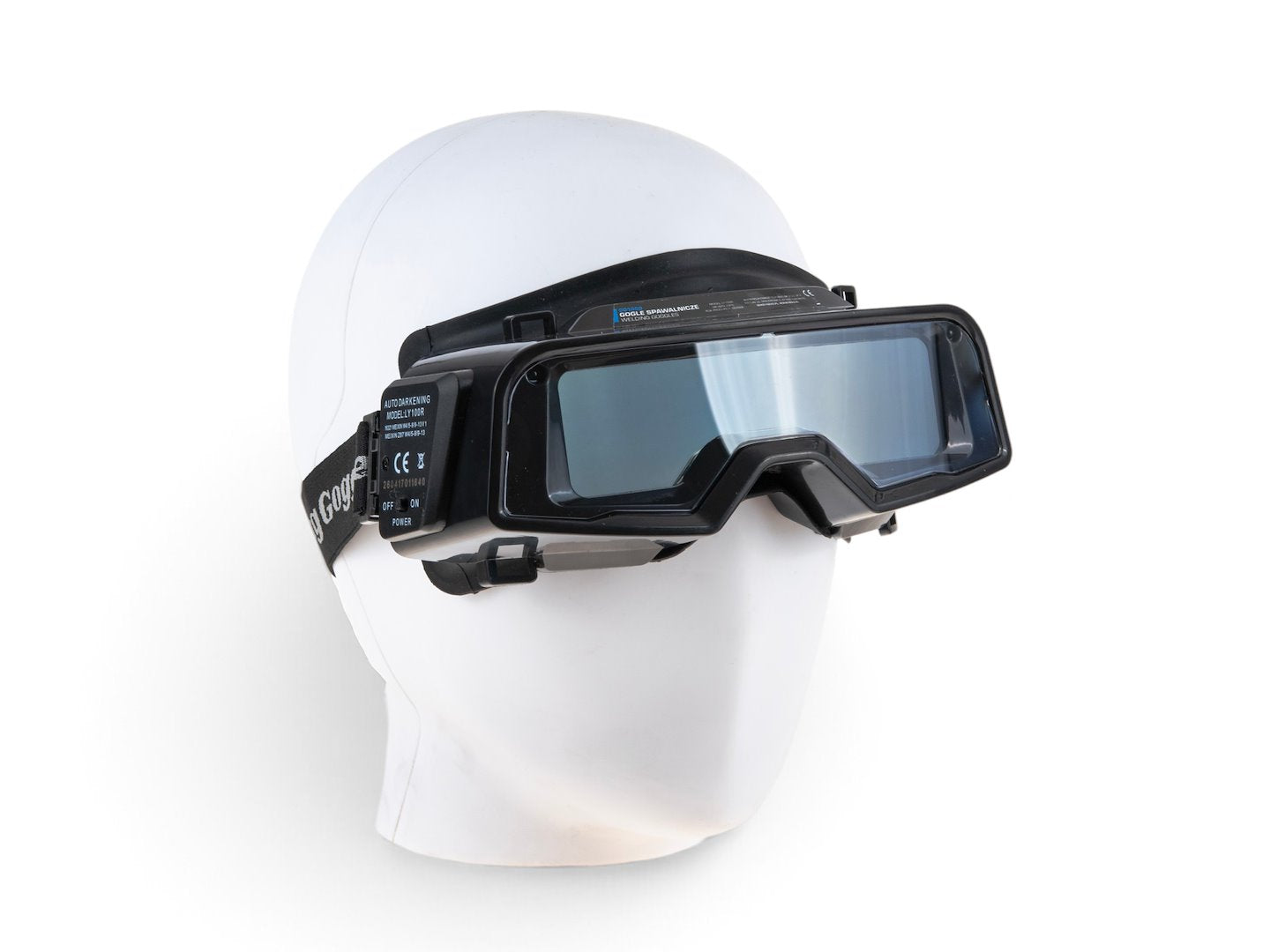

• Flexible, adjustable headband – allows fitting the goggles to the head and working without holding them.
• Optical class 1/1/1/1 – specifies the optical properties of the auto-darkening welding filter.
• LOW BAT indicator – signals low battery level.

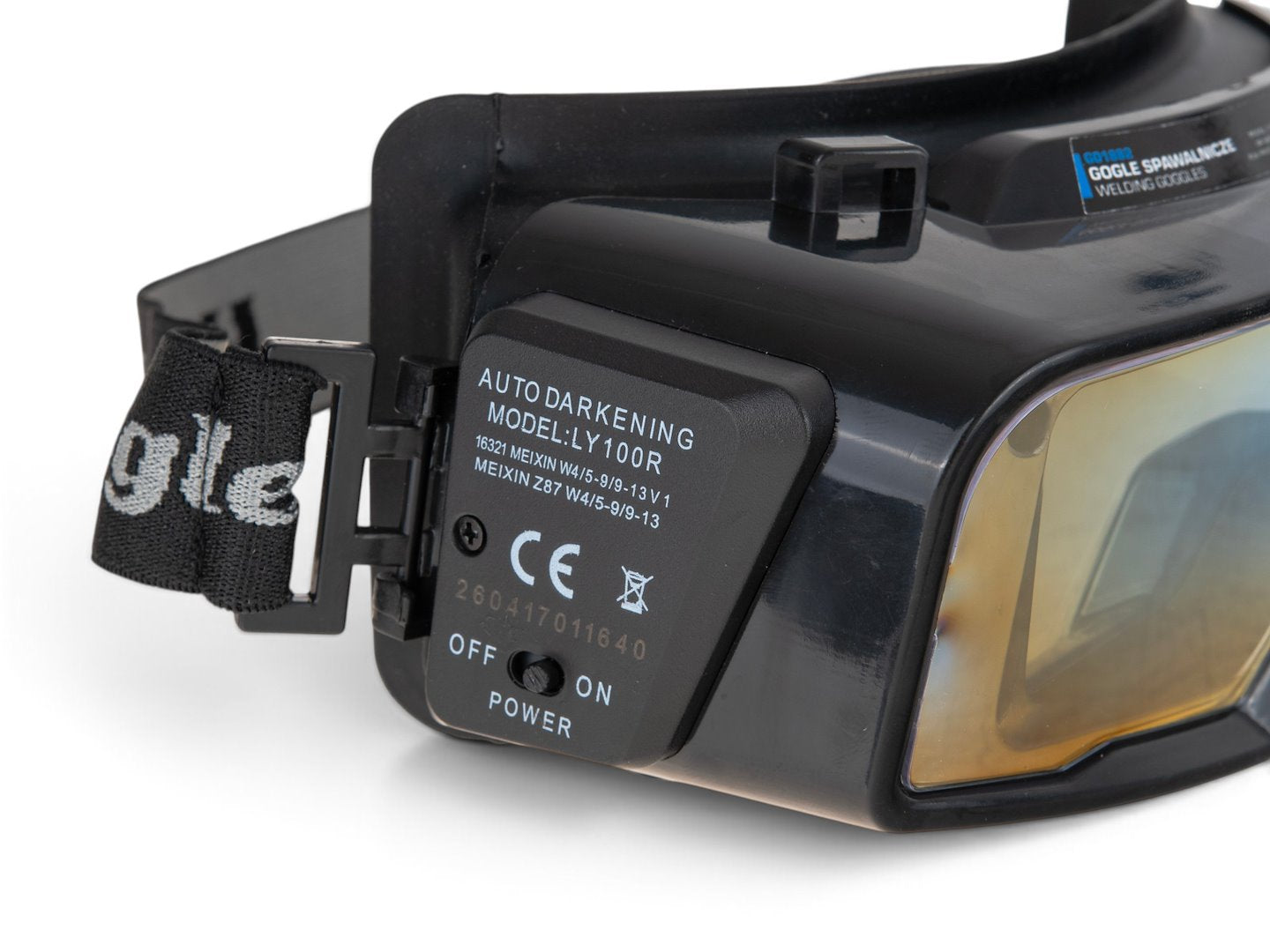

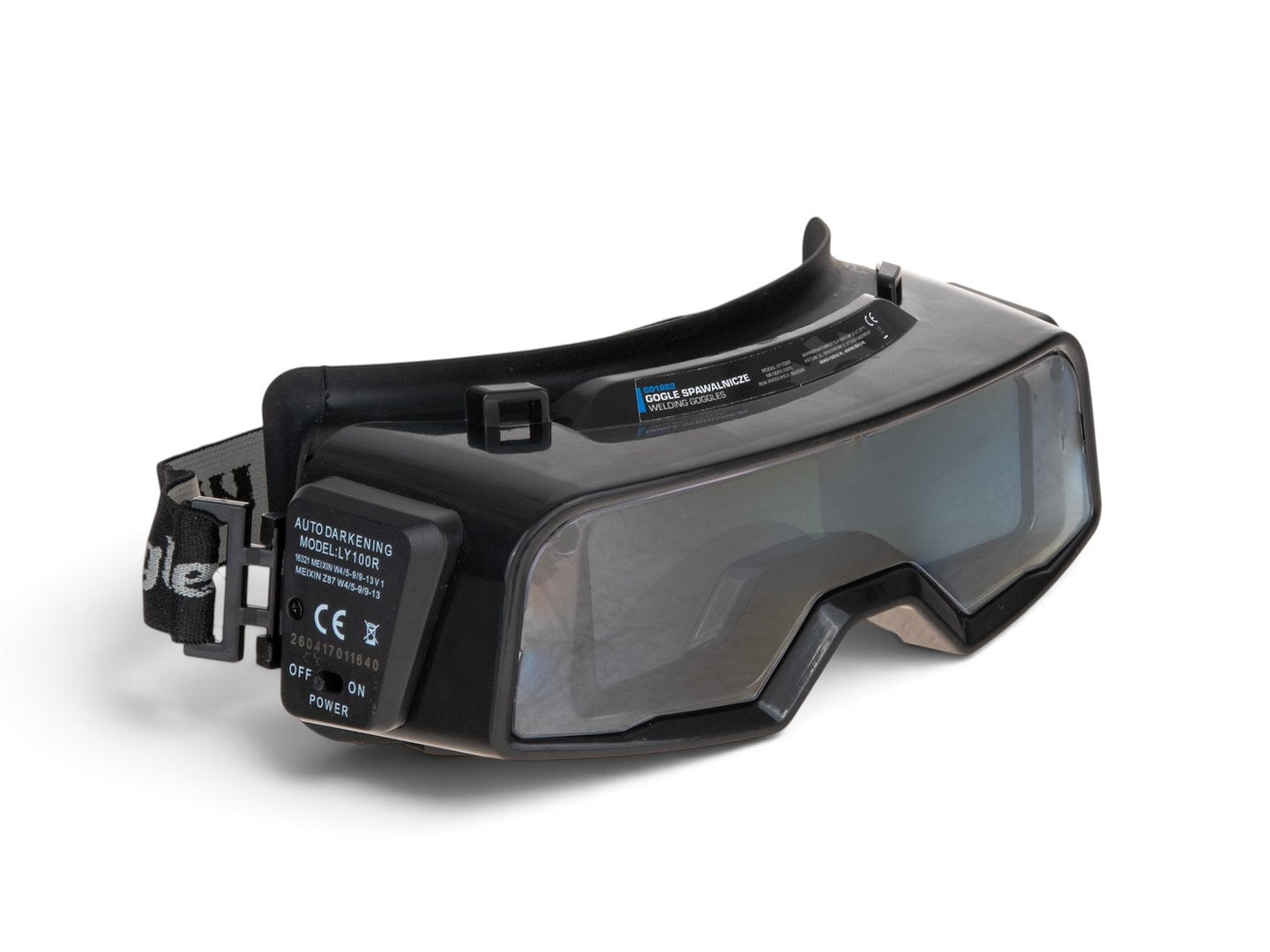

• POWER ON/OFF switch – enables turning the unit on and off.
• Replaceable protective lens – intended for mounting in front of the actual filter.

Technical specifications:

• Model: G01882
• Type: auto-darkening welding goggles
• Filter: auto-darkening filter
• Light state: DIN 4
• Adjustable shade range: DIN 5–13
• Shade adjustment: yes, SHADE
• Sensitivity adjustment: yes, SENSITIVITY
• Delay-to-clear adjustment: yes, DELAY
• Delay range: 0.1–0.8 s
• Operating modes: WELD / CUT / GRIND
• Mode applications: welding / cutting / grinding
• Optical class: 1/1/1/1
• Low battery indicator: LOW BAT
• Power switch: ON/OFF
• Mounting: flexible, adjustable headband
• Color: black
