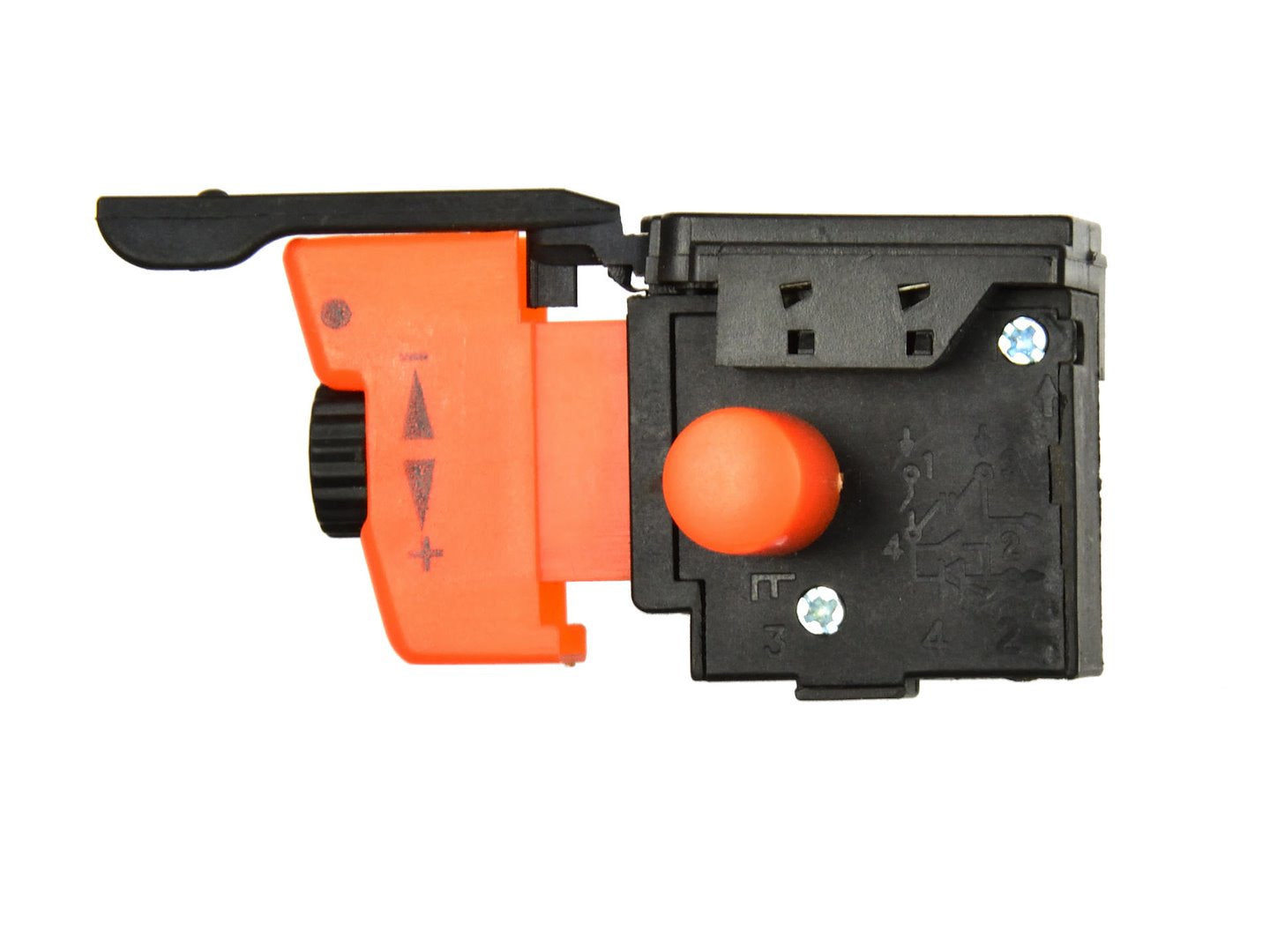

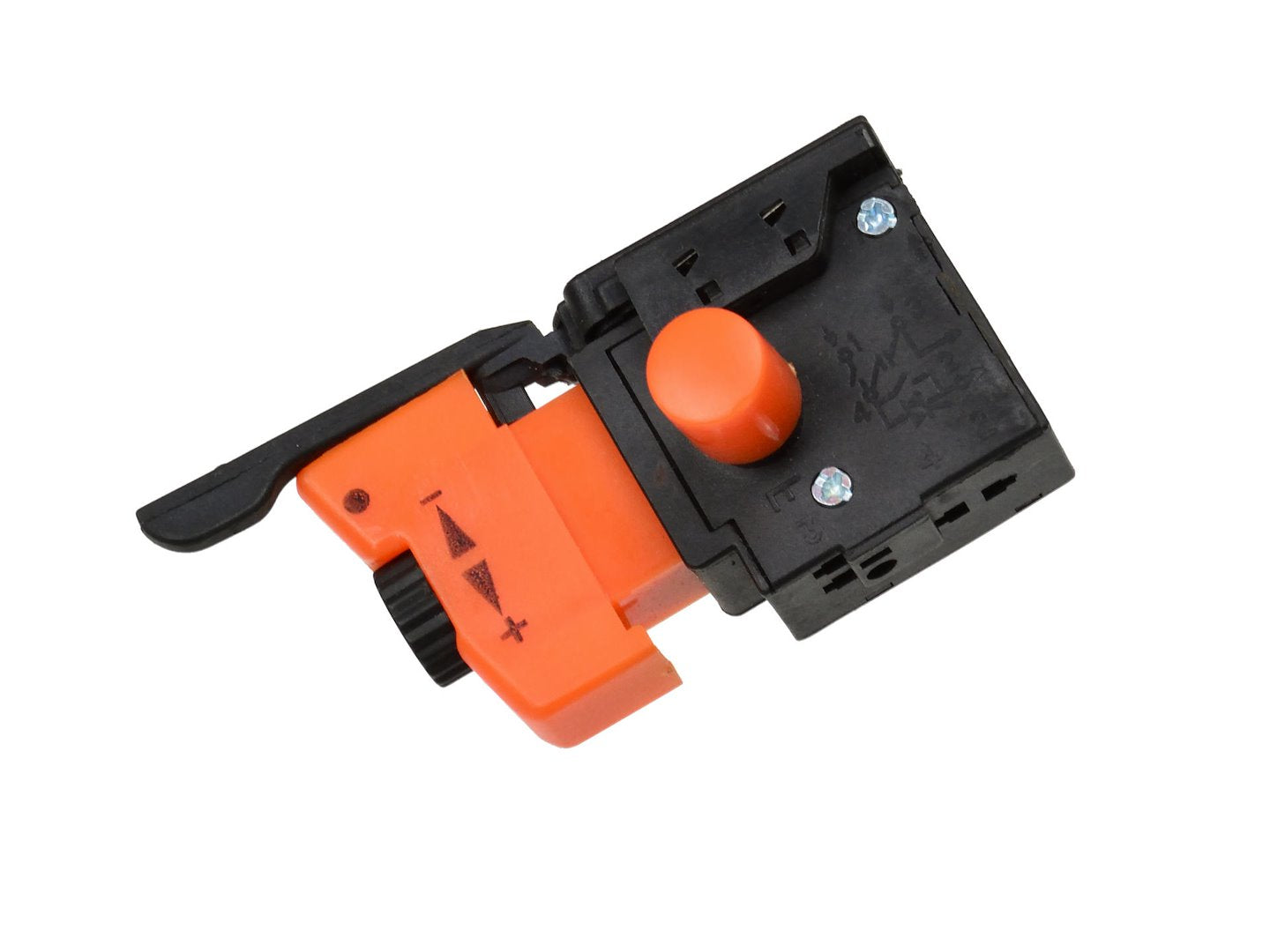

Push-button switch for drill. It has speed regulation, right/left rotation regulation, and a switch lock in the permanent ON position.

Electrical connectors of the button module: 2x twisted + 2x quick couplers

Electrical connections of the direction of rotation switch: 4x quick couplers

Dimensions:

• outer length (with direction lever and lock button): 62 mm (76 mm)
• outer width: 16 mm + 17 mm (lock)
• outer height (with direction lever): 40 mm
• switch key: 33 x 12 x 20 mm
• diameter of the lock button: 11 mm
• speed control knob diameter: 12 mm
