Overview

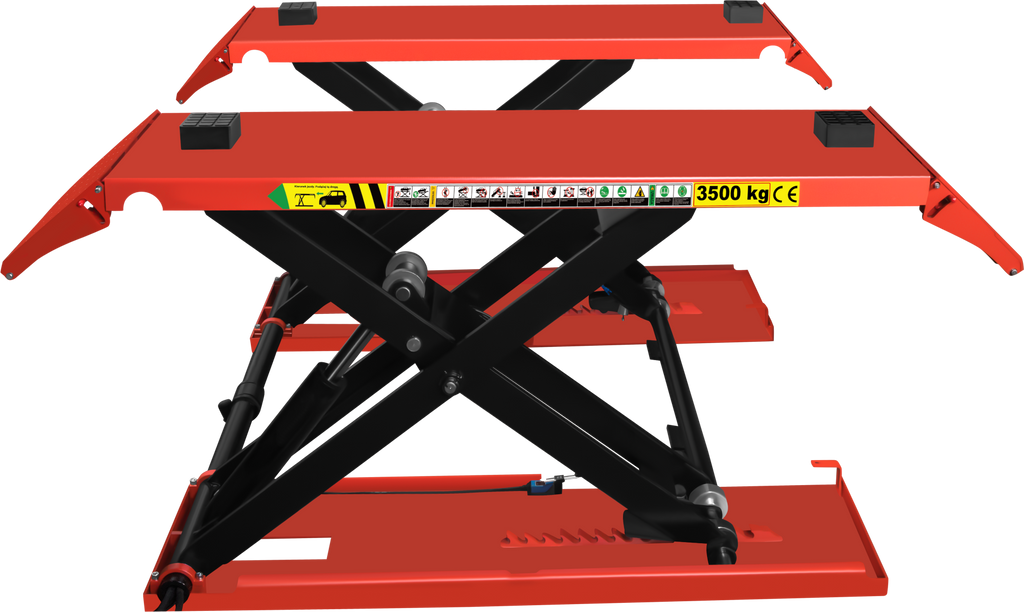

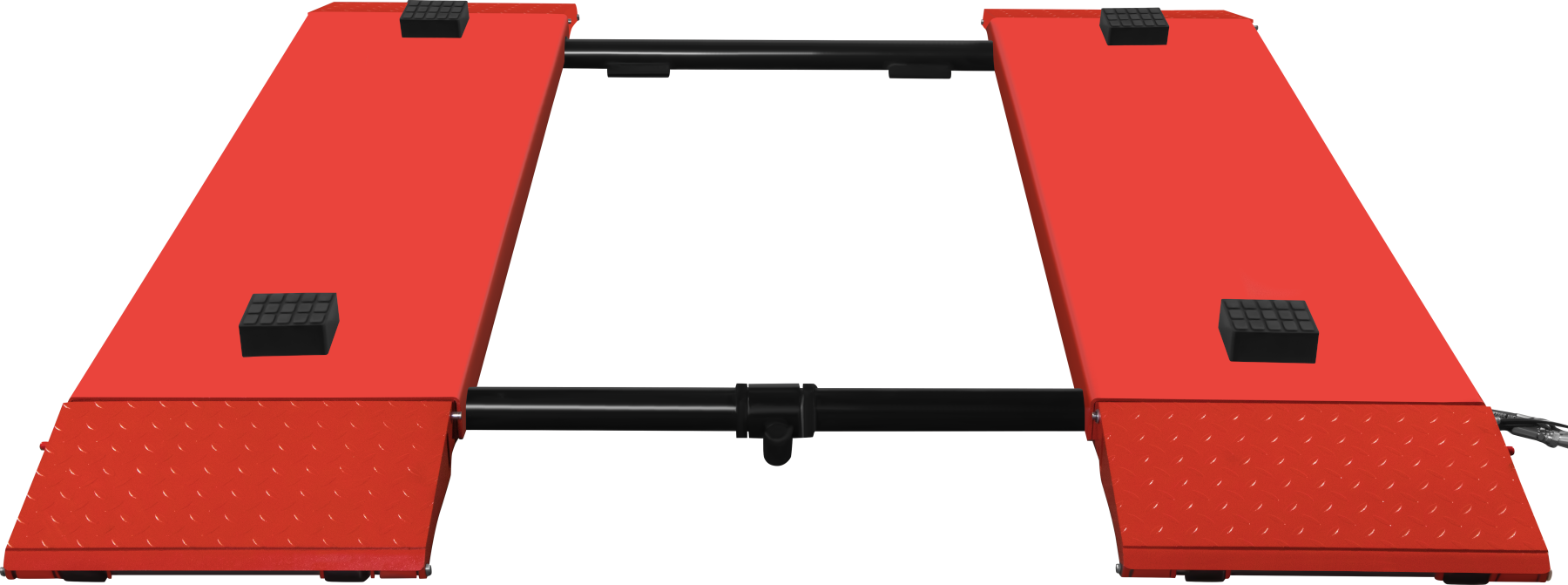

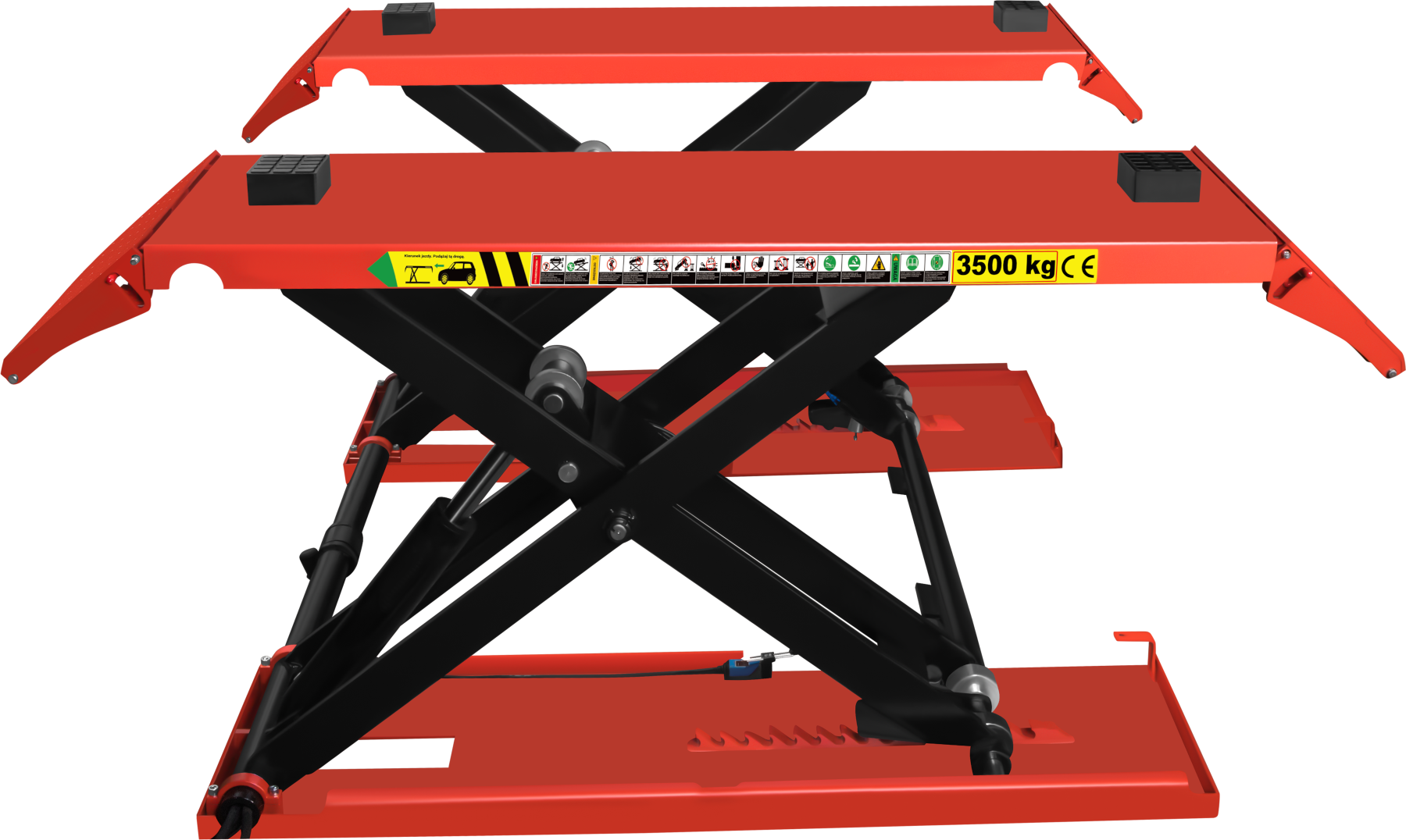

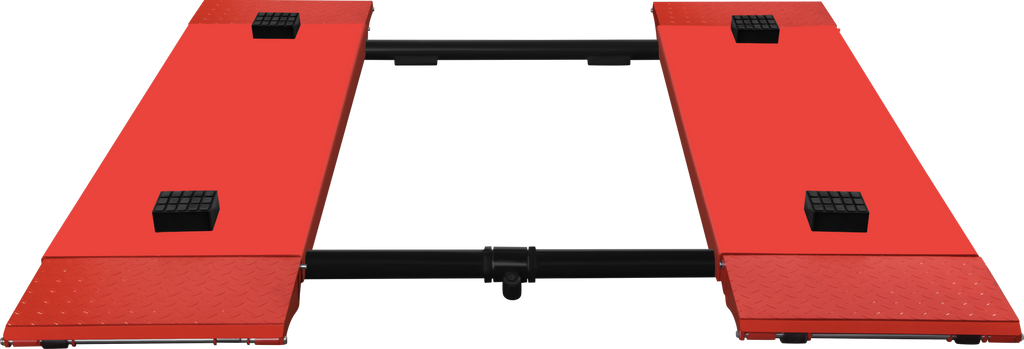

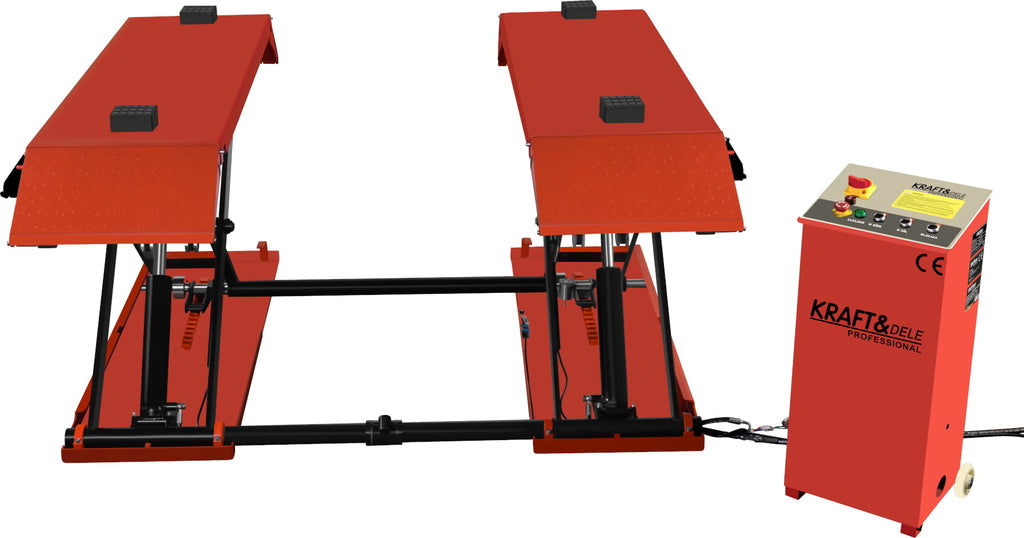

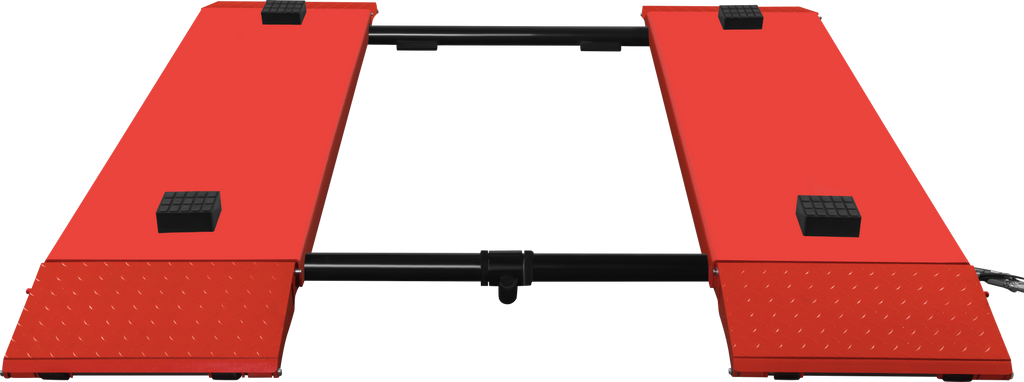

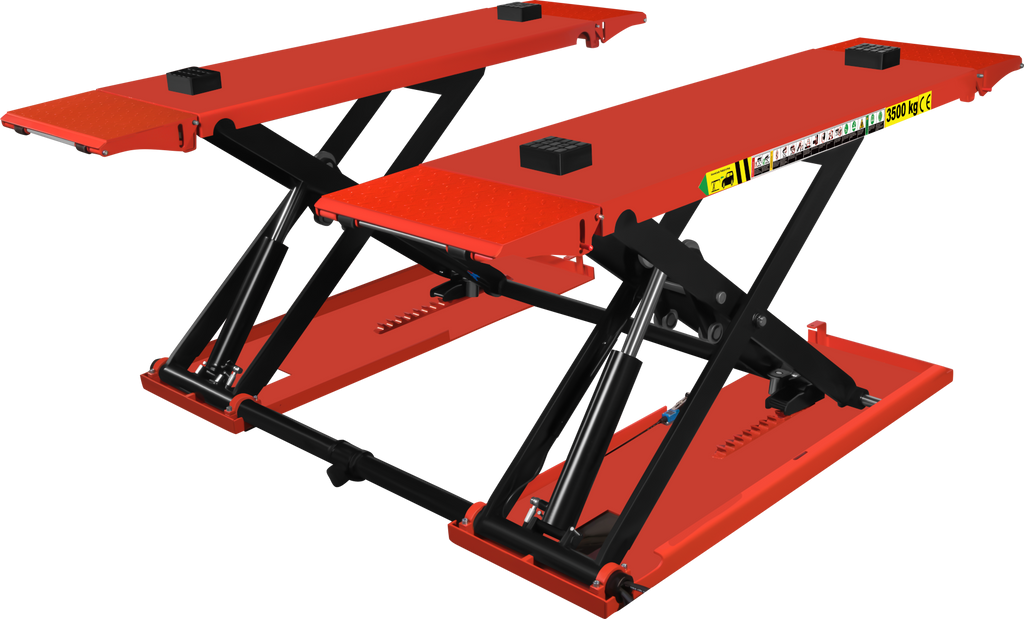

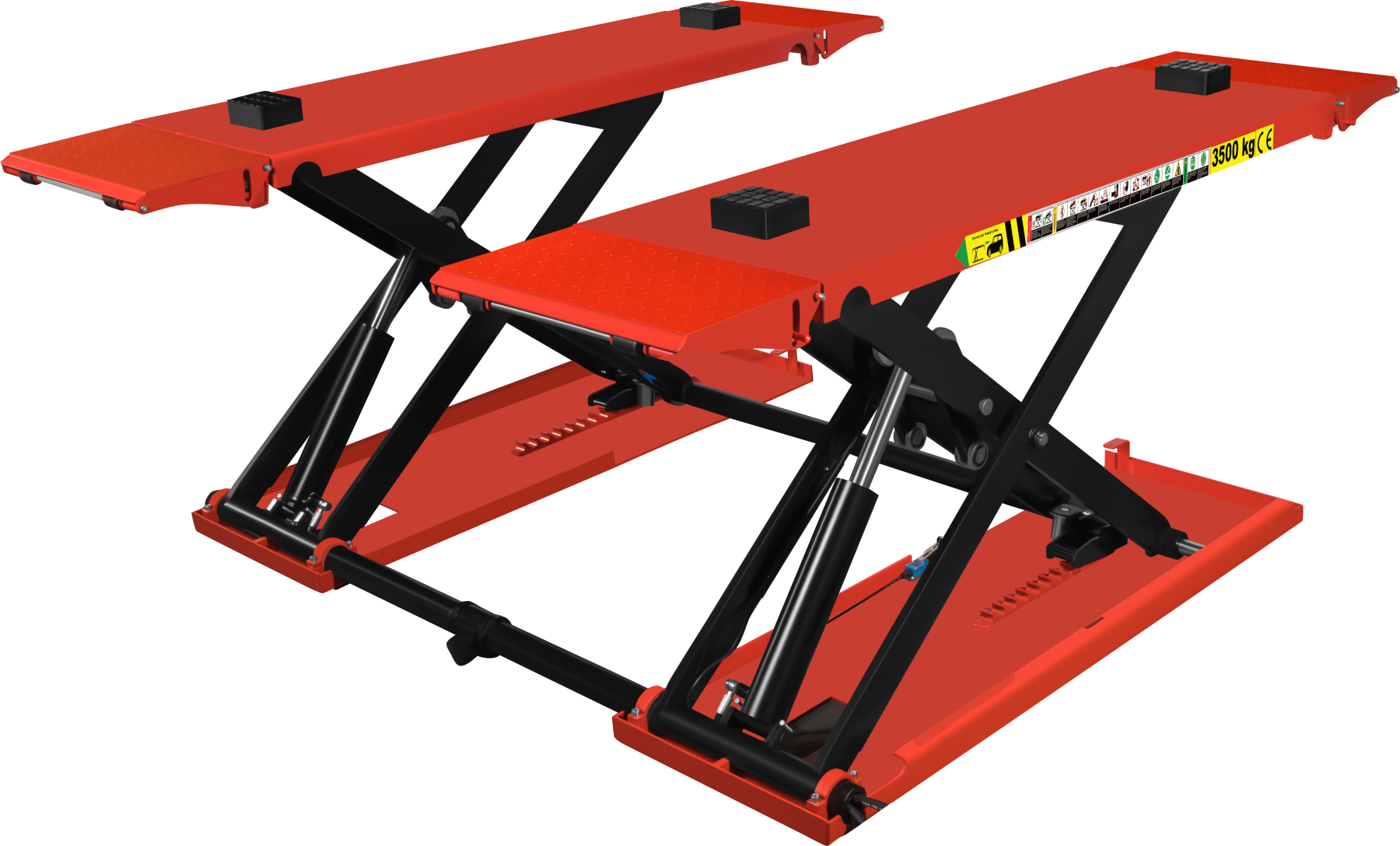

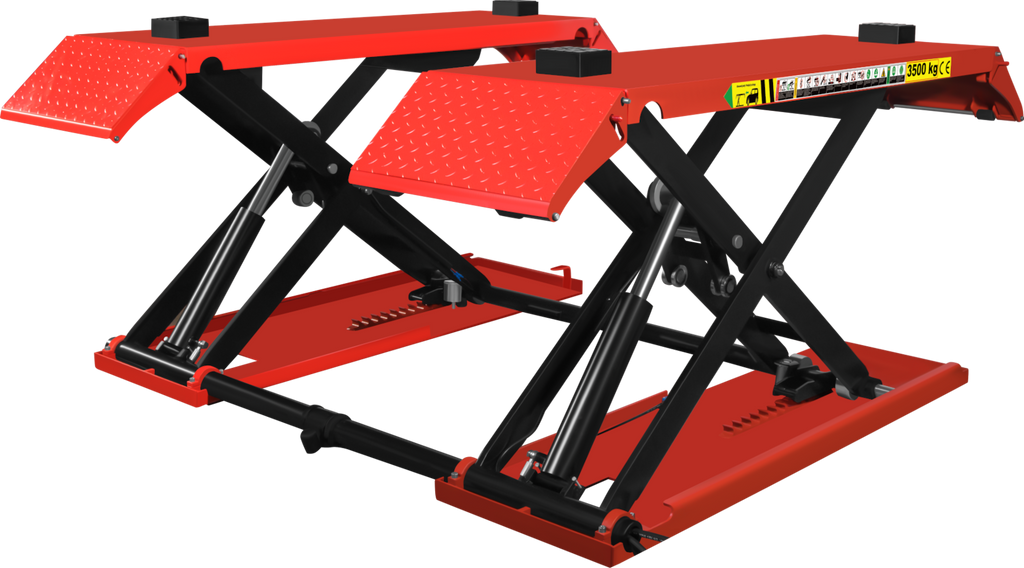

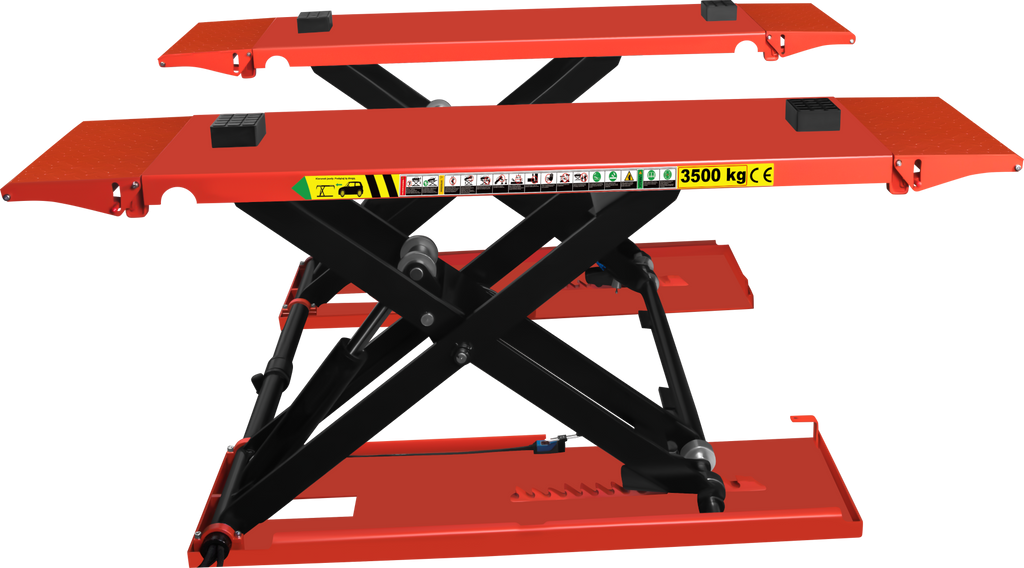

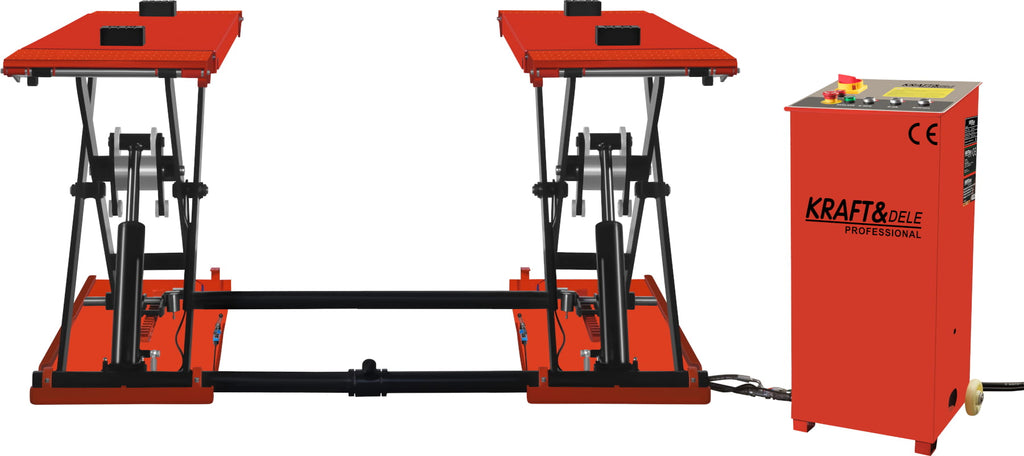

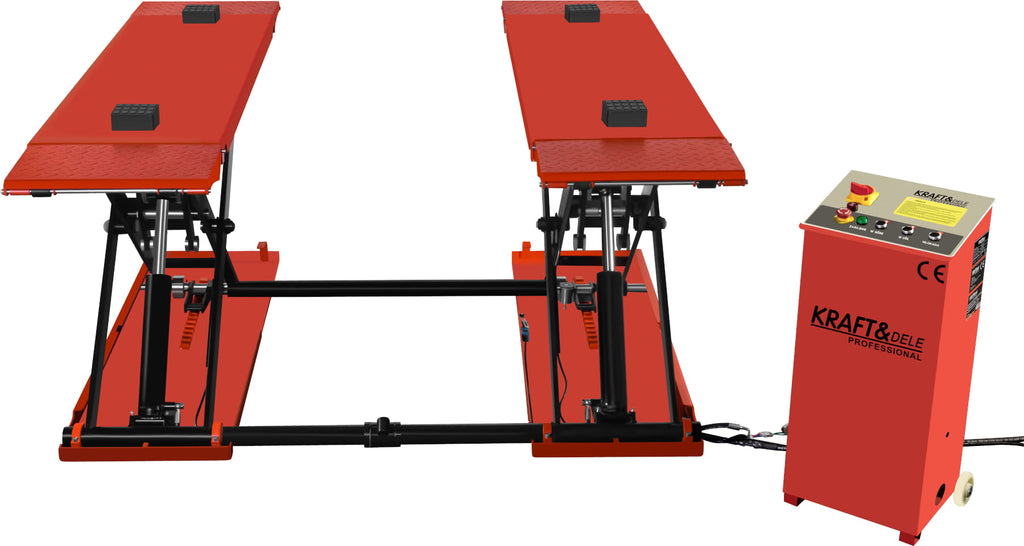

AUTOMATIC SCISSOR LIFT 400V KD5821 The professional scissor lift KD5821 by KRAFT&DELE is a reliable solution designed for intensive, daily work in car workshops, service centers, and diagnostic stations. The three-phase 400V power supply ensures high efficiency and smooth operation even under heavy load. KD5821 is equipment that combines high work quality, durability, and functionality expected in a professional workshop environment. PRODUCT FEATURES: ideal for passenger cars and delivery vehicles ✅ Electro-hydraulic drive powered by three-phase 400V ✅ Low-profile design enabling servicing of cars with low clearance ✅ Includes a practical transport lever with two wheels for moving the lift around the workshop protect the vehicle’s undercarriage from scratches ✅ Ergonomic control panel facilitating operation ✅ High work quality ✅ Resistant to harsh conditions operating temperature range from -25°C to +55°C TECHNICAL DATA: ⚙ Model KD5821 ⚙ Power supply 400V / 50Hz ⚙ Lifting time 50 s ⚙ Lowering time 40 s ⚙ Operating temperature range -25°C to +55°C PRODUCT CONTENT: ✅ Scissor lift KD5821 ✅ Control unit ✅ Transport lever Scissor lift; car lift; workshop lift; 3500kg lift; 400V scissor lift; electro-hydraulic lift; workshop lift; passenger car lift; delivery vehicle lift; KD5821;

Specifications

• The solid, heavy-duty construction combined with a precise electro-hydraulic drive guarantees stable and safe lifting of vehicles weighing up to 3500 kg.
• The low-profile design allows servicing of cars with low ground clearance, and the fast lifting time to a height of 1200 mm significantly speeds up service tasks.
• ✅ Load capacity up to 3500 kg
• ✅ Lifting height up to 1200 mm in just 50 seconds
• noise level below 70 dB
• ⚙ Load capacity 3500 kg

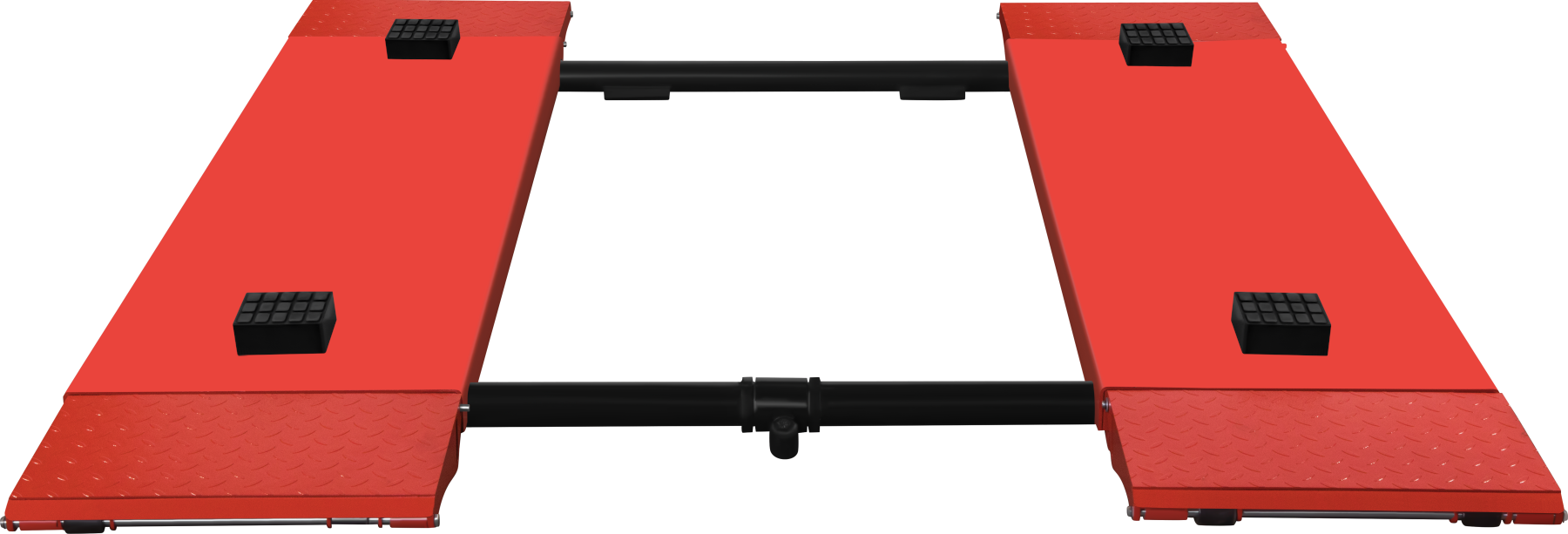

• ⚙ Minimum height 110 mm
• ⚙ Maximum lifting height 1200 mm
• ⚙ Platform length 1560–2145 mm (adjustable)
• ⚙ Total width 1910 mm
• ⚙ Distance between platforms 850 mm
• ⚙ Gross weight 625 kg
• ⚙ Noise level < 70 dB

What's included

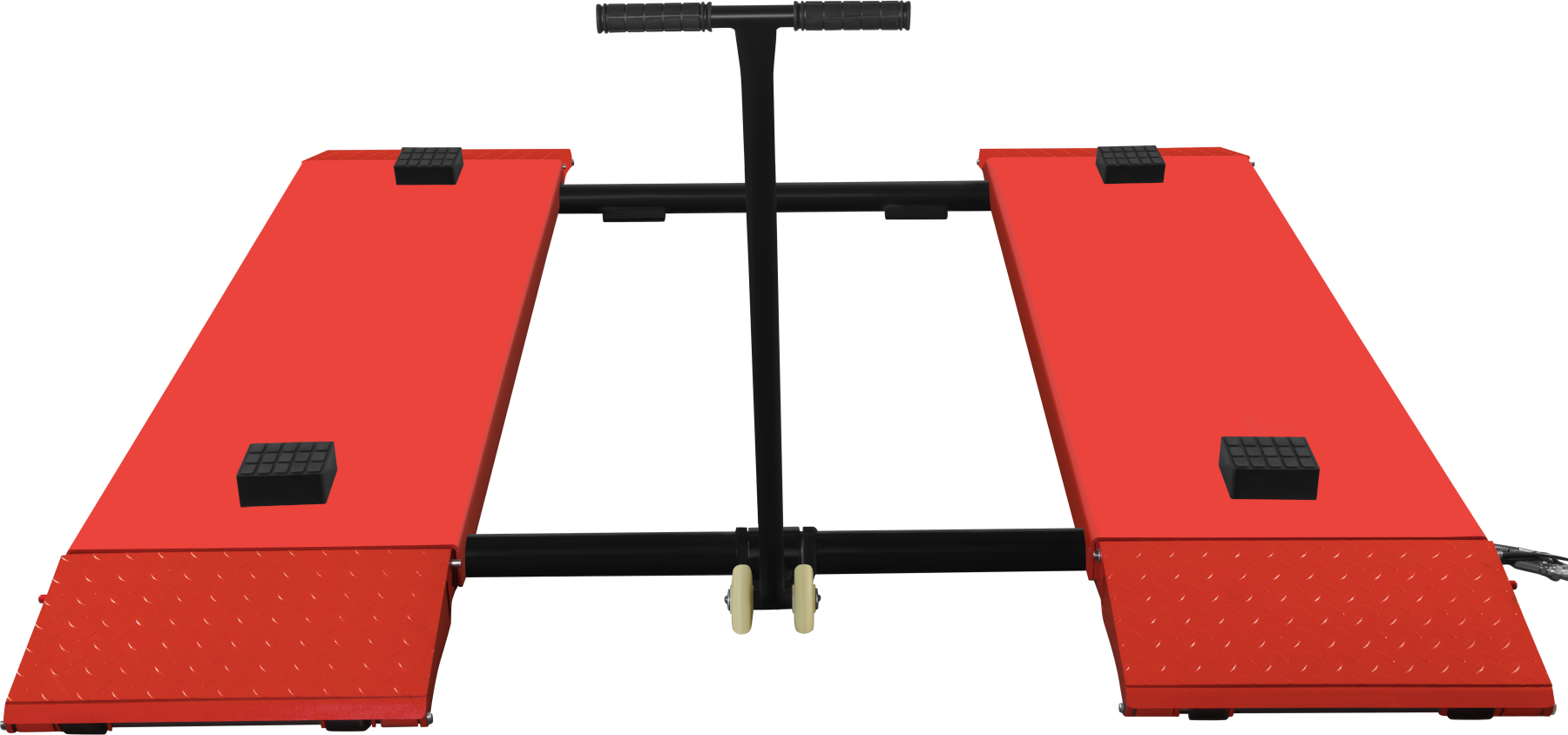

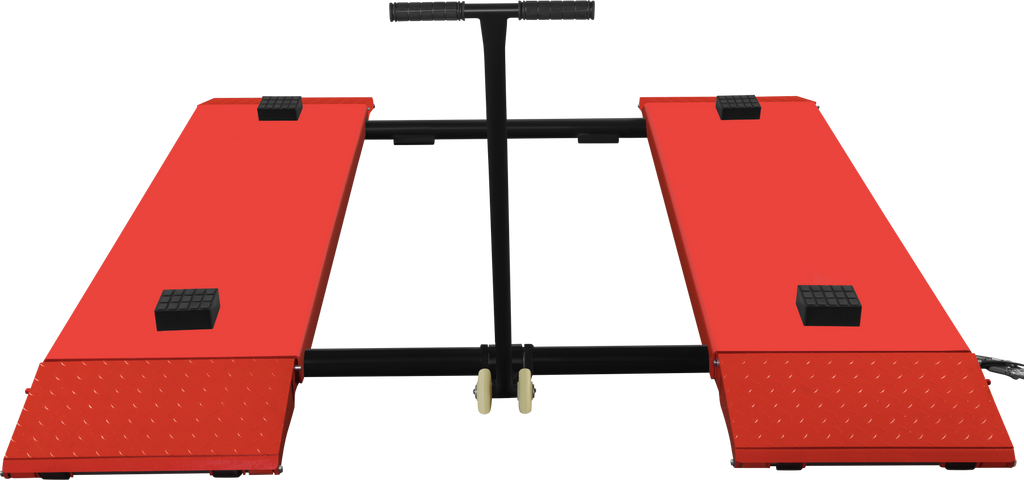

• An additional advantage is the easy mobility of the lift around the workshop thanks to the included transport lever with wheels.
• ✅ Rubber blocks included
• ✅ 4x rubber blocks
• ✅ Original packaging
• ✅ User manual in Polish
• ✅ 12-month warranty

Notes

Safety locks, an ergonomic control panel, and rubber blocks protecting the vehicle’s undercarriage increase comfort and safety during use. ✅ Stable and safe scissor construction with safety lock
